QL2FRSFW1322CH combination FRS/GMRS transceiver - tx portion

Safety Information For GMRS UNIT Your wireless handheld portable transceiver contains a low power transmitter. When the Push-to Talk(PTT) button is pushed it sends out radio frequency (RF) signals. T his device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure gui delines with safety levels for hand-held wireless devices. Congratulations on your selection of a quality BellSouth product. With proper care and adherence to the set-up and user instructions in this Owner’s Manual, this unit will provide you with years of trouble-free service. BellSouth is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 The FW13 is the newest generation in personal two-way communications. The FW13 is a lightweight, compact two-way communication device that can be used to communicate with family or friends at parks, shopping malls, sporting events, concerts – any indoor or outdoor activity. Here are some of the features of this new two-way communicator: • Wrist Watch Style with Adjustable Band • 22 GMRS Channels • Up to 1.5 Mile Range • Auto Squelch • Auto Battery Saving • Internal VOX • Channel Scan • 12 Hour AM/PM Time Clock • Backlit LCD Display • Lithium Ion Battery Power Source Please read this Owner’s Manual carefully to get the most out of your TWO-WAY COMMUNICATOR. NOTE : The maximum range will vary depending on terrain and environment. Range will be greater in open fields. While range is shorter within and around buildings or large structures. This unit may not ensure privacy of communication. 1. Channel Number (1~22) – Shows the current channel 2. Transmit Indicator (TX) – Indicates when the unit is transmitting 3. Receive Indicator (RX) – Indicates when the unit is receiving a transmission 4. Volume Selection (8 Bars) – Shows the current volume setting 5. Call Tone Transmission (CALL) – Indicates when the unit is paging 6. Low Battery Level indicator - Indicates when battery level is low or during charging the battery 7. VOX – Indicates when unit is in VOX mode 8. 12 Hour Time Clock (12:00) FEATURES DISPLAYS 1 2 3 4 5 6 7 8 9. Power / Menu (Multi Function) – Press and hold to turn ON/OFF the unit. Momentary press will enter the Menu and Clock setting. 10. PTT / Call (Multi Function) – Press and hold to transmit voice communication. Press twice to transmit call tone. 11. Up – Used to adjust volume level (default), change channel and clock adjustment (in Menu) 12. Down – Used to adjust volume level (default), change channel and clock adjustment (in Menu) 13. Scan – Press to enter Channel Scan. 14. MIC – Built-in microphone 15. Speaker – Built-in speaker 16. Antenna Your FW13 radio uses Lithium-Ion Battery (included) to power. To install the batteries: 1. Release the Battery Compartment Cover Latch located on the rear side of the unit, and remove the Battery Compartment Cover from the Battery Compartment. 2. Install the Lithium-Ion Battery into the Battery Compartment. Be certain to follow the correct battery orientation in the compartment. Installing the batteries incorrectly will prevent the unit from operating. 3. Replace the Battery Compartment Cover and lock the Battery Compartment Cover Latch into position. BUTTONS and CONTROLS 16 15 14 13 12 11 10 9 BATTERY INSTALLATION CAUTION : To reduce the risk of fire or personal injury, use only the battery listed in the instruction book. The FW13 has a built in Power Saver feature for maximum battery life. But when the FW13 is not being used, conserve battery power by pressing the Power Button to OFF. Remove the battery if the unit will not be used for a long period of time. ! Battery Compartment Cover Latch Battery Compartment Cover This unit has a Low Battery Level icon, which will start to blink once it detects a low battery level. In normal operation, the Low Battery Level icon will not appear on the display. If the unit is not switched off (Watch Mode) during low battery level state then the unit will automatically switch to Watch Mode after five (5) minutes. The battery should be immediately recharged at this time. However, the unit will switch to Stop Mode (unit is OFF) after 1 hour if the battery is still not recharged. Should the unit go into Stop Mode, the unit will not operate until the battery has been recharged. Your FW13 radio comes with an A/C Adapter Charger to charge your Lithium-Ion batteries. To charge the batteries: 1. Lift the Headset / Charger Jack Cover located in the side of your unit. 2. Connect the A/C Adapter Charger into an A/C Wall outlet 2. Insert the A/C Adapter Charger into the Headset / Charger Jack. During charging, the Low Battery Level icon will appear on the display, and will disappear once the battery is fully charged. NOTE : The FW13 have internal battery protection, however during long term storage it is strongly recommended that you recharge the battery every 6 months or remove the battery if the unit will not be used for a long period of time. 1. Installing the battery will automatically turn-on the unit and proceed to Watch Mode. 2. Enter to Radio Mode by pressing and holding the Power button for around 3 seconds. To exit Radio Mode, press the Power button for around 3 seconds. 2. Check the battery condition on the display. 3. Adjust the volume to a comfortable level by pressing the UP or DOWN button (default). Navigating through the Menu To access the advance feature of the FW-13, your radio has a Menu two (2) function: Watch Mode (Default) Radio Mode USING THE RADIO Channel Hours (Watch) Minutes (Watch) Menu 1~22 12hr am/ 12hr pm 0~59 VOX CHARGING THE BATTERY Headset/Charger Jack Cover Menu On/Off BATTERY LEVEL AND LOW BATTERY OPERATION WATCH Mode 1. Your radio will automatically go to Watch Mode once the batteries are installed, only the watch …

Text truncated - open the document above for the full version.

FCC MARKING/LABEL FOR PART 15 FCC ID : QL2FRSFW13 Brand Name : XACT COMMUNICATION MODEL NO.: X2X THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

GMRS X2X TECHNICAL DESCRIPTION Page 1 August 18, 2002 A). GENERAL DESCRIPTION The X2X GMRS radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed GMRS. This model also features a CTCSS system with 38 pre-defined, user selectable sub-audible tones for channel quieting. The useable range, while dependent upon terrain and other radio propagation principles, is typically 1.5 miles. The X2X uses the transmit power allowed to help ensure the communication range. Features include: 22 GMRS Channels, Digital Receive Volume Control, Page and LCD Display. The unit is equipped with an external Headset option connector. 1 Lithium Ion battery that are readily available in Bell south retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 10 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit Combo1 (Panasonic An6311 or equipvalent). The frequency of operation of the GMRS voltage controlled oscillator (VCO), composed of Q301 and Q302 operating in cascade is phase locked to a voltage controlled crystal reference (VCXO) operating at 20.95MHz (X202). The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4MHz) in the receive mode. The crystal reference frequency is shared with the 2 nd LO of 20.95MHz. C). TRANSMITTER CIRCUITS The transmitter amplifies the 0 dBm signal from the VCO to approximately 27 dBm that is fed to the antenna. The transmitter is a three stage amplifier composed of Q1,2,3,4 and Q11. The first two stages are operated class A and the final is operated class B in full saturation to help prevent unwanted amplitude modulation. The fundamental transmit signal is fed through an elliptical low pass filter (5-pole, 2 zero) in order to suppress the harmonics to below –60 dBc. The desired frequency modulation of the carrier is accomplished by modulating the current in the VCO directly with the microphone audio signal. The microphone audio is conditioned with a three-pole high pass filter at 300 Hz (Combo1, Mic Amp.), a hard clipper circuit (Combo1) to limit maximum deviation to +/- 2.5 kHz and a three-pole low pass or splatter filter at 2.8 kHz GMRS X2X TECHNICAL DESCRIPTION Page 2 (Combo1, SP amp.). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q6) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Band Pass filter (C41,L16,C43,L17,C15,L36) with pass-band of 460 to 470 MHz and stopband attenuation of 10 dB. The filtered receive signal is one input to the 1 st mixer (Q8), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a X-tal filter centered at 21.4MHz with a bandwidth of 3.75KHz. The filtered 1 st IF is then amplified by Combo1 and fed to the 2 nd mixer. The 2 nd LO (20.95 MHz) is generated by VCXO that is the reference frequency for the PLL of Combo1. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 21.4 MHz X-tal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is highpass filtered from 300 (Combo1) and amplified to provide 200mW of audio power (IC2). A squelch circuit is provided (Combo1 pins 29 through 30) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 12 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D1 and D2 are both turned on (representing less than 0.7 ohms). D2 allows the transmit signal to pass to the antenna and D1 shorts one leg of a T matching network (L3, L15 and C4) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D1 and D2 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D1. F). RADIO CONTROL CIRCUIT A microprocessor (U1) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad for channel selection, receive volume, and page. Pressing the PTT switch instructs U1 to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3-wire serial link to the PLL of Combo1, turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the call GMRS X2X TECHNICAL DESCRIPTION Page 3 switch causes the microcontroller to transmit a warbling tone for approximately 5 seconds on the current channel selected that is used to notify another person with GMRS radio that you wish to communicate. Pressing the channel Up/Down buttons (active in receive mode only) instructs U1 to increment or …

Text truncated - open the document above for the full version.

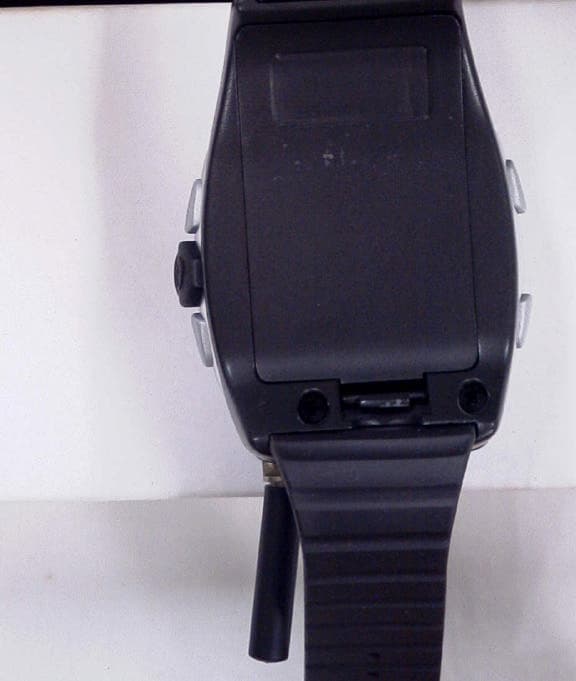

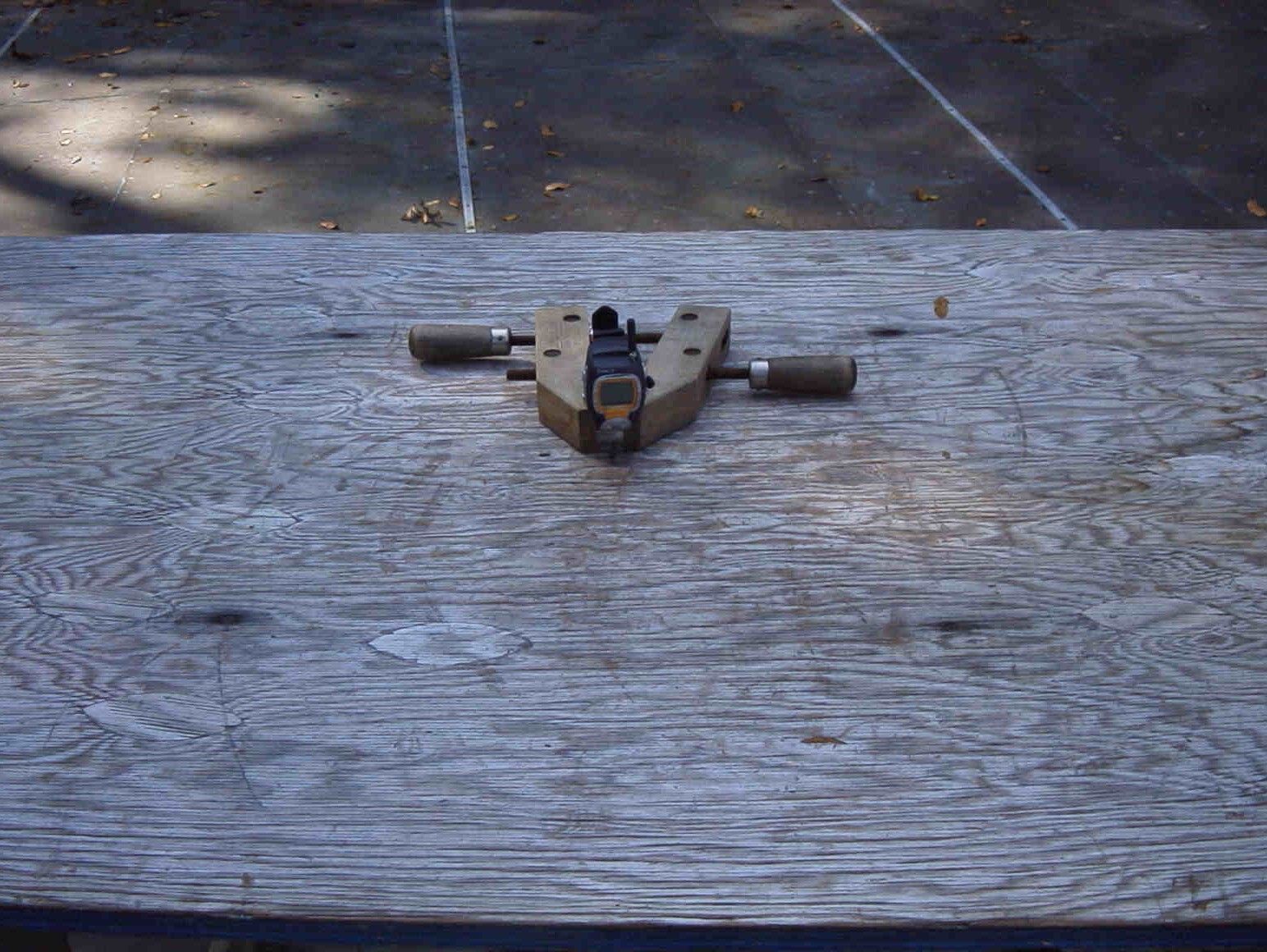

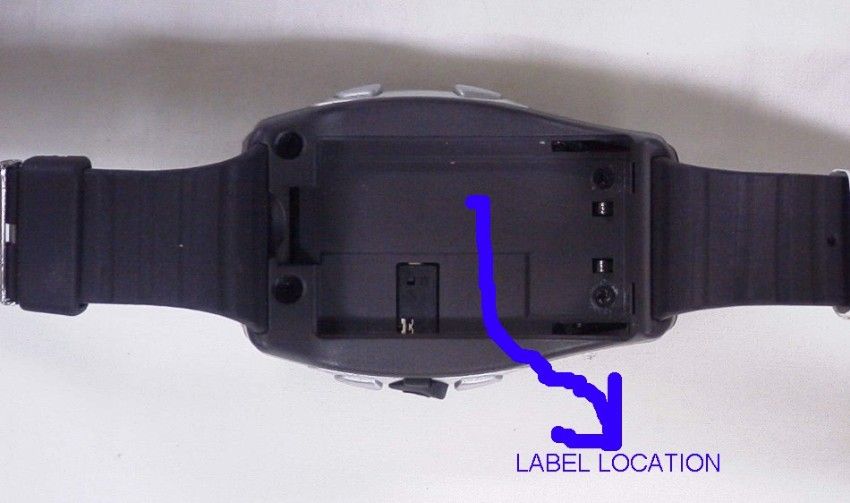

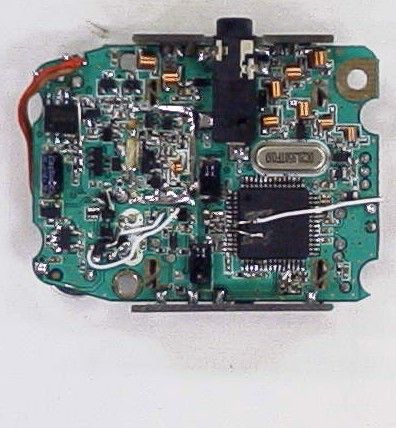

APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT PAGE 4......MODULATION CHARACTERISTICS PAGE 5......AUDIO FREQUENCY RESPONSE GRAPH PAGE 6......MODULATION LIMITING GRAPH – 300Hz PAGE 7......MODULATON LIMITING GRAPH – 1000Hz PAGE 8......MODULATION LIMITING GRAPH – 2500Hz PAGE 9......AUDIO LOW PASS FILTER GRAPH PAGE 10.....OCCUPIED BANDWIDTH PAGE 11.....OCCUPIED BANDWIDTH PLOT PAGE 12.....OCCUPIED BANDWIDTH PLOT - CW PAGE 13.....SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 14.....UNWANTED RADIATION PAGE 15.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 16.....FREQUENCY STABILITY PAGE 17-20..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TUNING PROCEDURE EXHIBIT 10........TEST SET UP PHOTO APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc Page 1of 20 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) GLOBAL LINK CORPORATION LIMITED will manufacture the FCCID: QL2FRSFW13 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. GLOBAL LINK CORPORATION LIMITED ROOM 13B, CHINA MINMETALS TOWER 79 CHATHAM ROAD SOUTH TSIM SHA TSUI, KOWLOON, HONG KONG 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 11K0F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2500K Bn = 2(3000)+2(2500) = 11.0K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 2.10311c)(6)(7) The Maximum Output Power Rating: GMRS - .11 Watts FRS - .1 Watts FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc Page 2of 20 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR POWER SETTING INPUT POWER: (3.7V)(.210A) = .78 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT #9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc Page 3of 20 95.639 Power Output shall not exceed 50.0 Watts effective radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1046(a) RF power is measured by the substitution method as outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: GMRS: 0.11 Watts ERP FRS: 0.1 Watts ERP 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc Page 4of 20 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Page 5 of report. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Pages 6,7 & 8 of report. 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5 Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater than the attenuation at 1 kHz. See Page 9 of report. APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\873KT2\873KT2TestReport.doc Page 5of 20 AUDIO FREQUENCY RESPONSE PLOT Global Link Corp. LTD. FRSFW13 -55 -50 -45 -40 -35 -30 -25 -20 100100010000 Frequency dBmV audio response APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2FRSFW13 REPORT #: G/GlobalLink_QL2\8…

Text truncated - open the document above for the full version.
