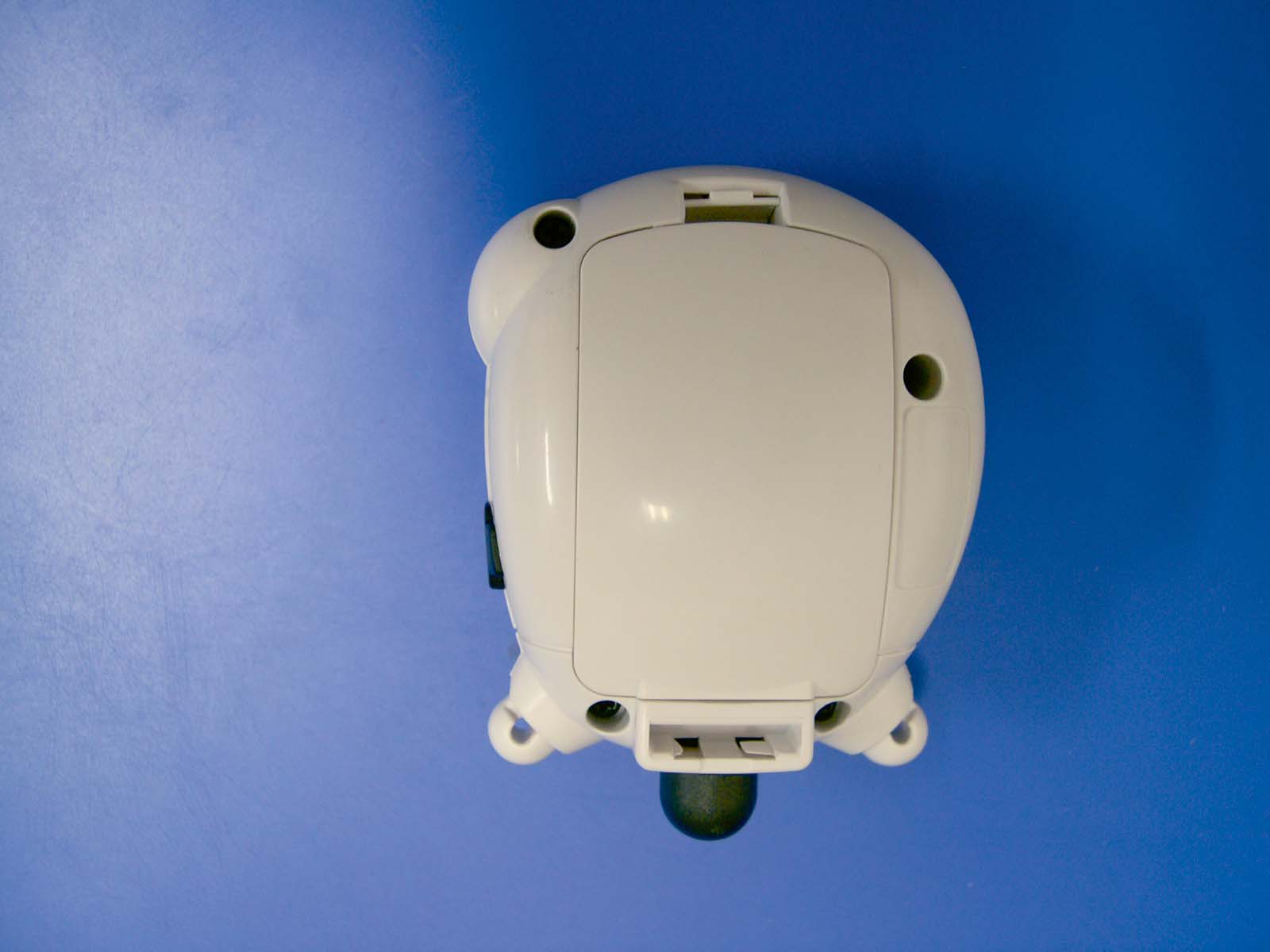

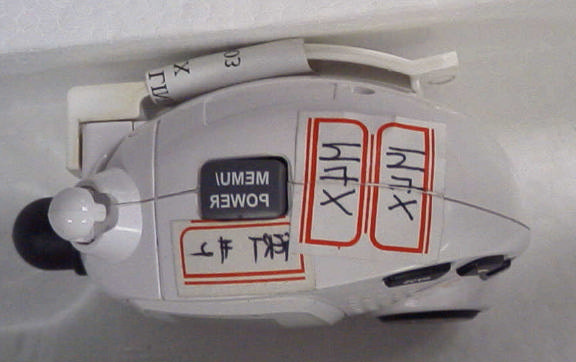

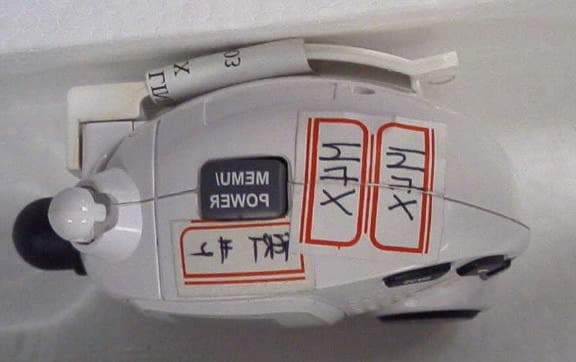

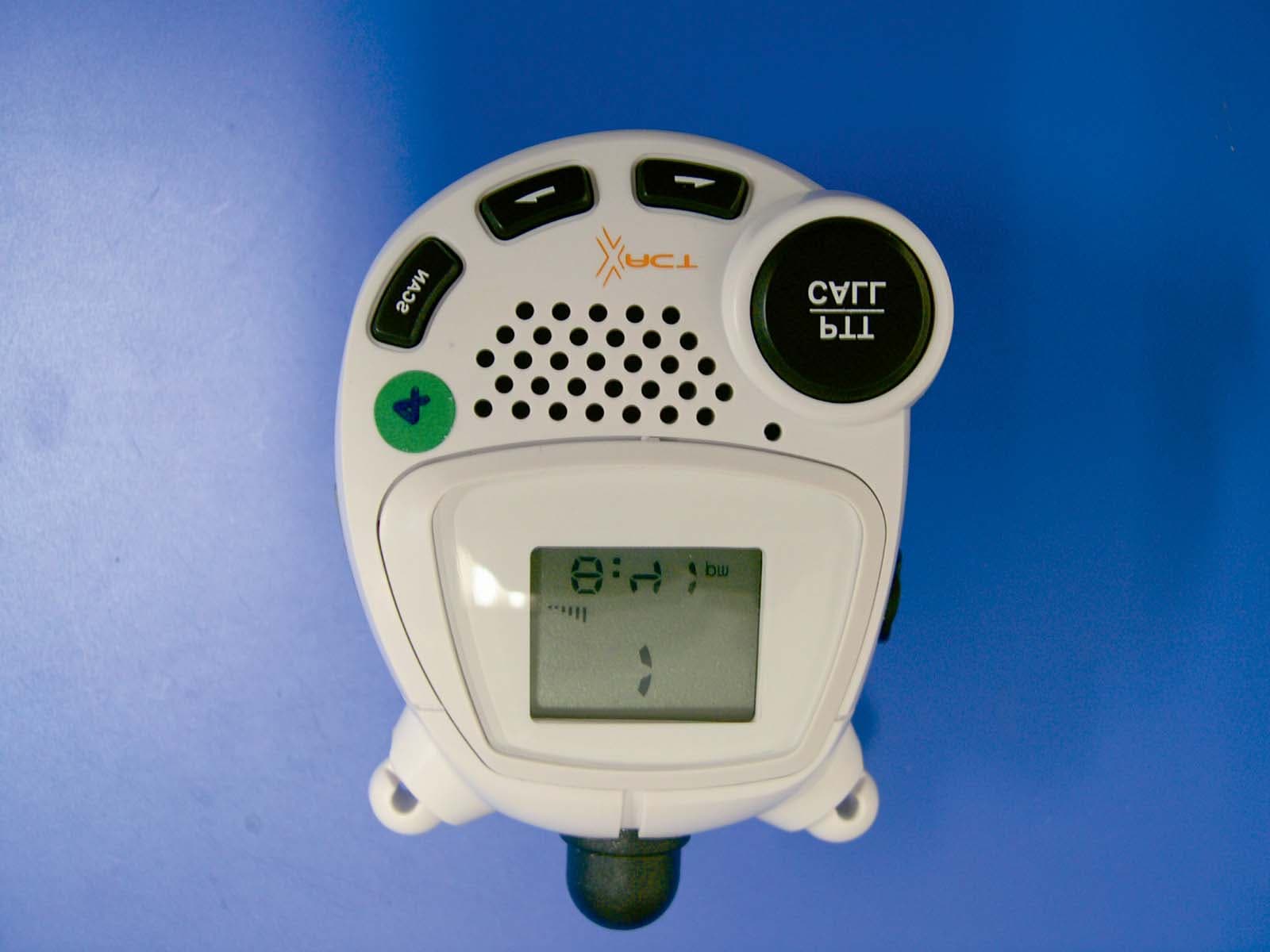

QL2M4X22 CH Combination FRS/ GMRS Transceiver

Congratulations on your selection of a quality XACT product. With proper care and adherence to the set-up and user instructions in this Owner’s Manual, this unit will provide you with years of trouble-free service. XACT is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 The M4X is the newest generation in personal two-way communications. The M4X is a lightweight, compact two-way communication device that can be used to communicate with family or friends at parks, shopping malls, sporting events, concerts – any indoor or outdoor activity. Here are some of the features of this new two-way COMMUNICATOR: • Stop Watch Style with Detachable Neck Cord • 22 FRS/GMRS Channels • Up to 2.0 Mile Range • Auto Squelch • Auto Battery Saving • Internal VOX • Channel Scan • 12 Hour AM/PM Time Clock • Backlit LCD Display on COMMUNICATOR Mode • Uses 3 AAA size Alkaline battery with Ni-MH battery capability (not included) Please read this Owner’s Manual carefully to get the most out of your TWO-WAY COMMUNICATOR. NOTE: The maximum range will vary depending on terrain and environment. Range will be greater in open fields. While range is shorter within and around buildings or large structures. This unit may not ensure privacy of communication. Safety Information : Your wireless hand-held portable transceiver contains a low power transmitter. When the Push-to-Talk (PTT) key is pushed it sends out COMMUNICATOR frequency (RF) signals. This devise is authorized to operate at a duty factor not to exceed 50%. In August 1996, The Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important Note: To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and ANTENNA at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed away from the face. If you wear the handset on your body while using the headset accessory, use only the manufacturer’s supplied BELT CLIP for this product and ensure that the ANTENNA is at least 1 inch (2.5 centimeters) from your body when transmitting. Use only supplied ANTENNA. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FEATURES FCC NOTICE 1. Channel Number (1~22) – Shows the current channel 2. Transmit Indicator (TX) – Indicates when the unit is transmitting 3. Receive Indicator (RX) – Indicates when the unit is receiving a transmission 4. Volume Selection (8 Bars) – Shows the current volume setting 5. Call Tone Transmission (CALL) – Indicates when the unit is paging 6. Low Battery Level indicator - Indicates when battery level is low or during charging the battery 7. VOX – Indicates when unit is in VOX mode 8. 12 Hour Time Clock (12:00) 9. Power / Menu (Multi Function) – Press and hold to turn the COMMUNICATOR ON/OFF. Momentary press will enter the Menu and Clock setting. 10. PTT / Call (Multi Function) – Press and hold to transmit voice communication. Press twice in rapid action to transmit call tone. 11. Up – Used to adjust volume level (default), change channel and clock setting (in Menu) 12. Down – Used to adjust volume level (default), change channel and clock setting (in Menu) 13. Scan – Press to enter Channel Scan. 14. MIC – Built-in microphone 15. Speaker – Built-in speaker 16. Antenna DISPLAYS KEYS and CONTROLS 1 2 3 4 5 6 7 8 11 9 10 12 13 15 14 16 Your M4X COMMUNICATOR uses 3 AAA size Alkaline battery. To install the battery: 1. Release the Battery Compartment Cover Latch located on the rear side of the unit, and remove the Battery Compartment Cover from the Battery Compartment. 2. Install the batteries into the Battery Compartment. Be certain to follow the correct battery orientation in the compartment. Installing the batteries incorrectly will prevent the unit from operating. 3. Replace the Battery Compartment Cover and lock the Battery Compartment Cover Latch into position. In Watch and COMMUNICATOR Mode the Low Battery Level icon will not appear on the display unless the unit detects that the battery is low. The unit has a Low Battery Level icon which will blink when it detects a low battery level in COMMUNICATOR and in Watch Mode. When the unit is in COMMUNICATOR Mode or Watch Mode and the battery level is low the icon will blink. You should replace the batteries by this time to continue operation. Your COMMUNICATOR has the capability to use Ni-MH batteries, if you are using Ni-MH batteries you should recharge the batteries when the level becomes low. You can recharge the batteries thru the Headset / Charger jack found at the side of the unit. Your M4X COMMUNICATOR comes with an A/C Adapter Charger to charge your NiMH batteries. To charge the batteries: 1. Lift the Headset / Charger Jack Cover located in the side of your unit. 2. Connect the A/C Adapter Charger into an A/C Wall outlet 2. Insert the A/C Adapter Charger into the Headset / Charger Jack. During charging, the Low Battery Level icon will disappear on the display once the battery level is above the Low Level limit. BATTERY INSTALLATION CAUTION: To reduce the risk of fire or personal injury, use only the battery listed in the instruction book. The M4X has a built in Power Saver feature for maximum battery life. But when the M4X is not being used, conserve battery power by pressing the Power Key to OFF. Remove the battery if the unit will not be used for a long period of time. ! Battery Compartment Cover Latch Battery Compartment CHARGING THE BATTERY Headset/Charge…

Text truncated - open the document above for the full version.

Gert TECHNICAL DESCRIPTION Page 3 switch causes the microcontroller to transmit a warbling tone for approximately 5 seconds on the current channel selected that is used to notify another person with GMRS radio that you wish to communicate. Pressing the channel Up/Down buttons (active in receive mode only) instructs U1 to increment or decrement respectively the channel frequency by one channel from the channel previously selected. In receive mode the microcontroller periodically switches on the VCO and receiver power and checks for a valid received signal by monitoring the squelch circuit output. If a valid signal is present, the audio output is turned on and receive power is maintained for the duration of the valid signal. If the valid signal is removed or no valid signal was present, the microcontroller removes power from the VCO and receiver, waits for approximately 4 second and then checks again. This periodic cycling of the power to the receiver circuits results in a much longer battery life vs. leaving power on continuously. The total period of the cycling is selected such that the worst case delay in ‘seeing’ a valid receive signal is not disruptive to normal two-way voice communications. Gert TECHNICAL DESCRIPTION Page 2 (Combo1, SP amp.). The low pass filter insures that the occupied bandwidth of the FM modulated signal meets FCC requirements under all input conditions. D). RECEIVER CIRCUITS The received signal from the antenna is band limited to 600 Mhz by the transmitter harmonic filter. The desired signal is fed to a low noise amplifier (LNA – Q6) centered from 460 to 470 MHz that provides approximately 10 dB of gain. The output of the LNA is filtered with a Band Pass filter (C41,L16,C43,L17,C15,L36) with pass-band of 460 to 470 MHz and stopband attenuation of 10 dB. The filtered receive signal is one input to the 1 st mixer (Q8), the other mixer input (1 st LO) is the output of the VCO at the desired channel frequency minus 21.4MHz. The output of the mixer is tuned to the 1 st IF of 21.4 MHz. The 1 st IF is transformer coupled for impedance matching to a X-tal filter centered at 21.4MHz with a bandwidth of 3.75KHz. The filtered 1 st IF is then amplified by Combo1 and fed to the 2 nd mixer. The 2 nd LO (20.95 MHz) is generated by VCXO that is the reference frequency for the PLL of Combo1. The 2 nd mixer output of 450 kHz is filtered through a 4 section ceramic filter that in combination with the 21.4 MHz X-tal filter provides approximately 50 dB of adjacent channel attenuation. The 450 kHz 2 nd IF is then amplified, limited and fed to a quadrature detector for FM demodulation. The resulting audio output signal is highpass filtered from 300 (Combo1) and amplified to provide 200mW of audio power (IC2). A squelch circuit is provided (Combo1 pins 29 through 30) to mute the receiver noise under low signal conditions. The squelch circuit amplifies and detects noise in a narrow bandwidth at approximately 5 kHz. When the detected noise exceeds a threshold set to trigger at approximately 12 dB SINAD receive signal strength, the audio output is muted. E). TRANSMIT/RECEIVE SWITCH When the radio is in the transmit mode, pin diode switches D1 and D2 are both turned on (representing less than 0.7 ohms). D2 allows the transmit signal to pass to the antenna and D1 shorts one leg of a T matching network (L3, L15 and C4) to ground in the receive path. This results in a parallel tuned circuit high impedance being presented to the transmit signal so that the receive path does not load the transmit signal. In the receive mode, both D1 and D2 are off, resulting in the antenna signal being coupled into the receive LNA through the 50 ohm T matching network and the unwanted load of the transmit final amplifier is reduced to less than 1 pF by D1. F). RADIO CONTROL CIRCUIT A microprocessor (U1) is used to control the transceiver. User stimuli is provided through a tack switch for PTT (push to talk), along with the keypad for channel selection, receive volume, and page. Pressing the PTT switch instructs U1 to switch to the transmit mode. This is accomplished by loading the proper channel counter information through a 3-wire serial link to the PLL of Combo1, turning on power to the PLL and VCO, microphone and transmit audio circuits and the transmit RF amplifiers. Pressing the call Gert TECHNICAL DESCRIPTION Page 1 Feb 27, 2003 A). GENERAL DESCRIPTION The Gert GMRS radio is a self-contained transceiver unit with integral antenna intended for use as a general communication tool. It is designed to operate on all 22 channels allocated by the FCC for the licensed GMRS. The useable range, while dependent upon terrain and other radio propagation principles, is typically two miles. The Gert uses the maximum transmit power allowed to help ensure the maximum communication range. Features include: 22 GMRS Channels, Digital Receive Volume Control, Page and LCD Display. The unit is equipped with an external Headset option connector. 3 Alkaline battery that are readily available in market retail outlets supply operating power. An automatic power savings feature allows the typical standby battery life to extend to more than 7 days. B). FREQUENCY DETERMINING CIRCUITS The fundamental frequency for both the transmitter and the receiver local oscillators are controlled by a phase lock loop (PLL) circuit Combo1 (Panasonic AN6311 or equipvalent). The frequency of operation of the GMRS voltage controlled oscillator (VCO), composed of Q301 and Q302 operating in cascade is phase locked to a voltage controlled crystal reference (VCXO) operating at 20.95MHz (X202). The VCO is locked to the fundamental of the transmit signal in the transmit mode and is locked to the receive 1 st LO (Fundamental channel frequency minus 21.4MHz) in the receive mode. The crystal reference frequency is shared with the 2 nd LO of 20.95MHz. C). TRANSMITTER CIRCUITS The transmit ter amplifies the 0 dBm signal from the VCO to approximately 19.2 dBm that i…

Text truncated - open the document above for the full version.

TRANSMITTER ALIGNMENT METHOD Gert 1. Frequency Setting A. Connect a frequency counter or communications service monitor capable of at least five watt RF. B. Press the PTT switch. C. Adjust CT201 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. CT201 is located on the left side of 20.95MHz X-tal. 2. Output Power Alignment A. Connect a communications service monitor or a wattmeter and dummy load to the antenna connector. B. Press the PTT switch. C. Adjust air coil (L6) by spreading or de-spreading, to achieve maximum power, not to exceed 0.083W ERP. Note: Normally, it is not necessary. 3. Deviation Adjustment A. Connect an audio generator with 10uF coupling capacitor to the microphone jack. The audio frequency should be set at 1KHz with a level of 200mV. B. Connect an FM deviation meter or communications service monitor to the antenna connector. Set the monitor to read peak deviation. C. Press the PTT switch. D. Adjust RV2 for +/- 2.3KHz deviation. RV2 is located the below side of the VCO shield can.

SEMICONDUCTOR DESIGNATIONS AND FUNCTIONS Gert Designator Reference number Description COMBO1 AN6311 One chip IC (include PLL, IF, Audio amplifier) D1 KDS114 RX,TX RF Switch D2 KDS114 RX,TX RF Switch D201 KDS114 Reset for CPU D25 KDS113 Charging path D301 KDS114 VCO RX TX switch D4 KDS112 VCO B+ supply IC2 UTC34119 Speaker Amplifier IC3 XC6201B302MR 3V Regulator LED1 SML210MT Backlit LED for LCD U1 W541C250 CPU Q1 DRF1601 TX PA Q2 KRC404E Speaker Vcc enable Q4 BFQ67W TX driver Q6 2SC4226 RX Frontend Q7 KTA2014E PTT switch Q8 2SC4226 I’st Mixer Q10 KRA306E RX B+ Q11 BFQ67W TX pre-driver Q13 KRA306E TX B+ Q15 KRC404E VOX switch Q16 KRA226S Speaker Amplifier B+ Q18 KRA226S Main B+ switch Q19 KRC405E VCO RX/TX Switch Q301 2SC4083 VCO Q302 2SC4083 VCO

APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X TEST REPORT: PAGE 1......GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MOD. CHARACTERISTICS & AUDIO FREQUENCY RESPONSE GRAPH PAGE 4......MODULATION LIMITING GRAPH – 300 Hz PAGE 5......MODULATION LIMITING GRAPH – 1000 Hz & 2500 Hz PAGE 6......AUDIO LOW PASS FILTER GRAPH PAGE 7......OCCUPIED BANDWIDTH PAGE 8......OCCUPIED BANDWIDTH PLOT PAGE 9......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10.....UNWANTED RADIATION – GMRS PAGE 11.....UNWANTED RADIATION - FRS PAGE 12.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 13.....FREQUENCY STABILITY PAGE 14-16..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........THEORY OF OPERATION EXHIBIT 9.........ALIGNMENT PROCEDURE EXHIBIT 10........PARTS LIST EXHIBIT 11........TEST SET UP PHOTO APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 1 of 16 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) GLOBAL LINK CORPORATION LIMITED will manufacture the FCCID: QL2M4X GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. GLOBAL LINK CORPORATION LIMITED ROOM 13B, CHINA MINMETALS TOWER 79 CHATHAM ROAD SOUTH TSIM SHA TSUI, KOWLOON, HONG KONG 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 1.75K Bn = 2(3000)+2(2250) = 10.5K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 4.5 VDC, and the transmitter properly adjusted the RF output measures: GMRS - .083 Watts FRS - .076 Watts APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 2 of 16 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (4.5VDC)(.600A) = 2.70 Watts FOR HIGH POWER SETTING INPUT POWER: (4.5VDC)(.600A) = 2.70 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 §2.2.1. APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 3 of 16 APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 4 of 16 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. AUDIO FREQUENCY RESPONSE PLOT Audio Frequency Response -25 -20 -15 -10 -5 0 5 100100010000 Frequency Hz Attenuation dB APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 5 of 16 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 2500 Hz. See Pages 4 and 5 of report. MODULATION LIMITING PLOT – 300 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 6 of 16 MODULATION LIMITING PLOT – 1000 Hz MODULATION LIMITING PLOT – 2500 Hz 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation 0 0.5 1 1.5 2 2.5 -90-80-70-60-50-40-30-20-10010 dBm Deviation APPLICANT: GLOBAL LINK CORPORATION LIMITED FCC ID: QL2M4X REPORT #: G/GlobalLink_QL2\304UT3\304UT3TestReport.doc Page 7 of 16 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5…
