QL5AC2012TX13TEMPERATURE TRANSMITTER

1 REMOTE UNIT Inserting batteries The remote unit uses two “AA” batteries. To install or replace the batteries, please follow these steps: 1. Remove kickstand base. 2. Unscrew the screw on the back of the compartment and remove the cover. 3. Insert the batteries observing the correct polarity. 4. Replace the battery cover on the unit and seal by re-screwing tightly. 5. When a “Low Battery” symbol appears on the part of Outdoor Temperature, please replace batteries of the remote unit. 6. At few occasions (interfered by environment, for instance), the LCD display might be abnormal, and then reload the corresponding batteries until it is ok. 7. After installation of the new batteries, the setup procedures need to be performed. (See Setting the remote transmitter(s) Setting the remote transmitter Upon power up the temperature RF signal is sent from the transmitter to the main unit automatically. Please place the transmitter outside in a dry, shaded area. Try relocating the transmitter if the main unit does not display the outdoor temperature after 3 minutes. There are 2 buttons inside the back of remote. 1) O C/ O F--- To change the remote displays Centigrade or Fahrenheit 2) TX --- To test communication between remote and main unit 2 SAFETY INSTRUCTIONS Do not expose the appliance to strong temperature variations, humidity, direct sunlight or dust. Keep the remote out of reach of small children. Attention! Batteries can be life threatening, if swallowed. Therefore, keep batteries and clock out of reach of small children. If a battery has been swallowed, seek medical advice immediately. The batteries provided must not be charged or re-activated by any other means, taken apart, thrown into fire or short-circuited. Batteries need to be properly disposed of. For this purpose, shops selling batteries provide special containers for environmentally friendly disposal. Also, empty batteries will be taken at public waste collection points. LIABILITY DISCLAIMER: 1. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place. 2. This product is not to be used for medical purposes or for public information. 3. The specifications of the product may change without prior notice. 4. This product is not a toy. Keep out of the reach of children. 5. No part of this manual may be reproduced without written authorization of the manufacture. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: QL5AC2012TX13 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. TX13 REV: 00

Page 1 of 1 Guangdong Electronic & Electrical Products Inspection and Supervision Institute Test Lab Attestation Letter Date of Test: Jul.01, 2012 to Jul.20, 2012 Applicant Name: CASON ELECTRONICS CO., LTD. FCC Id: QL5AC2012TX13 Name of Engineer Performing Test: David Li (Typed) Statement of Compliance: (Test Lab) declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: (Guangdong Electronic & Electrical Products Inspection and Supervision Institute（CGEL）) (45 Cunnan Street, Shayongnan, Sanyuanli District, Guangzhou, Guangdong, China) Test Lab Witness- Signature of Test Lab Witness: Full Name, Typed: Yao Dao Title of Witness: EMC Lab Supervisor Email Address: [email protected] Phone No.: +86-20-36378205

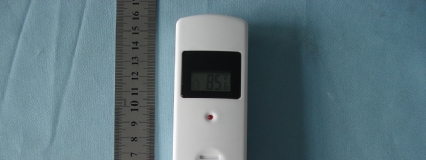

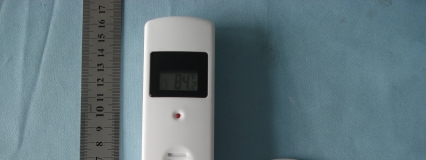

STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF

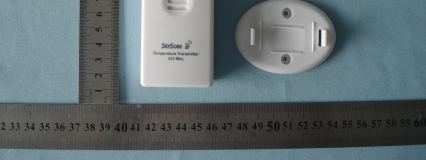

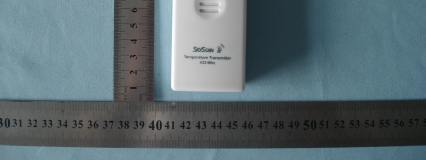

FCC ID Location

STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF

CIRCUIT DESCRIPTION TRANSMITTER SECTION (TX13) Frequency Determining and Stabilizing Circuit MCU (U1) output a data signal to RF, the Primary resonant network consists of Q1, R4, C10, C6, L3, L1and Y1. Thereunto, Y1 is a SAW resonator (Surface-Acoustic-Wave), to stabilize surging frequency 433.92MHZ; Q1, R4, C10, C 6,L3 and L1 supply surging condition. RF Amplification: The power of the primary output is low, the second level amplify RF signal and output. The RF amplification network consists of C12, R6, C7, C13, L2, C14, C15 and ANT. The C13 is a coupling capacitance. Thereunto, ANT is a transmitter antenna. Modulation: The MCU export data signal, the circuit adopt OOK modulating mode.

STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF Page: 1 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Tel：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected] , website: www.stu-lab.com FCC ID TEST REPORT Application No.: STUGZEMO120614555RF Applicant: CASON ELECTRONICS CO.,LTD. Address NO.13 EAST ROAD ALONG RIVER, NANTOU, ZHONGSHAN, GUANGDONG, CHINA Equipment Under Test (EUT): EUT Name: Temperature Transmitter Trade Mark: TX-AC2012 Model No.: N/A Serial No.: Not supplied by client FCC ID: QL5AC2012TX13 Standards: FCC Part 15 Subpart C, Paragraph 15.231 Date of Receipt: Jul.01, 2012 Date of Test: Jul.01, 2012~ Jul.20, 2012 Test Result : PASS* Tested By: David Li / Engineer. Reviewed By： Jimmy Yao / EMC Manager STU Standard Technology Union Co., Ltd . Report No.: STUGZEMO120614555RF Page: 2 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Te l：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected], website: www.stu-lab.com Contents 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . TEST RESULT 11 3.1 ANTENNA REQUIREMENT 11 3.1.1 STANDARD REQUIREMENT 11 3.1.2 EUT ANTENNA 11 3.2 CONDUCTED EMISSION MEASUREMENT 12 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 12 (FREQUENCY RANGE 150KHZ-30MHZ) 12 3.2.2 TEST PROCEDURE 13 3.2.3 DEVIATION FROM TEST STANDARD 13 3.2.4 TEST SETUP 13 3.2.5 TEST RESULT 13 3.3 RADIATED EMISSION MEASUREMENT 14 3.3.1 RADIATED EMISSION LIMITS 14 3.3.2 TEST PROCEDURE 15 3.3.3 DEVIATION FROM TEST STANDARD 15 3.3.4 TEST SETUP 16 3.3.5 TEST RESULTS (BLOW 30MHZ) 18 3.3.6 TEST RESULTS (BETWEEN 30-5000MHZ) 19 4 . 20DB BANDWIDTH TEST 22 4.1 TEST PROCEDURE 22 4.3 TEST SETUP 22 4.4 TEST RESULTS 22 STU Standard Technology Union Co., Ltd . Report No.: STUGZEMO120614555RF Page: 3 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Te l：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected], website: www.stu-lab.com 5. DEACTIVATE TEST 24 5.1 TEST PROCEDURE 24 5.2 REQUIREMENT 24 5.3 TEST SETUP 24 5.4 TEST RESULTS 24 STU Standard Technology Union Co., Ltd . Report No.: STUGZEMO120614555RF Page: 4 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Te l：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected], website: www.stu-lab.com 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark FCC Part 15, Paragraph 15.203 Antenna Requirement Pass Compliant FCC Part 15, Paragraph 15.207 Conducted Emission N/A Compliant FCC Part 15, Paragraph 15.209 General Requirement Pass Meets Class B Limit FCC Part 15, Paragraph 15.231 (b) Radiated Emission Test Pass Compliant FCC Part 15, Paragraph 15.231 (c) 20dB Bandwidth Testing Pass Compliant FCC Part 15, Paragraph 15.231 (a) (1) Deactivate Testing Pass Compliant We hereby certify that: The above equipment was tested by Guangdong Electronic & Electrical Products Inspection and Supervision Institute（CGEL）.The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003. The sample tested as described in this report is in compliance with the FCC Rules Part 15. STU Standard Technology Union Co., Ltd . Report No.: STUGZEMO120614555RF Page: 5 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Te l：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected], website: www.stu-lab.com 1.1 TEST FACILITY Guangdong Electronic & Electrical Products Inspection and Supervision Institute（CGEL） 45 South Street Shayongnan village Sanyuanli Guangzhou FCC Registration No.: 597719. Industry Canada (IC) Assigned No.: 6664A. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB STU Standard Technology Union Co., Ltd . Report No.: STUGZEMO120614555RF Page: 6 of 25 ` Copyright is owned by Standard Technology Union Co., Ltd and this report shall not be reproduced unless with prior written approval of the issuing company. STU Standard Technology Union Co., Ltd 2B/F, NO 4, Yueken Rd, Tianhe bei, Guangzhou, China Te l：+86-20-37225573,Fax：+86-20-37225590, E-mail：[email protected], website: www.stu-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Temperature Transmitter Trade Name N/A Model Name TX-AC2012 OEM Brand/…

Text truncated - open the document above for the full version.

STU Standard Technology Union Co., Ltd. Report No.: STUGZEMO120614555RF EUT TEST SETUP PHOTOS Radiated Emission Test Setup Radiated Emission Test Setup
