QLDXCOMVHFVHF Aircraft Transceiver

XCOM 760 VHF Transceiver Installation and Users Manual Release 1.2 © XCOM Avionics 2004 www.xcom760.com Page 2 Release 1.2 © XCOM Avionics 2004 www.xcom760.com Page 3 Table of Contents Introduction...................................................................................................4 Features Overview..........................................................................................4 Manual Release Information.............................................................................5 Contents .......................................................................................................6 Users Manual .................................................................................................6 Warranty Card ...............................................................................................6 Description ....................................................................................................6 Front Panel Controls and Switches ....................................................................7 LCD Display ...................................................................................................8 TX Transmit Icon ......................................................................................8 RX Receive Icon........................................................................................8 DUAL WATCH ...........................................................................................8 LOW BATT ...............................................................................................8 MEM........................................................................................................8 Top Line ..................................................................................................8 Bottom line ..............................................................................................8 Bar Graph ................................................................................................8 XCOM Installation...........................................................................................9 Wiring Harness ..............................................................................................9 Aerials ..........................................................................................................9 Radio Frequency Hazard Information...........................................................9 Operating your XCOM Transceiver .................................................................. 10 On ........................................................................................................ 10 MODE.................................................................................................... 10 MEM...................................................................................................... 10 Dual...................................................................................................... 11 Flip Flop button Ú................................................................................... 11 Memory Programming................................................................................... 12 Introduction ........................................................................................... 12 Operation .............................................................................................. 12 Setup Options .............................................................................................. 13 Introduction ........................................................................................... 13 Operation .............................................................................................. 13 DUAL - MODE - ON ................................................................................. 13 Aerial Information ........................................................................................ 14 Wiring Diagram – Typical Installation.............................................................. 16 XCOM VHF760 Transceiver Specifications - Subject to Change ........................... 17 Drilling Template .......................................................................................... 18 Warranty Card ............................................................................................. 18 Notes.......................................................................................................... 19 Release 1.2 © XCOM Avionics 2004 www.xcom760.com Page 4 Introduction Thank you for purchasing the XCOM 760 VHF Transceiver, this manual describes the operation and installation of this product, should you have any questions that are not answered in this manual please contact XCOM Avionics in Australia on +61 7 5568 7770 or by email to [email protected] The XCOM 760 VHF Transceiver is the first of several innovative avionics products to be released by XCOM Avionics. Based on the very successful Microair and Becker ranges, the XCOM 760 offers many advanced features previously only available in the more expensive brands. Designed from the ground up, the XCOM 760 offers superior performance under the demanding and noisy conditions experienced in many amateur built aircraft. With low power consumption, this radio is ideally suited to use in gliders, homebuilts and ultralights. A full 6 watt carrier output ensures that you will be heard above the general chatter in busy airspace and the VOX intercom with muting music input will enhance your enjoyment of the flight. With expanded receive range up to 163 MHz, the XCOM 760 provides NOAA Weather reception ensuring that you are always aware of impending weather conditions (NOAA Weather only operates in the USA) and has an optional MARS/CAP capability. Additional safety enhancements such as dual watch allow the pilot to listen to the standby frequency while still monitoring the primary frequency. The XCOM 760 also has 99 memory channe…

Text truncated - open the document above for the full version.

Tuesday, July 13, 2004 www.mcp.com.au [email protected] X-Air Australia Factory 4, No. 24 Leda Drive Leda Business Park, Burleigh Heads Gold Coast Queensland Australia 4220. Phone 07 5568 7770 Fax 07 5568 7772 Mobile 0418 168 665 email [email protected] @ 21 May 2004 To whom it may concern CONFIDENTIALITY REQUEST Reference rule sections 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Service manual, Schematic manual The XCOM VHF 760 Transceiver service manual and schematics manual (both manuals include schematic diagrams, board layout diagrams and lists of components) contain trade secret information which is not routinely made available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. It should be treated as confidential for the duration of the Grant Of Authorisation. Yours truly, Michael B Coates Director X-Air Australia Tuesday, 13 July 2004

Response to TCB Findings 1. In the label there are spaces allocated between the characters of the FCC ID. If this is needed, this can only be done by the use of "-", spaces are not allowed. Please supply a corrected label sample and also specify the label material. Details of the corrected label are attached including details of the label material. 2. Parts list is a required exhibit. Please supply the document. Part lists are included with the schematic diagrams. 3. On page 9 of the report the upper supply voltage tested (13.2V) is not 115% of the nominal voltage. Please clarify. Testing has been carried out at the correct supply voltage. A revised test report is attached. 4. Please clarify if the power can be varied by the user or if it's tuned-up only at the factory. If users can vary the power setting please specify the range. The client advises that the power cannot be varied by the users and is set by the factory. 5. Maximum power declared in the RF hazard information section of the report is 7.1W, whereas in the RF power output section of the report, manufacturer range is specified to be 4.9W to 7.7W. And in the service manual specifications section on page 4, the power rating is specified to be 5.5W at 13.8VDC with +0.7dB / -0.5dB tolerance. Please clarify these differences. The test report and calculations have been corrected accordingly. 6. Please supply a copy of the FAA coordination letter for this transmitter. The grant can not be issued until the FAA has confirmed that they did not have a compatibility problem with this device (87.147). Coordination letter is attached.

EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 23 of 26 EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 24 of 26

EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 25 of 27 Label Location of label on the product Sticker Specifications XCOM VHF 760 HP TRANSFER BRIGHT SILVER PT50/SA-34P/84BG FACE MATERIAL DESCRIPTION HP TRANSFER BRIGHT SILVER PT50 is a 50 micron, mirror finished, metallised, top coated polyester film exhibiting excellent printing properties. The material has exceptional environmental resistance making it ideal for durable high quality prime labels. Caliper; 50 micron Maximum Service Temperature: 150°C ADHESIVE DESCRIPTION SA-34P is a high performance solvent acrylic adhesive with excellent cohesion as well as heat resistant properties. Minimum Application Temperature: 5°C Service Temperature: -30°C to 1 50°C Peel Adhesion 90° >700 (gf/25mm) APPLICATION Typical applications include prime labels for cosmetics, golf clubs etc; rating and compliance labels for electrical appliances, electronics and automotive parts; and other durable high quality printed labels. LINER DESCRIPTION 84BG is highly stable, blue, silicon coated glassine paper also suitable for sprocket punching and fan folding. Basic Weight: 84 gsm Calliper: 78 micron PRINTING & CONVERSION HP TRANSFER BRIGHT SILVER PT50 is top coated and may be printed by letterpress, flexography, screen or litho process. Care must be taken to ensure that reel rewinding tension is kept to a minimum and that die cutting tools are regularly maintained to avoid any chance of adhesive bleed. SHELF LIFE This product has a shelf life of 2 years if stored between 10°C and 25°C and 35% to 65% RH SAMPLE STICKER XCOM Avionics Pty Limited XCOM Avionics - 4/24 Le da Drive, Burleig h Heads Queen sland AUSTRALIA 4220 Produc tion 36 Murdoch Circuit, Acacia Ridge Brisba ne Queensland AUSTRALIA 4110. FCC ID : QLD XCOMVHF Part No : XCOM VHF 760 - 001 Made i n Australia from do mestic & foreign components 12 Vdc input Negative G round 1 2 345678Serial No: 00001 Fo r mo re i n f o r ma ti o n v i si t w ww. xc om. c o m 760

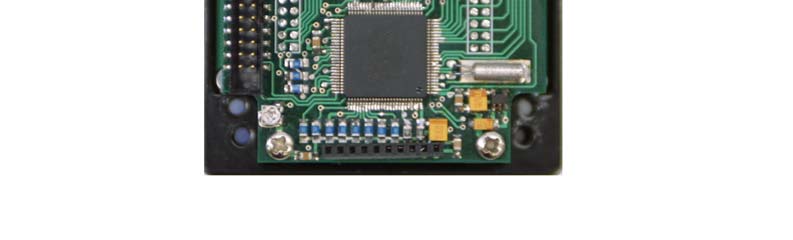

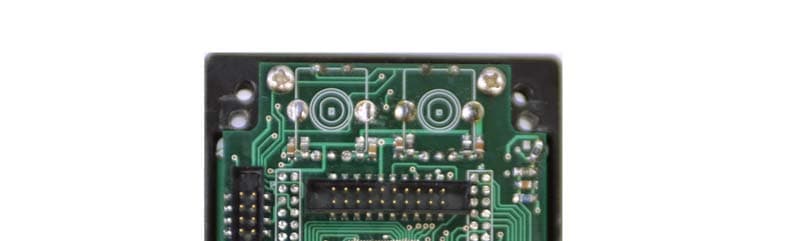

EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 21 of 26 10. PHOTOGRAPH (S) EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 22 of 26

EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 13 July 2004 Radio Frequency Hazard Information As per Section 1.1310 mobile transmitters are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with OST/OET Bulletin Number 65. In accordance with this section and also Section 2.1091, this device has been classified as a remote device that could possibly be used to transmit data from a mobile vehicle. A minimum safe distance between the user / general public and the device has been calculated below. In accordance with Section 1.1310 the Maximum Permissible Exposure (MPE) power density limit for the General Population / Uncontrolled Exposure of 0.2 mW/m 2 or 27.5 V/m has been applied. The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain and separation distance in metres: The upper tolerance of the declared power = 6.9 watts. The nominal power = 5.5 watts. In a typical mobile installation this transceiver would be used with a whip ¼ wave dipole type of antenna with a gain of 1.64 (2.15 dBi). d = √ (30 * P * G) / E = √ (30 * 6.9 * 1.64 ) / 27.5 = 0.66999 metres or 67 cm The above calculations therefore show that this device meets the MPE requirement for mobile devices providing a safe distance of at least 67 cm is provided. However as the client does not supply the antenna further calculations have been made to determine a safe distance if antennas with gains greater than 1.64 are utilised. If a safe distance of 1 m is utilised an antenna gain of 3.65 (5.6 dBi) can used. This safe distance will provide added safety to the user and the general public as the manufacturer has no control over what type of antenna can be connected to this device and it is believed that vertical whip antennas with gains greater than 3.65 will not be used. A warning to this affect will need to be inserted in the equipment manual. Result : Complies

EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 1 of 27 TEST REPORT Xcom 760 VHF Aircraft Transciever tested for compliance with the Code of Federal Regulations (CFR) 47 Part 87 –Aviation Services and Part 15 – Radio Frequency Devices for X-Air Australia Pty Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager Prepared By: ______________________________________ Cecilia Lam - Office Administrator EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 2 of 27 Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. SUMMARY OF TEST RESULTS 4 4. TEST SAMPLE DESCRIPTION 5 5. TEST CONDITIONS 6 6. ATTESTATION 7 7. TEST RESULTS 8 8. TEST EQUIPMENT USED 20 9. ACCREDITATIONS 20 10. PHOTOGRAPH (S) 21 EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 3 of 27 1. CLIENT INFORMATION Company Name Xair Australia Pty Ltd Address Factory 4, 24 Leda Drive Leda Business Park Burleigh Heads State Queensland 4220 Country Australia Contact Mr Micheal Coates 2. DESCRIPTION OF TEST SAMPLE Brand Name Xcom Model Tested 760 Product VHF Aircraft Transceiver Manufacturer Xair Australia Country of Origin Australia Serial Number 040002 FCC ID QLDXCOMVHF NB: This report replaces report number 40327.1. Retesting has been carried out at the nominal operating voltage of 13.8 Vdc instead of 12.0 Vdc. EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 4 of 27 3. RESULT SUMMARY Testing was carried out in accordance with the test methods defined in 47 CFR Part 2. Listed below are the relevant Part 2 test methods and the limits defined in Part 87 and Part 15. CLAUSE TEST PERFORMED RESULT 2.1041 Measurement procedures Noted 2.1057 Frequency spectrum to be investigated Noted 87.131 Power and emissions Complies 2.1046 RF power output Noted 87.133 Frequency stability 2.1055 Frequency stability Noted 87.135 Bandwidth of emission Complies 2.202 Bandwidths Noted 87.137 Types of emissions Complies 87.139 Emission limitations Complies 2.1049 Occupied bandwidth Noted 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Complies 87.141 Modulation requirements Complies 2.1047 Modulation Characteristics Noted 2.1047(a) Low pass filter response Complies 2.1047(b) Modulation limiting characteristics Complies 15.111 Antenna conducted power measurement Complies 1.1310 Radio frequency radiation exposure limits Complies EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 5 of 27 4. TEST SAMPLE DESCRIPTION The sample tested has the following specifications: Rated Transmitter Output Power 5.5 Watts (37.4 dBm) at 13.8 Vdc with a tolerance of +1.0 dB and –0.5 dB that equates to 4.9 to 6.9 watts. Transmitter frequency range 118.0000 – 136.9750 MHz Test frequency 127.0000 MHz Channel Spacing 25.0 kHz FCC Bands Part 87: 118.0 – 136.0 MHz Emission Designators / Modes of operation 6K0A3E Power Supply External 10 – 16 Vdc supply. Typically 13.8 Vdc EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 6 of 27 5. TEST CONDITIONS Standard Temperature and Humidity Temperature: +25 ° C ± 4 ° maintained. Relative Humidity: 60% ± 10% observed. Standard Test Power Source Standard Test Voltage: 13.8 Vdc. Extreme Temperature High Temperature: + 50°C maintained. Low Temperature: - 20 °C maintained. Extreme Test Voltages High Voltage: 15.9 Vdc (115%) Low Voltage: 11.7 Vdc (85%) EMC Technologies (NZ) Ltd Test Report No 40327.2 Report date: 24 th May 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 7 of 27 6. COMPLIANCE STATEMENT / ATTESTATION Testing of the Xcom 760 VHF Aircraft Transceiver complies with the Code of Federal Regulations (CFR) 47 Part 87 – Aviation S…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 25 of 26 Label Radiated emission test set up EMC Technologies (NZ) Ltd Test Report No 40327.1 Report date: 2 nd April 2004 EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 26 of 26
