QLJRAVENNode B Transmitter

7030 Hi Tech Drive • Hanover, MD 21076 • +1.410.872.6000 www.tecore.com • [email protected] November 21, 2012 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. Sincerely, Stephen D. Hayes Vice President and General Counsel

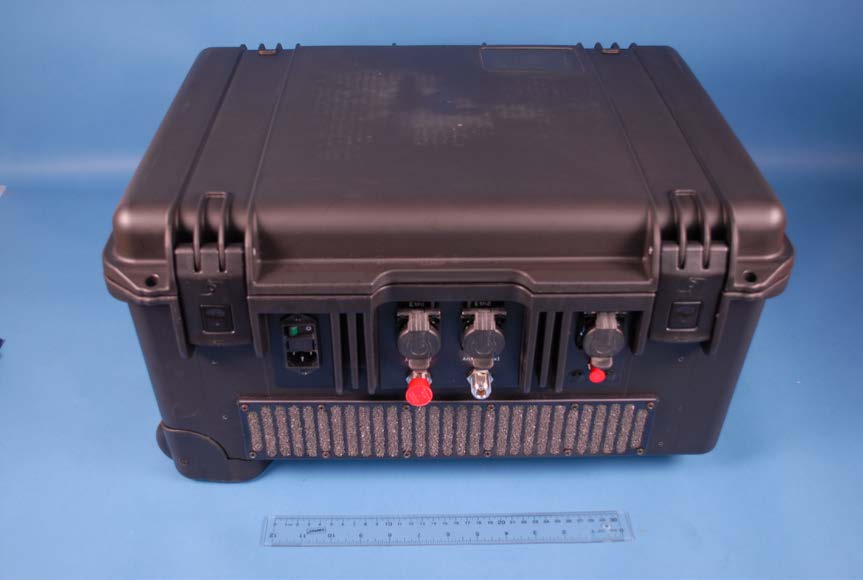

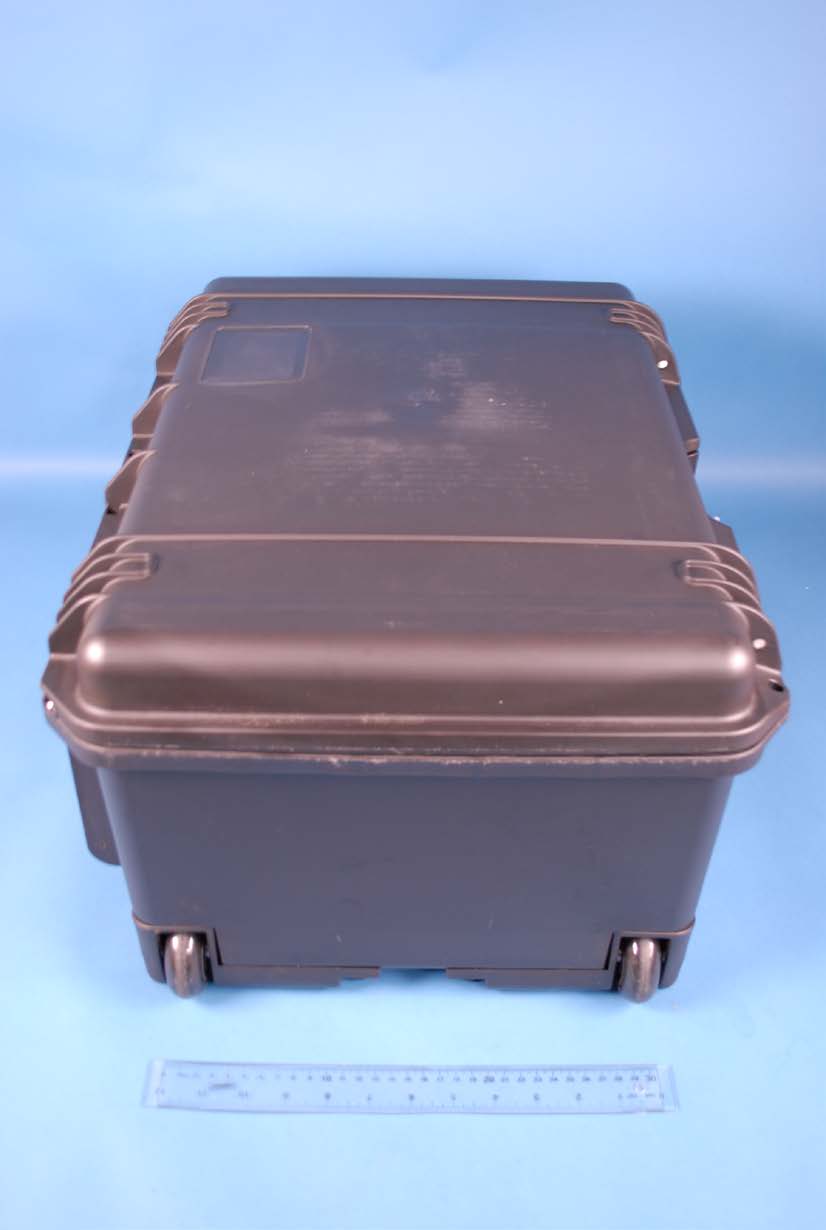

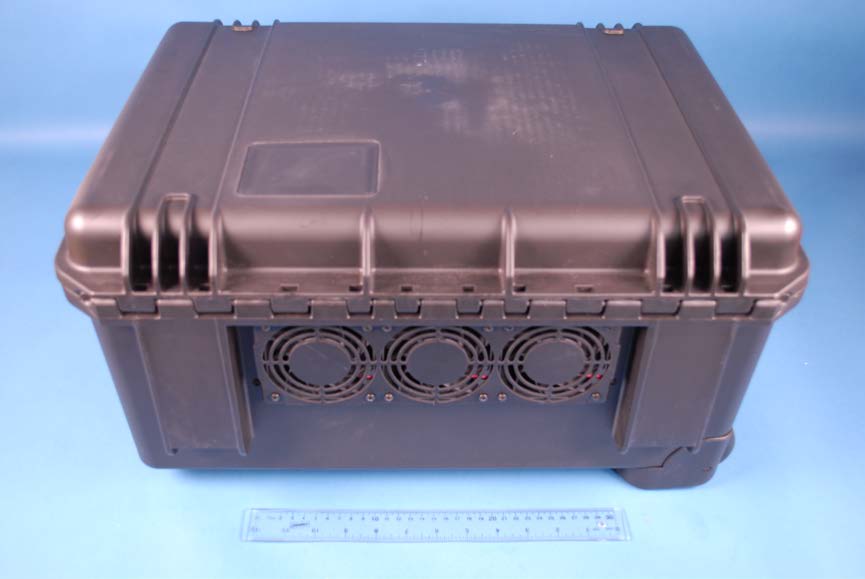

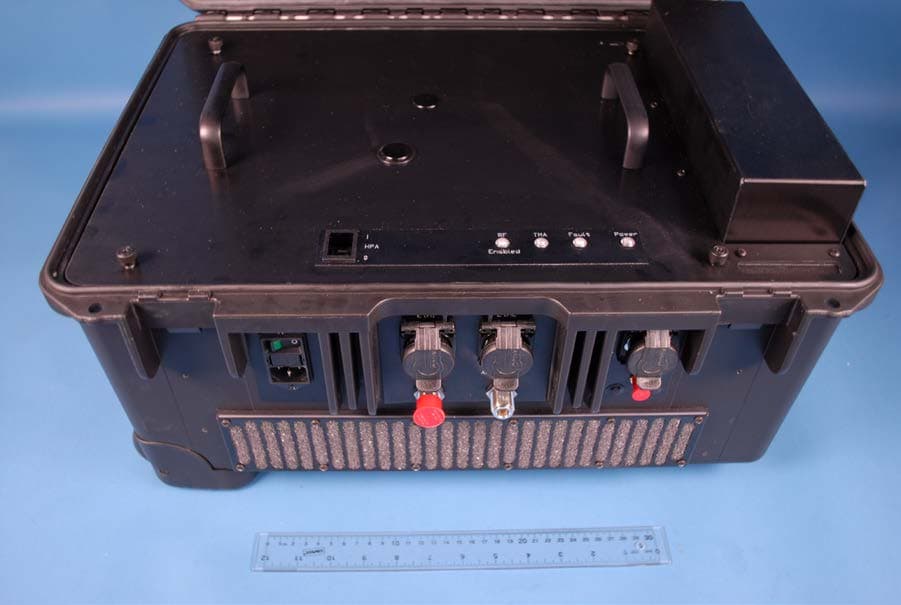

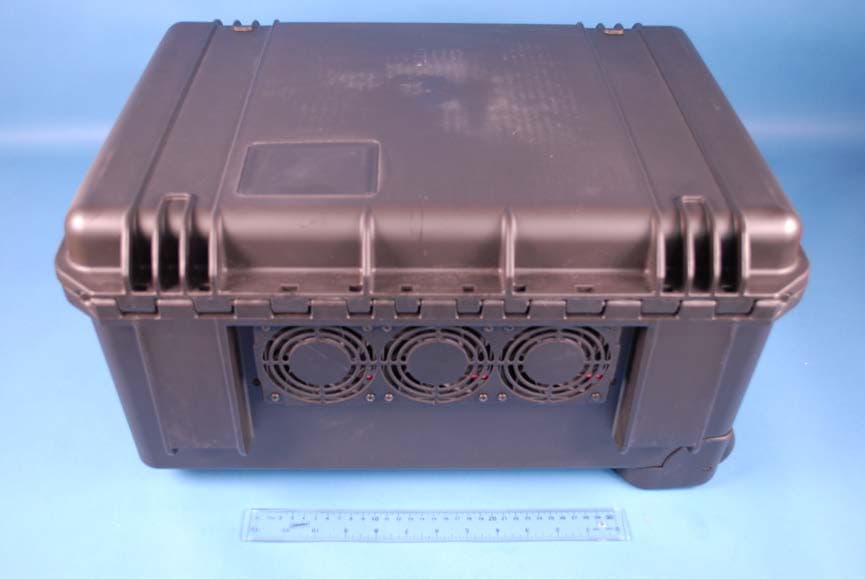

Telcore Networks FCC ID: QLJRAVEN External Photos EUT Type: N odeB Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Telcore Networks FCC ID: QLJRAVEN External Photos EUT Type: N odeB Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Telcore Networks FCC ID: QLJRAVEN External Photos EUT Type: N odeB Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc. FCC ID Label Location FCC ID:QLJRAVEN FCC ID:QLJRAVEN

External Photos – Andrew AB FCC ID: R82N4-US80D-RXL24

FCC ID: QLJRAVEN FCC Label Drawing DESCRIPTIONLabel Material: 3M Pres s Printable Polyester, Product Number: 7331 with Over laminating film, Matt finish.Label Color: Gloss WhiteAdhesive: High Performance Acrylic, Product Number: #300 Liner: 3.2 mil Densified Kraft-Ea sy Release. Product Number: #55 Print Colors: Process Black 3 Thermal Transfer Polyester Label Material 7222 / 7865 • 7323 / 7863 • 7331 / 7860 Construction Technical DataJuly, 2007 ProductFacestockAdhesiveLiner 3M™ Thermal Transfer.002 in. (51 micron) #300 Acrylic55# Densified kraft Polyester LabelMatte Silver Polyester0.8 mil (20 micron)3.2 mil (81 micron) Material 7222 / 7865Gloss TC 3M™ Thermal Transfer.002 in. (51 micron) #300 Acrylic55# Densified kraft Polyester LabelBright Silver Polyester0.8 mil (20 micron)3.2 mil (81 micron) Material 7323 / 7863Gloss TC 3M™ Thermal Transfer.002 in. (51 micron) #300 Acrylic55# Densified kraft Polyester LabelWhite Polyester0.8 mil (20 micron)3.2 mil (81 micron) Material 7331 / 7860Gloss TC (Calipers are nominal values.) Product Description 3M™ Thermal Transfer Polyester Label Materials are durable polyester stocks that offer high abrasion and chemical resistance. These materials utilize 3M™ Adhesive 300, which has excellent quick tack and also bonds well to a variety of surfaces including LSE plastics. Features • Facestock is topcoated for thermal transfer printing. Resin ribbons are recommended for optimum durability. The topcoat also provides improved ink anchorage for traditional forms of press printing. • Adhesive bonds well to a wide variety of substrates including metals, high surface energy (HSE) plastics and low surface energy (LSE) plastics. It is ideal for applications requiring high initial adhesion especially to LSE plastic surfaces. • 55# densified kraft liner assures consistent die cutting. • UL recognized (File MH11410) and CSA accepted (File 99316). Application Ideas • Barcode labels and rating plates. • Property identification and asset labeling. • Warning, instruction, and service labels for durable goods. • Nameplates and durable goods. 3M ™ Thermal Transfer Polyester Label Material 7222 / 7865 • 7323 / 7863 • 7331 / 7860 - 2 - Typical Peel Adhesion Properties Adhesion: 180° peel test procedure is ASTM D 3330. 90° peel test procedure is ASTM D 3330 modified for the angle change. InitialConditioned for 3 Days at (10 Minute Dwell/RT)Room Temperature 72°F (22°C) 180° Peel90° Peel180° Peel90° Peel SurfaceOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mm Stainless Steel5661424667734650 Polycarbonate5967444861674650 Polypropylene5358384256613842 Glass6066424671784852 HD Polyethylene3538283140442831 LD Polyethylene3235252742463437 Conditioned for 3 Days atConditioned for 24 hours at 90°F 120°F (49°C)(32°C) at 90% Relative Humidity 180° Peel90° Peel180° Peel90° Peel SurfaceOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mm Stainless Steel7077505568745358 Polycarbonate3033171955603639 Polypropylene5459424666724448 Glass7077505567734448 HD Polyethylene4044293245493235 LD Polyethylene910101136393033 Typical Physical Properties Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes. Adhesive Coat Weight1.08 to 1.62 g/100 in. 2 3M Method E10MFP01 Release Range10 to 60 g/2 in.TLMI Method, 180° removal, 300 in./min. Service Temperature-40°F to 300°F (-40°C to 149°C) Minimum Application Temperature 50°F (5°C) Convertability3M™ High Strength Acrylic Adhesive 300 is designed to be compatible with a variety of print methods and end use applications. Due to the quick flowing aggressive nature of this adhesive, care should be taken when converting labels for thermal transfer applications. Please refer to the die dutting/converting section of this data page or the “Guide to Converting and Handling Label Products” technical bulletin for additional information. - 3 - 3M ™ Thermal Transfer Polyester Label Material 7222 / 7865 • 7323 / 7863 • 7331 / 7860 Temperature Resistance: 300°F (149°C) for 24 hours:no significant visual change -40°F (-40°C) for 10 days:no significant visual change Humidity Resistance: 24 hours at 100°F (38°C) and 100% relative humidity:no significant changes in appearance or adhesion Accelerated Aging: ASTM D 3611: 96 hours at 150°F (65°C) and 80% relative humidity 180° Liner Release, 90 inches/minute: 16 gm./in. width (0.62 N/100 mm) 180° Peel Adhesion from Stainless Steel, 12 inches/minute: 54 oz./in. width (59 N/100 mm) Environmental Performance Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes. The properties defined are based on four hour immersions at room temperature (72°F/22°C) unless otherwise noted. Samples were applied to stainless steel panels 24 hours prior to immersion and were evaluated one hour after removal from the solution for peel adhesion. Adhesion measured at 180° peel angle (ASTM D 3330) at 12 inches/minute. Chemical Resistance: Adhesion to Stainless SteelAppearanceEdge Penetration ChemicalOz./in.N/100 mmVisualMillimeters Isopropyl Alcohol6066No change0.8 Detergent 1%Alconox ® Cleaner 6470No change0 Engine Oil (10W30) @ 250°F (121°C) 6470No change1 Water for 48 hours6672No change0 pH 46571No change0 pH 106470No change0 409 ® Formula6470No change0 Toluene3336No change6.5 Acetone4751No change4.3 Brake Fluid7481No change0 Gasoline3639No change5.8 Diesel Fuel6268No change1 Mineral Spirits5459No change2.4 Hydraulic Fluid6672No change0 Application Techniques For maximum bond strength, the surface should be clean and dry. Typical cleaning solvents are heptane and isopropyl alcohol.* For best bonding conditions, application surface should be at room temperature or higher. Low temperature surfaces, below 50°F (10°C), can cause the adhesive to become so firm that it will not develop maximum contact with the substrate. Higher initial bonds…

Text truncated - open the document above for the full version.

©TECORE, INC. ALL RIGHTS RESERVED. THE CONTENT OF THIS DOCUMENT IS THE INTELLECTUAL PROPERTY OF TECORE NETWORKS. THIS DOCUMENT CONTAINS INFORMATION THAT IS CONFIDENTIAL AND PROPRIETARY TO TECORE NETWORKS. INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. TECORE NETWORKS. RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR COMPONENTS AS PROGRESS IN ENGINEERING AND MANUFACTURING MAY WARRANT. Tecore, Inc. Health Protection and Radiation Hazards FCC ID: QLJRAVEN ©TECORE INC. ALL RIGHTS RESERVED. THE CONTENT OF THIS DOCUMENT IS THE INTELLECTUAL PROPERTY OF TECORE NETWORKS. THIS DOCUMENT CONTAINS INFORMATION THAT IS CONFIDENTIAL AND PROPRIETARY TO TECORE NETWORKS. INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. TECORE NETWORKS RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR COMPONENTS AS PROGRESS IN ENGINEERING AND MANUFACTURING MAY WARRANT. PAGE 2 OF 3 1.0 INTRODUCTION This document provides information regarding the assessment of Health Protection and Radiation Hazards expected from the RAVEN. The following calculations are presented to show that the RAVEN is compliant with the North American requirements as described in FCC OET Bulletin 65. 2.0 RADIATION HAZARDS 2.1 CABINET RADIATION The maximum radiated power levels authorized by the FCC EMC specifications are: • -36 dBm (or E=2.7 mV/m) for frequencies between 30 MHz and 1 GHz, • -30 dBm (or E=5.4 mV/m) for frequencies above 1 GHz According to FCC OET Bulletin 65, the power density is linked to the E field by the relation S = E 2 /3770 As a consequence, the maximum power density radiated by the equipment will be: • S = 1.9*10 -9 mW/cm 2 for frequencies between 30 MHz and 1 GHz • S = 7.9*10 -9 mW/cm 2 for frequencies above 1 GHz The maximum power density is far below the Maximum Permissible Exposure (MPE) levels shown in Table 1 and therefore the RAVEN is compliant with this requirement. 2.2 ANTENNA RADIATION The North American Maximum Permissible Exposure (MPE) levels for general population (uncontrolled exposure areas) are defined in Table 1 below. Frequency Range (MHz) MPE (S, mW/cm 2 ) 30 - 300 0.2 300 – 1500 f/1500 1500 - 12750 1.0 Table 1, MPE Levels for General Population (Uncontrolled Exposure Areas) FCC ID: QLJRAVEN ©TECORE INC. ALL RIGHTS RESERVED. THE CONTENT OF THIS DOCUMENT IS THE INTELLECTUAL PROPERTY OF TECORE NETWORKS. THIS DOCUMENT CONTAINS INFORMATION THAT IS CONFIDENTIAL AND PROPRIETARY TO TECORE NETWORKS. INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. TECORE NETWORKS RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR COMPONENTS AS PROGRESS IN ENGINEERING AND MANUFACTURING MAY WARRANT. PAGE 3 OF 3 Antenna Radiation Calculation: Considerations: • HPA Configured for Maximum Transmit Power = 20 Watts [G] • Antenna Gain = 18 dBi (Highest Gain Possible) [P] As described in FCC OET Bulletin 65, the power density can be estimated by the following formula: S = (P*G)/4πR 2 Where G is the antenna gain, P is the HPA Maximum Transmit Power and R is the distance from the antenna The Maximum Permissible Exposure (MPE) level for uncontrolled access locations is S = f/1500 = 824/1500 = 0.55 mW/cm 2 As a consequence, the safe distance approach can be calculated as, R = 4.3 m This is the distance at which the limit level will be reached in the main beam of the antenna. Although the RAVEN is a transportable product it does not have integral antennas and requires connection to a permanent or semi-permanent antenna system. The antenna used would be mounted on a tower or similar mounting structure 10s of meters in height and therefore would provide adequate safe distance to the general population. It should also be noted that exposures inside buildings can be expected to be reduced by at least 10 to 20 dB due to the attenuation caused by building material in the wall and roof of the building (source: FCC OET Bulletin 65). Based on the above information the RAVEN is compliant to the MPE requirements as per FCC OET Bulletin 65.

FCC ID: QLJRAVEN FCC Pt. 22 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 30 0Y1306171016.QLJ 6/10 - 6/13/2013 NodeB © 2013 PCTEST Engineering Laboratory, Inc. REV 1.7CFI 09/27/2012 Applicant Name: Date of Testing: Tecore Networks 6/10 - 6/13/2013 7030 Hi Tech Drive Test Site/Location: Hanover, MD 20176 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1306171016.QLJ F C C I D : QLJR AV EN AP P L I C AN T : TECO RE NE TW OR KS Application Type: Certification Model(s): RAVEN EUT Type: NodeB FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §2; §22(H) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 V02R01 Test Device Serial No.: identical prototype [S/N: N/A] Max. Power (W) Max. Power (dBm) WCDMA850871.4 - 891.6QPSK4M20F9W16.21842.10 WCDMA850871.4 - 891.616-QAM4M21G7D19.77042.96 WCDMA850871.4 - 891.664-QAM4M21W7D17.86542.52 Cond. Power Mode Tx Frequency (MHz) Emission Designator Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 FCC ID: QLJRAVEN FCC Pt. 22 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 30 0Y1306171016.QLJ 6/10 - 6/13/2013 NodeB © 2013 PCTEST Engineering Laboratory, Inc. REV 1.7CFI 09/27/2012 T A B L E O F C O N T E N T S FCC PART 22 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 TEST CONFIGURATION ..................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.6 RADIATED SPURIOUS EMISSIONS .................................................................................................. 7 3.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 CONDUCTED POWER OUTPUT DATA ........................................................................................... 12 6.3 CELLULAR WCDMA RADIATED MEASUREMENTS ....................................................................... 17 6.4 CELLULAR WCDMA FREQUENCY STABILITY MEASUREMENTS ................................................ 20 7.0 PLOT(S) OF EMISSIONS .............................................................................................................. 22 8.0 CONCLUSION ................................................................................................................................ 30 FCC ID: QLJRAVEN FCC Pt. 22 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 30 0Y1306171016.QLJ 6/10 - 6/13/2013 NodeB © 2013 PCTEST Engineering Laboratory, Inc. REV 1.7CFI 09/27/2012 MEASUREMENT REPORT FCC Part 22 §2.1033 General Information APPLICANT: Tecore Networks APPLICANT ADDRESS: 7030 Hi Tech Drive, Hanover, MD 20176 TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): §2; §22(H) BASE MODEL: RAVEN FCC ID: QLJRAVEN FCC CLASSIFICATION:…
