QM4-99-00002-0000900 MHz transmitter

Copyright 2002 GameTech International, Inc. All rights reserved. Unauthorized use of this material without the expressed written consent of GTI is prohibited. “Diamond, Diamond Plus Bingo, Diamond VIP, Diamond TED, GameTech, SuperSize, AllTrak, GTI, TED, TED 2 C and Pay-N-Play are either registered trademarks of or trademarks owned by GameTech International, Inc.” “Windows” is a registered trademark of Microsoft Corporation in the United States and/or other countries. Radio Frequency (RF) Installation and Support Revised: 110102 GameTech International, Inc. GameTech International, Inc. GameTech International, Inc. 900 Sandhill Road Reno, NV 89511 Welcome to GameTech International, Inc. (GTI) Purpose of this Guide This manual is designed to be used by GTI staff. It provides the instructions for using TED ® and TED 2 C ™ RF on the Diamond system. GameTech International, Inc. Table of Contents v Chapter 1: Radio Frequency (RF)........................................................................................................................1 Overview.......................................................................................................................................3 Modes of Operation................................................................................................................3 1) Fully Automatic ..............................................................................................................4 2) Manual Daub #1 .............................................................................................................4 3) Manual Daub #2 .............................................................................................................4 4) Manual Daub #3 .............................................................................................................4 5) Game Change Only ........................................................................................................4 RF Signals.....................................................................................................................................5 Operational Information................................................................................................................7 How it Works.........................................................................................................................7 Jurisdictional Restrictions.............................................................................................................9 FCC Compliance Statement..........................................................................................................9 System Installation......................................................................................................................11 Required Hardware...............................................................................................................11 Base Station Controller (BSC) ..........................................................................................11 Transmitters (XMTR) .......................................................................................................12 TED® and TED2C™ Units ..............................................................................................13 RF Test Tools.......................................................................................................................14 Signal Strength Meter (SSM) ............................................................................................15 Standalone Battery-Powered Transmitter .........................................................................16 Paper Survey.........................................................................................................................17 Diagramming a Hall ..........................................................................................................18 Interference Signals..............................................................................................................18 Coverage...............................................................................................................................19 MASTER.INI Settings.........................................................................................................19 CHH.INI Settings.................................................................................................................19 Technician Questions..................................................................................................................21 Conducting a Site Survey............................................................................................................23 Site Survey Form..................................................................................................................23 Getting Started......................................................................................................................24 vi GameTech International, Inc. List Of Figures vii Base Station Controller and Transmitter ...................................................................................................12 RF Connectivity Diagram ..........................................................................................................................13 Handheld Signal Strength Meter (SSM) ....................................................................................................15 Stand-Alone Battery Powered Transmitter ................................................................................................16 Sample Hall Diagram.................................................................................................................................17 Sample Hall Diagram.................................................................................................................................27 1” = 50’ Scale ...............................................…

Text truncated - open the document above for the full version.

Micro controller RS485 to TTL Converter Data +12 to +5 VDC Power Supply GameTech 900 MHz Single Frequency RF Transmitter Block Diagram TX EN +5VDC +5VDC RJ-45 Connector +12VDC GND TX RX PWR XMT TXD +5VDC To BSC 27k LPF REF OSC φ /64 vco BUFFER LOOP FLTR 915 BPF voltage regulator GND Radiometrix RF Module 14.29 MHz 914.5 MHz

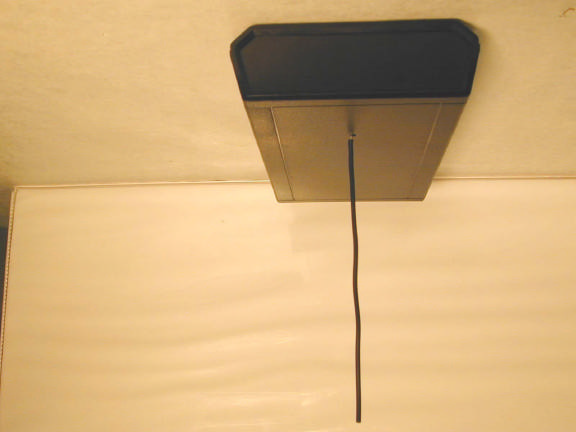

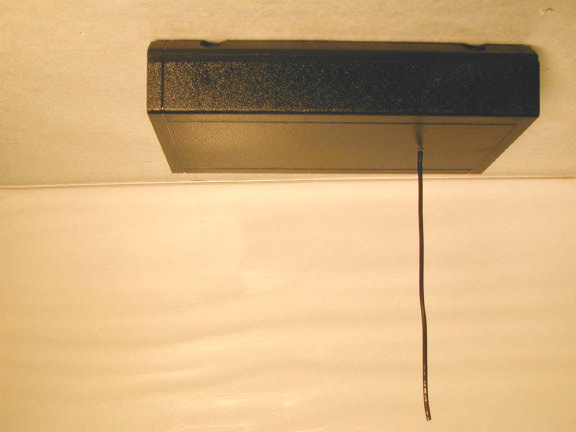

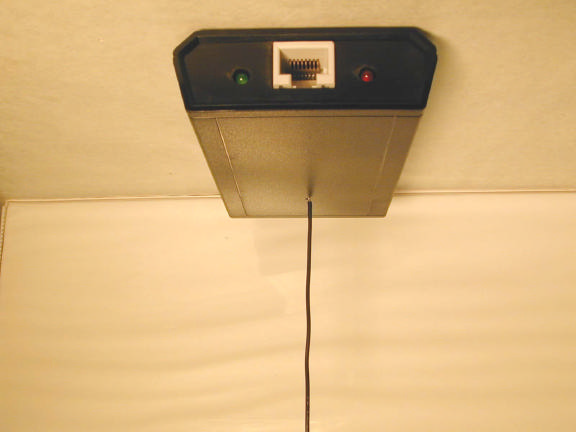

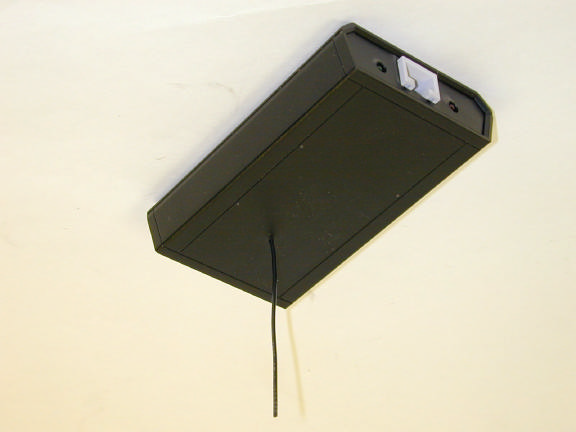

FRONT

PC IN ENCLOSURE TRANSMITTER PC BOARD BOTTOM TRANSMITTER PC BOARD TOP TRANSMITTER PCB TOP

The device for which we are seeking certification under Part 15.249 is a transmitter only. Please refer to the Radiometrix spec, attached. The RF Transmitter is part of a wireless bingo game system. Essentially the transmitter sends updated information to the individual players “handheld” bingo game (each time a ball is called out). The receiving device is in the handheld bingo game, which contains the 914.5 Mhz receiver. The receiver is the corresponding part of the RF system designed by Radiometrix. The model number of the receiver is RX3. Refer to attached Radiometrix spec. The GameTech handheld game units are called the TED and TED 2 C units. They are referred to in the GameTech Installation and Support Manual, which you should have received with the application package. They take the place of manual cards or booklets. TED 2 C TED
