Appendix E. Block Diagram ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa

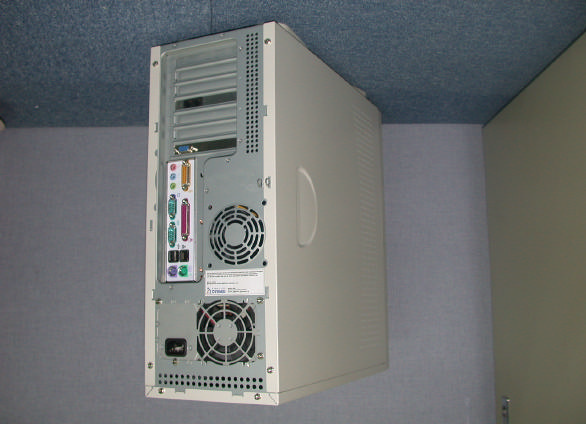

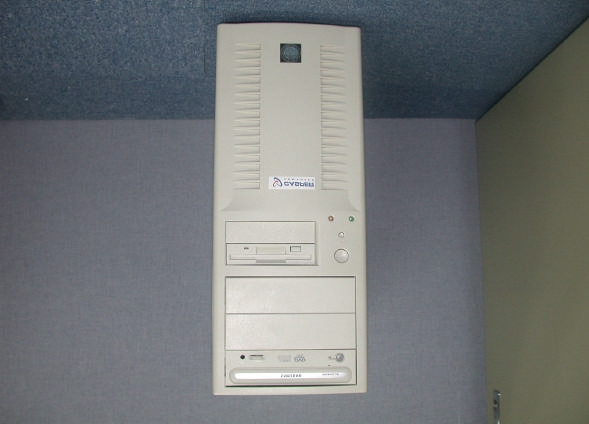

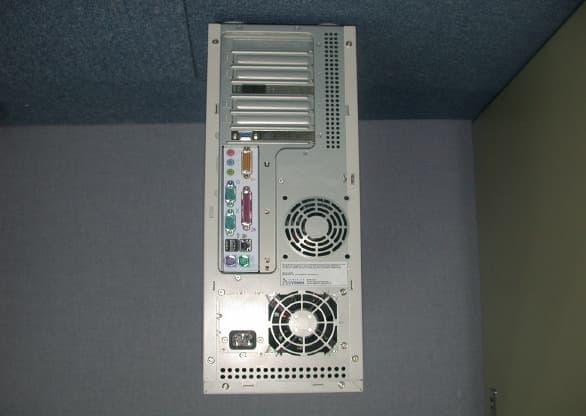

Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 2 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 2 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa

Appendix A. FCC ID Label and Location ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : QMACASPERALFA Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier(FCC ID : QMACASPERALFA) and compliance statement are marked in the product label. Casper Bilgisayar Sistemleri A.S. Product: Personal Computer Model: Casper Alfa FCC ID: QMACASPERALFA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation Manufacturer by Casper Bilgisayar Sistemleri A.S. Made in Turkey Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Inside view of Personal Computer Front view DVD-ROM Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Rear side view of DVD-ROM Inside view of DVD-ROM Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Component side view of MODEM Solder side view of MODEM Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Component side view of VGA Card Solder side view of VGA Card Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Front view of FDD Rear side view of FDD Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 6 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Component view of HDD Solder side view of HDD Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 7 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Component side S-DRAM Solder view of S-DRAM Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 8 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 View of SMPS Component side view of SMPS Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 9 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Solder side view of SMPS Inside view of SMPS Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 10 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Component side view of Main board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 11 of 11 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Solder side view of Main board

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Personal Computer, Model Casper Alfa has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo han, park Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea PRODUCT : Personal Computer MODEL/TYPE NO : Casper Alfa FCC ID : QMACasper Alfa APPLICANT : Casper Bilgisayar Sistemleri A.S. Sivritas Sok. No:16 Alphan 80310 Mecidiyekoy / Istanbul Turkey Attn. : Feray Karaman / Engineer of Q.A Dept. FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators Computing Device (JBC) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : CASPER COMPUTER TEST REPORT No. : E02.0902. FCC.570N DATES OF TEST : August 30 ~ 31, 2002 DATES OF ISSUE : September 2, 2002 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 17 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 17 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Personal Computer l Model Number : Casper Alfa l FCC Identifier : QMACasper Alfa l S/N : N/A l Modulation : N/A l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Unintentional Radiators Computing Device (JBC) l Dates of Tests : August 30 ~ 31, 2002 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E02.0902.FCC.570N Applicant Name : Casper Bilgisayar Sistemleri A.S. Address : Sivritas Sok. No:16 Alphan 80310 Mecidiyekoy / Istanbul Turkey Attention : Feray Karaman / Engineer of Q.A Dept. ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 17 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the Casper Bilgisayar Sistemleri A.S. , Model : Casper Alfa ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 17 FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa 2.1 Equipment Description The Equipment Under Test(EUT) is the Casper Bilgisayar Sistemleri A.S. Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 25.0MHz, 14.3MHz, 28.244MHz l Chipset Brand & Part No. : IT8708F-A – ITE, FW82801BA – INTEL, RS56-PCI – CONEXANT : CM18738/PCI-6ch-MX – ESDX, SM0416028A – SM-COM : A276308A-70 – AMIC, K4S560832D-TC75 – SAMSUNG l Number of Layers : Main board – 6Layers, VGA Card – 4 Layers : MODEM - 4 Layers, S-DRAM - 4 Layers l FDD : 1.44” l DVD…

Text truncated - open the document above for the full version.

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea FCC ID : QMACASPERALFA Report No:E02.0902.FCC.570N Date of Test : September 10, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Radiated Emissions Measurement Radiated Emission Test Data The following table shows the highest levels of radiated emissions on both polarization of horizontal and vertical. Detector mode : CISPR Quasi-Peak mode ( 6dB Bandwidth : 120 kHz ) Measurement Distance : 10 meters Frequency [MHz] Reading [dB ] Polarization (*H/**V) Ant. Factor [dB] Cable Loss [dB] EmissionLevel [Db /m] Limit [dB /m] Margin [dB] Fundamental 2000 - - - - - - - 2th Hormonic 4000 - - - - - - - 3th Hormonic 8000 - - - - - - - 4th Hormonic 10000 - - - - - - - NOTES : 1. * H : Horizontal polarization , ** V : Vertical polarization 2. Emission Level = Reading + Antenna factor + Cable loss 3. Margin value = Limit - Emission Level 4. No signal Detected 5. The measurement was performed for the frequency range 1000MHz ~ 10000MHz according to the 15.33 (b) (1) Test Engineer : C. S. Kim EUT Personal Computer / Casper Alfa (SN:N/A) Limit apply to 15.33(b) (1) Test Date September 10, 2002 Operating Condition “ H “ Pattern display & Printing Environment Condition Humidity Level : 41 %RH, Temperature : 25 Result Passed by dB

Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : QMACasper Alfa Report No:E02.0902.FCC.570N Date of Test : September 2, 2002 Casper Bilgisayar Sistemleri A.S. Personal Computer Model : Casper Alfa Conducted Emission Test Setup
