QMNRM-707

Microsoft Corporation

GSM/WCDMA cellular phone w/BT and WLAN

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 01, 2011
Application Purpose: Original Equipment
Date of Application: Mar 01, 2011
Equipment Note: GSM/WCDMA cellular phone w/BT and WLAN
Frequency Range: 2412.00000000 - 2462.00000000
Company: Microsoft Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

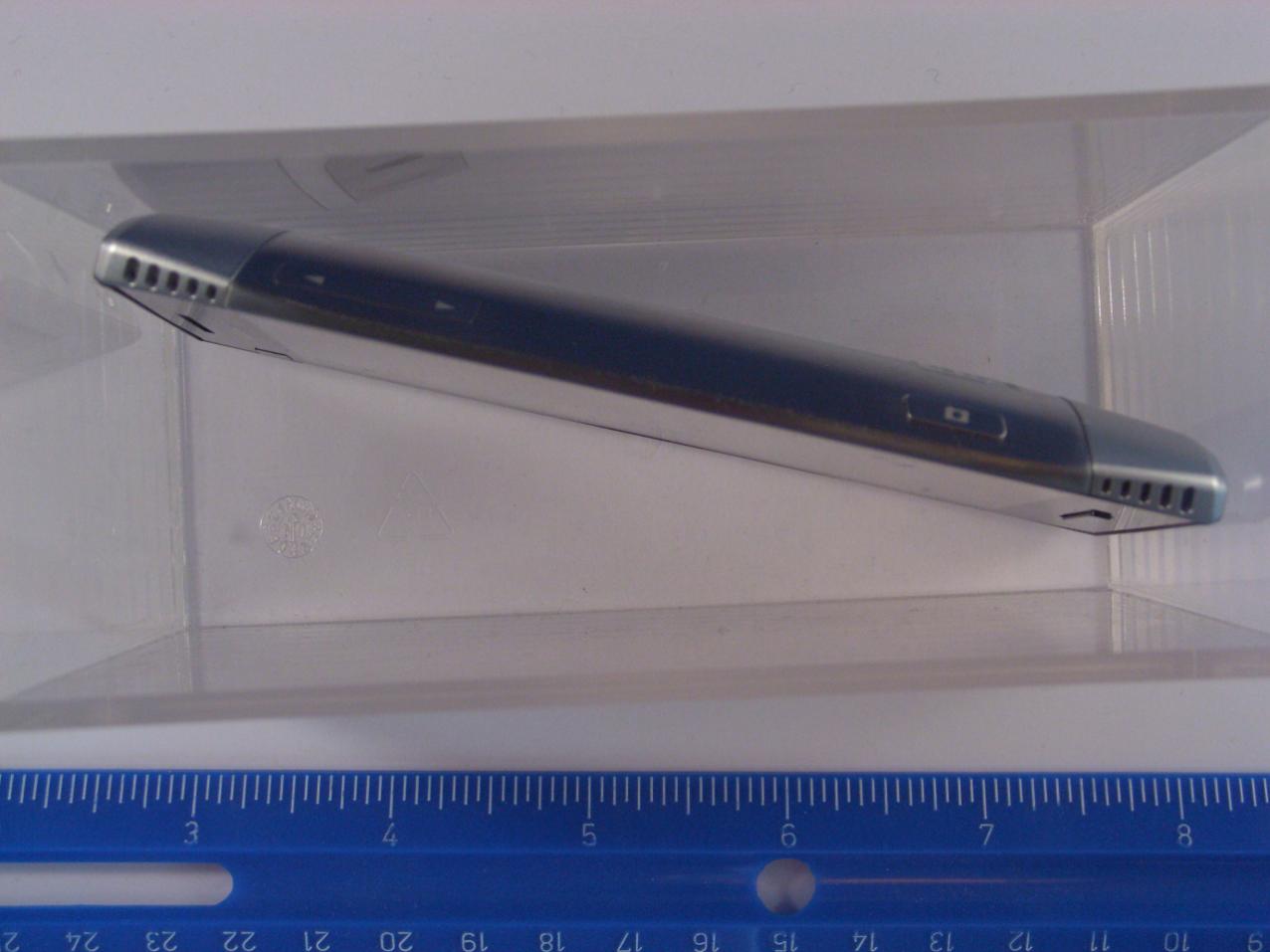

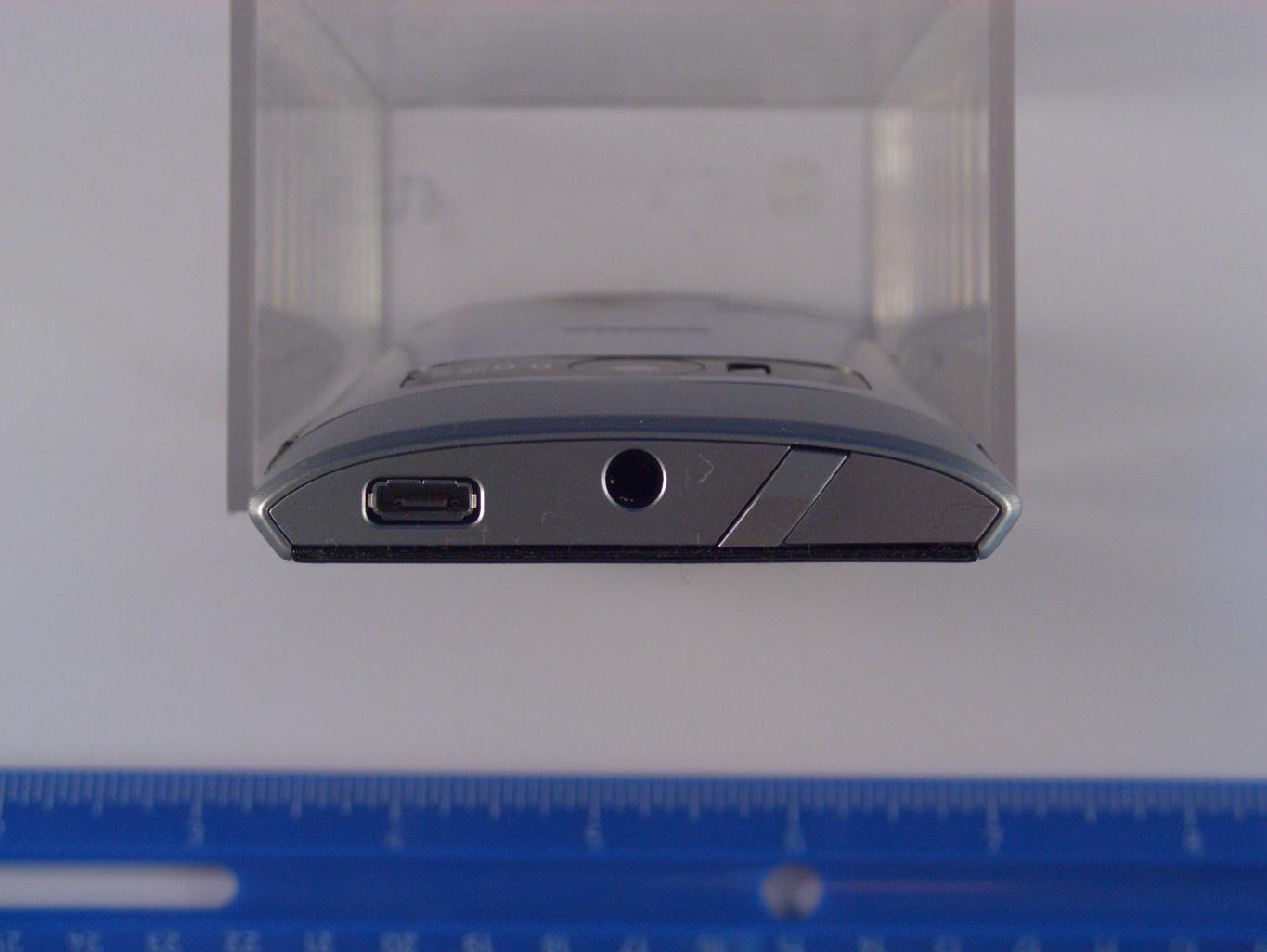

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	292.00 mW

Confidentiality

Long Term

Grant Notes

Power Output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Part 15 WLAN: Head: 0.39W/kg; Body: 0.06W/kg. This device contains Bluetooth and GSM/WCDMA transmitters.
