QMZRCDALEKS27TX12" RC TV AND MOVIE DALEKS

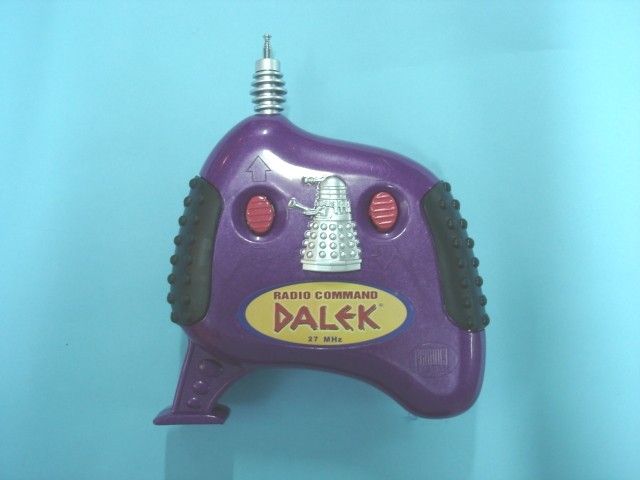

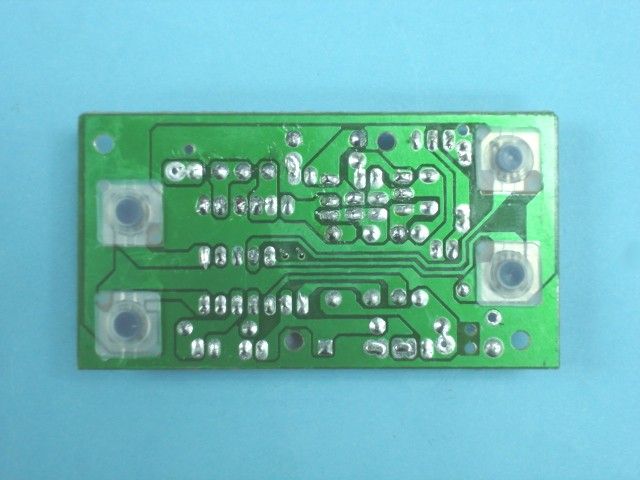

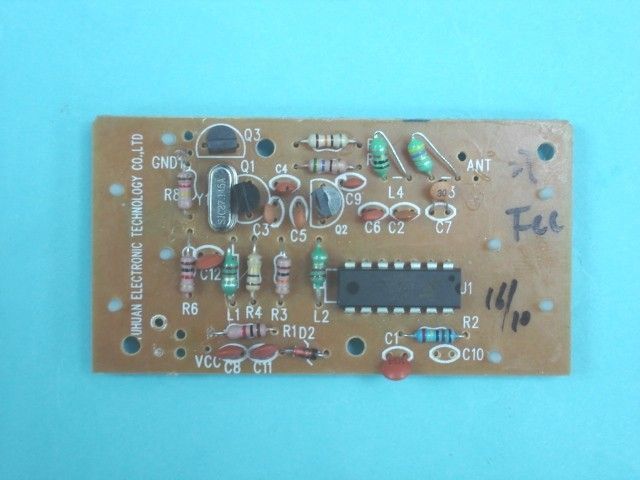

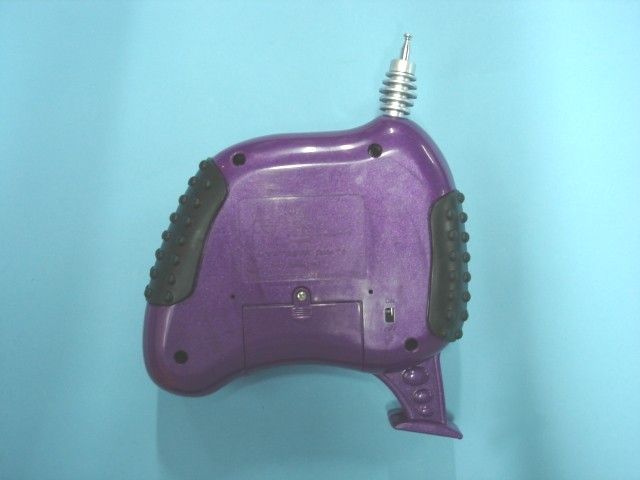

Operation Description The transmitter of the 12î RC Movie Dalaks and 12î RC TV Daleks (27MHz) is powered by a 9V size battery. The radio frequency channel is 27.145MHz. There are two control buttons on the transmitter. When the control buttons are pressed, it will transmit different radio control signals to the receiver. Referring to the transmitter circuit design, the circuit description is listed below: - U1, Q3 and associated circuit act as an encoder. - Y1, Q1 and associated circuit act as an oscillator. - Q2 and associated circuit act as a RF amplifier.

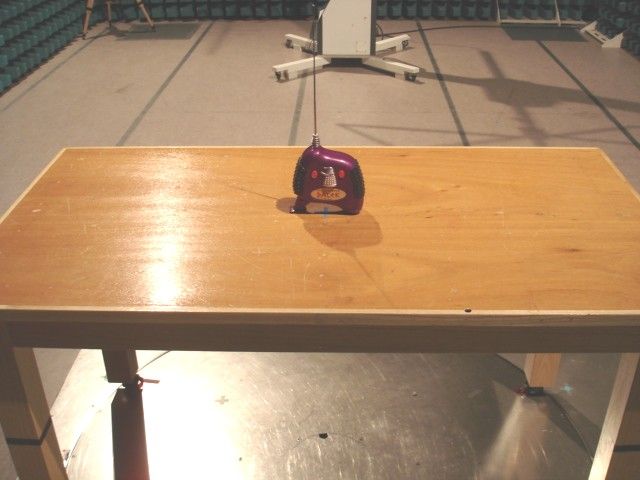

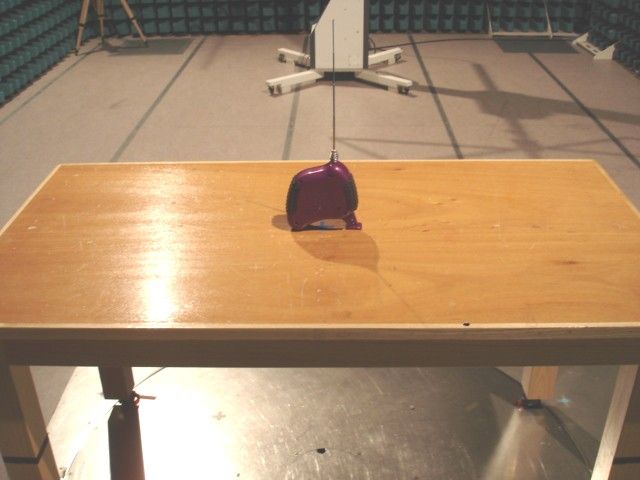

TEST REPORT Report No. : AG029462-001 Date : 2007 January 05 Page 1 of 11 FCC ID: QMZRCDALEKS27TX This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG223522(5) Client : Product Enterprise Ltd. The Coach House, 51a Goose Street, Beckington, Somerset, BA11 6SS Sample Description : One(1) submitted sample(s) stated to be 12î RC TV Daleks, 12î RC Movie Daleks of Model No. 21064, 21065, 21068 Vendor : Rabbitoy Industrial Co. Ltd. Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Three (3) piece(s) *** Date Received : 2006 November 07 Test Period : 2006 November 08 ñ 2006 November 10 Test Requested : FCC Part 15 Certification Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All three models are the same in circuitry and components; and therefore model 21065 was chose to be the representative of the test sample. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG029462-001 Date : 2007 January 05 Page 2 of 11 FCC ID: QMZRCDALEKS27TX This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AG029462-001 Date : 2007 January 05 Page 3 of 11 FCC ID: QMZRCDALEKS27TX This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 12î RC Movie Daleks and 12î RC TV Daleks. It operates at 27.145MHz which is controlled by a crystal. The EUT is powered by a 9V size battery. There are two control buttons on the EUT. When the left-forward, left-backward, right- forward or right-backward button is pressed, it will transmit different radio control signal to receiver. The brief circuit description is listed as follows: - U1, Q3 and associated circuit act as an encoder. - Y1, Q1 and associated circuit act as an oscillator. - Q2 and associated circuit act as a RF amplifier. TEST REPORT Report No. : AG029462-001 Date : 2007 January 05 Page 4 of 11 FCC ID: QMZRCDALEKS27TX This document shall not be reproduced except in full or with written approval by the laboratory. CMA…

Text truncated - open the document above for the full version.

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 3
