BRYDGE BLUETOOTH KEYBOARD & SPEAKER CASE For iPad BR-101/102 BR-200 Please read the instructions carefully before using: The Brydge Bluetooth Keyboard &Speaker Case for iPad has been designed to provide a case for your iPad while at the same time equip your iPad with a standard layout keyboard with special iPad function keys and high quality speaker. Packing Contents: 1. Aluminum/plastic Case with Bluetooth Keyboard/speaker; 2. USB Charging Cable 3. User manual Product Features: 1. Built-in wireless Broadcom Bluetooth 3.0 ABS keyboard and ISSC Bluetooth 3.0 speaker 2. Slim and strong case designed for iPad. 3. iPad display stand for easy viewing. 4. Built-in Rechargeable lithium battery 5. Special [home] screen key for one touch from variety of application. 6. Light weight, quiet keystrokes 7. Energy saving keyboard/speaker sleep mode Bluetooth Keyboard Pairing Step 1: Turn on the power switch. The Bluetooth light will keep lighting 5 seconds, then it will be off. Step 2: Press on the pair button” Ctrl+K” on the keyboard, the Bluetooth keyboard indicator light will be flashing. The Keyboard now is ready for connecting to iPad Step 3: Click the iPad [setting] icon, in the settings menu, select item [General] to access [Bluetooth] settings USB Charge connector Power Switch Bluetooth speaker indicator light Bluetooth keyboard indicator Light Charging indicator light Step 4:Click on [Bluetooth] to turn on the connection. iPad will automatically search Bluetooth devices Step 5: Brydge Keyboard found. Click on the device to connect Step 6: Enter the password code as displayed On screen Step 7: Password accepted and Brydge keyboard connected Successfully and the Bluetooth light will trun off w Step 8 : Once it shows 'connected' on the screen, press the iPad HOME button to start using your iPad and Keyboard. Bluetooth Speaker Pairing Step 1: Turn on the Bluetooth speaker by long press “Ctrl + B” on the keyboard, the Bluetooth keyboard indicator light of speaker will keep flashing, the speaker now is ready for paring; Step 2 Click the iPad [setting] icon, in the settings menu, select item [General] to access [Bluetooth] settings: Step 3: Click on [Bluetooth] to turn on the connection. iPad will automatically search Bluetooth devices Step 4: Brydge Speaker found. Click on the device to connect Step 6: Brydge speaker connected Successfully and the Bluetooth light will turn to interval flashing; Step 7: Once it shows “connected” on the screen, press the iPad HOME button to start using your iPad to enjoy the music from the Brydge speaker; Special Note: The bluetooth keyboard/speaker can be connected to iphone3G, 3GS, 4G and ipod Touch that had installed iOS 4.0 or later version. For other Bluetooth enabled device, please verify the Bluetooth standard & compatibility before you attempt to connect to the keyboard and speaker. Charging If the bluetooth indicator light keeps flashing while you are working, the battery power is low and the device needs to b e recharged. Step 1: Connect the Micro USB power cable to the keyboard charging connector;. Step 2: Connect the USB cable to the computer’s USB interface or USB power adapter. Step 3: The Charge red indicator light will stay on when the device is charging. Once charged full, the green indicator li ght will turn off. Charging time is 3-4 hours. Troubleshooting (A) Unable to connect 1. Make sure the power switch is turned on 2. Make sure the keyboard or the speaker is within the operating distance 3. Make sure the battery is charged 4. Make sure iPad Bluetooth setting is at on status 5. Make sure bluetooth keyboard or speaker is connected to iPad 6. Make sure the bluetooth keyboard has been paired with the iPad (B) Unable to charge Make sure the USB power cable is connected properly to the keyboard and the power source FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CAUTION:

Brydge LLC. FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Brydge LLC. Address 119 independence Drive, City Menlo Park, CA94025 Country USA request for this certification filing under: Grantee Code Product Number FCC ID: QN4 BR102 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description √ Operational Description Cruit Description.pdf explaining the functioning of the block diagram √ Block Diagrams Block Diagram.pdf showing the systematic building blocks of the EUT √ Schematics Diagrams SCH.pdf showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Menlo Park,USA 2012-10-24 Eddy Vromen Managing partner

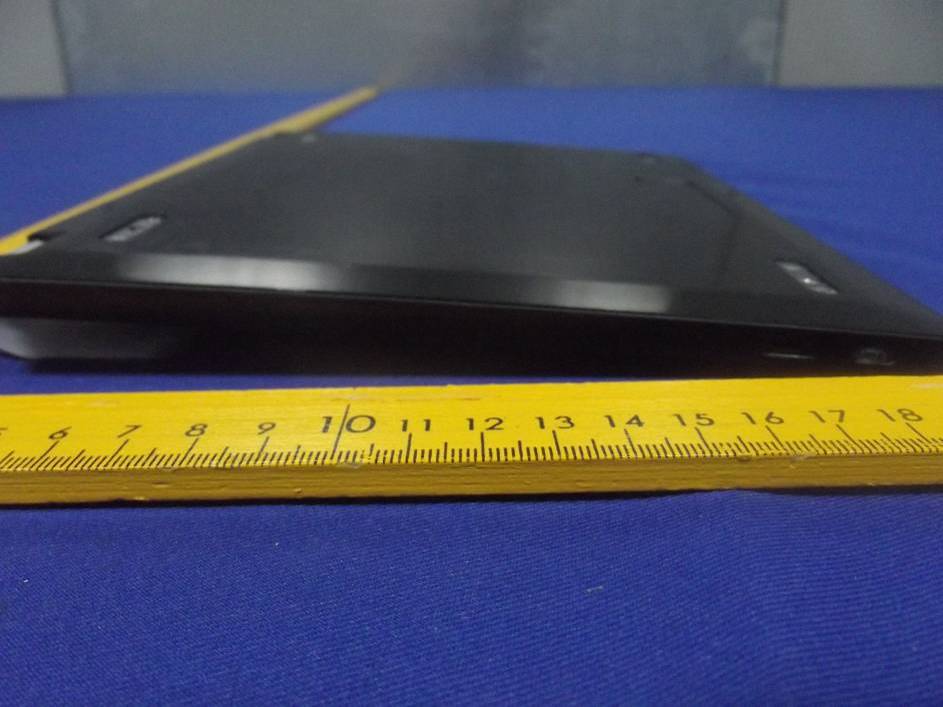

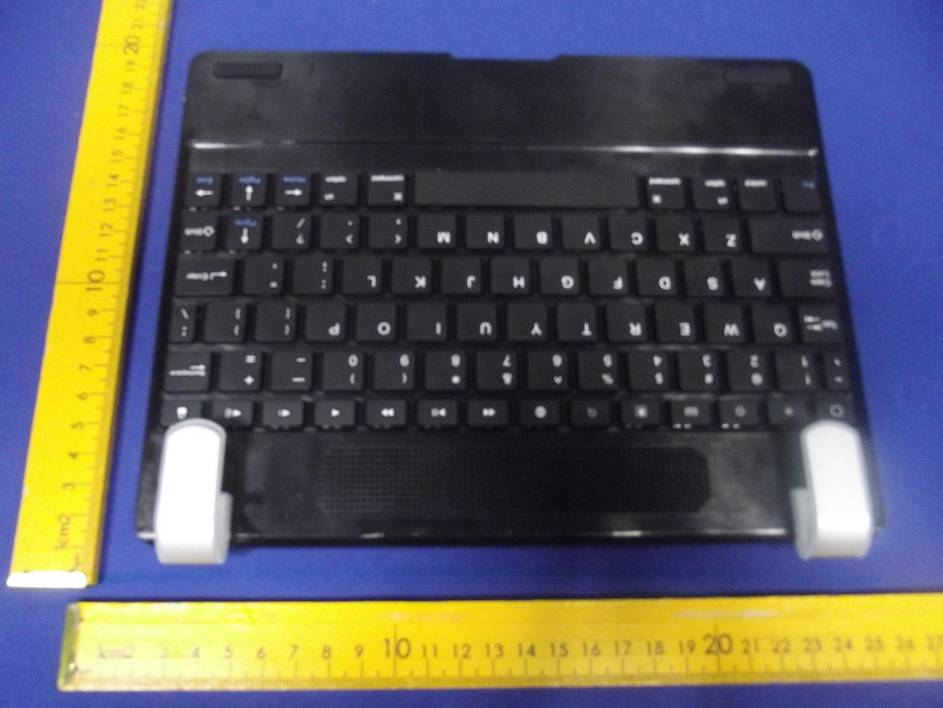

Page 22 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F APPENDIX I (ExternalPhotos) Figure 1 The EUT-Overall View Figure 2 The EUT-Back View Page 23 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F Figure 3 The EUT-Back View

FCC ID Label Sample for FCC ID: QN4BR102 FCC ID: QN4BR102 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC Label Location Proposed Label Location on EUT The EUT-Side View/Proposed FCC Label Location

Page 24 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F APPENDIX II(InternalPhotos) Figure 4 The EUT-Inside View Figure 5 PCB of the EUT-Front View Page 25 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F Figure 6 PCB of the EUT-Back View Figure 7 PCB of the EUT-Front View(BT BM84 Module) Page 26 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F Figure 8 PCB of the EUT-Back View(BT BM84 Module) Figure 9 PCB of the EUT-Front View(BT BW08 Module) Page 27 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F Figure 10 PCB of the EUT-Back View(BT BW08 Module)

Page 1 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F FCC TEST REPORT for Brydge LLC. Brydge Model No.: BR102, BR200 Report Number : 201210705F Date of Test : Oct. 11~21, 2012 Date of Report : Oct. 21, 2012 Prepared for : Brydge LLC. Address : 119 independence Drive, Menlo Park, CA 94025, USA Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Page 2 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT) ...................................................................................................................4 1.2. Auxiliary Equipment Used during Test ...................................................................................................5 1.3. Description of Test Facility......................................................................................................................6 1.4. Measurement Uncertainty ........................................................................................................................6 2. TEST PROCEDURE ....................................................................................................................... 7 3. CONDUCTED LIMITS .................................................................................................................. 8 3.1. Block Diagram of Test Setup ...................................................................................................................8 3.2. Power Line Conducted Emission Measurement Limits (15.207) .............................................................8 3.3. Configuration of EUT on Measurement ...................................................................................................8 3.4. Operating Condition of EUT ....................................................................................................................8 3.5. Test Procedure ..........................................................................................................................................9 3.6. Power Line Conducted Emission Measurement Results ..........................................................................9 4. RADIATION INTERFERENCE.................................................................................................. 12 4.1. Requirements (15.249, 15.209): .............................................................................................................12 4.2. Test Procedure ........................................................................................................................................12 4.3. Test Results.............................................................................................................................................12 5. OCCUPIED BANDWIDTH..........................................................................................................16 5.1. Requirements (15.249): ..........................................................................................................................16 5.2. Test Procedure ........................................................................................................................................16 5.3. Test Configuration:.................................................................................................................................16 5.4. Test Results.............................................................................................................................................16 6. PHOTOGRAPH............................................................................................................................. 19 6.1. Photo of Radiated Emission Test............................................................................................................19 6.2. Photo of Conducted Emission Test.........................................................................................................20 6.3. Photo of Electrostatic Discharge Test.....................................................................................................20 APPENDIX I (External Photos) (2 Pages) APPENDIX II(Internal Photos) (4 Pages) Page 3 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F TEST REPORT Applicant : Brydge LLC. Manufacturer : Shenzhen XinJiaHao Metal Plastic Co. LTD. EUT : Brydge Model No. : BR102, BR200 Serial No. : N/A Rating : DC5V, 400mA Trade Mark : N/A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Oct. 11~21, 2012 Prepared by : (Tested Engineer / Rock Zeng ) Reviewer : (Project Manager / Andy Chen ) Approved & Authorized Signer : (Manager / Tom Chen) Page 4 of 27 FCC ID: QN4BR102 Anbotek Compliance Laboratory Limited Report No. 201210705F 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Brydge Model Number : BR102, BR200(Note: All samples are the same except…
