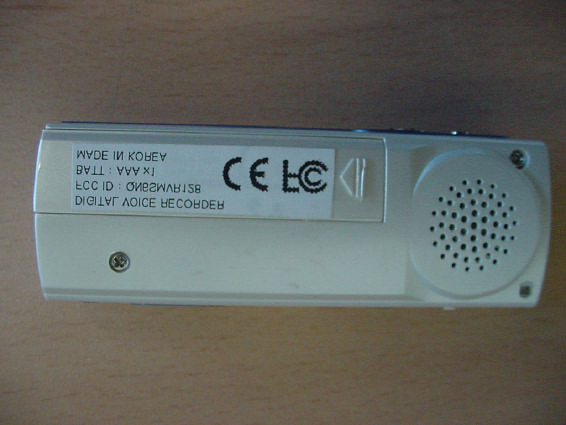

QN6SMVR128Digital Voice Recorder

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. ?? – ??

ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 1 of 14 EMI TEST REPORT Test report No.: ERI-FCC-0142 Type of equipment: Voice Recorder & MP3 Player Basic model: SMVR-128 Variant model: SMVR-64 Applicant: TOODIS Inc. Test standards: FCC Part 15 Subpart B (Class B) Test procedure and items : - AC Power line Conducted emissions measurement: ANSI C63.4-1992 - Radiated emissions measurement: ANSI C63.4-1992 Test result : Pass This equipment has been tested to comply with the requirements of FCC rules and regulations Part 15 Subpart B unintentional radiators. The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI laboratory. Date of test: 2002. 9. 119. 12 Issued date: 2002. 9. 16 Tested by : Approved by: SEJIN, O SANG-KYU, LEE ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 2 of 14 Contents 1. Client information 2. Laboratory information 3. Test system configuration 3.1 Operation environment 3.2 Measurement uncertainty 3.3 Sample calculation 4. Description of EUT 4.1 Product description 4.2 Peripherals 4.3 Used cables 4.4 EUT test configuration 4.5 Operating conditions 5. Test results 5.1 Conducted emission 5.1.1 Measurement procedure 5.1.2 Used equipments 5.1.3 Measurement uncertainty 5.1.4 Test data 5.1.5 Test result ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 3 of 14 5.2 Radiated emission 5.2.1 Measurement procedure 5.2.2 Used equipments 5.2.3 Measurement uncertainty 5.2.4 Test data(Upload mode, Maximum mode) 5.2.5 Test result 6. Photographs Conducted emission test [front, rear] Radiated emission test [front, rear] Attached : Conducted emission graph ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 4 of 14 1. Client information Applicant/Manufacturer: TOODIS Inc. Address : #212-22, Maetan-Dong, Paldal-Gu, Suwon-City, Kyungki-Do, Korea. Telephone number: 82-31-212-4031 Facsimile number: 82-31-212-4148 Contact person: DAVID KANG / chief engineer 2. Laboratory information Address The open area test site and EMC facilities are used for these testing. This facility was accredited by KOLAS, EK of Korea, MIC, FCC. EMC RESEARCH INSTITUTE . 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Number : 82- 31- 336- 1186 Facsimile Number : 82- 31- 336 -1184 KOLAS No.: 111 EK: J MIC: KR0030 FCC Filing No.: 302567 ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 5 of 14 3. TEST SYSTEM CONFIGURATION 3.1 Operation environment TemperatureHumidityPressure 10m Chamber : 22.0C 57 %- Shielded room :24.0C58 %998hPa 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, specifically in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna Frequency interpolation, measurement distance variation, site imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95% confidence level were applied. ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 6 of 14 3.3 Sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows : FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30dB, LISN Factor 1dB, CL 1dB The result (MR) is 30 + 1 + 1 = 32dBuV Radiated emission The field strength is calculated by adding the antenna Factor, cable loss and, Antenna pad subtracting the amplifier gain from the measured reading. The sample calculation is as follows : FS = MR + AF + CL + AT -AG MR = Meter Reading AF = Antenna Factor CL = Cable Loss AT = Antenna Pad AG=Amplifier Gain If MR is 30dB, AF 12dB, CL 5dB, AP 10dB, AG 35dB The result (MR) is 30 + 12 + 5 + 10 –35 = 22dBuV/m ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 7 of 14 4. Description of EUT 4.1 Product description Type of product :Voice Recorder & MP3 Player Basic model :SMVR-128 Variant model :SMVR-64 Serial No. :N/A Electric rating :DC 1.5V Differences between Basic & Variant : Memory [SMVR-64 :64M, SMVR-128 :128M] General description : This EUT(Equipment under test) is Voice recorder & MP3 Player. 4.2 Peripherals DescriptionManufacturerModel / Part #Serial No PCLGR7K104KI00427 MONITORLG1771Super102NT00798 PRINTERHP895cxiSG8BN1W118 AC/DC adaptorHPAT3018A-01017500M2092 KEYBOARD JING MOLD ENTERPRISE CO., LTD LKB-010710318868 MOUSEN/AM-S480HCA11404012 EARPHONEN/AN/AN/A MICN/AN/AN/A 4.3 Used cables Cable typeShield Length (meters) Connector Connection point 1 Connection point 2 USB PORTYES1.0USBPC- EarphoneNO1.0P-JackEarphone- MICNO1.2P-JackMIC- ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : www.eri.re.kr ReportNo.:ERI-FCC-0142 Page : 8 of 14 4.4 EUT Test configuration 4.5 Operatin…
