QNG-BE2814

Harman Becker Automotive Systems, Inc.

WLAN, BT, CDMA and GPS entertainment system for passenger vehicles

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jun 23, 2015
Application Purpose: Original Equipment
Date of Application: Jun 23, 2015
Equipment Note: WLAN, BT, CDMA and GPS entertainment system for passenger vehicles
Frequency Range: 1851.25000000 - 1908.75000000
Company: Harman Becker Automotive Systems, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

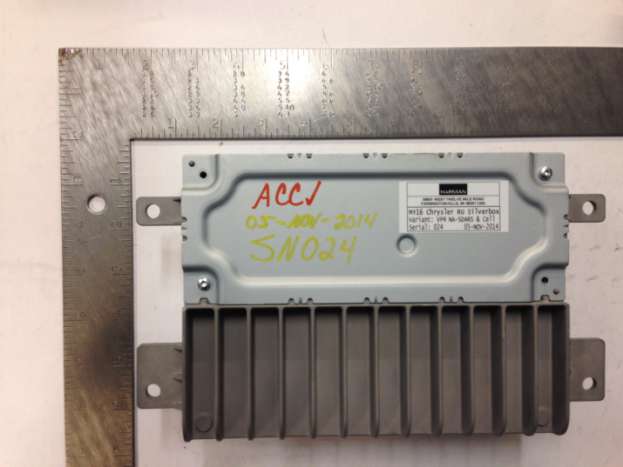

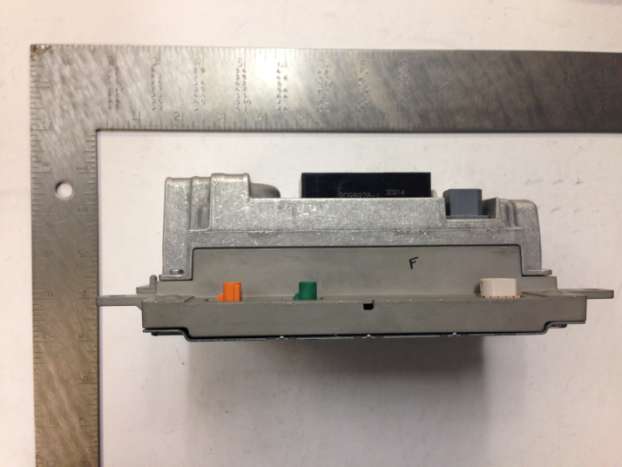

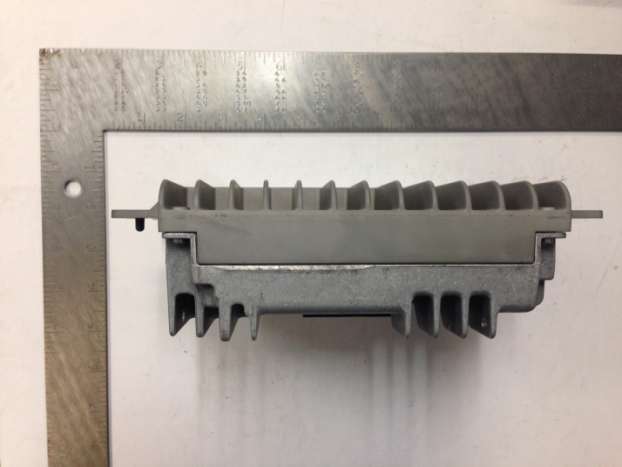

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	65.00 mW	1M55F9W	0.0016 ppm

Confidentiality

Long Term

Grant Notes

Output Power is ERP for Part 22H and EIRP for Part 24E. The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm. The antenna and cable loss combination must be at least 3.84 dB at 900MHz and 5.28 dB at 1900MHz to maintain the ERP/EIRP output power. &emsp;
