QNHPM1025-18000-7Permaconn GPRS/IP Communicator

PERMACONN PM1025 Installation Manual Radio Data Comms Unit 5/20 - 30 Stubbs Street Silverwater NSW 2128 Telephone: 1300 55 66 43 Facsimile: 02 9352 1700 Permaconn PM1025 Manual July 2012 Version 3.5 2 The PERMACONN system provides two-way communication between supervised premises and the monitoring centre. The Permaconn PM1025 is a versatile state of the art microprocessor based GPRS security communicator. This unit can interface with a range of alarm panels using RS485 / RS232 and Contact ID. It also has four (4) Inputs and three (3) Outputs. • The Permaconn PM1025 reports Contact ID events on the GPRS network. • The Permaconn PM1025 polls according to the registered fault recognition time. • If an event is not `Kissed Off`` by the Permaconn PM1025 – the alarm panel should be programmed to report on PSTN. • The Permaconn PM1025 requires an interface module to communicate with an alarm panel. WARNING • INSTALLATION MUST BE CARRIED OUT BY SERVICE PERSONNEL ONLY • CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES. • For correct operation the unit must be powered with an approved power supply and a 12V/1.2AH sealed lead acid battery. • The unit must only be operated with the supplied antenna. Install the Permaconn PM1025 in a location that no person[s] is closer than 200 mm to the antenna at all times. • Australian Standard AS2201 requires regular service by qualified and licensed technicians and regular testing. • The unit must be installed in accordance with this manual and AS2201.1 for proper operation. STANDARDS COMPLIANCE • In this manual, ‘AS2201.1’ refers to AS/NZS 2201.1:2007, ‘AS2201.5’ refers to AS/NZS 2201.5:2008 and ‘AS2201’ refers to the current issues of the AS2201 range of documents. • In order to achieve compliance with AS2201.5, the terms of the current issue of the document ‘Permaconn AS/NZS 2201.5:2008 Compliance Statement’ must be met. • Note that the overall alarm transmission system configuration needs to comply with AS2201.1 and AS2201.5. • It is stressed that the supervised premises alarm panel is be installed and maintained in order to meet Class (as relevant to the alarm transmission system classification) under AS2001. The logbook required under Clause 6.4 of that Standard is to remain current. Introduction Permaconn PM1025 Manual July 2012 Version 3.5 3 • The monitoring centre is to hold a copy of the documentation required at AS2201.5 Clause 2.3. • The monitoring centre is to maintain ‘fault and maintenance logs’ in accordance with AS 2201.5 Clause 3.9.on. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Customer Information 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US: AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. 2. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. 3. If this equipment [US:9E7AL09BPM1025-18000-7] causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 4. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. 5. If trouble is experienced with this equipment [US:9E7AL09BPM1025-18000-7], for repair or warranty information, Service can be facilitated through our office at: U.S. Agent Company name: Protection Alarms Address: 21704 Devonshire Street, Chatsworth, CA 91311 Tel: 866-359-6555 Fax: 818-885-7726 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. 6. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified. For repair procedures, follow the instructions outlined under the limited warranty. 7. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. 8. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this [PM1025-18000-7] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 9. If the telephone company requests information…

Text truncated - open the document above for the full version.

THE TRUSTEE FOR RADIO DATA COMMS TRUST Unit 5 20 - 30 Stubbs Street, Silverwater NSW 2128, Australia Tel: 61 2 9352 1777 Fax: 61 2 9352 1700 FCC Authorization 11/28/2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We THE TRUSTEE FOR RADIO DATA COMMS TRUST , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. On our Behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Ben Chen Manager

THE TRUSTEE FOR RADIO DATA COMMS TRUST Unit 5 20 - 30 Stubbs Street, Silverwater NSW 2128, Australia Tel: 61 2 9352 1777 Fax: 61 2 9352 1700 FCC Confidential Authorization 11/28/2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: QNHPM1025- 18000-7 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT--- (Long term) ƒ Block Diagram--- (Long term) ƒ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Ben Chen Manager

Cinterion Wireless Modules GmbH· Si emensdamm 50 · 13629 Berl in • Gennany Name Thorsten Liebig Bay Area Compliance Laboratories Corp. Department Managewr Approval 1274 Anvilwood Avenue Sunnyvale, CA 94089, USA Phone +493031102-8341 Fax +493031102-8305 E-Mail Thorsten.liebig@cinterion .com Your letter of Our reference Date 29 November 2012 Cinterion Wireless Module MC55i FCC ID :QIPMC551 Dear Sir or Madam: We, Cinterion Wireless Modules GmbH declare that our GSM/GPRS Module, Model Number: MC55i was compliance with FCC Requirement, FCC ID :QIPMC551 which was granted on 01/23/2008. THE TRUSTEE FOR RADIO DATA COMMS TRUST is our client and bought our product, therefore, we authorized them using our design and all related technical information and data, Furthermore, we permit them to use our test data as a basic for its end product testing. Please contact me if you have any other questions. Best Regards, Signature: Dr. Jörg Rook Head of System Test Registered office: Managing directors: Commercial register, Reg. no.: Cinterion Wireless Modules GmbH No rbert Muhrer, Sebastien Gallois Amtsgericht München, HRB 172715 SI. ·Martin·Straße 60 WEEE-Reg-Nr DE 58893809 815 41 München Ge rmany

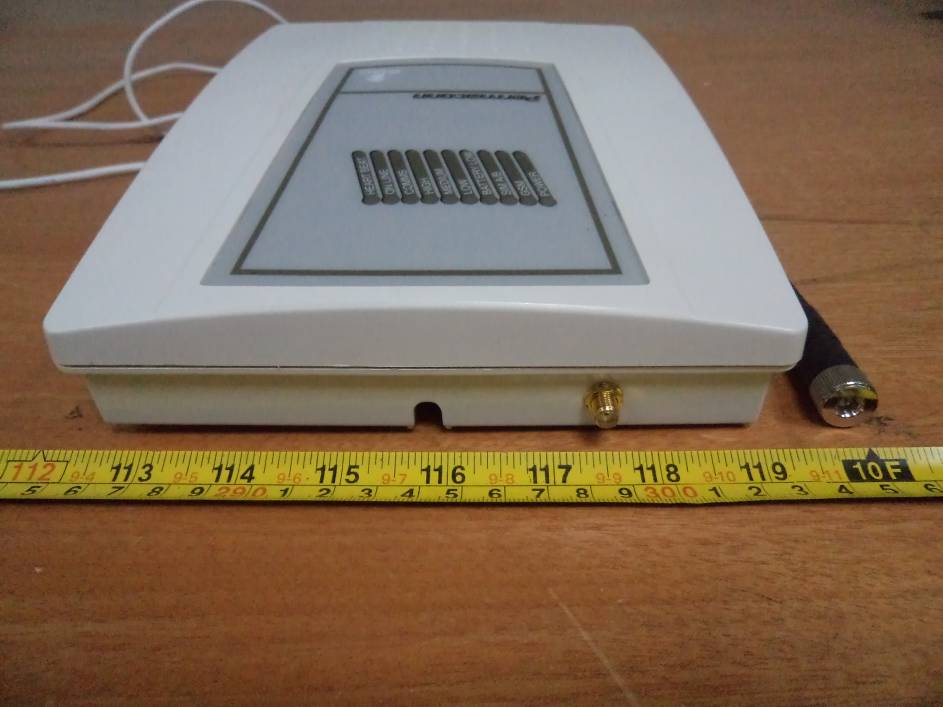

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Antanna View EUT – Antanna Port View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – IP-63 Board Top View EUT – IP-63 Board Bottom View EUT – DI300 Top View EUT – DI300 Bottom View EUT – DI300 Cover off View EUT – DI300 Main Board Top View EUT – DI300 Main Board Bottom View EUT – DI300 Extra Board Top View EUT – DI300 Extra Board Bottom View EUT – GPRS Module Top View EUT – GPRS Module Shielding off Top View EUT – GPRS Module Bottom View EUT – Battery View

Bill of Materials Source Data From:PM1025 Project:MC55i.PrjPcb Variant:None Creation Date:15/10/20109:32:56 AM Print Date:4125041250.55562 LibRefCommentDesignatorFootprintDescriptioncommentQuantity Capacitor Ceramic0.1uFC1,C2,C3,C5,C6,C7,C9,C11,C13,C15,C17060350V 20%38 C19,C20,C22,C23,C24,C25,C26,C27,C28 C29,C30,C36,C37,C38,C39,C40,C41,C42 C43,C44,C45,C46,C49,C50,C51,C52,C53 Capacitor Electro2200uF/16VC4CAP5/12X25_Hdon't change,cirtial c1 Capacitor Electro1000uF/10VC8CAP5/10X20_HLOW ESR1 Capacitor Ceramic0.022uFC10060350V 20%1 Capacitor Ceramic220pFC12060350V 20%1 Capacitor Ceramic22pFC14, C16060350V 20%2 Capacitor Electro330uF/25VC18CAP5/101 Capacitor Electro4.7uF/50VC21CAP2/5X11_HLOW LEAK1 Capacitor Ceramic5pFC31, C32, C33060350V 20%3 Capacitor Ceramic1nFC34, C35060350V 20%2 Capacitor Electro100uF/35VC47CAP3.5/81 Capacitor Electro47uF/16VC48CAP2/51 DIODEGS1GD1, D6, D7, D8, D15, D16SMA_DO-214AC6 Diode fastSTPS2L25UD2SMA_DO-214AC1 DIODE1N4148D3, D4, D9, D10, D11, D12, D13, D14SOD-80C8 DIODERS3BD5SMC_DO-214AB1 ESD_ARRAY_4PESD15VS4UDD18TTSOP61 LEDLED_REDD19, D20, D210805LED3 LEDLED_GREEND22, D230805LED2 CON2TAMPERJ1B2BVH_RRigh angle, 2.54 Pitch connector1 JUMPERJUMPERJ2SIP2with Jumper cap1 CON3CON3J3SIP3with one jumper cap on pin1-21 HEADER 8X2HEADER8X2JP1IDC161 HEADER 8X2HEADER8X2JP3IDC161 HEADER 8X2HEADER 8X2JP2FKV16SN1 INDUCTOR IRON33uH/3AL1COIL-SMDA1 LED-ARRAYLED-ARRAYLED1LED 080510 MC37IDF12E (3.0)-50DP-0.5V (81) M1MODEM Socket1 PTC2R5PTCRAD0.21 NPNBC817Q1, Q2, Q3, Q5, Q6, Q7, Q8SOT-23NPN Transistor7 MOSFET NZXM61N02FQ4SOT-231 PNP1BC807-40Q9SOT-23PNP Transistor1 Resistor1.8KR1,R6,R8,R9,R10,R11,R14,R18,R21,R2306031/16W 5%12 R59,R61 Resistor10KR2,R5,R7,R25,R30,R41,R44,R46,R4806031/16W 5%13 R55,R56,R57,R58 Resistor3.65K/1%R12, R1606031/16W2 Resistor24K/1%R13, R1506031/16W2 Resistor3K/1%R1706031/16W1 Resistor100RR19,R24,R27,R35,R49,R50,R52,R53,R6306031/16W 5%9 Resistor100KR20,R4506031/16W 5%2 Resistor4.7KR22, R54,R60,R69,R70,R7106031/16W 5%6 Resistor1.3K/1%R2606031/16W1 Resistor200KR28, R29, R4706031/16W 5%3 Resistor150K/1%R31, R32, R33, R3406031/16W4 Resistor1MR36, R37, R4206031/16W 5%3 Resistor1KR3808051/8W 5%1 Resistor56KR3906031/16W 5%1 Resistor470KR4006031/16W 5%1 Resistor27R/3WR43AXIAL1.01%1 Resistor10K/1%R51,R62,R64,R65,R6706031/16W5 Resistor5.6KR6808051/8W 5%1 Resistor4.7KR7208051/8W 5%1 Resistor22RR73, R74, R7508051/8W 5%3 Resistor1KR76, R77, R7806031/16W 5%3 Resistor820RR79, R8006031/16W 5%2 Resistor49.9K/1%R81, R82, R83, R8406031/16W4 SIM-CARD 2SIMCARD-CCM03-8PSIM1, SIM2SIMCARD-115F-8P115F-ACA0-R, CCM03-30132 PCBTerminalBlockCON6_STB1TB5X6_16AUTL MU1.5P/H5.0 BLUE 3way+3way BLUE1 PCBTerminalBlockCON6TB2TB5X6_16AUTL MU1.5P/H5.0 BLUE 3way+3way BLUE1 PCBTerminalBlockCON3TB3TB5X3_16AUTL MU1.5P/H5.0 BLUE 3way BLUE1 PCBTerminalBlockCON2TB4TB5X2_16AUTL MU1.5P/H5.0 BLUE 2way BLUE1 74HC406674HC4066U1TTSOP-141 LPC2100LPC2134U2LPC2100/LPC21341 L5973DL5973DU3SO-8SwitchRegulator STNO FAKE COMPO N1 LM339LM339U4TTSOP-141 74HC409474HC4094U5TTSOP-161 L78L33_SO-8L78L33U6L78L331 CRYSTAL12.0MHzX1XTAL21 coax-cableANT-Z0161 GSM ModemMC55i1 AntennaGSM 3.0dBG802103S1 Plastics Case1 CB-1008battery cable(UL)2 203 ApprovedNotes Altium Limited Confidential 2012-12-7Page 1 Description Comment Designator Footprint LibRef Quantity Capacitor Electro 470uF/10V C1 CAP3.5/8 1 Capacitor Ceramic 0.1uF C2, C6, C7, C8, C9, C10, C11, C12, C13, C15, C16 0603 50V/X7R 11 Capacitor Electro 10uF/6.3V_LOWESR C3 CSMD Φ 4 1 Capacitor Ceramic 33pF C4, C5 0603 50V/X7R 2 Diode 1N4004 D1 SMA_DO-214AC 1 HEADER 8X2 HEADER 8X2 J1 IDC16 Dual row 2X8 pin, without Pin 4 1 HEADER 8X2 HEADER 8X2 J2 IDC16 Dual row 2X8 pin 1 Ferrite bead 60 Ohm @ 100MHz >0.7A L1 0805 BMB2A0060LN2 1 Resistor 100R R1, R3, R6, R8, R10, R20 0603 1/16W 5 Resistor 2.32K/1% R2 0603 1/16W 1 Resistor 0R R4 0603 1/16W 1 Resistor 10K R5, R13, R14, R17, R18, R21 0603 1/16W 6 Resistor 49R9 R7, R9, R11, R12 0603 1/16W 4 Resistor 180R R15, R16 0805 1/8W 2 Resistor 1K R19 0603 1/16W 1 RJ-45 Connector with Magnetics J0011D01BNL RJ45 J0011D01BNL HanRun HR961142A 1 Ethernet Controller ENC28J60 U1 QFN-P28_N ENC28J60 1 256K SPI Bus Serial EEPROM 25LC256 U2 SO-8 25LC256 1 Crystal 25MHz Y1 XTAL2 CRYSTAL 1 DescriptionCommentDesignator Part Number/Supplier FootprintQuantity Crystal3.579545MHzY1 CRYSTAL± 20ppm XTAL21 8-Bit CMOS Microcontrollers With A/D Converter PIC18F24K22U10PIC18F24K22-I/MVUQFN-281 Comparator LM393U1LM393PWRtssop-81 AMPLMV358U2LMV358IPWtssop-81 1.2V To 37V Voltage Regulator LM317_VU8(LM317MDCYR)SOT-2231 NPN TransistorBC817-40Q1, Q2, Q3SOT23-CBE_L3 OptoisolatorHMHA2801U4, U5, U6, U7SOP-44 DTMF decode HT9172U11SOL-181 Diode BridgeMB4SD5, D8SOIC4(MBS)2 Diode1N4148D3SOD-323_N1 Zener Diode MMSZ4698T1,11V/0.05u AD6, D9MMSZ4698T1SOD-123_N2 Zener Diode20V/0.5WD17SOD-80C1 power chip L78L05_SO-8U3SO-81 Zener DiodeSMBJ300CAD2SMB_DO-214AA_N 1 Diode1N4004D1, D10, D12SMA_DO-214AC_M 3 RJ12 RJ12 4/6 J2RJ12P6C4-V1 RJ11 RJ11 4/4 J1RJ11P4C4-V1 Resistor 27RR30 1/4W RESC2012N1 Resistor 2KR15 1/8W RESC2012N1 Resistor 39RR17, R24 1/4W RESC2012N2 Resistor 6.2M/300VR2, R13 1/8W RHM6.20MAHCT RESC2012N2 Resistor 6.2M/300VR19, R23 1/8W RHM6.20MAHCT RESC2012M2 Resistor 1.8KR42 1/16W RESC1608N1 Resistor 100K R3, R6, R9, R11, R33, R34, R37, R40, R45 1/16W RESC1608N9 Resistor 10KR7, R12, R20, R29 1/16W RESC1608N4 Resistor 150KR10 1/16W RESC1608N1 Resistor 1K/1%R31 1/16W RESC1608N1 Resistor 200KR35, R41, R43 1/16W RESC1608N3 Resistor 220RR39 1/16W RESC1608N1 Resistor 24K/1%R27 1/16W RESC1608N1 Resistor 2KR5, R18, R21, R25, R32, R48, R50 1/16W RESC1608N7 Resistor 3.6KR14 1/16W RESC1608N1 Resistor 33KR38 1/16W RESC1608N1 Resistor 3KR26, R28, R44 1/16W RESC1608N3 Resistor 4.7KR1, R16 1/16W RESC1608N2 Resistor 470KR8, R22 1/16W RESC1608N2 Resistor 820RR36 1/16W RESC1608N1 RelayHONGFA HFD3/12K1, K2HONGFA HFD3/122 FusePTC_300mAF1RAD0.21 1.2MHz Boost RegulatorMIC2605U9MLF-81 Inductor22uH/0.9AL2L_5*51 LED SMTGREEND4, D11, D15, D18LED08054 LED SMTREDD13, D14, D16LED08053 ConnectorCON6J5 Head_2X3_SMT wit…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 22H, PART 24E TEST REPORT For THE TRUSTEE FOR RADIO DATA COMMS TRUST Unit 5 20 - 30 Stubbs Street, Silverwater NSW 2128, Australia FCC ID: QNHPM1025-18000-7 Report Type: Original Report Product Type: Permaconn GPRS/IP Communicator Test Engineer: Gardon Zhang Report Number: RSZ11050452-00 Report Date: 2012-11-20 Reviewed By: Alvin Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ11050452-00 FCC Part 22H/24E Page 2 of 15 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §1.1307 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE)............................................................8 APPLICABLE STANDARD..............................................................................................................................................8 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER......................................................................11 APPLICABLE STANDARDS...........................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................12 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS ...........................................................13 APPLICABLE STANDARDS...........................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................14 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ11050452-00 FCC Part 22H/24E Page 3 of 15 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The THE TRUSTEE FOR RADIO DATA COMMS TRUST’s product, model number: PM1025 (FCC ID: QNHPM1025-18000-7) or the "EUT" in this report is a Permaconn GPRS/IP Communicator, which measures approximately: 23.3 cm (L) x 17.7 cm (W) x 5.5 cm (H), rated input voltage: DC 14V adapter or 12V battery. Adapter information: Model: WT1401750 Input: AC 100-240 V, 50/60 Hz, 1.6A Output: DC 14.0 V, 1.75A *All measurement and test data in this report was gathered from production sample serial number: 50367(Assigned by applicant). The EUT supplied by the applican…

Text truncated - open the document above for the full version.

TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: CETECOM ICT Services GmbH (2) Im Teelbruch 116 D-45219 Essen, D45219 Germany Date of Grant: 01/23/2008 Application Dated: 01/22/2008 Cinterion Wireless Modules GmbH Siemensdamm 50 Berlin, 13629 Germany Attention: Thorsten Liebig , Manager Approval NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: QIPMC55I Name of Grantee: Cinterion Wireless Modules GmbH Equipment Class: PCS Licensed Transmitter Notes:Quadband GSM/GPRS Module Modular Type:Single Modular Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 22H824.2 - 848.8 1.807 0.0027 PM 300KGXW 24E1850.2 - 1909.8 1.026 0.0024 PM 300KGXW Modular Transmitter. Power Output listed is peak conducted. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. For mobile operating configurations the antenna gain, including cable loss, must not exceed 2.89 dBi at 1900 MHz and 1.33 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure compliance. For fixed operating configurations the final device including antenna gain and cable loss, must fulfil the requirements of 1.1307 of the rules for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. The final product operating with this transmitter must include operating instructions and applicable warnings, as described in this filing, for end users and installers to satisfy RF exposure compliance requirements. OEM integrators must be informed of the specific requirements

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Spurious Radiated Emissions Above 1 GHz: Spurious Radiated Emissions
