Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Appendix 5. Block Diagram

Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT

Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : EMP-F FCC ID : QNJEMP-F Eratech Co., Ltd. Made in Korea FCC Label

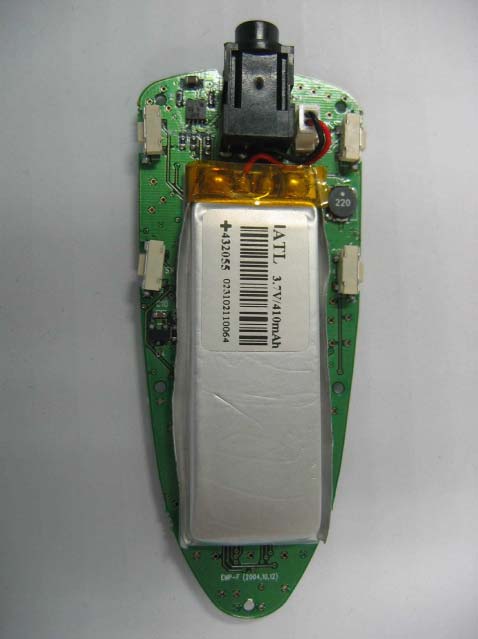

Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Appendix 4. Internal Photographs of EUT Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004

Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F 3. Product Information 3.1 Equipment Description 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : Voice Recorder with MP3 Player MODEL/TYPE NO : EMP-F FCC ID : QNJEMP-F TRADE NAME : ERATECH APPLICANT : Eratech Co., Ltd. 7F, Koosan Bldg, 70-10, Nonhyeon2-Dong, Gangnam-Gu, Seoul, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : October 04, 2004 DATES OF ISSUE : November 08, 2004 TEST REPORT No. : BWS-04-EF-0065 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Voice Recorder with MP3 Player has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 November 08. 2004 (Date) Taehyun Nam Chief Engineer Laboratory Division Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : Eratech Co., Ltd. Company Address : 7F, Koosan Bldg, 70-10, Nonhyeon2-Dong, Gangnam-Gu, Seoul, Korea Phone/Fax : Phone : +82-2-543-1710 / Fax : +82-2-543-3813 Company Name : Eratech Co., Ltd. Company Address : 7F, Koosan Bldg, 70-10, Nonhyeon2-Dong, Gangnam-Gu, Seoul, Korea Phone/Fax : Phone : +82-2-543-1710 / Fax : +82-2-543-3813 z EUT Type : Voice Recorder with MP3 Player z Model Number : EMP-F z FCC Identifier : QNJEMP-F z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : October 04,2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-04-EF-0065 Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the Eratech Co., Ltd. Voice Recorder with MP3 Player Model : EMP-F. Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F 3. Product Information 3.1 Equipment Description 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2000. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50/50uH LISN as the input transducer to a Spectrum Analyzer or a Field Int…

Text truncated - open the document above for the full version.

Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Appendix 1. Test Setup Photographs Conducted Emission Test Setup Eratech Co.,Ltd. Voice Recorder with MP3 Player EMP-F Report No: BWS-04-EF-0065 FCC ID : QNJEMP-F Date of Test : October 04, 2004 Radiated Emission Test Setup
