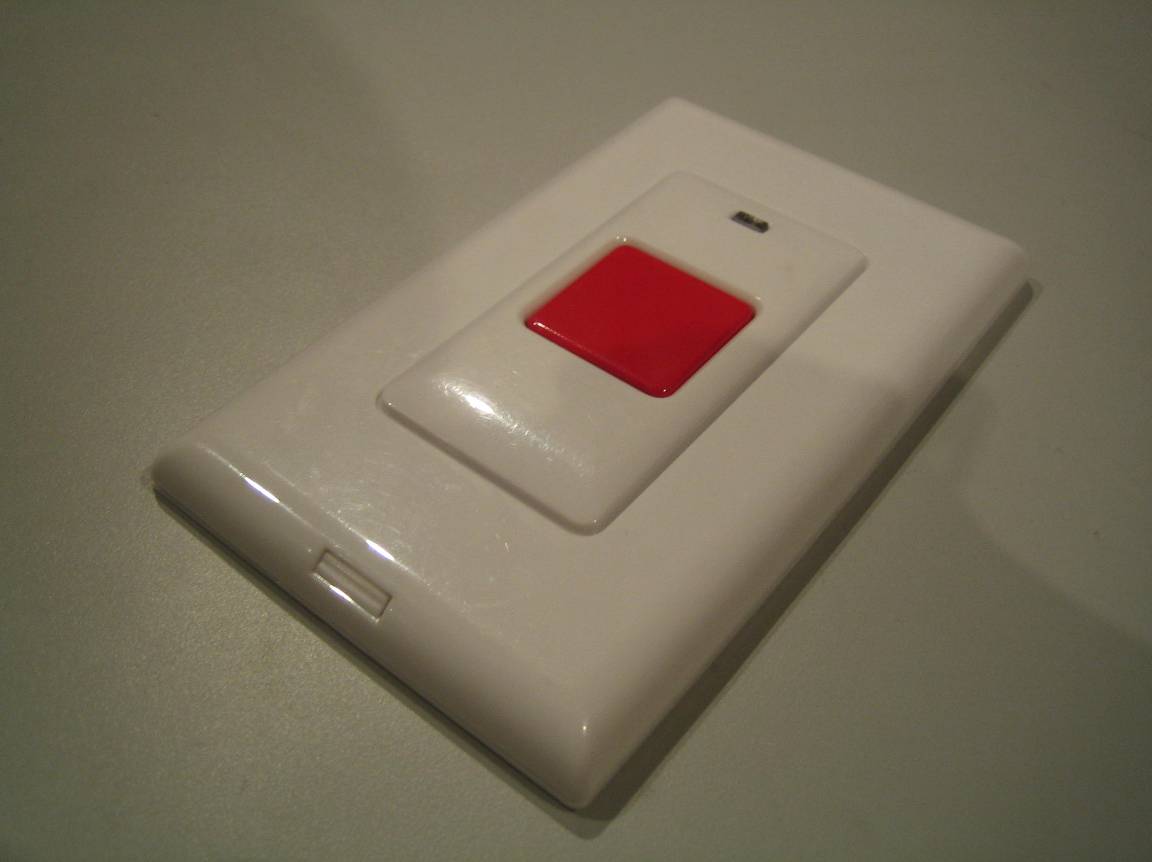

Panic Button Model : 45145 1. INTRODUCTION The transmitter allows you to operate the receiver. It is a wall mount type transmitter to allow to access easily. 2. LEARN TRANSMITTER TO THE CONTROL PANEL In order for the transmitter to communicate with the control panel properly, the transmitter must be programmed to the control panel. Follow the brief instructions below or refer to the detail instructions from the User’s Instructions to program the transmitter to the control panel. To program the transmitter to control panel: 1. Slide the mode switch to ‘ON” position in the control panel. 2. Press and hold the ‘Learn’ button in the control panel. The ‘ON’ LED will begin to flash and it will continuous beeps. 3. Press the button on the transmitter for 1 second and release. 4. If a connection has been made, you will hear a long tone from the control panel and the ‘ON’ LED will stop flashing. 3. OPERATION Press the button for 1 second and release, this will activate the “learned” control panel. 4. BATTERY The remote control operates on a 3-volt lithium battery that is installed at the factory. These batteries do not need to be replaced if used under normal condition. There are no servicing parts inside the unit, please do not attempt to open the case. Warranty void if case is opened. Recommendation: Test your transmitter periodically to ensure that all the batteries are working. 5. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase is required. 6. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. 7. CUSTOMER SERVICE If you would like to order Skylink’s products or have difficulty getting them to work, please : 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at [email protected], or 3. call our toll free at 1-800-304-1187 from Monday to Friday, 9am to 5pm EST. Fax (800) 286-1320. SKYLINK TECHNOLOGIES INC., 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email: [email protected] Website: http://www.skylinkhome.com © 2010 Skylink Group

FCC ID: QOB45145

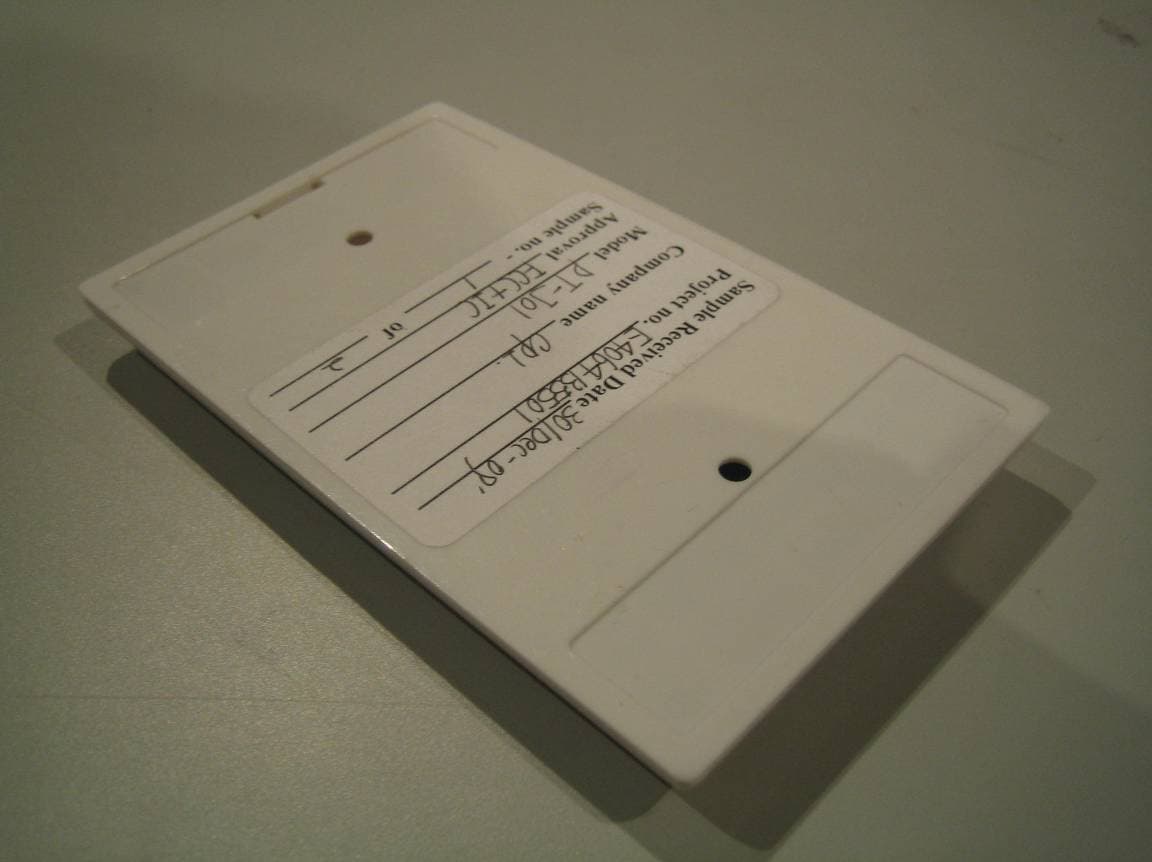

PROPRIETARY INFORMATION CAPITAL PROSPECT LTD. MODEL : PT-J01 LABEL DIAGRAM DATE : JAN 28, 2010 PAGE : 1 OF 1 REV : A BOTTOM SIDE FCC LABEL SIZE : 25X20mm

FCC ID: QOB45145 FCC ID: QOB45145

FCC Test Report E4064135501KY Type / Model Name: 45145 Product Description: Remote button Applicant: JASCO PRODUCT COMPANY FCC ID: QOB45145 FCC ID:QOB45145 File No. E4064135501KY, page 2 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 FCC -- T E S T R E P O R T Test Report No. : E4064135501KY January 13, 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : 45145 Product Description : Remote button Applicant : JASCO PRODUCT COMPANY Address : 10E, MEMORIAL, OKLAHOMA CITY OK, 73114, USA Test Result according to the standards listed in clause 1 test standards: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:QOB45145 File No. E4064135501KY, page 3 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 AVERAGE FACTOR 9 5.2 RADIATED EMISSION 12 5.3 BANDWIDTH 14 5.4 PROVISION OF MOMENTARY OPERATION 15 6 USED TEST EQUIPMENT AND ACCESSORIES 16 FCC ID:QOB45145 File No. E4064135501KY, page 4 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15, July 10, 2008 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Method of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ID:QOB45145 File No. E4064135501KY, page 5 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfils the technical requirement cited in section 15.231 of FCC Part 15 Date of receipt of test sample : December 30, 2009 Testing commenced on : December 30, 2009 Testing concluded on : November 13, 2009 Reviewed by: Prepared by: Wilson Loke Senior Manager Kidd Yang Engineer FCC ID:QOB45145 File No. E4064135501KY, page 6 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Front View Back View FCC ID:QOB45145 File No. E4064135501KY, page 7 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3.2 Power supply system utilised Power supply voltage: 3VDC(CR2032 lithium battery) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 318MHz transmitter. The main function of the EUT is acted as a remote control to provide a control signal to the receiver. When the button is pressed, the transmitter will transmit the signal by Pulsed Code Modulation to receiver to control the on/off function of the receiver. The EUT is powered by one 3VDC lithium battery. Number of tested samples: One Serial number: Not Labelled Dimensions: L: 11.5cm W: 7.0cm H: 1.0cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transimitting mode - Operation mode 2: N/A - Operation mode 3: N/A EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - None Model : - Model : - Model : - Model : - Model : - Model : FCC ID:QOB45145 File No. E4064135501KY, page 8 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, 518049 China FCC Registration No.: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to ISO 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. FCC ID:QOB45145 File No. E4064135501KY, page 9 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 5 TEST CONDITIONS AND RESULTS 5.1 Average Factor For test instruments and accessories used see section 6. 5.1.1 Description of the test location Test location: Shield room 5.1.2 Photo documentation of test FCC ID:QOB45145 File No. E4064135501KY, page 10 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 FCC ID:QOB451…
