QOLYINHESTB02Digital Satellite Receiver

30V 5V 3.3V 22V 13/18V 22KHz 22KHz FL_ADD 0~19 FL_DATA 0~15 TS-DATA I2C_CLK I2C_DATA VIDEO DATA 11 11 VIDEO Control Hsync,Vsync,Pclk 3 C/V Y/Y CVBS1 CVBS2 AUDIO DATA AUDIO AUDIO 4 PWM System clock 27MHz Power 12V Power 5V RXD/TXD RXD/TXD 16 20 12 S_ADD 0~11 S_DATA 0~15 12 16 13/18V Control LNBV ON/OFF Control DC 13 or 18V output 22KHz Pulse output 950MHz~2150MHz RF signal input 12V 3.3V HD00~03,GPIO07 5 IR IN Front panel display control 3 RCLK SCLK SER 8 FL_ADD 0~11 FL_DATA 0~7 2 GPIO00 GPIO10 CPU MB87L2250 P O W E R 16Mbit SDRAM Mpeg2 Decode 16Mbit SDRAM 2M FLASH 2M FLASH EEPROM 24C64 PC27 DVB-S TUNER RS-232 MAX232 ADV7170KSU PCM1740 27M crystal S-VHS RCA RF MODULATOR (NTSC CH3/4 ) LNB Control part FRONT PANEL KEY Control part (Include 74HC245,74HC32) SMART CARD Control part Include74HC32,74HC574,74HC245, VT7128,6M crystal 4558D amplifier

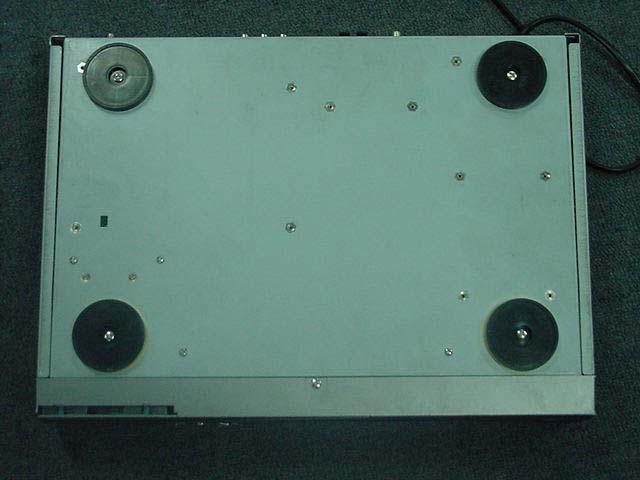

FCC ID: QOLYINHESTB02 External Picture of the Digital Satellite Receiver Front View Back View FCC ID: QOLYINHESTB02 Bottom view

FCC ID: QOLYINHESTB02 FCC ID Label 2:1 FCC ID: QOLYINHESTB02 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired. FCC ID Label location

FCC ID: QOLYINHESTB02 Internal Picture of Digital Satellite Receiver Cover Removed FCC ID: QOLYINHESTB02 Power board – component side Filter for EMI suppression Power board – soldering side FCC ID: QOLYINHESTB02 RF Output Module –Component side Shielded enclosure for EMI suppression FCC ID: QOLYINHESTB02 RF Output Module – Soldering side FCC ID: QOLYINHESTB02 Main board – Component side Main board – Soldering side FCC ID: QOLYINHESTB02 Front panel – Component side Front panel – Soldering side FCC ID: QOLYINHESTB02 Infrared remote controller - outline Cover removed FCC ID: QOLYINHESTB02 Soldering side of the board Component side of the board

FCC ID: QOLYINHESTB02 Technical Description

FCC ID: QOLYINHESTB01 Schematic diagram for the product FCC ID: QOLYINHESTB01 FCC ID: QOLYINHESTB01 FCC ID: QOLYINHESTB01 FCC ID: QOLYINHESTB01

Report no: JSH02*2132-002 Page 1 of 23 Application for FCC Identifier On Behalf of Jiangsu Yinhe Electronics Co., Ltd. (Product: Digital Satellite Receiver) (FCC ID QOLYINHESTB02) Summary The equipment comply with the requirements according to the following standard(s): 47CFR Part 15 (1999): Radio Frequency Device ANSI C63.4 (2000): Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Description The appliances were tested by Shanghai Institute of Standards and Metrology and found compliance with relevant requirements described in FCC Part 15 Radio frequency Device. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report applies to tested samples only and shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. Date of Test: October 24, 2002 Date of Issue: October 31, 2002 Prepared by: Report Approved by: Steve li (Engineer) Ole Stiling (Chief Engineer) FCC ID QOLYINHESTB02 Report no: JSH02*2132-002 Page 2 of 23 Description of Test Facility Name of Firm : Shanghai Institute of Standards and Metrology Site Location : 627 Yong Jia Road Shanghai, P.R. China Name of contact : Mr. Zhiqing (first name) Li (last name) Phone : 86-21-64335275 Fax : 86-21-64317195 E-mail address : [email protected] FCC ID QOLYINHESTB02 Report no: JSH02*2132-002 Page 3 of 23 CONTENTS Summary........................................................................................................................................1 Description.....................................................................................................................................1 Description of Test Facility...........................................................................................................2 1.Applicant Information...............................................................................................................5 2.Information of Equipment Under Test (EUT).........................................................................5 2.1 Identification of the EUT...................................................................................................5 2.2 Additional information about the EUT ............................................................................6 2.3 Peripheral equipment .........................................................................................................6 3. Conducted Powerline Measurement........................................................................................7 3.1 Conduction Limit................................................................................................................7 3.2 Instruments List ...................................................................................................................7 3.3 Test Setup .............................................................................................................................8 3.4 Test Configuration ..............................................................................................................8 3.5 Test Procedure....................................................................................................................9 3.6 Test Results ........................................................................................................................10 3.7 Measurement Uncertainty ...............................................................................................10 4. Radiated emission measurement............................................................................................11 4.1 Radiated emission limit....................................................................................................11 4.2 Instruments list ..................................................................................................................11 4.3 Test setup ...........................................................................................................................11 4.4 Test configuration .............................................................................................................12 4.5 Test procedure ...................................................................................................................12 4.6 Test Results....................................................................................................................13 4.7 Measurement Uncertainty...............................................................................................14 5. Antenna Conducted power Measurement.............................................................................15 5.1 Antenna Conducted power limit.....................................................................................15 5.2 Instruments List .................................................................................................................15 5.3 Test setup ...........................................................................................................................15 5.4 Test configuration .............................................................................................................15 5.5 Test procedure ...................................................................................................................15 5.6 Test protocol ......................................................................................................................16 5.7 Measurement uncertainty ................................................................................................16 6. Output signal conducted level measurement........................................................................17 6.1 Output signal conducted limit ..…

Text truncated - open the document above for the full version.

FCC ID: QOLYINHESTB02 Conducted emission waveform VA VB FCC ID: QOLYINHESTB02 CH. 3 GS3000H GS3000V FCC ID: QOLYINHESTB02 CH. 4 FCC ID: QOLYINHESTB02 Output signal CH. 3 Output signal CH. 4

FCC ID: QOLYINHESTB02 Test set up Conducted emission FCC ID: QOLYINHESTB02 FCC ID: QOLYINHESTB02 Radiated emission FCC ID: QOLYINHESTB02 Output Signal level Output Terminal Conducted Spurious emission FCC ID: QOLYINHESTB02 Antenna Power Conduction Antenna Transfer Switch
