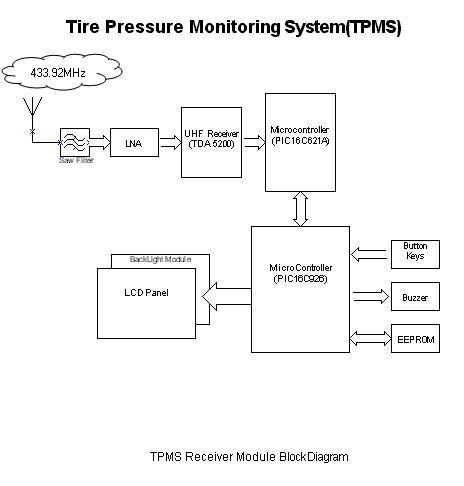

QOMTE800-RTire Pressure Monitor System

08-09-01-007-0 Tire Pressure Monitoring System OWNER’S MANUAL An advance tire pressure monitoring system that gives you the maximum control Page 19 This Page is Intentionally Left Blank i TABLE OF CONTENTS Notices ............................................................................................................... FCC Notice System Scope of Use and Warnings System Installation and Usage Reacting To Alerts Use of Chemicals Page 1 1. Technical Specifications ........................................................................................ Sensor/Transmitter Module Display/Receiver Module Page 2 2. Components Part List ............................................................................................ Page 3 3. Getting Started .................................................................................................... How it works Handling Alerts Page 4 4. Sensor/Transmitter Module ..................................................................................... Installation Tools Required Installing Sensor/Trans mitter Module.............................................................. Page 5 Page 6 5. Display/Receiver Module ....................................................................................... LCD Display Installation Recommended Installation for Display / Receiver Module..................................... Page 7 Page 8 6. Programming ........................................................................................................ Display Mode (S-1)...................................................................................... Programming Threshold Setting (S-2).............................................................. Sensor ID Exchange Mode (S-3).................................................................... Sensor ID Learning Mode (S-4)...................................................................... Turn Backlight On/Off (S-5)............................................................................ Activate Spare Tire On/Off (S-6)..................................................................... Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 14 7. Troubleshooting .................................................................................................... Page 15 8. Appendix & Glossary ............................................................................................. Page 15 9. Annex ................................................................................................................. Page 16 The manufacturer reserves the right to change the contents of this manual at any time without prior notice. The information contained in this manual is proprietary and must not be reproduced without prior consent from the manufacturer. Page 17 This Page is Intentionally Left Blank Page 2 1. TECHNICAL SPECIFICATION Sensor / Transmitter Module Operating Temperature Range -40 ° C to +125 ° C Operating Humidity 100% Weight 32 gram Size (LxWxH) 71 mm x 36 mm x 21 mm Battery Life (Projected) 5 years in normal use Transmitting Frequency 433.92 MHz Transmitter Activation By pressure change Table 1 Display/Receiver Module Power Supply 9 ~ 15 V DC Current Consumption 18mA nominal, 130mA during alert @ 12V DC. Operating Temperature Range -40 ° C to +85 ° C Weight 93 gram Size (LxWxH) 18mm x 125mm x 33mm Receiving Frequency 433.92 MHz Monitored Temperature Range -40 ~ 125 ° C (-40 ~ 257 ° F) Monitored Pressure Range 0 ~ 500 Kpa (Accuracy: ± 10 Kpa) 0 ~ 73 Psi (Accuracy: ± 1.5 Psi) Table 2 Page 15 7. Troubleshooting Guide 8. Appendix Glossary Kpa Pressure reading in kilo Pascal Psi Pressure reading in pound per square inch Bar Pressure reading in bar °C Temperature reading in degrees Celsius °F Temperature reading in degrees Fahrenheit Cold Pressure Recommended inflation pressure of a tire at ambient temperature of 22 ° C by vehicle manufacturers. Low Pressure Alert Visual and audible warning that is activated when the tire’s pressure goes below the preset level. Initial Low Pressure Alert Visual and audible warning activated when tire pressure reaches the region of 50Kpa before Low Pressure Alert (e.g. Factory setting, Low Pressure Alert is set to 120Kpa, which means Initial Low Pressure Alert is when pressure is above 120Kpa, but below 170Kpa. Display/Receiver Module The electronic module mounted inside the vehicle that alerts the driver of any tire irregularities. Sensor/Transmitter Module The electronic module mounted on the wheels that measure the air pressure and temperature of the tire. Symptoms Possible cause(s) Solution No display on LCD panel. No power. Check connections of Power cable at both ends. Ensure that the connection is on the correct polarity and properly grounded. No display on LCD panel. Faulty Unit. Contact your dealer for a replacement. The unit does not activate when the POWER key button is pressed. The car ignition has not been turned ON. Turn the ignition key to ACC position. The receiver is not learning the ID during ID LEARNING Mode. Localize RF interference. Move to another location and re-initiate the ID LEARNING process. No instant alert Reverse power cable installation. Ensure that the red wire is connected to permanent power supply (battery) and orange wire is connected to ACC position of the ignition. Unable to tighten screw into the tire valve Check tire valve thread Change tire Valve Air cannot be pump into the tire No centre holes on the valve screw Change to Valve Screw M5x20 with centre holes Page 4 3. GETTING STARTED How it works Pressure and temperature information are sent to the Receiver and displayed on the LCD display. When an under-inflated, over-inflated or over-heated tire is detected, the Receiver will emit an audible warning and activate the backlight to warn the driver. The alerts depend on threshold value set for pressure and temperature. Either the factory or manual preset value can be selected. Handling Alerts When any of the tire…

Text truncated - open the document above for the full version.

0 8 -09-01-009-0 OWNER’S MANUAL TABLE OF CONTENTS Notices ............................................................................................................... FCC Notice System Scope of Use and Warnings System Installation and Usage Reacting To Alerts Use of Chemicals Page 1 1. Technical Specifications ........................................................................................ Sensor/Transmitter Module Display/Receiver Module Page 2 2. Components Part List ............................................................................................ Page 3 3. Getting Started .................................................................................................... How it works Handling Alerts Page 4 4. Sensor/Transmitter Module ..................................................................................... Installation Tools Required Installing Sensor/Transmitter Module.............................................................. Page 5 Page 6 5. Display/Receiver Module ....................................................................................... LCD Display Installation Recommended Installation for Display / Receiver Module..................................... Page 7 Page 8 6. Programming ........................................................................................................ Display Mode (S-1)...................................................................................... Programming Threshold Setting (S-2).............................................................. Sensor ID Exchange Mode (S-3).................................................................... Sensor ID Learning Mode (S-4)...................................................................... Turn Backlight On/Off (S-5)............................................................................ Activate Spare Tire On/Off (S-6)..................................................................... Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 14 7. Troubleshooting .................................................................................................... Page 15 8. Appendix & Glossary ............................................................................................. Page 15 9. Annex ................................................................................................................. Page 16 The manufacturer reserves the right to change the contents of this manual at any time without prior notice. The information contained in this manual is proprietary and must not be reproduced without prior consent from the manufacturer. i NOTICE FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. System Scope of Use and Warnings Tire Pressure Monitoring System (TPMS) This system is a sensing device designed to measure and display tire operation and/or activate an alert to the driver when pressure and temperature irregularities are detected. It is the responsibility of the driver to react promptly and with discretion to alerts. Abnormal tire inflation pressure should be corrected at the earliest opportunity. System Installation and Usage Use of the TPMS requires that it has been properly installed by qualified personnel according to the instructions here. This system is suitable for use in passenger car, SUV and 4X4 tires up to maximum cold inflation pressure of 500 Kpa (or 73 Psi). Reacting to Alerts When an alert or warning is received, reduce vehicle speed and proceed to a safe stop location where the tire can be inspected and/or serviced. The low-pressure alert indicates that the air pressure has dropped to a selected minimum and a high-temperature alert indicates that the temperature of the tire content has surpassed the threshold value set. Use of Chemical Temporary resealing or re-inflation products containing internal sealants or propellants in any tire assembly may adversely affect the operation of the Sensor/Transmitter. Page 1 1. TECHNICAL SPECIFICATION Sensor / Transmitter Module Operating Temperature Range -40°C to +125°C Operating Humidity 100% Weight 32 gram Size (LxWxH) 71 mm x 36 mm x 21 mm Battery Life (Projected) 5 years in normal use Transmitting Frequency 433.92 MHz Transmitter Activation By pressure change Table 1 Display/Receiver Module Power Supply 9 ~ 15 V DC Current Consumption 18mA nominal, 130mA during alert @ 12V DC. Operating Temperature Range -40°C to +85°C Weight 93 gram Size (LxWxH) 18mm x 125mm x 33mm Receiving Frequency 433.92 MHz Monitored Temperature Range -40 ~ 125°C (-40 ~ 257°F)…

Text truncated - open the document above for the full version.

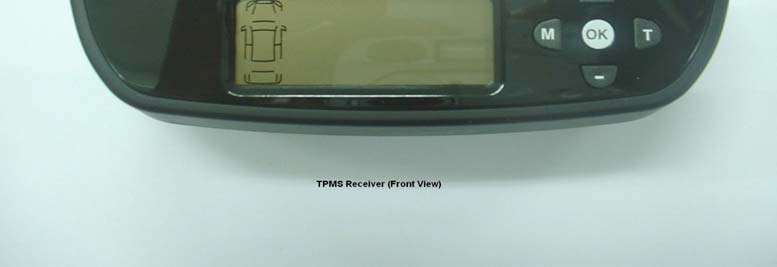

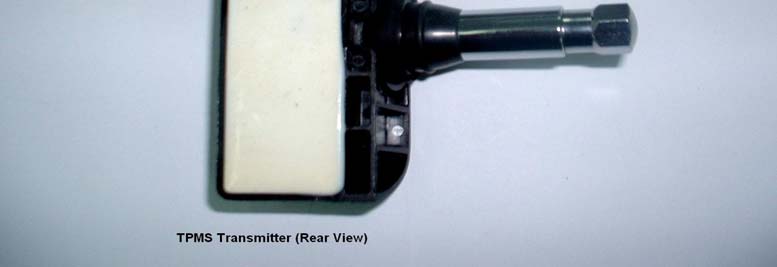

[External Photos]

[Internal Photos]

Ref. Report No. Name and address of the applicant Strong Frontier Sdn. Bhd. LOT 4&6, JALAN 4/89C, OFF JALAN CHAN SOW LIN, KUALA LUMPUR, 55200 MALAYSIA Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : November 01, 2004 Test item(s) ; Communication Receiver used with Part 15 Tx (Tire Pressure Monitoring System) Model/type ref. ; TE800T Manufacturer ; Strong Frontier Sdn. Bhd. Additional information ; -Required Authorization : Certification -FCC ID. : QOMTE800-R -Note : Test report(Certification) of Transmitter portion of this System is issued on Ref. Report No. 04-341-026-01. Test date : November 19, 2004 Issue date : December 10, 2004 This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Won-Seo Cho , Telecommunication Team Manager FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 04 - 1341 – 026 - 02 Page 2 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) . RADIATED EMISSION MEASUREMENT (Section 15.109) 5 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data . TEST EQUIPMENTS USED FOR MEASUREMENT 8 Ref. Report No. 04 - 1341 – 026 - 02 Page 3 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : Strong Frontier Sdn. Bhd. Mailing Address LOT4&8, JALAN 4/89C, OFF JALAN CHAN SOW LIN, KUALA LUMPUR, 55200 MALAYSIA 2. Manufacturer's Name and : Strong Frontier Sdn. Bhd. Mailing Address LOT4&8, JALAN 4/89C, OFF JALAN CHAN SOW LIN, KUALA LUMPUR, 55200 MALAYSIA 3. Equipment Descriptions 3.1 Operating Frequency : 433.92 MHz 3.2 Detect Method : Superheterodyne Detector 3.3 Local Oscillator : Local Osc. Frequency = Operating Frequency – 0.5 MHz (IF) 3.4 Power Supply : DC 12 V (Car Battery) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-2003 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : November 19, 2004 Ref. Report No. 04 - 1341 – 026 - 02 Page 4 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 04 - 1341 – 026 - 02 Page 5 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the ground plane to read maximum emission level. If necessary, the radiated emission measurements could be performed at a closer distance than specified distance to ensure higher accuracy and their results were extrapolated to the specified distance using an…
