QP2-RF-01Y-XXXX-UWireless Remote Control System "Flash Link"

HENSEL StudiotechnikRemote Control System “Flash Link” Product Sheet Page 1 User Manual for the Hensel Remote Control System “Flash Link” Application “Flash Link” is a wireless remote control and flash triggering system for specially prepared Hensel power packs. At present only TRIA 3000 AS power packs support this mode, other power packs are in preparation. “Flash Link” is a bi-directional radio system. Each module represents a receiver as well as a transmitter (Transceiver). The modules are identical (code 3910). By switching the channel you can create three different working groups, which do not influence each other. The working groups are defined by different colours of the LED of the RF module. The system works on the radio frequencies. For operation at least 2 identical radio modules as well as Control Software on PC basis are required. The MAC version is in preparation. Connection and Starting up The radio module is to be connected to the PC using the USB interface socket. The provided standard USB cable (code 3912) is to be used. A second radio module is to be connected to the interface socket No. 2 of the TRIA 3000 AS power pack using the provided dedicated cable (code 3913) from HENSEL Studiotechnik. The radio modules are equipped with a fixed antenna. Remove of the antenna is strictly prohibited. In the event of a broken or damaged antenna, the unit must not be operated any more and immediately sent to an authorized customer service. For controlling of more than one TRIA further power packs can be chained up using the HENSEL TRIA connecting cable code 3914. This cable has to be plugged form Interface socket No. 1 to socket No. 2 of the next TRIA and so on. In this way, up to 10 TRIAs per channel can be connected to each other and radio-controlled. Alternatively it is also possible to equip each TRIA power pack with its own radio module. This option will be chosen, if the TRIAs cannot be placed close together. TheSoftware“Light Control” (code 3911) in the current version is to becopiedintoa Windows directory and started by a double- click. The file size is only approx. 100 KB. Picture 1:Radio module with Laptop connection and TRIA power pack Picture 2:Software “Light Control” HENSEL StudiotechnikRemote Control System “Flash Link” Product Sheet Page 2 The LED of the involved radio modules lights up. It has to be ensured that for communication of the radio modules always the same colour (channel) has to be set. The channel and the colour, respec- tively, can be switched using the pushbutton below the LED. Up to 10 TRIAs can be controlled per each colour that means in total up to 30 power packs in three groups. After automatic frequency adjustment the connected TRIAs can be selected in the next window by setting an ID Number. Each TRIA must have an own ID Number. The same ID Number may not be chosen twice. The ID Numbers of the TRIAs must be transferred to the “Light Control” Software by checking the related boxes. After the Setup procedure is complete TRIAs can be selected and their settings can be changed at any time per radio remote control. The configuration data already set on the control panel of the TRIA power pack will be automatically delivered to the Control Software. The settings of all connected TRIA power packs can be stored under any filename. The file can be later re-opened for other applications. In case of re-opening of a previously created file a memory window will appear, requesting the constellation Setup (number, type and ID of the connected power packs). After checking and confirming of the data, all stored configuration data will be automatically sent from the software to the connected power packs. Flash Triggering The synchronization cable is to be connected to the synchronization socket of the radio module at the PC. The radio module is equipped with a high-speed trigger system, which ensures that even during operation with fast synchronization times delays won’t occur. Test flashes can be released by either striking the F4 key of the keyboard or by clicking the green F4 buttoninthe“ Light Control” window. Caution Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Technical Data “Flash Link” Bi-directional Radio Remote Control System for all function Frequency range:Europe:869.300 - 870.000 MHz USA:915.000 - 915.300 MHz Channels:3 channels for up to 10 flash units per channel, channels can be identified by colour. Range:up to approximately 200 m in the open, approx. 70 m in typical studio area. Connection:USB interface on PC basis, MAC in preparation. Flash Triggering:High-speed flash triggering By connecting the camera directly to the radio module Certificates:USA:FCC ID: QP2-RF-01Y-XXXX-U Würzburg, September 2002

Attestation Statement To meet the requirements of Section 15.203 of the FCC Rules the permanent attachment of the antenna is achieved by the factory-application of a permanent adhesive to the standard antenna connector. The adhesive will be applied at the factory (prior to shipment). The following type of adhesive will be used: METAFLUX anaerobic adhesive Art.-Nr. 76-38 High strength, fast hardening For temperatures up to 200°C Soluble only under strong heat Viscosity 700 mPa s Shearing resistance 40 N/mm²m Torques 47 Nm Colour: violet Klaus Knoerig Agent for Hensel Studiotechnik GmbH &. Co. KG EMCC Dr. Rasek Boelwiese 5 Ebermannstadt, Germany 91320 Art.Nr. 76-38 hochfest 50-g-Flasche 1 VE=10 Flaschen schnellhärtend, für Temperaturen bis 200°C, lösbar nur unter großer Hitzeeinwirkung Viskosität 700 mPa.s, Druckscherfestigkeit 40 N/mm²m Drehmoment 47 Nm, Farbe: violett

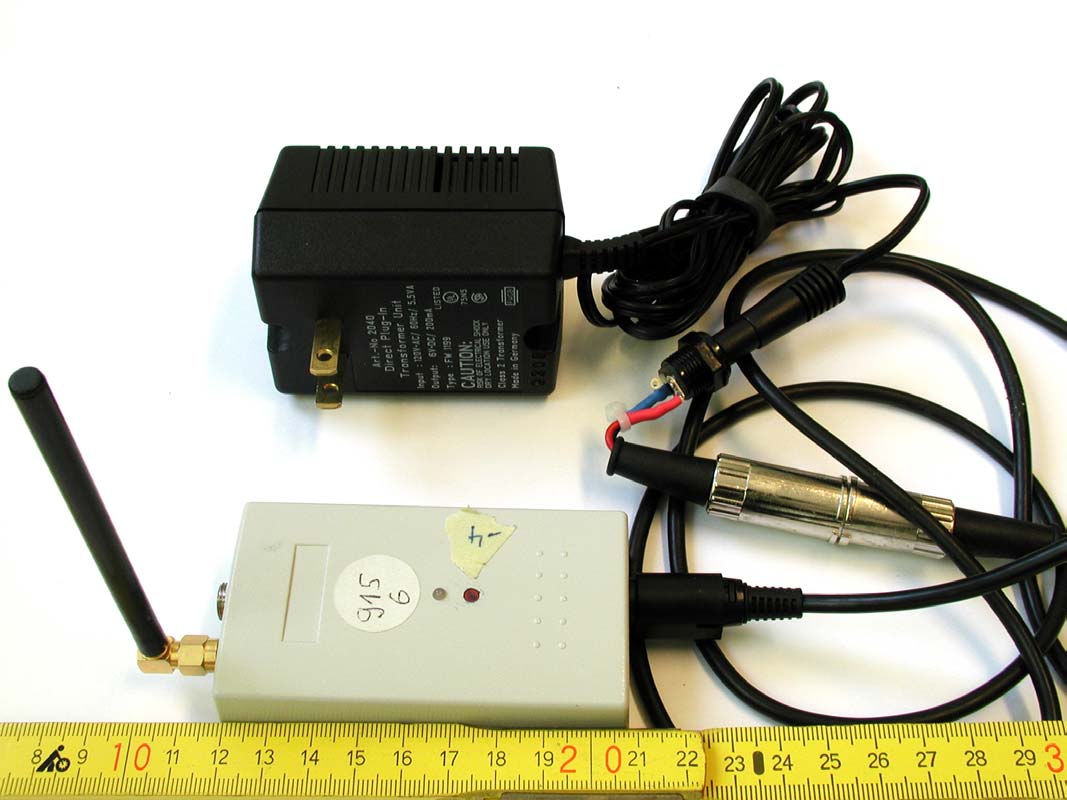

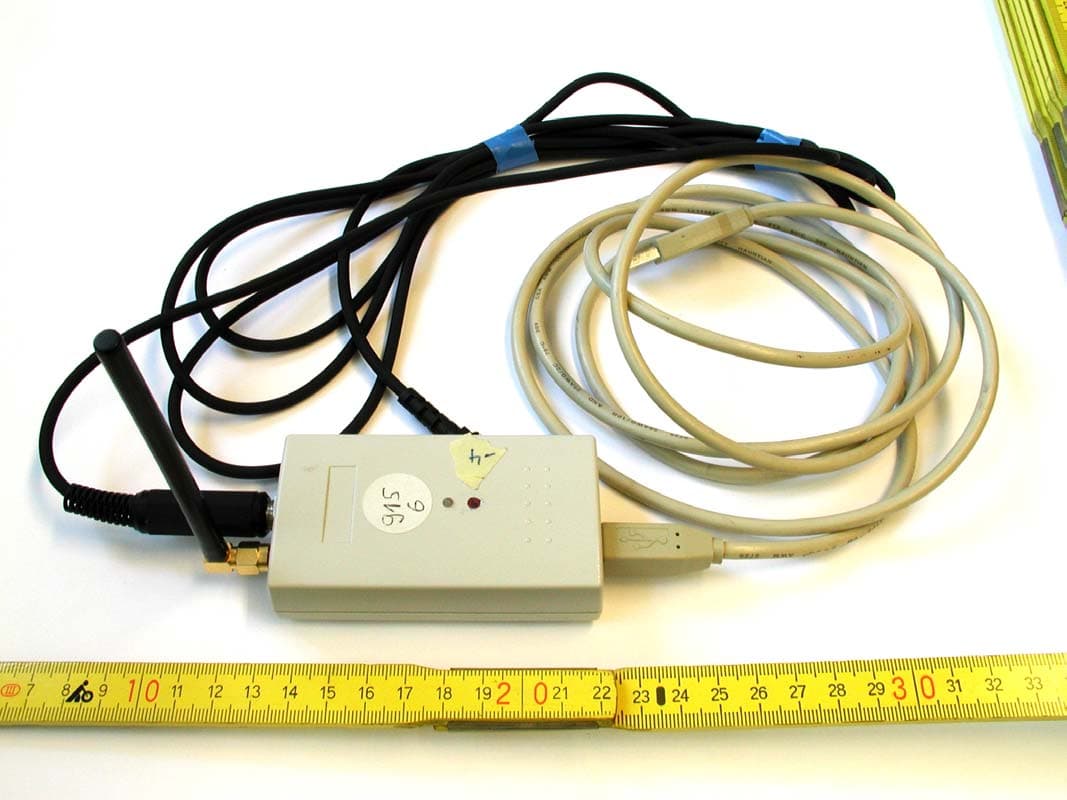

FCC ID: QP2-RF-01Y-XXXX-U RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 960004DC_Annex2.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 7 ANNEX 2 TO TEST REPORT # EMCC-950004DC, 2002-11-20 PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) EXTERNAL VIEWS EQUIPMENT UNDER TEST: Trade Name: Flash Link Model No.: 3910 Serial No.: 6 Equipment Category: Transceiver Manufacturer: Hensel Studiotechnik Address: Robert Bunsen Str. 3 97076 Würzburg Germany Phone: +49 931-27881-0 Fax: +49 931-27881-58 E-mail: RELEVANT STANDARD: 47 CFR Part 15 CONTENTS Page 1 Top view of EUT with USB cable and SYNC cable .......................................................................................................................... 2 2 Top view of EUT with RS485 adapter cable and AC/DC adapter.................................................................................................... 3 3 Top view of EUT with antenna ........................................................................................................................................................... 4 4 Side view of EUT with antenna .......................................................................................................................................................... 5 5 Front top view of EUT with connectors (Antenna removed) .......................................................................................................... 6 6 Rear bottom view of EUT with connectors (Antenna removed) ..................................................................................................... 7 FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 2 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 1 TOP VIEW OF EUT WITH USB CABLE AND SYNC CABLE FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 3 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 2 TOP VIEW OF EUT WITH RS485 ADAPTER CABLE AND AC/DC ADAPTER FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 4 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 3 TOP VIEW OF EUT WITH ANTENNA FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 5 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 4 SIDE VIEW OF EUT WITH ANTENNA FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 6 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 5 FRONT TOP VIEW OF EUT WITH CONNECTORS (ANTENNA REMOVED) FCC ID: QP2-RF-01Y-XXXX-U ANNEX 2 to Test Report #EMCC-950004DC Page 7 of 7 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX2.DOC 6 REAR BOTTOM VIEW OF EUT WITH CONNECTORS (ANTENNA REMOVED)

FCC ID: QP2-RF-01Y-XXXX-U RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 960004DC_Annex3.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 5 ANNEX 3 TO TEST REPORT # EMCC-950004DC, 2002-11-20 PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) INTERNAL VIEWS EQUIPMENT UNDER TEST: Trade Name: Flash Link Model No.: 3910 Serial No.: 6 Equipment Category: Transceiver Manufacturer: Hensel Studiotechnik Address: Robert Bunsen Str. 3 97076 Würzburg Germany Phone: +49 931-27881-0 Fax: +49 931-27881-58 E-mail: RELEVANT STANDARD: 47 CFR Part 15 CONTENTS Page 1 Internal view of the EUT; cover removed.......................................................................................................................................... 2 2 Internal view of the EUT; parts........................................................................................................................................................... 3 3 Internal view of the EUT; top side of the PCB .................................................................................................................................. 4 4 Internal view of the EUT; rear side of the PCB................................................................................................................................. 5 FCC ID: QP2-RF-01Y-XXXX-U ANNEX 3 to Test Report #EMCC-950004DC Page 2 of 5 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX3.DOC 1 INTERNAL VIEW OF THE EUT; COVER REMOVED FCC ID: QP2-RF-01Y-XXXX-U ANNEX 3 to Test Report #EMCC-950004DC Page 3 of 5 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX3.DOC 2 INTERNAL VIEW OF THE EUT; PARTS FCC ID: QP2-RF-01Y-XXXX-U ANNEX 3 to Test Report #EMCC-950004DC Page 4 of 5 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX3.DOC 3 INTERNAL VIEW OF THE EUT; TOP SIDE OF THE PCB FCC ID: QP2-RF-01Y-XXXX-U ANNEX 3 to Test Report #EMCC-950004DC Page 5 of 5 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX3.DOC 4 INTERNAL VIEW OF THE EUT; REAR SIDE OF THE PCB

FCC-ID: QP2-RF-01Y-XXXX-U Test Report #EMCC-950004DC Page 2 of 20 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 950004DC.doc CONTENTS Page 1 GENERAL INFORMATION................................................................................................................................................................... 3 1.1 Purpose ................................................................................................................................................................................. 3 1.2 Limits and Reservations...................................................................................................................................................... 3 1.3 Test Location ........................................................................................................................................................................ 3 1.4 Manufacturer......................................................................................................................................................................... 3 1.5 Dates...................................................................................................................................................................................... 3 2 PRODUCT DESCRIPTION ................................................................................................................................................................... 4 2.1 Equipment Under Test (EUT) .............................................................................................................................................. 4 2.2 EUT Peripherals.................................................................................................................................................................... 5 2.3 Mode of Operation During Testing ..................................................................................................................................... 5 2.4 Modifications Required for Compliance ............................................................................................................................ 5 3 TEST RESULTS SUMMARY ................................................................................................................................................................ 6 4 ANTENNA REQUIREMENT ................................................................................................................................................................. 7 4.1 Regulation ............................................................................................................................................................................. 7 4.2 Result..................................................................................................................................................................................... 7 5 CONDUCTED EMISSIONS TESTS...................................................................................................................................................... 8 5.1 Regulation ............................................................................................................................................................................. 8 5.2 Test Equipment .................................................................................................................................................................... 8 5.3 Test Procedures ................................................................................................................................................................... 9 5.4 Test Results .......................................................................................................................................................................... 9 6 RADIATED EMISSIONS ..................................................................................................................................................................... 11 6.1 Regulation ........................................................................................................................................................................... 11 6.2 Test Equipment .................................................................................................................................................................. 14 6.3 Test Procedures ................................................................................................................................................................. 14 6.4 Calculation of Field Strength Limits ................................................................................................................................ 15 6.5 Calculation of Average Correction Factor ....................................................................................................................... 15 6.6 Field Strength Calculation................................................................................................................................................. 15 6.7 Test Results ........................................................................................................................................................................ 17 7 PRODUCT LABELING AND INFORMATION TO THE USER.......................................................................................................... 19 7.1 Labeling............................................................................................................................................................................... 19 7.2 Information to the User...................................................................................................................................................... 19 8 FURTHER PRODUCT INFORMATION ................................................................…

Text truncated - open the document above for the full version.

FCC ID: QP2-RF-01Y-XXXX-U RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 960004DC_Annex4.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 4 ANNEX 4 TO TEST REPORT # EMCC-950004DC, 2002-11-20 BANDWIDTH AND BAND-EDGE COMPLIANCE EQUIPMENT UNDER TEST: Trade Name: Flash Link Model No.: 3910 Serial No.: 6 Equipment Category: Transceiver Manufacturer: Hensel Studiotechnik Address: Robert Bunsen Str. 3 97076 Würzburg Germany Phone: +49 931-27881-0 Fax: +49 931-27881-58 E-mail: RELEVANT STANDARD: 47 CFR Part 15 CONTENTS Page 1 Bandwidth ............................................................................................................................................................................................ 2 2 Spurious Emissions; Bandedges ...................................................................................................................................................... 3 FCC ID: QP2-RF-01Y-XXXX-U ANNEX 4 to Test Report #EMCC-950004DC Page 2 of 4 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX4.DOC 1 BANDWIDTH Remark: Bandwidth measured according to ANSI C63.4. Plot 1.1: EUT: Flash Link SN #6: Reference plot with unmodulated carrier (at lower FSK frequency). Plot 1.2: EUT: Flash Link SN #6: 26 dB Bandwidth (modulated, operating at middle channel) FCC ID: QP2-RF-01Y-XXXX-U ANNEX 4 to Test Report #EMCC-950004DC Page 3 of 4 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX4.DOC 2 SPURIOUS EMISSIONS; BANDEDGES Remark: Measurement performed as relative measurement (fundamental level equals max. measured radiated level of 94 dBμV/m, i.e. 50 mV/m). Plot 2.1: EUT: Flash Link SN #6: Radiated emissions (EUT modulated, operating at lowest channel) Plot 2.2: EUT: Flash Link SN #6: Radiated emissions (EUT modulated, operating at middle channel) FCC ID: QP2-RF-01Y-XXXX-U ANNEX 4 to Test Report #EMCC-950004DC Page 4 of 4 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH LINK MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX4.DOC Plot 2.3: EUT: Flash Link SN #6: Radiated emissions (EUT modulated, operating at highest channel); plot showing QP and AV detector readings.

FCC ID: QP2-RF-01Y-XXXX-U RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 960004DC_Annex1.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 3 ANNEX 1 TO TEST REPORT # EMCC-950004DC, 2002-11-20 PHOTOGRAPHS OF TEST SETUPS EQUIPMENT UNDER TEST: Trade Name: Flash Link Model No.: 3910 Serial No.: 6 Equipment Category: Transceiver Manufacturer: Hensel Studiotechnik Address: Robert Bunsen Str. 3 97076 Würzburg Germany Phone: +49 931-27881-0 Fax: +49 931-27881-58 E-mail: RELEVANT STANDARD: 47 CFR Part 15 CONTENTS Page 1 AC Powerline Conducted Emissions Test........................................................................................................................................ 2 2 Radiated Emissions Test .................................................................................................................................................................... 3 FCC ID: QP2-RF-01Y-XXXX-U ANNEX 1 to Test Report #EMCC-950004DC Page 2 of 3 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX1.DOC 1 AC POWERLINE CONDUCTED EMISSIONS TEST EUT supplied via RS485 from FRIWO FW1199 EUT supplied via USB port from SONY PCG-F403VAIO with AC Adapter PCGA-ACX1 FCC ID: QP2-RF-01Y-XXXX-U ANNEX 1 to Test Report #EMCC-950004DC Page 3 of 3 Issue Date: 2002-11-20 TEST OF HENSEL STUDIOTECHNIK REMOTE CONTROL SYSTEM FLASH L IN K MODEL 3910 TO 47 CFR PART 15 960004DC_ANNEX1.DOC 2 RADIATED EMISSIONS TEST EUT supplied via RS485 from FRIWO FW1199 EUT supplied via USB port from SONY PCG-F403VAIO with AC Adapter PCGA-ACX1
