QP4HC-5000Pet Containment System

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 22 of 46 APPENDIX I: MANUAL Please refer to the following pages . PLEASE NOTE: Changes or modifications not expressly approved by High Tech Pet Products, Inc. could void the user’s authority to operate the equipment, FCC ID: QP4HC-5000. This equipment has been tested and found to comply with the limits of a Class B digital device , pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference . However, there is no guarantee that interf erence will not occ ur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interf erence by one of the following measu res: • Reorient or relocate the receiving antenna. • Increase separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician.

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 15 of 46 APPENDIX B: AGENCY AUTHORIZATION LETTER Please refer to the following page .

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 16 of 46 APPENDIX C: CONFIDENTIALITY REQUEST LETTER (IF APPLICABLE) Please refer to the following page . \ i ; ( October 30,2002 ,i American TCB, Inc. 6731 Whittier Avenue SuiteC110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. . Schematics . Technical Product Description . Block Diagram "?v~ Nicholas J. Bonge President 360 Herndon Parkway. SUite 1400 Herndon, VA 20170 2476 PALMA DRIVE, 3ffiine!\74}3I6:8fJ:~; ~:~i-~e~~~l>44-!1-64)f1. FAX: (805) 644-1814 ,~-, ..

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2002 RE: FCC ID: QP4HC-5000 Attention: Rick McMurray / Kathy Grzovic I have a few comments on this Application. 1 On page 1 of the report you state the fundamental operating frequency is 13.5kHz. In the data on page 10 you show the operating frequency to be 12 kHz. On page 12 you show the fundamental you listed on page 1 as a spurious emission. Please define what your fundamental is and what the spurious emissions are. 2 On page 10 you state the limit is 120dBuV/m. However, you do not provide the test measurement distance. Also, the limit is 2400/fr kHz (2400/12 = 200uV/m or 46 dBuV/m). Correction to 3 meters is 46dBuV/m + 80 or 126dB. However, in order to claim this limit you must specify the test distance. If on the other hand, your distance is 10 meters as you state in the spurious emissions table, your limit for the fundamental on page 10 would be 106dBuV not 120dBuV. Please correct your report to reflect the correct limit, please provide a sample calculation of how you reached your limit and please provide what test distance at which your measurements were made. 3 The limit at 18kHz is not the same as the limit at 12 kHz. Please correct all your limit tables to be accurate to 15.209. Please remember, 15.31(f)(2) allows 40dB/decade, so please calculate your limits using the accepted FCC correction and calculation of the limit. 4 FYI, a simple set of photos showing the loop antenna at 3 meters from the EUT with the antenna wire on the floor would suffice. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

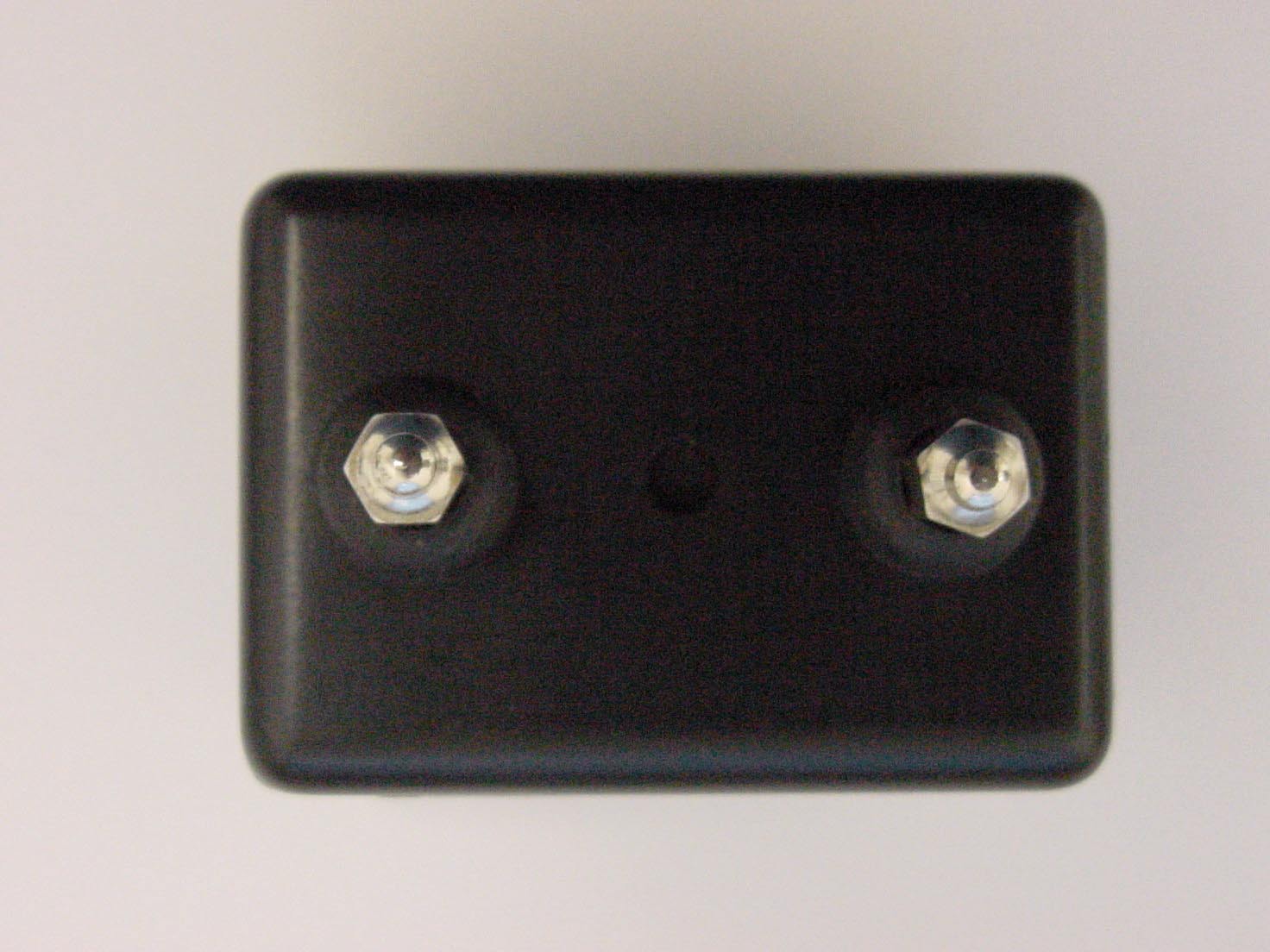

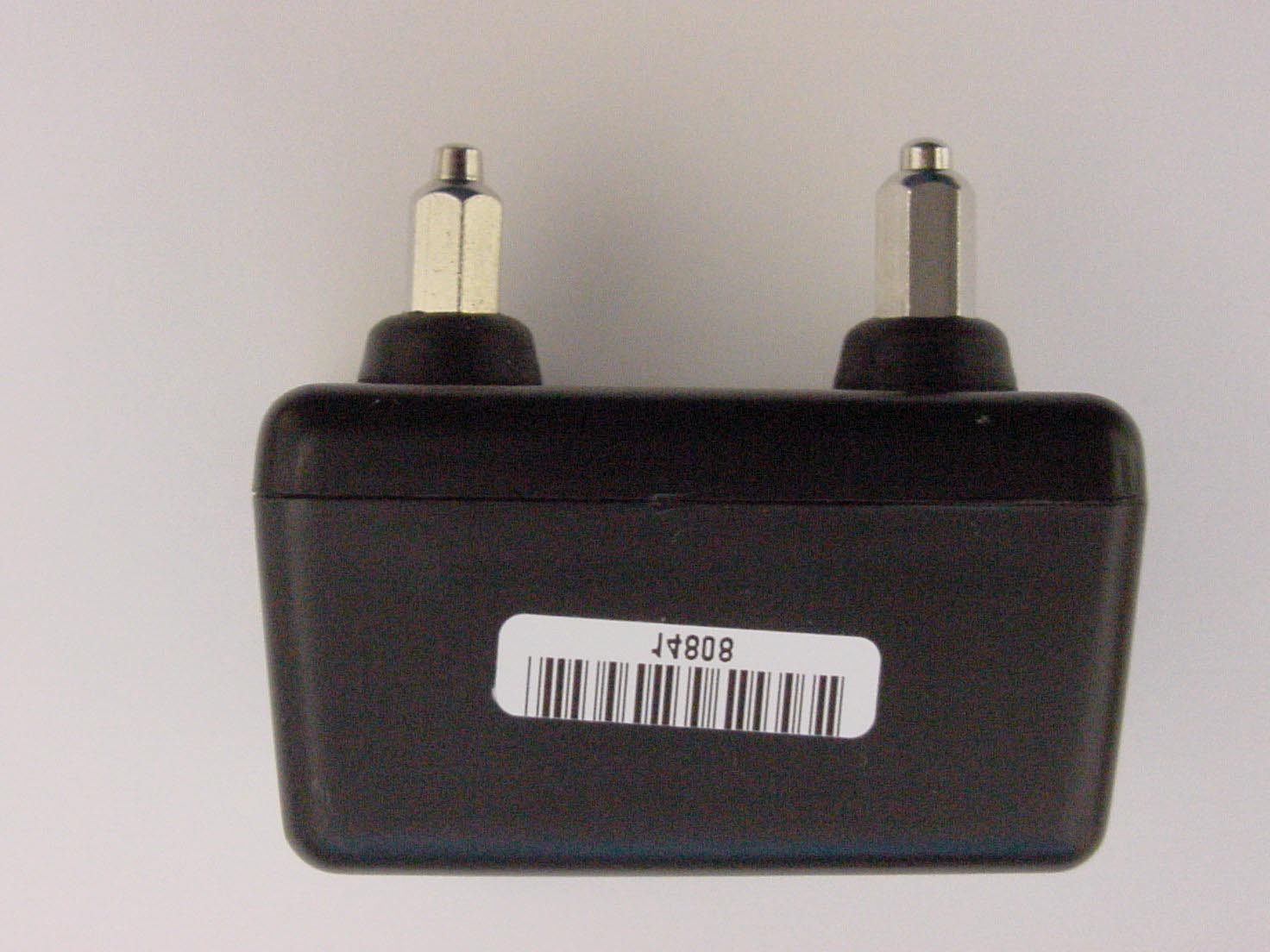

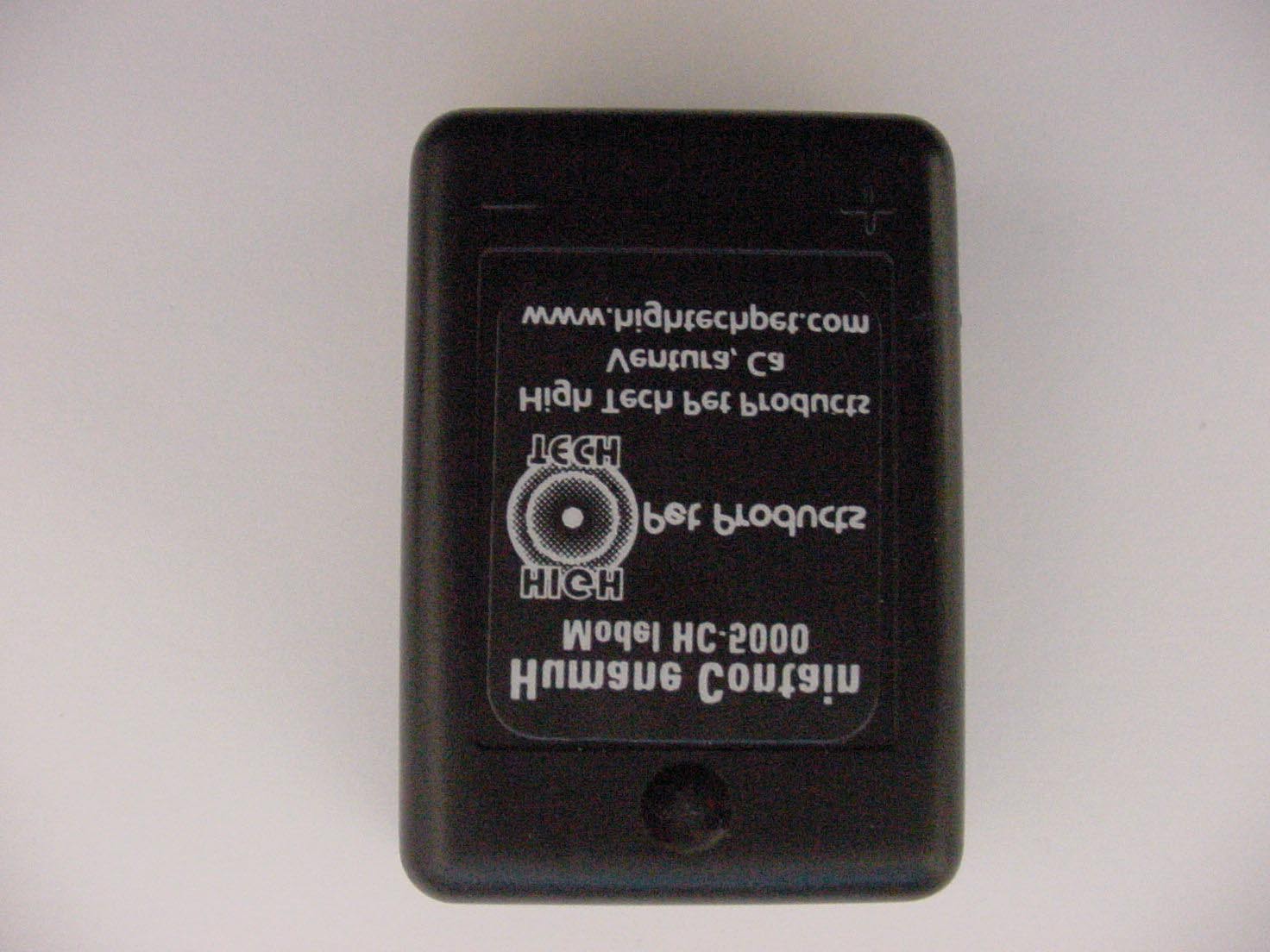

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 34 of 46 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 14: RECEIVER – SIDE VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 35 of 46 PHOTOGRAPH 15: RECEIVER – SIDE VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 36 of 46 PHOTOGRAPH 16: RECEIVER - BOTTOM VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 37 of 46 PHOTOGRAPH 17: RECEIVER – TOP VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 38 of 46 PHOTOGRAPH 18: TRANSMITTER – SIDE VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 39 of 46 PHOTOGRAPH 19: TRANSMITTER – SIDE VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 40 of 46 PHOTOGRAPH 20: TRANSMITTER – TOP VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 41 of 46 PHOTOGRAPH 21: TRANSMITTER – BOTTOM VIEW

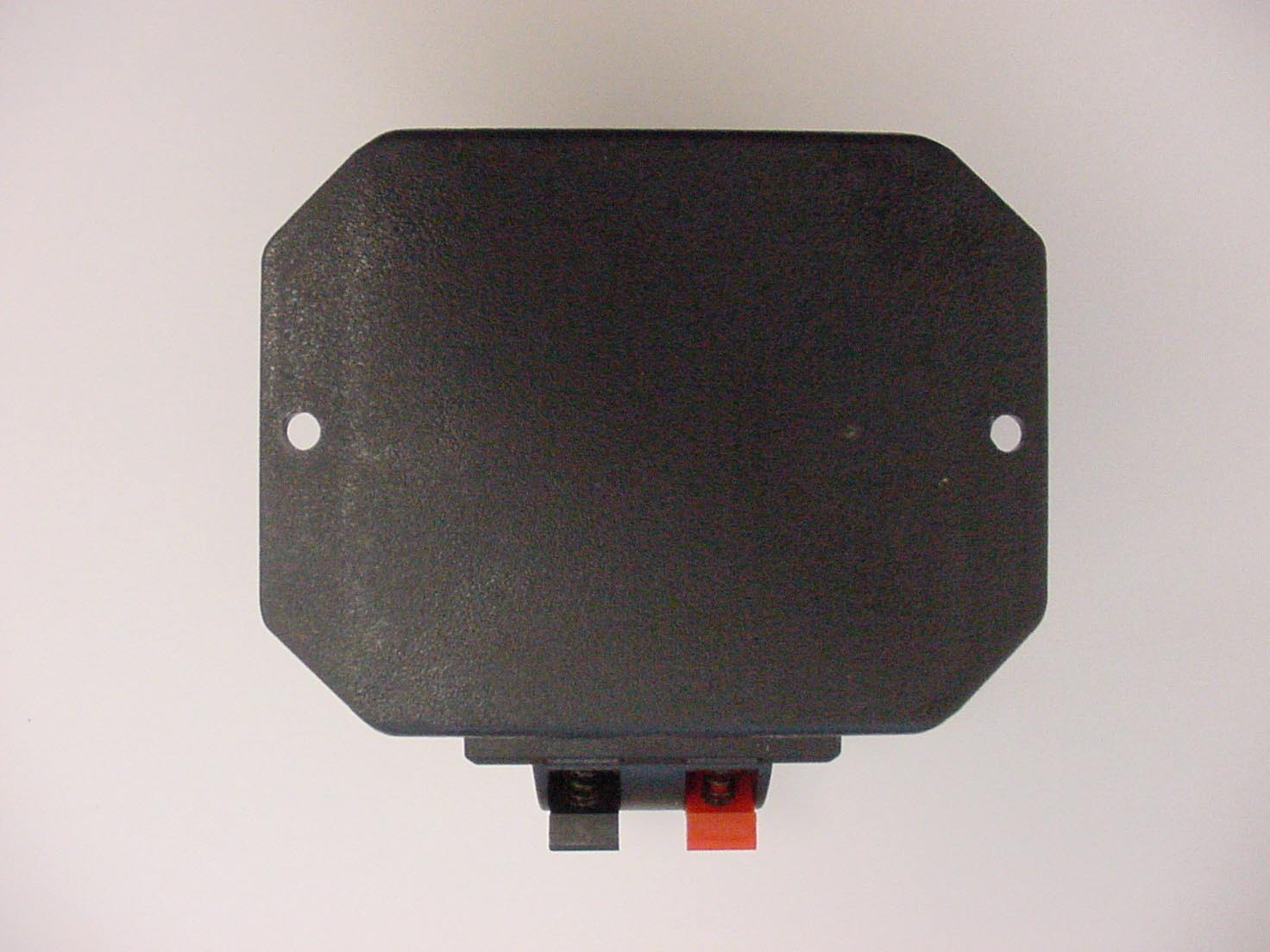

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 19 of 46 APPENDIX F: LABEL AND LABEL LOCATION PHOTOGRAPH 1: LABEL LOCATION ON TRANSMITTER BOTTOM PHOTOGRAPH 2: SAMPLE FCC IDENTIFICATION LABEL FCC ID LABEL HERE FCC ID: QP4HC-5000 Model: HC-5000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operations.

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 42 of 46 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 22: TRANSMITTER PCB – COMPONENT SIDE Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 43 of 46 PHOTOGRAPH 23: TRANSMITTER PCB – SOLDER SIDE Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 44 of 46 \ PHOTOGRAPH 24: RECEIVER PCB – TOP VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 45 of 46 PHOTOGRAPH 25: RECEIVER PCB – BOTTOM VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 46 of 46 PHOTOGRAPH 26: RECEIVER PCB – SIDE VIEW

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 15 CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant Information: High Tech Pet Products Phone: (805) 644-1797 2476 Palma Drive Fax: (805) 644-1814 Ventura, CA 93003 Email: [email protected] Contact: Nick Bonge FCC ID: QP4HC-5000 GRANTEE FRN NUMBER: 0007881469 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2002206 MODEL(S): HC-5000 RTL QUOTE NUMBER: QRTL02-638 DATE OF TEST REPORT: November 11, 2002 American National Standard Institute: ANSI C63.4: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DCD - Part 15 Low Power Transmitter Below 1705kHz FCC Rule Part(s): Part 15 Industry Canada Standard: N/A Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency 13.5kHz We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, and ANSI C63.4. Signature: Date: November 11, 2002 Typed/Printed Name: Desmond A. Fraser Position: President Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 2 of 45 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................................................ 4 1.1 SCOPE .......................................................................................................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................................................... 4 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 4 2 TEST INFORMATION..................................................................................................................................................................................... 5 2.1 TEST JUSTIFICATION ............................................................................................................................................... 5 2.2 EXERCISING THE EUT .............................................................................................................................................. 5 2.3 TEST RESULT SUMMARY ........................................................................................................................................ 5 2.4 MODIFICATIONS ....................................................................................................................................................... 5 2.5 TEST SYSTEM DETAILS ........................................................................................................................................... 5 2.6 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 6 3 CONDUCTED LIMITS - §15.207 .................................................................................................................................................................... 8 3.1 TEST METHODOLOGY FOR CONDUCTED LINE EMISSIONS MEASUREMENTS .......................................... 8 3.2 CONDUCTED LINE EMISSION TEST ...................................................................................................................... 8 3.3 CONDUCTED LINE EMISSIONS TEST DATA ........................................................................................................ 9 4 RADIATED EMISSION LIMITS - §15.209.................................................................................................................................................... 10 4.1 DIGITAL DEVICE EMISSIONS TEST DATA ......................................................................................................... 10 4.2 SPURIOUS AND FUNDAMENTAL EMISSIONS ................................................................................................... 11 4.3 TEST EQUIPMENT ................................................................................................................................................... 12 5 CONCLUSION .............................................................................................................................................................................................. 12 FIGURE INDEX FIGURE 1: TEST CONFIGURATION FOR DIGITAL RADIATED AND POWER LINE CONDUCTED EMISSIONS....... 6 FIGURE 2: TEST CONFIGURATION FOR SPURIOUS AND FUNDAMENTAL RADIATED EMISSIONS (OFF-SITE TESTING) ................................................................................................................................................................ 7 TABLE INDEX TABLE 2-1: EQUIPMENT UNDER TEST (EUT) .................................................................................................................. 5 TABLE 3-1: CONDUCTED EMISSIONS (NEUTRAL SIDE) ............................................................................................... 9 TABLE 3-2: CONDUCTED EM…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 23 of 46 APPENDIX J: TEST PHOTOGRAPHS PHOTOGRAPH 3: DIGITAL/RECEIVER RADIATED EMISSION TESTING Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 24 of 46 PHOTOGRAPH 4: DIGITAL/RECEIVER RADIATED EMISSION TESTING Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 25 of 46 PHOTOGRAPH 5: INVESTIGATING EMISSIONS AT 3 METERS Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 26 of 46 PHOTOGRAPH 6: FINAL MEASUREMENTS AT 10 METERS 3 meter flag 10 meter flag antenna perimeter Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 27 of 46 PHOTOGRAPH 7: EUT AND EUT ANTENNA Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 28 of 46 PHOTOGRAPH 8: EUT ANTENNA Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 29 of 46 PHOTOGRAPH 9: SPECTRUM ANALYZER Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 30 of 46 PHOTOGRAPH 10: TAKING FINAL MEASUREMENTS Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 31 of 46 PHOTOGRAPH 11: EUT AT OFF-SITE LOCATION Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 32 of 46 PHOTOGRAPH 12: CONDUCTED EMISSIONS FRONT VIEW Rhein Tech Laboratories Client: High Tech Pet Products, Inc. 360 Herndon Parkway Report Number: 2002206 Suite 1400 FCC: Part 15 FCC ID: QP4HC-5000 Herndon, VA 20170 http://www.rheintech.com M/N: HC-5000 Page 33 of 46 PHOTOGRAPH 13: CONDUCTED EMISSIONS REAR VIEW
