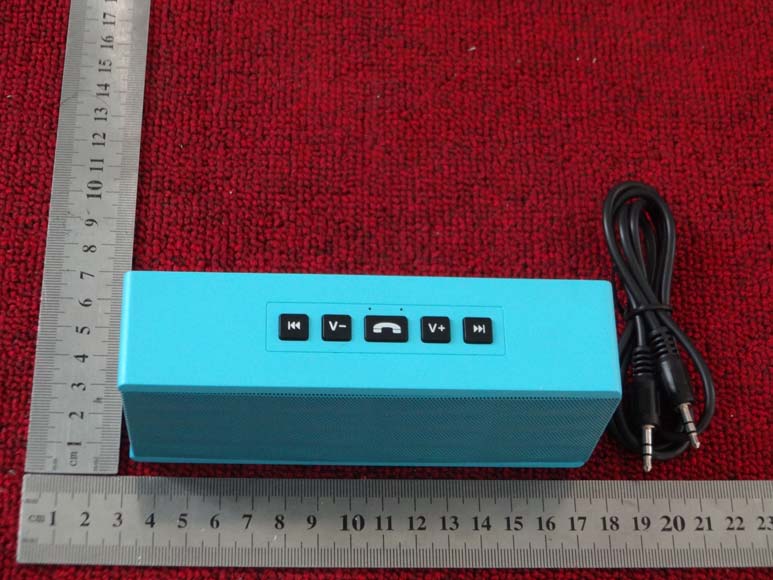

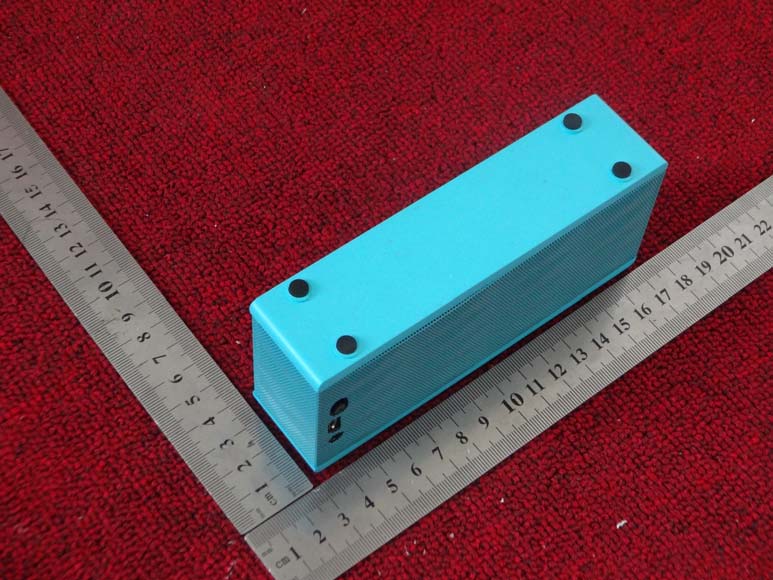

QPASP-02Bluetooth Speaker

1 User’s manual SP-02 Bluetooth S tereo Speaker SPECIFICATIONS Model noSP-02Ver.Bluetooth V.3.0+EDR Bluetooth ProfilesHSP,HFP,A2DP,AVRCPEffective Range10Meters Music Time 6 Hours Talk Time 9 Hours Standby TimeUp to 250 HoursIuputDC : 5V/500ma Charge Time 4~5 Hours Dimensions 142*35*63mm 2 About SP-02 SP-02 is a stereo speaker with Bluetooth technology. It supports the following Bluetooth profiles: HSP —— Speaker Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile Overview 1NEXT2Volume UP 3MFB4Volume Down 5Preview6Line in 7USB Charge port8Power Switch Charging the battery with USB cable • Step1: Insert USB charging cable into any USB port have more than 500ma (PC/NB/power bank/adapter) • Step2: Connect charging cable with the charging port of SP-02. • When the red light is on, the SP-02 is charging. 3 • When the blue light is on, the SP-02 battery is charged fully. • It takes about 4~5 hours to full charge the battery. Warning: • The battery is rechargeable. • First time charging : Before use SP-02, please charge the battery fully How to use A Switching on / off Speaker When turn on power switch, the SP-02 will into the standby mode. Wait the device connect with SP-02. When turn off power switch, the SP-0 2 will into power off status. B Pairing the SP-02 with Bluetooth devices A) How to enter pairing mode Be sure SP-02 in “power on” and “Standby” status first. Press and hold the MFB for 3 seconds, till Red and blue Led blink alternately, or you hear the indication “Do Do” twice come out. And then release the MFB. The unit will become pairing mode. B) Pairing the speaker with Bluetooth mobile phone Please make sure your mobile phone has Bluetooth function that can be used. Specific pairing procedures were not the same with different mobile phone. Please refer to your mobile phone manual for further information. Steps as follows: a) Please keep the SP-02 and mobile phone in the range of 1 meter when pairing. b) Start the Bluetooth function of mobile phone and search the Bluetooth devices. c) Wait the SP-02 enter into pairing mode (Please refer to “how to enter into pairing mode”). After got the SP-02 is on the list, select “SP-02”in the Bluetooth device list. 4 a) Almost all mobile no need enter pass word but some version Bluetooth maybe need it, if need it the password is”0000”, and press the key of” Yes” or “confirmed”. b) After successful pairing, select “SP-02” in the Bluetooth device list, and press “connect”. c) After successful connecting, the blue LED of the SP-02 will quickly blinks twice or three times every 4 seconds. Making calls with the speaker FunctionStatus of SP-02Operation Redial last number Standby modeShort press MFB twice quickly Volume up Conversation mode Short press or hold + key. When the volume is adjusted to max, you will hear an indication tone. Volume down Conversation mode Short press or hold – key. When the volume is adjusted to min, you will hear an indication tone. Answer calling RingingShort press MFB Reject calling RingingShort press MFB twice quickly Notes: • For some mobile phones, when you press the key of accepting on the phone, the conversation will be sent to the mobile phone. At this time, you can switch the call to speaker by using the conversation switch button or through operating on the mobile phone. Please refer to the instruction of your mobile phone for further information Playing music When the SP-02 connects with the mobile phone or other Bluetooth which supports A2DP, you can enjoy music through SP-02 wirelessly. 5 FunctionStatus of speakerOperation PausePlaying musicShort press MFB PlayStandbyShort press MFB Last songPlaying musicPress preview key Next songPlaying musicpress next key Volume upPlaying music press + key. When the volume is adjusted to max, you will hear an indication tone. Volume downPlaying music Short press – key. When the volume is adjusted to min, you will hear an indication tone. Notes:. • When you use SP-02 remote control the function of last song/next song/pause, it needs your mobile phone or Bluetooth transmitter supports AVRCP. Please refer to the instruction of your mobile phone or Bluetooth transmitter. for further information. LED indicator A) Charging LED indicatorStatus of the SP-02 Red LED is onCharging Blue LED is onFinish charging 6 B) In use. LED IndicatorStatus of the speaker Red and blue LEDs blink alternatelyPairing mode Blue LED quickly blinks once every 2 seconds.Not connected to a device Blue LED gradually turns on and offConversation mode Red LED blinks twice every 20 secondsLow power G Re-connecting to a Bluetooth device A)Automatic connecting Every time the SP-02 is switched on, it will connect to the last connected device, and connected automatically. B)Manual connecting to last connected device When the speaker is in standby mode and doesn’t connect to any devices, short press MFBbutton once, it will connect to last connected device automatically. 7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause …

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA IndicatorLEDsKeysControl I/O Buildin BatteryLi-ion Battery 3.7V I/O XC6206P_302PR RT9161-50Power Manager PowerPower Input SoundMicrophone FP-BM81SPK02MCU&Wireless Transceiver Power I/O PCB ANTENNA Modulation:MSK 2402MHz~2480MHz I/O Crystal 16MHz Oscillator I/OI/O I/O I/O Sound signal from Bluetooth I/O I/O Tansceiver Power: 0dBm Power External PowerDC 5V Power STEREO AMP CIRCUIT I/O Line In CIRCUITExternal sound signal inputPAM8004 SPEAKER Stereo Output I/O I/O ChargerAPL3202B Power Power 24C32Memory I/O I/O Circuit Block Diagram

ID Label & Location: Size: 25mm*35mm Bluetooth Speaker M/N: SP-02 FCC ID: QPASP-02 StorageDevice: Li-ion Battery Battery voltage：3.7V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Bright Dragon Technology Limited Made in China

Circuit Principle easy description: This device is a Bluetooth sound box. It works in Bluetooth band range. The frequency range of Bluetooth module is 2.402GHZ to 2.480GHZ, It works in Frequency-Hopping Spread Spectrum mode. Modulation type are GFSK,π/4-DQPSK,8-DPSK.The system clock of Bluetooth module is 16MHZ, Use a PCB antenna, Wireless communications distance up to 20 feet. The main chip FP-BM81SPK02 is a Bluetooth chip with MCU and audio function. It is for Bluetooth communication, status indication and Key control input. Build in a Li-polymer Battery power supply with charging circuit and power on/off control. The chip APL3202B is a Li-ion charge chip and charge by USB port with a macro USB cable.IC PAM8004 is an audio AMP chip .Two input audio signals selectable for audio AMP, One is line in, other one is audio from Bluetooth module.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA P12 P13 MIC_BIAS MFB P00 P27 P05 P02 HCI_RXD HCI_TXD SPKL MIC_P1 MIC_N1 RST_N P24 LED2 LED1 EAN P20 BT_RF AIR AIL P04 P16 P22 P30 SK1 SPKR P03 P01 SPKR P04 P00 P20 P30 RST_N MIC_BIAS MIC_N1 AIR AIL MIC_P1 SPKL P01 BT_RF MFB LED1 P16 HCI_RXD HCI_TXD P05 LED2 P24 P22 P02 P27 SK1 P03 P13 P12 VDD_IO VDD_IO 1V8 SYS_PWR 1V8 BAT_IN ADAP_IN 1V8 BK_OUT 1V8 BK_OUT SYS_PWR CODEC_VO VDD_IO VDD_IO VDD_IO CODEC_VO CODEC_VIN CODEC_VIN VDD_IO SYS_PWR ADAP_IN BAT_IN BK_OUT Board Name Size TitleRev Date:Sheet of P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 Board Name Size TitleRev Date:Sheet of P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 Board Name Size TitleRev Date:Sheet of P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, September 19, 2011 EEPROM 24C32 PIN DEFINATION GPIO Description P00 P22 P04 P27 P16 P24 P05 P20 Slide Switch Detect/TX_IND REV Audio AMP Enable FWD Pl ay/Pause System Configuration System Configuration Keep alive for external LDO V1 P01 P02 Volume up Volume down P03 P30 RX_IND Line-in detect BOM_BM81SPK01NB2_V1_20110809 BOM_BM81SPK01NB3_V1_20110809 R3 R4BOM NAME 0 OHM NP 0 OHMNP SCH_BM81SPK01NB3_V1_20110809 Pin 18 = SK1 Pin 18 = P03 NOTE C13 1u/6.3V C13 1u/6.3V IS1681N U1 IS 1681N IS1681N U1 IS 1681N VDDAO 1 AOHPM 2 VSSAO 3 AOHPL 4 VDDA 5 VSSA 6 VCOM 7 MICP1 8 MICN1 9 MIC_BIAS 10 VDD_IO 13 RST_N 14 P1_2 15 P1_3 16 CODEC_VO 19 3V 1_IN 20 AD AP_IN 21 BAT_IN 22 SAR_VDD 24 SYS_PWR 25 BK_VDD 26 BK_LX 27 XO_N 42 XO_P 41 VDD_IO 40 HCI_RXD 38 HCI_TXD 37 1V8 17 P0_5 36 P0_2 34 P2_4 32 LED2 31 LED1 30 MFB 29 BK_OUT 28 AOHPR 56 1V8 55 EAN 54 VDD_IO 52 P0_0 50 P2_0 49 P3_0 48 P0_3 47 P0_1 46 RTX 45 VCC_RF 43 P3_5 53 P2_7 35 3V 1_O 18 GND 57 AIR 11 AIL 12 SK1 23 P1_6 39 RX_CLS1 44 P0_4 51 P2_2 33 ANT1 ANT-MP8 ANT1 ANT-MP8 1 C11 1u/10V C11 1u/10V C15 10u/16V C15 10u/16V R1 0 R1 0 1 2 C6 1u/6.3V C6 1u/6.3V C5 1p/50V C5 1p/50V TP1 RF-TP2 TP1 RF-TP2 R3 0 R3 0 12 C16 10u/16V C16 10u/16V R2 NP-0402 R2 NP-0402 L11.8nHL11.8nH C12 1u/6.3V C12 1u/6.3V C10 10u/16V C10 10u/16V L3 10uH L3 10uH C9 NP-0402 C9 NP-0402 C19 0.1u/16V C19 0.1u/16V R8 1K R8 1K 1 2 C18 10u/16V C18 10u/16V FB1 FB-0402 FB1 FB-0402 12 R5 1K R5 1K 1 2 C8 8p/50V C8 8p/50V R4 NP-0402 R4 NP-0402 R7 1R R7 1R 12 C7 8p/50V C7 8p/50V C1 1. 8p/50V C1 1. 8p/50V C4 1u/10V C4 1u/10V R6 1R R6 1R 12 C2 1. 5p/50V C2 1. 5p/50V FP1 BM81SPK01NB2 FP1 BM81SPK01NB2 P04 4 P30 1 HCI_TXD 30 SPKR 5 SPKL 6 AGND 8 VDDA 7 SYS_PW R 19 BAT_IN 17 GND 21 LED1 23 P24 25 LED2 24 P22 26 P02 27 P05 29 P27 28 HCI_RXD 31 MIC_BIAS 11 MFB 22 P00 3 BT_RF 35 P20 2 GND 34 MIC1_P 9 MIC1_N 10 VDD_IO 15 ADAP_IN 16 RST 14 BK_OUT 20 P16 32 AIR 12 AIL 13 P01 33 SK1/P03 18 C3 1p/50V C3 1p/50V C14 0.1u/16V C14 0.1u/16V U2 ACE24C32 U2 ACE24C32 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 W P 7 VCC 8 L2 NP-0402 L2 NP-0402 12 C17 1u/10V C17 1u/10V X1 X4P-16MHZ X1 X4P-16MHZ 4 1 3 2 R9 4K7 R9 4K7 12 Circiut Diagram for Bluetooth Module 5 5 4 4 3 3 2 2 1 1 DD CC BB AA P2_4 HCI_RXD P2_0 GND HCI_TXD BAT+ ADAP BK_OUT PUSH BUTTON ISET MIC_P1 MFB MFB/Power REV FWDVOL+ VOL-PLAY TEST POINT GPIO vs. APPLICATIO FUNCTION STEREO AMP CIRCUIT L Channel R Channel SPEAKER OUTPUT PATH BM81SPK02 MODULE (IS1681S-305) 5V Adapter In POWER TREE Li Battery CODEC_VDDA P05 GPIO Hi-Active Audio Amp. Enable P23 Volume - Forward P02 Volume + APPLICATION P16 Reverse P27 Pl ay/Pause GPIO APPLICATION P22 EEPROM_CLK EEPROM_DATA P12 P13 +OUTR -OUTR +OUTL -OUTL LED MIC+ MIC- *MIC GND should be layout out independantly *CLOSE TO MODULE MIC INPUT Av=3.5(10.8dB) * Set max gain =0dB in DSP speaker/voice gain table BLUE RED P30Line In Detect *AMP GND should be layout out independantly *CLOSE TO MODULE Ferrite Bead (FB1/FB2) * Peak Current Spec Should be > 1.5A * Selected to Block EMI/EMC Jamming Frequency STEREO AUX LINE INPUT *To Silence Detect Circuit Option P04NFC Detect *P30 Low Active Line In Detect AMP_EN Without NFC:P04 AMP_EN With NFC:P22 MAIN CIRCUIT BM81SPK02 STEREO SPEAKER PHONE (IS1681S-305) ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 C 12Friday, September 28, 2012 Board Name Size TitleRev Date:Sheet of P/N P20 P24 HCI_TXD HCI_RXD P01MFB P16 MFB P05 P27 P02 PA_VDD -OUTL +OUTR+OUTL -OUTR PA_VDD SPKL AMP_R+ SPKR +OUTL -OUTL +OUTR-OUTR MIC_N SPKR MFB MIC_BIAS P20 HCI_TXD P05 P01 P02 P16 HCI_RXD P27 SPKL MIC_P P04 RST_N P24 MIC_P +OUTL -OUTL +OUTR -OUTR P30 AIR AIL MIC_N MIC_P LED2 LED1 LED2 LED1 AIR AIL P30 P22 P04 P22 LINE_IN_L P04 MFB MIC_P P35 LED2 P00 ISET RST_N P01 P16 P30 ADAP_IN BAT_IN BK_OUT SYS_PWR AMP_POW ADAP_IN_IC ADAP_IN BAT_IN BAT_IN BAT_IN ADAP_IN_IC BK_OUT SYS_PWR CODEC_VDDA CODEC_VDDA MIC_BIAS SYS_PWR AMP_POW VDD_IO MIC_BIAS C33 1u/10V D10 SPE0572 2 1 D16 SPE0572 2 1 D21 CDBM220-G 21 C24 0. 015u/16V SW1 PT-6038N 1 2 C9 10u/16V R2 4K7 1 2 C25 0. 015u/16V C17 4. 7u/10V C34 470p/50V D23 SPE0572 2 1 C4 10u/16V D13 SPE0572 2 1 D7 SPE0572 21 C14 NP-0402 P2 PJ-3894D-S125 2 3 4 1 FB1 GSMA201209 12 R10 2K 1 2 FB2 GSMA201209 12 C11 0. 47u/16V R16 10K 1 2 FB4 GSMA201209 1 2 C6 10u/16V D15 SPE0572 2 1 C32 10u/16V D22 SPE0572 2 1 C37 0. 1u/16V TP2 1 SW3 PT-6038N 1 2 C18 4. 7u/10V C29 0. 015u/16V D4 SPE0572 2 1 SW5 PT-6038N 1 2 R19 10K 1 2 C20 220p/50V C35 10u/16V D20 SPE0572 2 1 C8 220p/50V FP1 FP-BM81SPK02 36 1 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 35 BT_RF AOHPM P01 P16 HCI_RXD HCI_TXD P05 P27 P02 P22 P24 LED2 LED1 MFB GND BK_OUT SYS_PWR SK1/P35 P30 P20 P00 P04 SPKR SPKL VDDA AGND MIC1_P MIC1_N MIC_BIAS AI…

Text truncated - open the document above for the full version.

Page 1 FCC ID TEST REPORT for Bluetooth Speaker MODEL: SP-02, SP-01, SP-01A, SP-01B, SP-01C, SP-01D, SP-01M, SP-01S, SP-02A, SP-02B, SP-02C, SP-02D, SP-02M, SP-02S, SP-02Q, SP-02X, SP-03, SP-03A, SP-03B, SP-04, SP-04A, SP-04B, SP-05, SP-05A, SP-05B, SP-06, SP-06A, SP-06B, SP-07, SP-07A, SP-07B, SP-08, SP-08A, SP-08B, SP-09, SP-09A, SP-09B, ET-AR101BP, ET-AR204B FCC ID: QPASP-02 Test Report Number: 12120964 Issued Date: December 13, 2012 Issued for BRIGHT DRAGON TECHNOLOGY LIMITED FLAT 52, 9/F., SINO LND. PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K. Issued By: SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. 5/F,Block 4, Anhua Industrial Zone., No.8 Tairan Rd. Chegongmiao, Futian District Shenzhen, China TEL: +86-755-83448688 FAX: +86-755-83442996 Report No.: 12120964 Issued: December 13, 2012 Revised: None FCCID:QPASP-02 TRF No.: FCC PART 15C-15.247/A0Page 2 of 73 TEST CERTIFICATION Product: Bluetooth Speaker Model: SP-02, SP-01, SP-01A, SP-01B, SP-01C, SP-01D, SP-01M, SP-01S, SP-02A, SP-02B, SP-02C, SP-02D, SP-02M, SP-02S, SP-02Q, SP-02X, SP-03, SP-03A, SP-03B, SP-04, SP-04A, SP-04B, SP-05, SP-05A, SP-05B, SP-06, SP-06A, SP-06B, SP-07, SP-07A, SP-07B, SP-08, SP-08A, SP-08B, SP-09, SP-09A, SP-09B, ET-AR101BP, ET-AR204B Applicant: BRIGHT DRAGON TECHNOLOGY LIMITED FLAT 52, 9/F., SINO LND. PLAZA, NO.9, KAI CHEUNG RD., KOWLOONBAY, KLN. H.K. Factory: ODSONIC COMPUTER CO., LTD. 4F. #5 Buliding (JI AN TAI INDUSTRIAL PARK) #58 FU QIAO First Industrial, FuYong Town, BaoAn Area, ShenZhen GuangDong P.R.C Trade Mark:N/A Tested:December 5 ~ December 13, 2012 Test Voltage:DC 5.0 V(DC From Adapter, Adapter input 120Vac, 60Hz) Applicable Standards: FCC Part 15 Subpart C: 2011 ANSI C63.4:2003 Deviation from Applicable Standard None The above equipment has been tested by SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:2012-12-13 (Brown Lu) Check By:Date:2012-12-13 (Terry Tang) Approved By:Date:2012-12-13 (Jack Chung) Report No.: 12120964 Issued: December 13, 2012 Revised: None FCCID:QPASP-02 TRF No.: FCC PART 15C-15.247/A0Page 3 of 73 Table of ContentsPage 1. SUMMARY OF TEST RESULTS5 1 . FACILITIES AND ACCREDITATIONS6 1.1. FACILITIES6 1.1.1 ACCREDITATIONS6 1.2 MEASUREMENT UNCERTAINTY6 2. GENERAL INFORMATION7 2.1 GENERAL DESCRIPTION OF EUT7 2.2 DESCRIPTION OF TEST MODES9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING9 2.4 CONFIGURATION OF SYSTEM UNDER TEST10 2.5 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE)11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS12 3. EMC EMISSION TEST13 3.1 CONDUCTED EMISSION MEASUREMENT13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS13 3.1.2 TEST PROCEDURE14 3.1.3 DEVIATION FROM TEST STANDARD14 3.1.4 TEST SETUP14 3.1.5 EUT OPERATING CONDITIONS14 3.1.6 TEST RESULTS15 3.2 RADIATED EMISSION MEASUREMENT17 3.2.1 RADIATED EMISSION LIMITS17 3.2.2 TEST PROCEDURE18 3.2.3 DEVIATION FROM TEST STANDARD18 3.2.4 TEST SETUP19 3.2.5 EUT OPERATING CONDITIONS20 3.2.6 TEST RESULTS (BELOW 30 MHZ)21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ)22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ)24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS)30 4. NUMBER OF HOPPING CHANNEL36 4.1 APPLIED PROCEDURES / LIMIT36 4.1.1 TEST PROCEDURE36 4.1.2 DEVIATION FROM STANDARD36 Report No.: 12120964 Issued: December 13, 2012 Revised: None FCCID:QPASP-02 TRF No.: FCC PART 15C-15.247/A0Page 4 of 73 Table of ContentsPage 4.1.3 TEST SETUP36 4.1.4 EUT OPERATION CONDITIONS36 4.1.5 TEST RESULTS37 5. AVERAGE TIME OF OCCUPANCY38 5.1 APPLIED PROCEDURES / LIMIT38 5.1.1 TEST PROCEDURE38 5.1.2 DEVIATION FROM STANDARD38 5.1.3 TEST SETUP39 5.1.4 EUT OPERATION CONDITIONS39 5.1.5 TEST RESULTS40 6. HOPPING CHANNEL SEPARATION MEASUREMENT46 6.1 APPLIED PROCEDURES / LIMIT46 6.1.1 TEST PROCEDURE46 6.1.2 DEVIATION FROM STANDARD46 6.1.3 TEST SETUP46 6.1.4 EUT OPERATION CONDITIONS46 6.1.5 TEST RESULTS47 7. BANDWIDTH TEST53 7.1 APPLIED PROCEDURES / LIMIT53 7.1.1 TEST PROCEDURE53 7.1.2 DEVIATION FROM STANDARD53 7.1.3 TEST SETUP53 7.1.4 EUT OPERATION CONDITIONS53 7.1.5 TEST RESULTS54 8. PEAK OUTPUT POWER TEST60 8.1 APPLIED PROCEDURES / LIMIT60 8.1.1 TEST PROCEDURE60 8.1.2 DEVIATION FROM STANDARD60 8.1.3 TEST SETUP60 8.1.4 EUT OPERATION CONDITIONS60 8.1.5 TEST RESULTS61 9. Antenna Application62 9.1 Antenna requirement66 9.2 Result66 10. EUT TEST PHOTO67 11 PHOTOGRAPHS OF EUT68 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Report No.: 12120964 Issued: December 13, 2012 Revised: None FCCID:QPASP-02 TRF No.: FCC PART 15C-15.247/A0Page 5 of 73 . SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test ItemJudgmentRemark 15.207Conducted EmissionPASS 15.247(a)(1)Hopping Channel SeparationPASS 15.247(b)(1)Peak Output PowerPASS 15.247(c)Radiated Spurious EmissionPASS 15.247(a)(iii)Number of Hopping FrequencyPASS 15.247(a)(iii)Dwell TimePASS 15.247(a)(1)BandwidthPASS 15.205Band Edge EmissionPASS 15.203Antenna RequirementPASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.12120964Issued: December 13, 2012 Revised: None FCCID:QPASP-02 TRF No.: FCC PART 15C-15.247/A0Page 6 of 73 1 FACILITIES AND ACCREDITATIONS 1.1. FACILITIES All measurement facilities used to collect the measurement data are located at East 5/Block 4 Anhua Industrial Zone, No.8, Tairan Road, Chegongmiao, Futian District, Shenzhen, Guangdong, China The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” 1.1.1 ACCREDITATIONS The testing quality ability of our laboratory meet with "Quality Law of People…
