QPXACR30001Security/Remote Control Transmitter

NEVER LEAVE THIS IS YOUR CAR WHY THE BOOMERANG TRACKING DEVICE? In response to a growing demand for a more sophisticated and proactive tracking device, Boomerang Tracking developed the Boomerang device featuring “Instant Theft Notification”. In the event of any unauthorized vehicle movement, the Boomerang device will immediately send a signal to notify our Security Central of the theft. This early warning system dramatically reduces the response time of our in-house tracking team and increases the chance for a successful and speedy recovery of your stolen vehicle. HOW DOES IT WORK? Upon installation of the Boomerang device, you will receive two intelligent key chain Transponders, one of which must be kept with your vehicle’s keys at all times. If the vehicle becomes mobile without the presence of this Transponder, the Boomerang device will automatically notify the Boomerang tracking team, who will start tracking your stolen vehicle. KEY BENEFITS You are now benefiting from the most innovative vehicle recovery system providing you with: •Instant theft notification.We will know your vehicle is stolen even if you don’t; •Instant response to theft.If your vehicle is moved without the Transponder on board, the Boomerang device will automatically notify the Boomerang tracking team; •24/7 tracking capabilitiesacross North America; •Security and peace of mind24 hours a day. FREQUENTLY ASKED QUESTIONS To provide you with a better value-added service, we have compiled a list of our clients’ most frequent questions: Q: Who is Boomerang Tracking Inc.? A:Founded in 1995, Boomerang Tracking Inc. (TSX: BMG) offers a seamless solution to the ever-growing concern for the protection and recovery of stolen vehicles, heavy equipment, cargo,marine equipment and other valuable assets. Q: What is the Boomerang device warranty, guarantee and policy on reimbursement? A:Boomerang Tracking provides a limited warranty on parts and labor covering manufacturing defects relating to the Boomerang devices (as per the terms and conditions of the warranty card). In the unlikely event that we do not recover your stolen vehicle, we offer you two options: We will refund you the costs associated with your Boomerang device purchase including unit price, installation and service fees or we will provide you with a new Boomerang unit, including free installation and service fees, all subject to the terms and conditions outlined in your service contract. Q: When will my Boomerang device be functional? A:Once your Boomerang device is installed, it is immediately functional. Q: Is there a recovery fee should my vehicle be stolen? A:Yes there is a recovery fee that is applicable in the event that your vehicle is stolen. Unlike other companies, Boomerang Tracking offers you an in-house tracking team that is committed to locating your vehicle 24 hours a day. This recovery fee, outlined in your service agreement, is often reimbursed by your insurer. Q: Why don’t you provide your customers with a sticker that would warn potential thieves that the vehicle is equipped with a Boomerang device? A:Boomerang Tracking’s success is attributable, in part, to the fact that no one but the installer knows where the device is installed. It may be hidden in many different undisclosed locations in your vehicle. If we would put a sticker on your vehicle, thieves may be tempted to look for the device and dismantle or cause damage to it. Q: What happens if I change or sell my vehicle? A:The Boomerang device is transferable to both a new vehicle and a new owner. It is important that you advise us about any changes by contacting our Customer Service Department. BOOMERANG TRACKING INC. CUSTOMER SERVICE HEAD OFFICE 10950 North Dallas Pkwy, Suite 400 Dallas, TX 75248 United States T972.361.8044 F972.361.8043 REGIONAL OFFICE 23046 Avenida de la Carlota, Suite 600 Laguna Hills, CA 92653 United States T949.916.1901 F949.203.2190 TOLL FREE T1.877.777.8722 F1.888.234.8641 E-MAIL [email protected] WEB SITE www.boomerangtracking.com A WORD FROM THE PRESIDENT Dear New Customer, I would like to personally thank you for selecting Boomerang ® ,the most innovative and effective tracking device available today. With the Boomerang tracking device, you never have to worry about leaving your vehicle unattended. Please find the following items in your Customer Care Kit: •Two Transpondersthat you must attach to your key chains (one per key chain). These Transponders should NEVER be left in your vehicle; •Your Service Agreement •Your Warranty Card; •Your Boomerang Customer Cardthat outlines the steps to follow in the event of a theft.For security purposes, you are advised to keep this card on you at all times; •This Customer Guidethat provides you with critical information, including a Frequently Asked Questions section. Thank you once again for choosing Boomerang, the intelligent vehicle recovery solution. Enjoy the security and peace of mind of knowing that our in-house tracking team is standing by to protect your vehicle every second of the day. Cordially, Peter Lashchuk President and CEO ® OWNER’S MANUAL BE ALERT ! •If you lose or break a Transponder, you must immediately contact Boomerang Tracking at 1.877.777.8722. It is important for your safety, to obtain a replacement. Additional Transponders can also be purchased, please contact Boomerang Tracking for more information. •Your Transponders are water resistant – not waterproof! •Your Boomerang unit and Transponders are equipped with batteries. We will notify you when they require replacement. Please do not delay in responding to this notice. DO’S AND DON’TS •Don’t leave either Transponder in your vehicle; •If you have your vehicle towed, make sure that your Transponder is in your vehicle; •Never mobilize your vehicle unless your Transponder is attached to your key chain; •Don’t leave any indication that your vehicle is equipped with a Boomerang device in your car; •Don’t miss maintenance appointments as failure t…

Text truncated - open the document above for the full version.

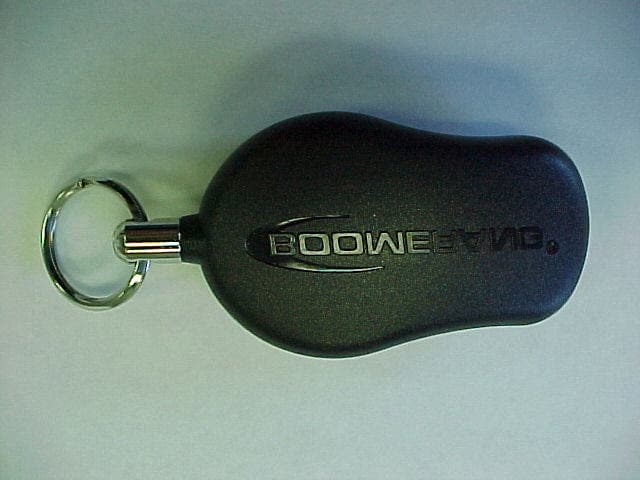

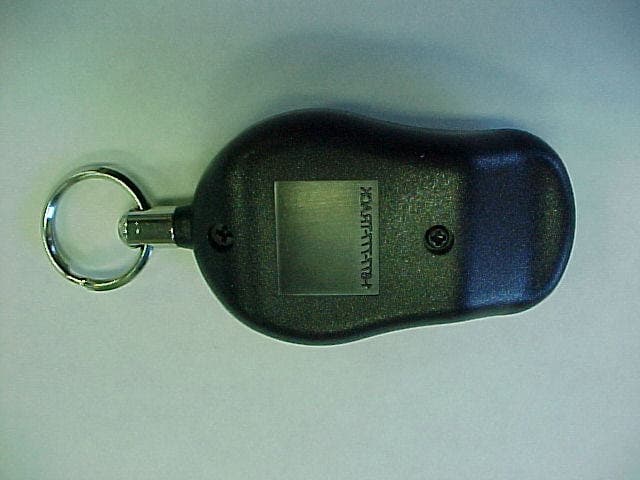

Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo One - External Top Side of Key Chain Transmitter Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo Two - External Bottom Side of Key Chain Transmitter Note: Below the Engraved Phone Number the FCC ID Number will also be Engraved. Please see the following Texture Drawing for Placement

            ! !" #  #$ %% &
 %%% &




   ! ' ( ' ( ' ( )  )  )   *   + * ,-.//-///- (#)! 0!1# #"! 1# (#)!  *$20%3444,

Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo Three - Internal Open for Inspection Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo Four - Internal Transmitter PCB pulled from Half Shell Water seal boot cradles the PCB Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo Five - Internal Close-up of Transmitter PCB. PCB Antenna on the right Boomerang Tracking Corporation Stolen Vehicle Tracking Device 303.825 Key Chain Transmitter FCC ID#: QPXACR30001 Photo Six - Internal Close-up of Transmitter PCB flip-side. Battery on the Left with PCB Antenna on the right

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 Compliance Testing: Key Chain Transmitter Model # TV-001-1 Prepared For: Boomerang Tracking Corporation Attn.: Andre Boulay 9280 Boulevard De L’Acadie Montreal, Quebec H4N 3C5 Canada Test Report Number: 302382 Test Dates: January 6 th , 10 th and 30 th , 2003 All results of this report relate only to the items that were tested. This report may not be reproduced, except in full, without written approval of L.S. Compliance, Inc. ________________________________________________________________________ FCC I.D: QPXACR30001 Page 2 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 Table of Contents Section Description Type of Test Page # Index 2 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Validation Letter- U.S. Competent Body for EMC Directive 89/336/EEC 6 5 Signature Page 7 6 Product General Information 8 7 Introduction 8 8 Purpose 8 9 Product Description 9 10 Test Requirements 9 11 Summary of Test Report 9 12 Radiated Emission Test 10-19 Appendices A Calculations 20-21 B Test Equipment List 22 ________________________________________________________________________ FCC I.D: QPXACR30001 Page 3 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 1. L.S. Compliance in Review L. S. Compliance, Inc. is located in Cedarburg, Wisconsin – United States. We may be contacted by: Mail: L. S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, Wisconsin 53102 Phone: 262-375-4400 Fax: 262-375-4248 E-Mail: [email protected] As an EMC testing laboratory, our accreditation and assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2001 With electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 U.S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U.S. conformity assessment Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union EMC Directive 89/336/EEC, Article 10.2 Date of Validation: January 16, 2001 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 FCC Registration Number: 90756 Listing of 3 and 10 Meter OATS based on 47CFR 2.948 FCC Registration Number: 90757 Industry Canada On-file, 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 File Number: IC 3088 On-file 3 and 10 meter OATS based on RSS-210 File Number: IC 3088-A ________________________________________________________________________ FCC I.D: QPXACR30001 Page 4 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 2. A2LA Certificate of Accreditation ________________________________________________________________________ FCC I.D: QPXACR30001 Page 5 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 3. A2LA Scope of Accreditation ________________________________________________________________________ FCC I.D: QPXACR30001 Page 6 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 4. Validation Letter – U.S. Competent Body for EMC Directive 89/336/EEC ________________________________________________________________________ FCC I.D: QPXACR30001 Page 7 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 5. Signature Page March 17, 2003 Prepared By: ________________________________________________________ Teresa A. White, Document Coordinator Date March 17, 2003 Tested By: ________________________________________________________ Abtin Spantman, EMC Engineer Date March 17, 2003 Approved By: ________________________________________________________ Kenneth L. Boston, EMC Lab Manager Date PE #31926 Licensed Professional Engineer Registered in the State of Wisconsin, United States ________________________________________________________________________ FCC I.D: QPXACR30001 Page 8 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 6. Product and General Information Boomerang Tracking Corporation Boomerang Key Chain Transmitter #TV-001-1 TX-01 Manufacturer: Model Number: Serial Number: Test Voltage: 3.0 VDC Battery Environmental Conditions in the Test Lab: Temperature: 20-25 degrees C Atmospheric Pressure: 86kPa-106kPa Humidity: 30-60% 7. Introduction On January 6 th , 10 th , and 30 th , 2003 a series of Radiated Emissions tests were performed on one sample of the Boomerang Key Chain Transmitter, Model TV-000-1, Serial Number TX-01 here forth referred to as the “Equipment Under Test” or “EUT”. This product operates by means of periodically transmitting bursts of data at 303.7 MHz. The unit does not have any buttons or other user interface features, and operates from an internal 3 volt battery. These tests were performed using the test procedure outlined in ANSI C63.4, 2001 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231, for a periodic operation of a low power transmitter. 8. Purpose The above-mentioned tests were performed in order to determine the compliance of the Equipment Under Test (EUT), with limits contained in various provisions of Title 47CFR, FCC Part 15, including: 15.205, 15.209, 15.231(a), 15.231(c), and 15.231(e). All radiated emission tests were performed to measure the emissions in the frequency bands described in Section 12i of this report, and to determine whether said emissions are below the limits established by the aforementioned standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurements of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9…

Text truncated - open the document above for the full version.

________________________________________________________________________ FCC I.D: QPXACR30001 Page 12 of 22 L.S. Compliance, Inc. Prepared For: Boomerang Tracking Corporation Test Report Number: 302382 12f. Photo of Setup for Radiated Emissions Test
