QQSD179XRemote Controlled Golf Trolley

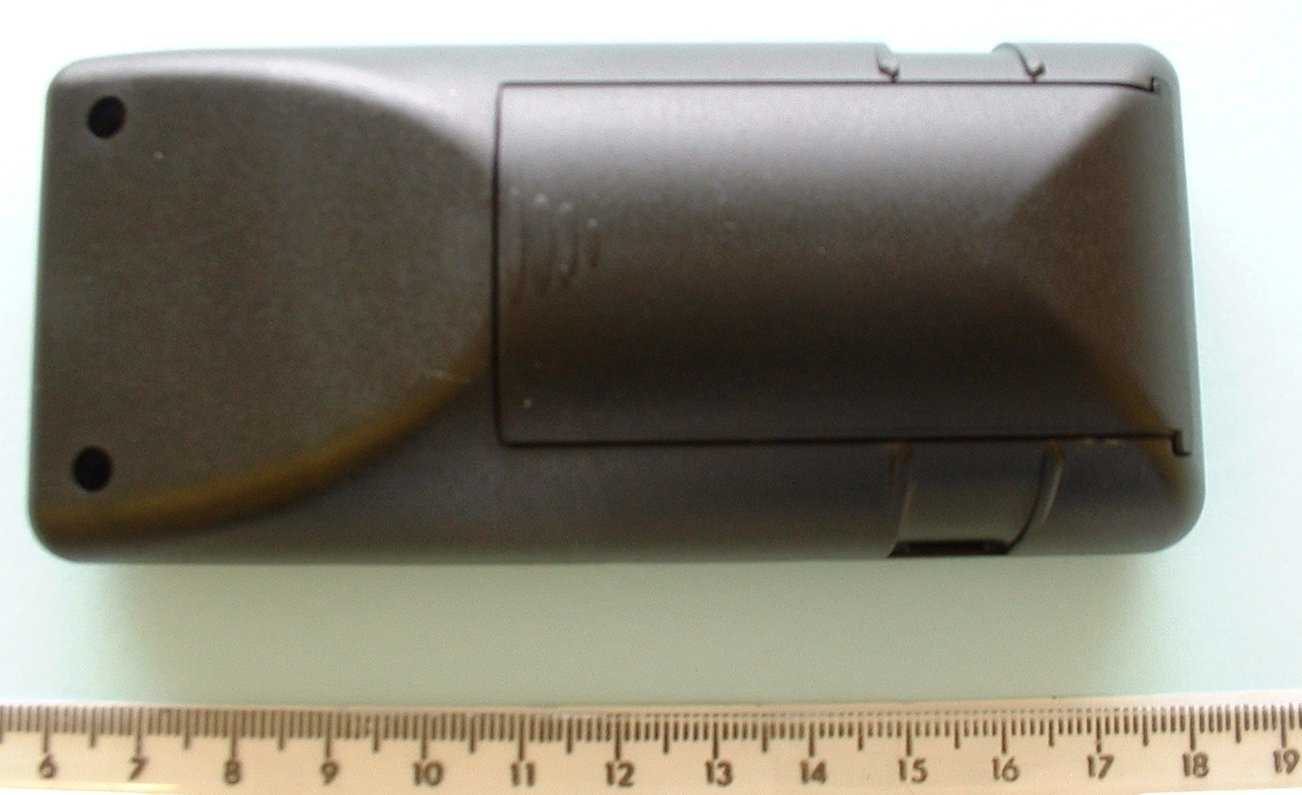

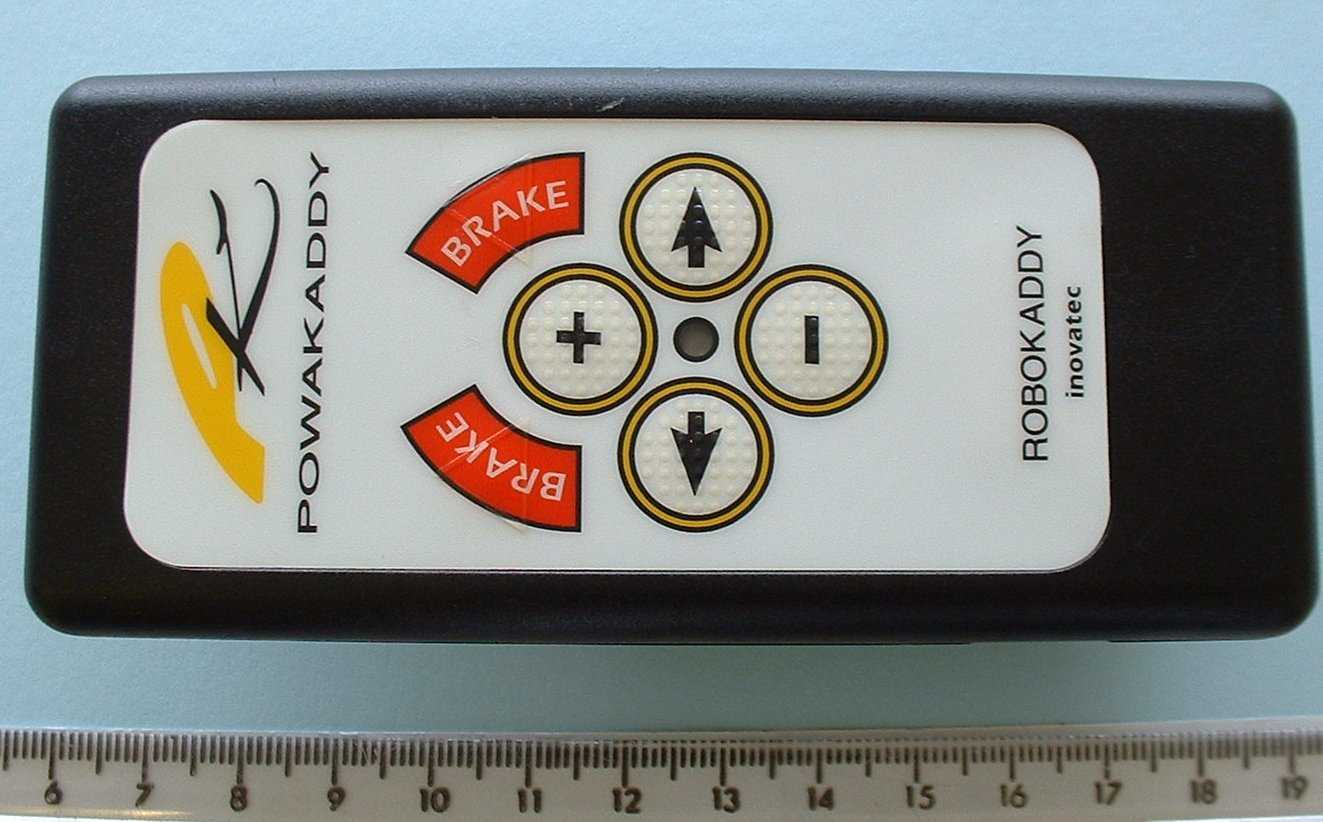

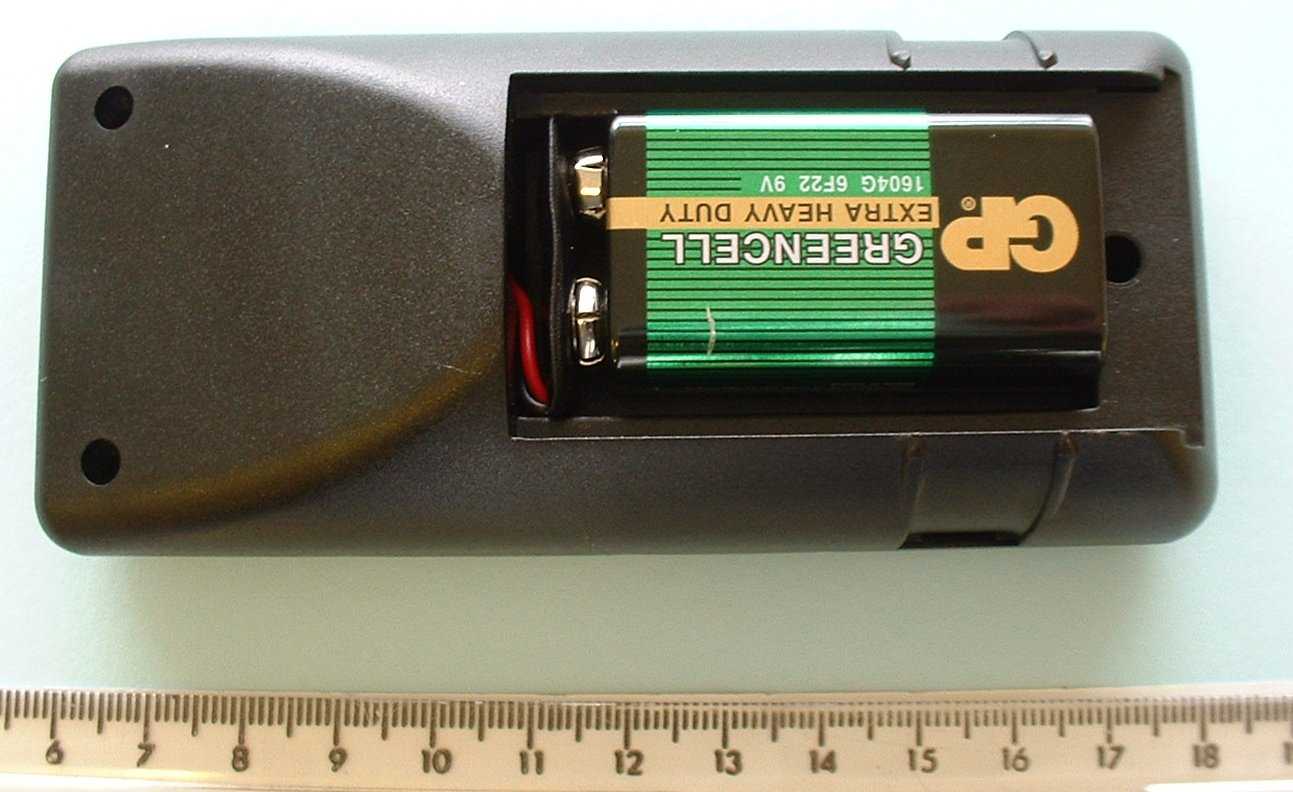

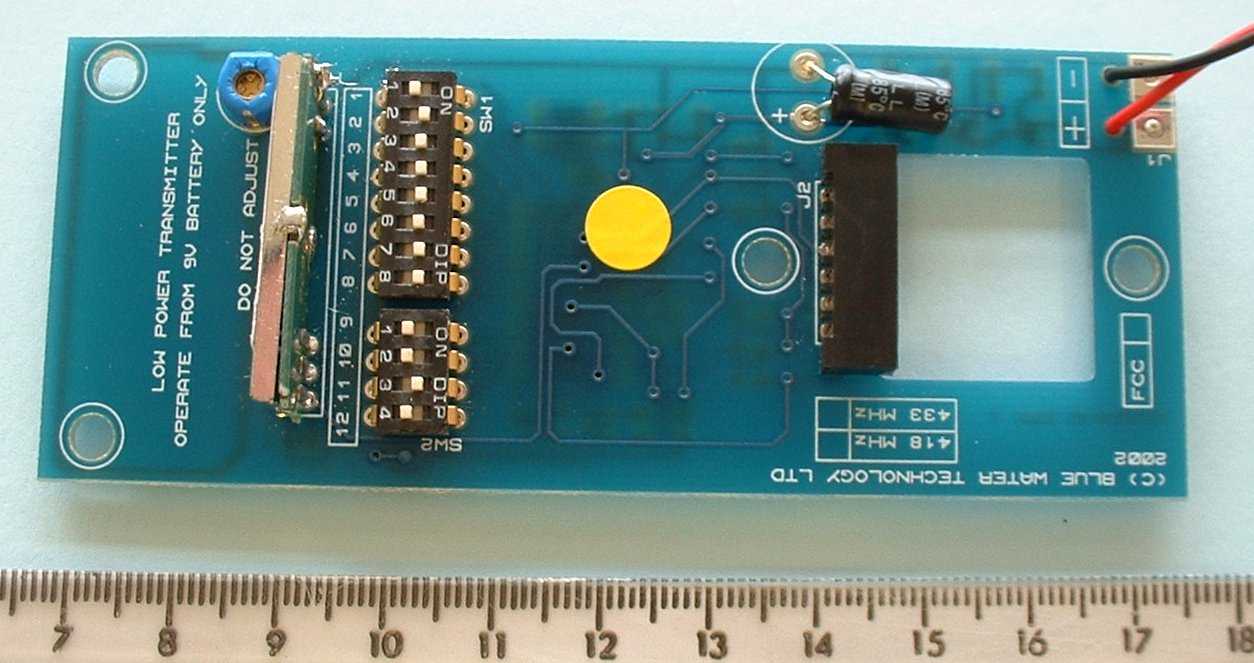

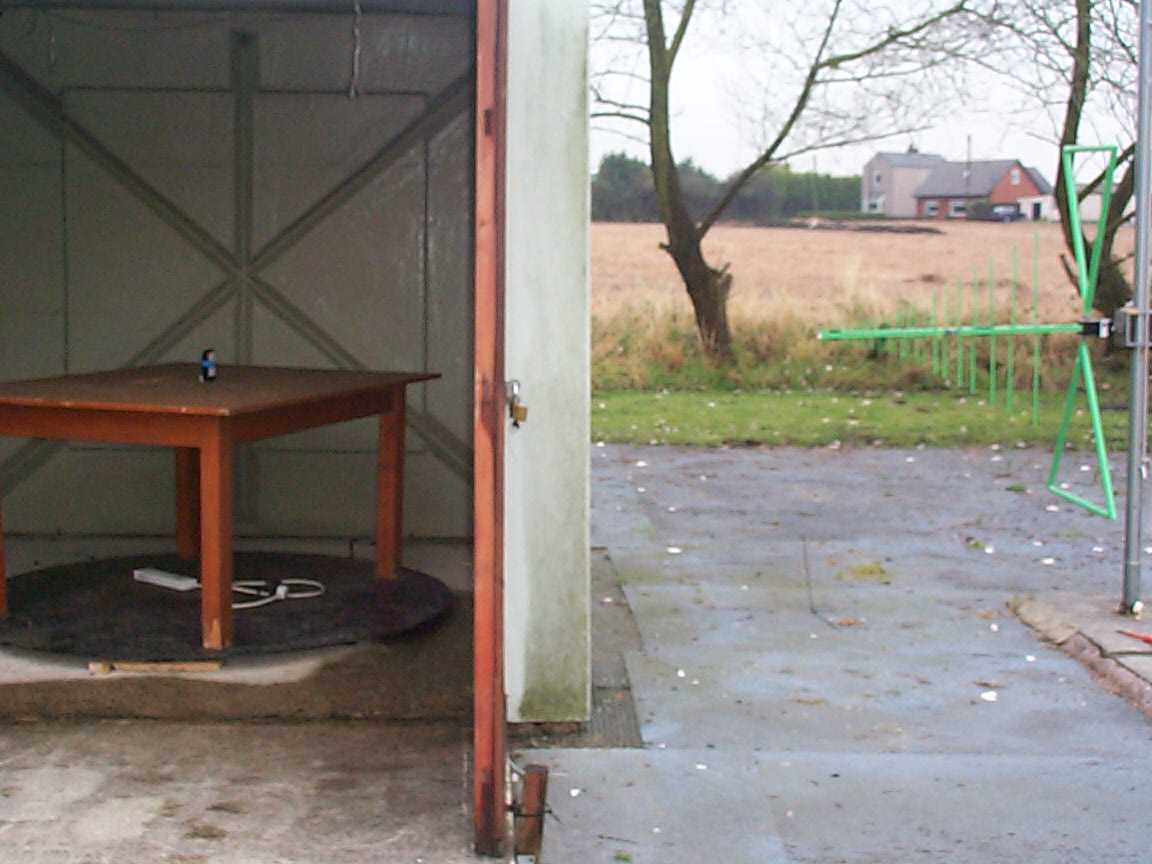

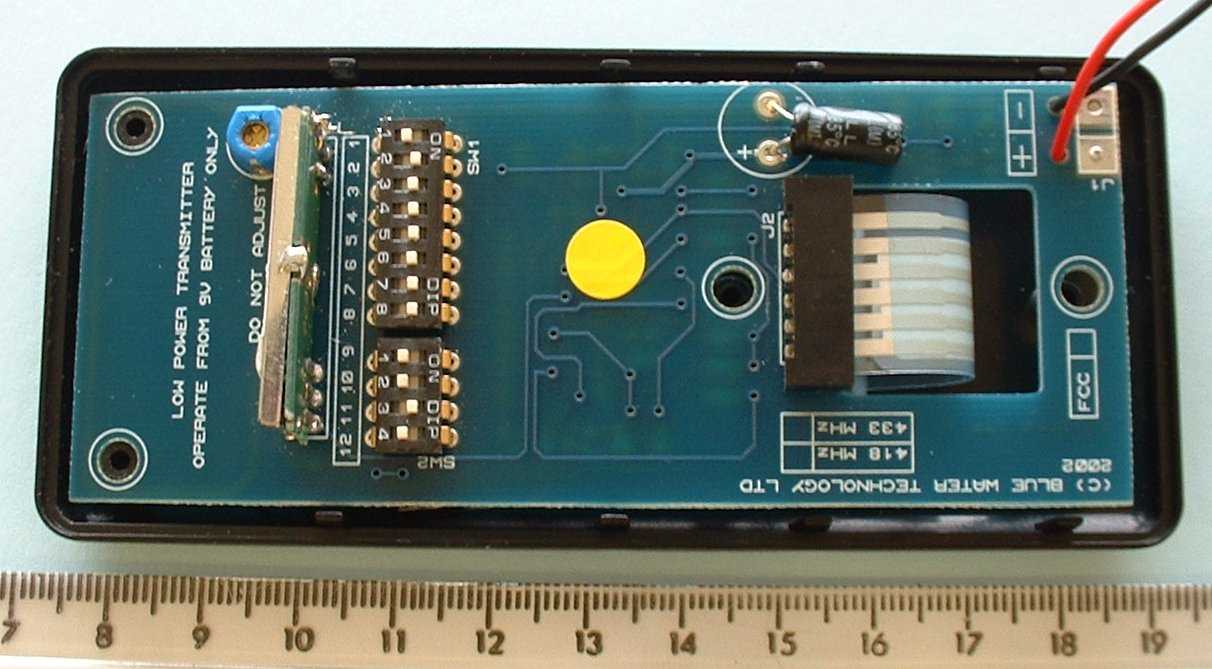

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO:RU1038/5000 COPY NO:2 ISSUE NO:1 FCC ID:QQSD179X REPORT ON THE CERTIFICATION TESTING OF A BLUE WATER TECHNOLOGY Ltd. BLUE WATER REMOTE GOLF TROLLEY WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 25 th October –12 th November 2002 TESTED BY:J CHARTERS APPROVED BY:P GREEN PRINCIPAL ENGINEER DATE:18 th NOVEMBER 2002 Distribution: Copy Nos:1.BLUE WATER TECHNOLOGY Ltd. 2.FCC EVALUATION LABORATORIES 3.TRL Compliance Services Limited THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02RU1038/5000Page 2 of 21 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-9 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC TRANSMITTER SHUTDOWN TIMED Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335 iss02RU1038/5000Page 3 of 21 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:QQSD179X PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.231 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:BLUE WATER REMOTE GOLF TROLLEY EQUIPMENT SERIAL No:Engineering Sample ITU:EMISSION CODE:100KF7D EQUIPMENT TYPE:BLUED179X PRODUCT USE:Telemetry CARRIER EMISSION: 3589.2μV/m @ 3 metres ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:N/A BAND OF OPERATION:260MHz – 470MHz CHANNEL SPACING:N/A wideband allocation NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[X]Crystal[ ]Synthesiser [ ] MODULATION METHOD:Amplitude[ ]Digital[X]Angle [ ] POWER SOURCE(s):9Vdc TEST DATE(s):25 th October –12 th November 2002 ORDER No(s):Fax D Lowe APPLICANT:BLUE WATER TECHNOLOGY Ltd. ADDRESS:3 Horton Court Hortonwood Telford TF1 7GY United Kingdom TESTED BY:J CHARTERS APPROVED BY:P GREEN ENGINEER PRICIPAL RF335 iss02RU1038/5000Page 4 of 21 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):BLUE WATER REMOTE GOLF TROLLEY EQUIPMENT TYPE:D179X SERIAL NUMBER OF EUT:Engineering sample PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.231 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):Fax D Lowe APPLICANT’S CONTACT PERSON(s):Mr Dennis Lowe E-mail address: [email protected] APPLICANT:BLUE WATER TECHNOLOGY Ltd. ADDRESS:3 Horton Court Hortonwood Telford TF1 7GY United Kindom TEL:+44 (0)1952 606300 FAX:+44 (0)1952 606000 MANUFACTURER:BLUE WATER TECHNOLOGY Ltd. EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)25 th October –12 th November 2002 TEST REPORT No:RU1038/5000 RF335 iss02RU1038/5000Page 5 of 21 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.231Quasi PeakYes Intentional Emission Field Strength:15.231(b)Quasi PeakYes Intentional Emission Band Occupancy:15.231(c)PeakYes Intentional Emission ERP (mW):N/AN/AN/A Spurious Emissions – Conducted:15.207N/AN/A Spurious Emissions – Radiated <1000MHz:15.209Quasi PeakYes Spurious Emissions – Radiated >1000MHz:15.231(b)PeakYes Maximum Frequency of Search:15.33N/AYes Antenna Arrangements Integral:15.203N/AYes Antenna Arrangements External Connector:15.204N/AN/A Restricted Bands15.205N/AYes Extrapolation Factor15.31(f)N/AYes 2.Product Use:Telemetry 3.Emission Designator:100KF7D 4.Duty Cycle:<10% 5.Transmitter bit or pulse rate and level:1000bps 6.Temperatures:Ambient (Tnom)12 o C 7.Supply Voltages:Vnom9Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 8.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 9.Channel spacing: RF335 iss02RU1038/5000Page 6 of 21 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=12 o C(<1GHz)3m measurements <1GHz[ ] Relative humidity=54% (<1GHz),3m measurements >1GHz[X] Conditions=Open Area Test Site (OATS)3m extrapolated from 0.3m[X] Supply voltage=9Vdc Channel number=433.92MHz FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. dB/m FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 30MHz- 88MHz 88MHz-216MHz 216MHz-960MHz867.826.03.620.149.7-305.49500 960MHz-1GHz 1GHz-5GHz 1735.6 2169.5 2603.4 3471.2 3905.1(R) 4339.1(R) 32.07 43.0 31.07 36.45 28.1 20.8 0.4 0.4 0.4 0.5 0.5 0.5 26.6 28.0 29.2 31.8 32.8 32.8 59.07 71.4 60.67 68.8 61.4 54.1 20 20 20 20 20 20 89.84 371.53 108.0 275.4 117.5 50.69 1000 1000 1000 1000 500 500 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Measurements >1GHz @ 1m as per Part 15.31f(1) 5Receiver detector >1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 6Receiver detector >1GHz = Peak Hold, 1MHz resolution bandwidth 7New batteries used for battery powered products. 8(R) indicates frequency within restricted band from Part15.205 9Only results measured within 20 dB of lim…
