QQY8V00GH40001Door Opener

FCC ID: QQY8V00GH40001 Report No. M020122_Certification EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX J: USER MANUAL Keys Keys OIE-ID = 1040943 Owner = abloch01 LMD = 07-jul-2003 LMB = abloch01 {CAUTION:SIO-ID=816771 LMD=27-mar-2003 Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children. 805686 2-7 2004 - Pontiac GTO Owner Manual (July 11, 2003) The main key can be used for the ignition, as well as all locks, except for the glovebox. There is another key that locks and unlocks the glovebox. This key can usually be kept in the unlocked glovebox. Then, when leaving your vehicle and master key with a car park attendant, you can lock valuables in the glovebox and take the glovebox key with you. When a new key is delivered, it will come with a bar coded tag attached to the key ring. Keep the bar code tag that came with the original keys. Give this tag to your dealer if you need a new key made. If a replacement key is needed, you will have to go to the dealership and make a request. If a key is lost, your vehicle will have to be towed to a dealer to receive a new key. In an emergency, contact Pontiac Roadside Assistance. See Roadside Assistance Programfor more information. Notice:SIO-ID=817383 LMD=13-mar-2003If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. Remote Keyless Entry System OIE-ID = 851741 Owner = tlerma01 LMD = 24-sep-2002 LMB = tkurt01 Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. 1250347 805667 2-8 2004 - Pontiac GTO Owner Manual (July 11, 2003) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment. At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather. •Check the location. Other vehicles or objects may be blocking the signal. Take a few steps to the left or right, hold the transmitter higher, and try again. •Check to determine if battery replacement is necessary. See “Battery Replacement” under Remote Keyless Entry System Operation. •If you are still having trouble, see your dealer or a qualified technician for service. Remote Keyless Entry System Operation OIE-ID = 1042491 Owner = abloch01 LMD = 07-jul-2003 LMB = abloch01 The buttons on your key allow you to lock and unlock your doors or unlock your trunk. 1250347 2-9 2004 - Pontiac GTO Owner Manual (July 11, 2003) When pressing the key buttons, ensure that other keys on the key ring are not between the main key and the vehicle. Other keys can obscure the signal being transmitted to the vehicle. When a button on the key is pressed, it sends a signal to the vehicle. The receiver of the signal is a small rectangle on top of the dashboard, in the center. The receiver is also used to measure sunlight. It is important that the receiver is clean, not covered, and that there are no metal objects close by, as this may block the signals. LOCK:Press this button on the key to lock all the doors, disable the engine, and set the alarm. The vehicle’s turn signals will briefly flash. If you prefer to have the turn signals flash accompanied by the horn sounding, the LOCK feature can be changed. See Vehicle Personalization. The LOCK button on the key will not work if the ignition is turned on or if the driver’s door is open. UNLOCK:Press this button on the key to unlock the doors. The turn signals will flash twice, and the horn will chirp twice, if selected through vehicle personalization. The interior light will also turn on for a short time. If UNLOCK is pressed once, the driver’s door will unlock. If UNLOCK is pressed a second time, or is held down for more than half a second, all the doors will unlock. If you prefer to have all the doors unlock with a single press, the unlock feature can be changed to unlock all doors. See ”Two Stage Unlock“ under Vehicle Personalization . If the lock system is overloaded as a result of repeated use in a short time interval, the power supply is cut off for about 30 seconds. The door lock system has been designed to make the vehicle horn chirp rapidly five times if it detects a fault in the lock system when the LOCK button is pressed. You should check to see that the doors have locked. V(Trunk):Press the button with the opened trunk symbol to release the trunk lid. The trunk button on the key will not work if you are travelling over 12 mph (20 km/h). Battery Under normal use, the battery in your key should last about five years. You can tell the battery is weak if the key won’t work at the normal range in any location. If you have to get close to your vehicle before the key works, it is probably time for a new battery. See your dealer. 2-10 2004 - Pontiac GTO Owner Manual (July 11, 2003) The key buttons will not work if the battery inside the key is flat. Try turning the key in the ignition to ON, then off aga…

Text truncated - open the document above for the full version.

(GMX 281 Remote Key Assembly - Report No. 183-005)

Response to TCB Findings 1. Please confirm with your client that the duty cycles shown are for the worst-case possible operation and please supply more detailed plots. Confirmed - Duty cycles are worst-case. Refer to section 3.4 of the revised Test Report and Appendix K (Revised plots) 2. Please specify the worst-case transmission duration observed. Refer to revised Test Report M021022_Certification attached - Section 3.4 3. Please confirm that fresh batteries have been used during testing. Confirmed - Refer to section 2.3 of the revised test report. 4. Please confirm that the device has been rotated around 3 orthogonal planes during testing. Confirmed - Refer to section 2.3 of the revised test report.

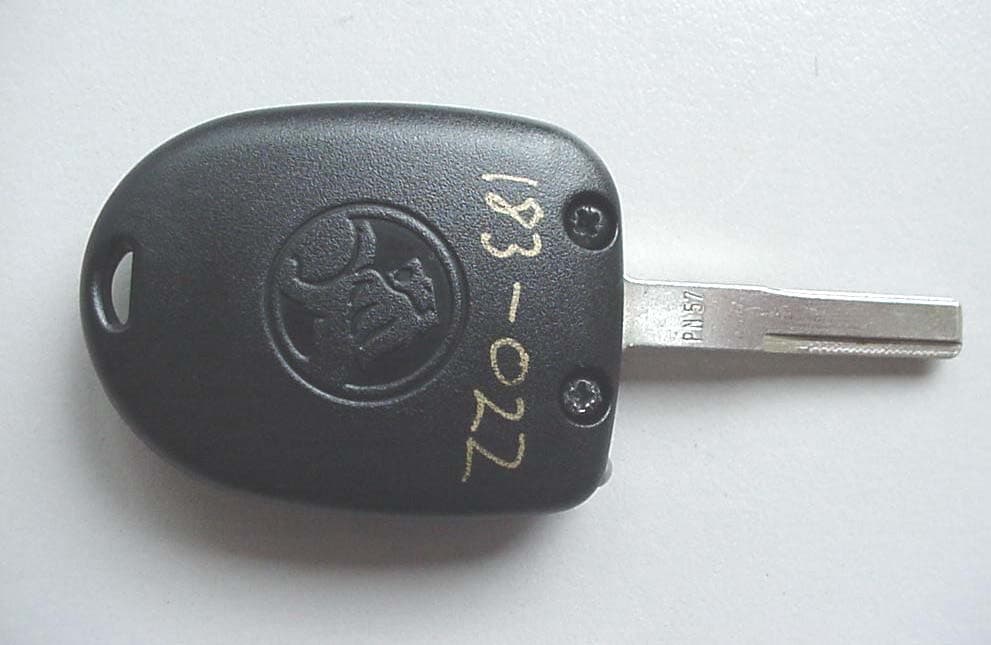

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX B1: TEST SAMPLE PHOTOGRAPHS FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B1: TEST SAMPLE PHOTOGRAPHS Test Sample

FCC ID: QQY8V00GH40001 Report No. M020122_Certification EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX G: FCC ID LABELLING Label is recessed (spark erode finish) 0.2 mm into the housing (polycarbonate).

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX B3: TEST SAMPLE – INTERNAL VIEW FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3: TEST SAMPLE – INTERNAL VIEW Test Sample – Internal view

Page 1 of 12 EMI TEST REPORT for CERTIFICATION to FCC PART 15.231 FCC ID: QQY8V00GH40001 Test Sample: Remote Key Transmitter Model Number: GMX281 Tested for: Australian Arrow Pty Ltd Report Number: M021022_Certification Issue Date: 27 th August 2003 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: QQY8V00GH40001 Report No. M021022_Certification Page 2 of 12 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.231 EMC Technologies Report No. M021022_Certification Issue Date: 27 th August 2003 CONTENTS 1.0 SUMMARY of TEST RESULTS 2.0 GENERAL INFORMATION 3.0 RADIATED EMI MEASUREMENTS 4.0 BANDWIDTH 5.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: GMX 281 REMOTE KEY ASSEMBLY (Australian Arrow Report No. 183-005 – Theory of Operation) APPENDIX D: TEST SAMPLE BLOCK DIAGRAM APPENDIX E: TEST SAMPLE SCHEMATIC APPENDIX F: TEST SAMPLE PCB LAYOUT APPENDIX G: FCC ID LABELLING APPENDIX H: GRAPHS of EMI MEASUREMENTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: USER MANUAL APPENDIX K: PULSEWIDTHS DUTY CYCLE FCC ID: QQY8V00GH40001 Report No. M021022_Certification Page 3 of 12 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 Report Number: M021022_Certification Test Sample: Remote Key Transmitter Model Number: GMX281 FCC ID: QQY8V00GH40001 Manufacturer: Australian Arrow Pty Ltd Tested for: Australian Arrow Pty Ltd Address: 65 Lathams Road, Carrum Downs, VIC 3201 Australia Phone: +613 9775 1566 Fax: +613 9775 0477 Responsible Party: Trevor Sykes Hardware Operations Leader ENGINEERING DIVISON Equipment Type: Low Power Transmitter (Intentional radiator) Test Standards: FCC Part 15, Subpart C - Intentional Radiators FCC Part 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz FCC Part 15.205 Operation in Restricted Bands FCC Part 15.209 Radiated Emissions ANSI C63.4-1992 OET Bulletin No. 63 Test Dates: 10 th October 2002 to 20 th August 2003 Test Officer: _____________ Chieu Huynh Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: _________________ Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: QQY8V00GH40001 Report No. M021022_Certification Page 4 of 12 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Remote Key transmitter, Model: GMX281 in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Subpart C Rules for intentional radiators, particularly Section 15.231 (Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz). The results and technical details of the test sample are detailed in this report. The test sample complies with the requirements of 47 CFR, Part 15 Subpart C - Radio Frequency Devices (intentional radiators), Section 15.231. 1.1 Summary of Results FCC Part 15, Subpart C Clauses Test Performed Result 15.203 Antenna Requirement *Not applicable 15.205 Operation in Restricted Band Complies 15.209 Radiated Emissions Complies 15.231 (b) Field Strength Emissions Complies 15.231 (c) Bandwidth Complies *Test Sample has no external antenna port – antenna is located internally. The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation conformed to the requirements of ANSI C63.2-1987. 1.2 Modifications by EMC Technologies No modifications were required. FCC ID: QQY8V00GH40001 Report No. M021022_Certification Page 5 of 12 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. 2.0 GENERAL INFORMATION (Information supplied by the Client) 2.1 Product Details Test Sample: Remote Key Transmitter Model Number: GMX281 FCC ID: QQY8V00GH40001 Equipment Type: Low Power Transmitter (Intentional Radiator) 2.2 Test Sample Operational Description The test sample is a remote key transmitter (low power transm…

Text truncated - open the document above for the full version.

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX H: MEASUREMENT GRAPHS NB: The limits on these graphs do not consider the duty cycle of the transmitter EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m021022 Test Date: 29-11-02 GRAPH No. 1 r:\PCF\m021022_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Australian Arrow Pty Ltd RFID Device Sample # 21 Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m021022r # = Ambient Limits: Legend: Source: _ FCC231TX3 FCC PART 15.231 TX LMTS FOR 260-470MHz AT 3mtrs __ Vertical Emissions 69 70 71 72 73 41 42 39 Ver 5.5 Build 84radiated emissions site 1 lerderderg t:A1370703_10M c1:C1310103 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC231TX3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 912.01 56.3 56.3 54.2 2.1 2 608.01 47.4 47.4 54.2 -6.8 3 304.00 61.8 61.8 74.2 -12.4 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ v ^ 3 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m021022 Test Date: 29-11-02 GRAPH No. 2 r:\PCF\m021022_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Australian Arrow Pty Ltd RFID Device Sample # 21 Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m021022r # = Ambient Limits: Legend: Source: _ FCC231TX3 FCC PART 15.231 TX LMTS FOR 260-470MHz AT 3mtrs __ Horizontal Emissions 74 75 76 77 78 30 31 40 Ver 5.5 Build 84radiated emissions site 1 lerderderg t:A1370703_10M c1:C1310103 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC231TX3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 911.96 66.4 66.2 54.2 12.0 2 303.98 79.9 79.9 74.2 5.7 3 607.97 59.1 59.1 54.2 4.9 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ v ^ 3 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m021022 Test Date: 29-11-02 GRAPH No. 3 r:\PCF\m021022_3.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Australian Arrow Pty Ltd RFID Device Sample # 21 Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m021022r # = Ambient Limits: Legend: Source: _ FCC231TX3 FCC PART 15.231 TX LMTS FOR 260-470MHz AT 3mtrs __ Vertical Emissions 61 62 Ver 5.5 Build 84radiated emissions site 1 lerderderg 1-5G without preamp t:A0040103 c1:C1310103 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak FCC231TX3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 1214.68 51.8 54.2 -2.4 Frequency (MHz) 1000 3100 10 20 30 40 50 60 70 80 90 v ^ 1 EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m021022 Test Date: 29-11-02 GRAPH No. 4 r:\PCF\m021022_4.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Australian Arrow Pty Ltd RFID Device Sample # 21 Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m021022r # = Ambient Limits: Legend: Source: _ FCC231TX3 FCC PART 15.231 TX LMTS FOR 260-470MHz AT 3mtrs __ Horizontal Emissions 58 52 Ver 5.5 Build 84radiated emissions site 1 lerderderg 1-5G without preamp t:A0040103 c1:C1310103 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak FCC231TX3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 1215.00 52.7 54.2 -1.5 Frequency (MHz) 1000 3100 10 20 30 40 50 60 70 80 90 v ^ 1 ~ EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m021022 Test Date: 29-11-02 GRAPH No. 5 r:\PCF\m021022_5.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Australian Arrow Pty Ltd RFID Device Sample # 22 Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m021022r # = Ambient Limits: Legend: Source: _ FCC231TX3 FCC PART 15.231 TX LMTS FOR 260-470MHz AT 3mtrs __ Vertical Emissions 44 45 40 Ver 5.5 Build 84radiated emissions site 1 lerderderg t:A1370703_10M c1:C1310103 c2:NONE p:NONE a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC231TX3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 911.58 54.1 54.1 54.2 -.1 2 607.73 47.0 47.0 54.2 -7.2 3 303.84 61.5 61.5 74.2 -12.7 Frequency (MHz) 231 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ v ^ 3 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231…

Text truncated - open the document above for the full version.

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX I: CHANNEL BANDWIDTH PLOTS FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX I: Channel Bandwidth Plots Sample #21 FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Sample #22: FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Sample #23:

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX K: PULSEWIDTHS DUTY CYCLE FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Sample 21 blanking FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Sample 22 blanking FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au sample 23 blanking FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au sample 21 pulsewidth FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au sample 22 pulsewidth FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au sample 23 pulsewidth

FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC TECHNOLOGIES REPORT NUMBER: M021022_CERTIFICATION APPENDIX B2: TEST SETUP PHOTOGRAPHS FCC ID: QQY8V00GH40001 Report No. M020122_Certification _________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2: TEST SETUP PHOTOGRAPHS Test Setup
