QR4WF5370M08

OGEMRAY TECHNOLOGY(HK)CO., LIMITED

USB Wireless Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 08, 2012
Application Purpose: Original Equipment
Date of Application: Nov 08, 2012
Equipment Note: USB Wireless Module
Frequency Range: 2422.00000000 - 2452.00000000
Company: OGEMRAY TECHNOLOGY(HK)CO., LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

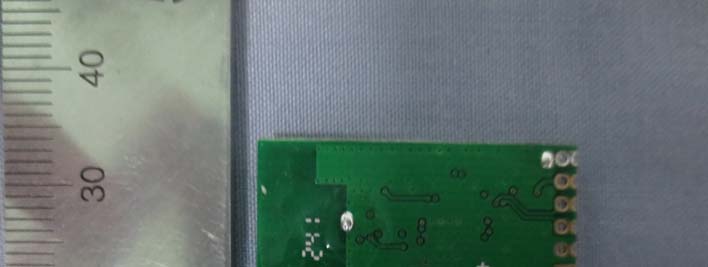

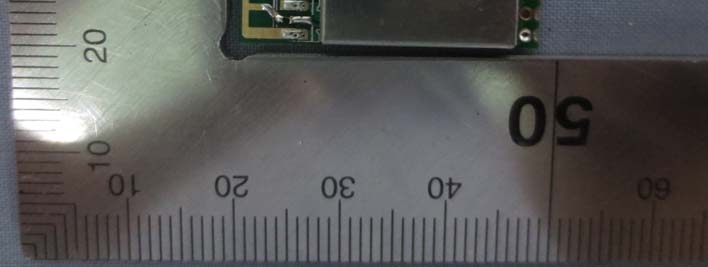

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	17.62 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This OEM module is approved for use in products operating as mobile or fixed transmitting device. The only antennas approved for use with this module are those documented in the filing, and must be installed in the manner specified therein. This device and its antenna(s) must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Grantee shall provide installation and operating instructions for satisfying RF exposure requirements to OEM integrators and installers. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Device is operating in a 1T1R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
