QR9-80201RRF Locator Receiver

From: Mike Kuo Sent: Monday, January 13, 2003 2:46 PM To: '[email protected]' Subject: FW: ReSource Inc., FCC ID:QR9-80201R, AN02T2502 -----Original Message----- From: CERTADM Sent: Monday, January 13, 2003 2:39 PM To: '[email protected]' Subject: ReSource Inc., FCC ID:QR9-80201R, AN02T2502 Notice_content ------------- Question #1: User Manual does not contain information required under section 15.21 of FCC rules. Please provide revised user manual to comply this requirement. Question #2: Based the technical description provided, the receiver is a superregenerative receiver. Based upon ANSI C 63.4 section 12.1.1.1, superregenerative receiver shall be provided with " cohere " signal during the tests. In the test report, there is no indication that such procedure was followed. Please redo the test with cohere signal. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

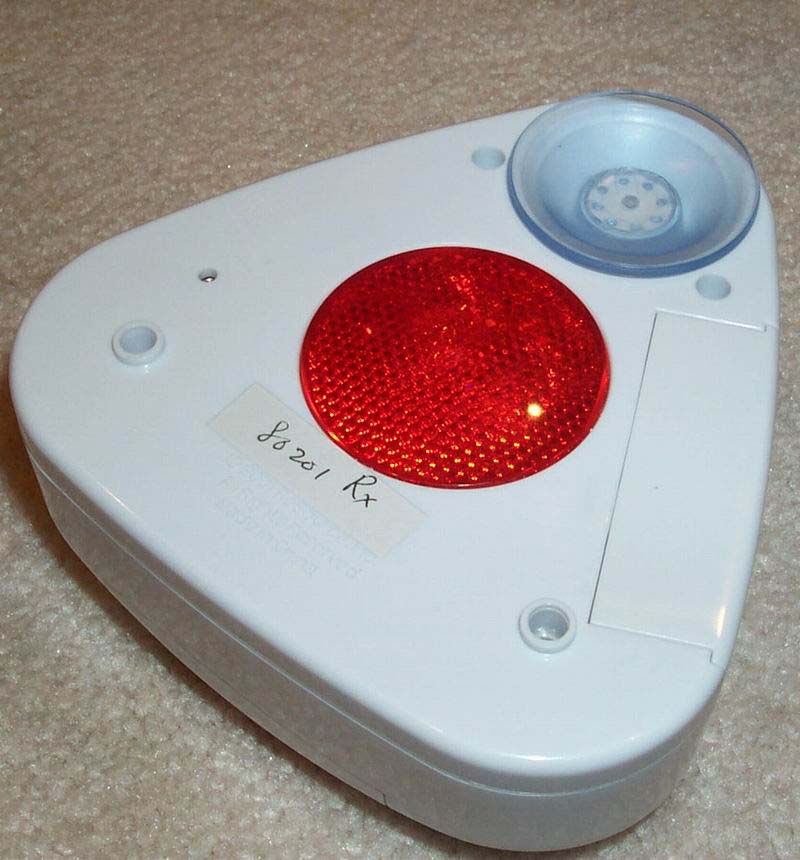

FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 16 Figure 7.1 Front View FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 17 Figure 7.2 Rear View

FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 8 2. PRODUCT LABELING FCC ID: QR9-80201R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditoins: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the back of EUT

FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 18 Figure 7.3 Inside View with Cover Open FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 19 Figure 7.4 Component Side FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 20 Figure 7.5 Foil Side

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RF LOCATOR RECEIVER MODEL: 80201(Rx) FCC ID: QR9-80201R December 27, 2002 This report concerns (check one): Original grant x Class II change Equipment type: Part 15 Receiver Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: ReSource, Inc. Report prepared by: Advanced Compliance Lab Report number: 0048-021216-01R The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM SCHEMATICS .........................................................................................12 5. RADIATED EMISSION DATA ...............................................................................13 5.1 Field Strength Calculation ..........................................................................13 5.2 Test Methods and Conditions .....................................................................13 5.3 Test Data .......................................................................................................13 6. PHOTOS OF TESTED EUT ....................................................................................15 FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label...............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Radiated Test Setup, Position 1..................................................................10 Figure 3.2 Radiated Test Setup, Position 2..................................................................10 Figure 3.3 Radiated Test Setup, Position 3..................................................................11 Figure 4.1 EUT Schematics ...........................................................................................12 Figure 6.1 Front View....................................................................................................16 Figure 6.2 Rear View .....................................................................................................17 Figure 6.2 Inside View, Cover Opened ........................................................................18 Figure 6.3 Component Side ...........................................................................................19 Figure 6.4 Foil Side ........................................................................................................20 FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: RF LOCATOR RECEIVER Model: 80201(Rx) Applicant: ReSource, Inc. 23 Acorn Street, Providence, RI 02903, USA Test Type: FCC Part 15 CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: Dec. 26, 2002 Report Number: 0048-021216-01R The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15, subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are within the compliance requirements. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced …

Text truncated - open the document above for the full version.

FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 10 Figure 3.1 Radiated Test Setup, position 1 FCC ID: QR9-80201R ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 11 Figure 3.2 Radiated Test Setup, position 2
