QRO2340-27TXRC Car

OWNER'S MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. THEY CONTAIN IMPORTANT INFORMATION. Important! Please read your Owner's Manual all the way through before operating your vehicle. Safety First • Adult supervision is recommended. • Drive your vehicle in a safe area away from people, pets, cars, etc. Not in streets, in or near water, or in darkness! • Don't touch or try to pick up vehicle when it is in motion. Wait until it stops completely. Hold vehicle by back end as shown in Fig. 1 of these instructions (next page). Never pick up by the wheels. • Keep hair, fingers, face and loose clothing away from wheels while the vehicle is switched on or while the transmitter is operating. • Be a responsible EdgeRunner ® operator! DO NOT RUN VEHICLE IN WATER OR RAIN—WARRANTY WILL BE VOIDED Batteries and Charger Required (not included) 1. 6.0-Volt Rechargeable NiCd or NiMH Battery Pack (commonly available for R/C vehicles at many toy and hobby dealers). For longer run time, use high-capacity "NiMH" (Nickel-Metal Hydride) or "NiCd" (Nickel-Cadmium) battery packs with highest "mAh" rating number (650mAh or higher). 2. Matching Battery Charger for NiMH or NiCd Battery Packs. (Adult supervision of recharging is recommended) 3. One 9-Volt Alkaline Battery for Transmitter required (not rechargeable). IMPORTANT BATTERY SAFETY INFORMATION Battery Cautions CAUTION: TO AVOID BATTERY LEAKAGE • Make sure the batteries are inserted with the correct polarity and follow the toy and battery manufacturers' instructions. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium, nickel-metal hydride) batteries, or different types of rechargeable batteries. • Remove weak or exhausted batteries from the product. Remove batteries from product when not in use. ADDITIONAL IMPORTANT BATTERY SAFETY INFORMATION • An adult should help with battery replacement. • Only batteries of the same or equivalent type as recommended in the "Battery Installation" (or replacement)  instructions are to be used. • Non-rechargeable batteries are not to be recharged. • If removable rechargeable batteries are used, they are only to be charged under adult supervision. • Rechargeable batteries are to be removed from the product before they are charged. • If you use a battery charger, it should be examined regularly for damage to the cord, plug, enclosure and other parts.  Do not use a damaged battery charger until it has been properly repaired. • Dispose of batteries safely and properly. EdgeRunner Tips 1. In order to race or operate two vehicles together, one must be 27MHz and one must be 49MHz. R/C Facts for Improved Operation 1. When battery start to fully discharge, vehicle may slow, stop, or refuse to respond to your control. It's time to recharge vehicle battery or replace transmitter battery. This is absolutely the #1 cause of all problems and questions! 2. Radio frequency interference can interfere with the control of your vehicle. Buildings, power wires, other R/C transmitters, or CB radio can all cause problems. Pick a place to drive that's away from these things. 3. Hold Transmitter so antenna points up, not toward the vehicle. Keep vehicle within range (about 65 feet) to keep control. If vehicle goes out of range, try lifting transmitter high into air to increase range for vehicle recovery. 4. Wipe vehicle clean and dry after each use, including inside battery compartments. 5. Turn vehicle power switch off immediately after running. Remove batteries for storing. Keep vehicle and Transmitter away from heat and direct sunlight and moisture. Troubleshooting Guide Don't take your EdgeRunner back to the store--try solving problems using this valuable guide. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable protection against such interference. CAUTION: FCC Regulations state that changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. PRINTED IN CHINA © 2001, 2002 Taiyo Edge Ltd. Co., P.O. Box 1470, New Smyrna Beach, FL 32170, U.S.A. All Rights Reserved. U.S. Patent 6,024,627. China Patent 01309828.4. U.K. Patent GB2328382. Other U.S. and Foreign Patents Pending. Product specifications subject to change. Product may differ from illustrations. 2340-US-1 Problem Probable Cause Correction Vehicle runs slowly, or • Batteries dead or low charge • Remove and replace batteries, making sure battery won't move, or won't steer • Batteries installed incorrectly direction (polarity, +/-) is correct and battery • Loose battery connection compartment contacts, plug and socket are clean. • Power switch is off • Recharge vehicle battery. • Replace transmitter battery. • Turn on Power switch. Erratic operation, loss of • Radio interference • Move to another location. control, short range • Weak Transmitter battery • Point antenna.up in the air, not at vehicle. Don't touch antenna. • Recharge 6.0V battery pack and/or replace 9V alkaline battery in transmitter. Vehicle stops working after • Water in battery/electronics/motor areas • Turn power switch off IMMEDIATELY, remove going through water, mud or DO NOT RUN VEHICLE IN WATER OR RAIN— battery pack, dry inside and out with clean soft cloth snow WARRANTY MAY BE VOIDED and allow to dry overnight with battery door open. • Avoid wet surfaces, puddles, rain and snow Taiyo Edge ® R/C Consumer Service We want to assist you! DO NOT RETURN THE PRODUCT TO THE STOR…

Text truncated - open the document above for the full version.

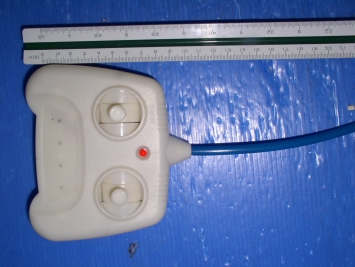

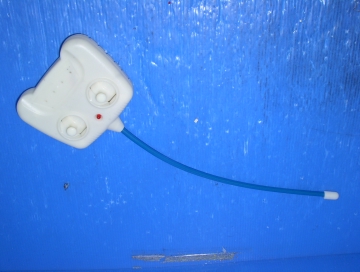

FCC ID: QRO2340-27TX Ophoto1 Ophoto2 FCC ID: QRO2340-27TX Ophoto3

FCC ID: QRO2340-27TX Iphoto1 Iphoto2 FCC ID: QRO2340-27TX Iphoto3 Iphoto4

FCC ID: QRO2340-27TX Technical Description : The brief circuit description is listed as follows : - Q1 and Y1 and associated circuit act as RF Oscillator. - Q2 and associated circuit act as RF Output Amplifier and Mixer. - IC1 and associated circuit act as Encoder. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : QRO2340-27TX Taiyo Edge (HK) Limited Application For Certification (FCC ID: QRO2340-27TX) Transmitter Sample Description : Edge Runner 2, Model : 2340 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [24-5-2001] 0308722 WN/at June 20, 2003 INTERTEK TESTING SERVICES FCC ID: QRO2340-27TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QRO2340-27TX ii MEASUREMENT/TECHNICAL REPORT Taiyo Edge (HK) Limited - MODEL: 2340 FCC ID: QRO2340-27TX June 20, 2003 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [24-5-2001 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: QRO2340-27TX iii Table of Contents 1.0 General Description................................................................................................................ 2 1.1 Product Description ............................................................................................................ 2 1.2 Related Submittal(s) Grants ................................................................................................2 1.3 Test Methodology............................................................................................................... 3 1.4 Test Facility ........................................................................................................................ 3 2.0 System Test Configuration..................................................................................................... 5 2.1 Justification......................................................................................................................... 5 2.2 EUT Exercising Software ................................................................................................... 5 2.3 Special Accessories............................................................................................................. 5 2.4 Equipment Modification .....................................................................................................6 2.5 Support Equipment List and Description............................................................................. 6 3.0 Emission Results ..................................................................................................................... 8 3.1 Field Strength Calculation................................................................................................... 9 3.1 Field Strength Calculation (cont’d) ................................................................................... 10 3.2 Radiated Emission Configuration Photograph................................................................... 11 3.3 Radiated Emission Data .................................................................................................... 12 4.0 Equipment Photographs ...................................................................................................... 15 5.0 Product Labelling ................................................................................................................. 17 6.0 Technical Specifications....................................................................................................... 19 7.0 Instruction Manual............................................................................................................... 21 8.0 Miscellaneous Information ................................................................................................... 23 8.1 Measured Bandwidth ........................................................................................................ 24 8.2 Discussion of Pulse Desensitization .................................................................................. 25 8.3 Calculation of Average Factor .......................................................................................... 26 8.4 Emission Test Procedures ................................................................................................ 27 8.4 Emission Test Procedures (Cont’d)................................................................................... 28 INTERTEK TESTING SERVICES FCC ID: QRO2340-27TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual …

Text truncated - open the document above for the full version.
