QRQ1000R-02Pocket Remote

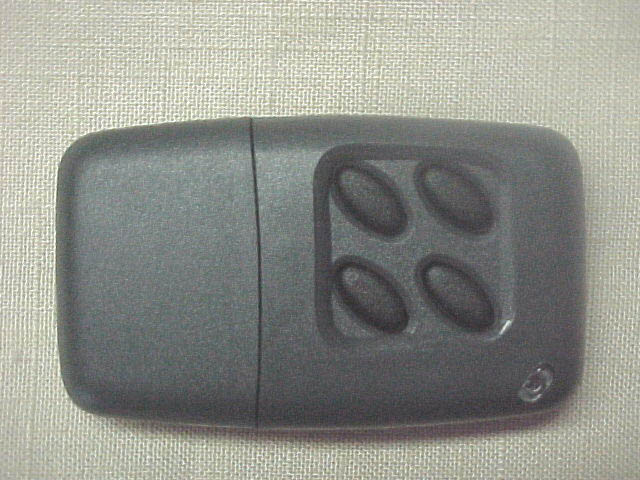

E N G I N E E R I N G I N D U S T R I E S Engineering Industries PO Box 11767 Glendale, AZ 85318-1767 Lighting 1000 Rev. A Congratulations on your purchase of the inline wireless low-voltage lighting controller system, patent pending. The system is easy to install and adds a new dimension in customizing your indoor and outdoor low-voltage lighting. FEATURES The wireless low-voltage controller system can turn all existing and new low-voltage lighting installations into a zoned system with wireless control (a zone can consist of one or several controllers). Multiple controllers can be wired on one transformer. Multiple controllers can be controlled using a single button on your pocket remote. Most dimmers can be used with this system. Timers can be used and when power is restored the controllers maintain the on/off position prior to the power interruption (i.e. if the lights were on prior to the timer turning off, the lights will be on when the timer restores power). REMOTE OPERATION Your pocket remote has four buttons you can use to control four separate zones with as many controllers per zone as you like. The remote buttons correspond to the following zones: Zone 1 – upper left button Zone 2 – upper right button Zone 3 – lower left button Zone 4 – lower right button Pressing the button and releasing within two seconds turns the zone on. Pressing the button and holding it down for more than two seconds turns the zone off. The remote comes from the factory with a battery installed, when replacing, simply remove the lower portion of your remote to expose the battery (CR2032). Obstructions at the top of the remote, such as your hand or fingers, will decrease the remote range significantly. INSTALLATION INSTRUCTIONS 1. Unplug the low-voltage power transformer from the wall outlet. CAUTION: DO NOT install the controller unit in the high-voltage side (wall plug) of the transformer. 2. Determine the power requirement for your installation. Refer to the Power Requirement section for help determining the total wattage; do not exceed 150 watts on a single controller unit. Multiple controller units can be installed for systems requiring more power capacity, see the Installation Example section for more information. 3. Determine where to install the controller unit in your existing/new installation. Realize the remote transmits radio frequency much like an automatic garage door opener so line-of-sight is not required. Operating range can be as much as 120 feet however it can vary depending on a number of things, so installing the controller in proximity to where the lights will need to be controlled will yield the best results. For outdoor applications do not submerge the controller unit, or locate it in an area where it can come in contact with large amounts of standing water. The controller can be installed in a variety of ways, use the Installation Example section for possible suggestions. 4. Cut the low voltage wire where you want to install the controller, and strip the insulation off both ends. 5. Connect the power wires (wires connected to the transformer power supply) to the “INPUT” terminals on the bottom of the controller unit. Most low-voltage lights are alternating current (AC) so it does not matter which wire goes on the positive side or the negative side. In the very rare case direct current (DC) lights are being controlled; connect the positive and negative wires according to the markings on the “INPUT” side of the controller. NOTE: Be sure not to loosen the two outer mounting screws, connect all wires to the four inner terminals. 6. Connect the load wires (wires with the lights you intend to control) to the “OUTPUT” side of the controller unit. Again, since most low-voltage lights are alternating current (AC) so it does not matter which wire goes on the positive side or the negative side. In the very rare case direct current (DC) lights are being controlled; connect the positive and negative wires according to the markings on the “OUTPUT” side of the controller. 7. Plug the transformer power supply back into the wall receptacle. All controllers are set at the factory to zone one which will operate using the button located in the upper left of your remote. If you want to control the lights using a different button (zone) refer to the Zone and Code Settings section. For best results position controller antenna straight out from the lid. E N G I N E E R I N G I N D U S T R I E S Engineering Industries PO Box 11767 Glendale, AZ 85318-1767 Lighting 1000 Rev. A POWER LIMITATION The total wattage of all bulbs that are controlled on a single controller cannot exceed 150 watts. For example, 3 floodlights at 20 watts each plus 6 walkway lights at ten watts each would have a total power rating of 120 watts (20 watts +20 watts +20 watts +10 watts +10 watts +10 watts +10 watts +10 watts +10 watts =120 watts). For lighting systems that exceed this power requirement, see the Installation Example section for wiring multiple controllers on a single zone. ZONE AND CODE SETTINGS Four separate zones are available on each remote. Controller Zone Setting: Remove the controller lid by using a Phillips screwdriver to remove the four screws on the controller top; be very careful not to damage the antenna when removing the lid. The zones are set using the sliding switches located in the upper left corner. The controller zone is set by moving the slide switch to the right. Only the top four slide switches are used to set the zone, and only one of the four slide switches can be switched in the “on” position. For example, if the switch labeled number 2 is in the on position, the controller will respond to zone number 2, corresponding to button two on the remote (switches 1, 3, and 4 must be in the off position). The remote and all controllers using a specific remote must be set to the same ID code. Multiple remotes can be used in the same proximity while controlling different zones if the remotes are set to a uni…

Text truncated - open the document above for the full version.

E N G I N E E R I N G I N D U S T R I E S 12/30/02 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc. as an Agent for Engineering Industries, PO Box 11767, Glendale AZ 85318-1767, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Engineering Industries products: (1) Pocket Remote – transmitter (2) Inline Control Module – receiver under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Engineering Industries nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti- Drug-Abuse act of 1988, 21 U.S.C. 853(a). In addition, Engineering Industries will notify the Federal Communications Commission if, at any time, the situation changes causing Engineering Industries to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at (623) 566-3934. Sincerely, Brian Smyth Owner, Engineering Industries

E N G I N E E R I N G I N D U S T R I E S 12/30/02 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc. as an Agent for Engineering Industries, PO Box 11767, Glendale AZ 85318-1767, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Engineering Industries products: (1) Pocket Remote – transmitter (2) Inline Control Module – receiver under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Engineering Industries nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti- Drug-Abuse act of 1988, 21 U.S.C. 853(a). In addition, Engineering Industries will notify the Federal Communications Commission if, at any time, the situation changes causing Engineering Industries to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at (623) 566-3934. Sincerely, Brian Smyth Owner, Engineering Industries

Block Diagram

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 1 January 3, 2002 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Request for Certification of the Engineering Industries Pocket Remote Model: 1000R-02 FCC ID: QRQ1000R-02 Gentlemen: We have enclosed a package for the certification of the Engineering Industries Pocket Remote Model: 1000R-02. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Michael Christensen Test Engineer

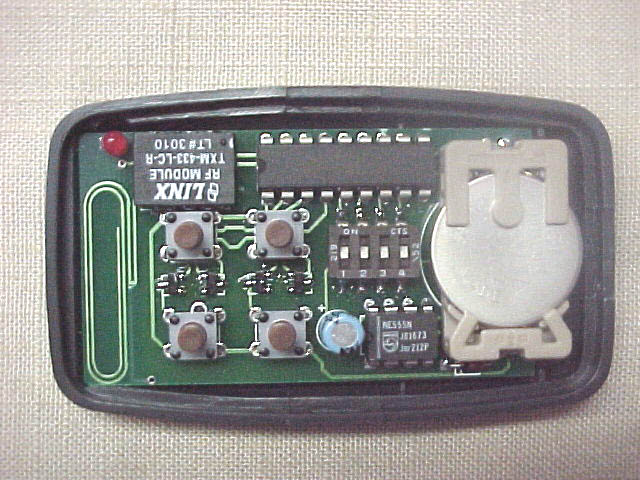

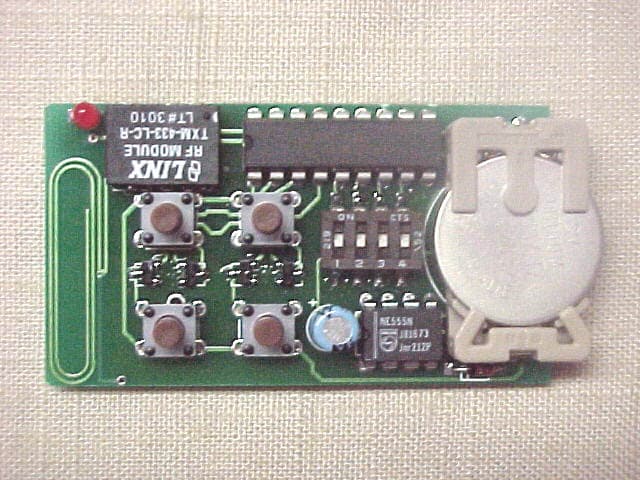

E N G I N E E R I N G I N D U S T R I E S Operational Description The remote transmitter is a device that allows a user to remotely turn low-voltage devices on and off by means of an inline controller switch (the receiver). The user depresses one of the four button switches on the face of the hand-held remote transmitter depending on the zone they wish to operate. When the user depresses a button the remote is powered and the Linx transmitter IC transmits the output from the Holtek encoder IC. When the user releases the button, the transmitter is de-powered and ceases RF emissions. The user can turn the inline controller switch (receiver box) on by holding the switch and releasing within approximately two seconds; depressing the switch for more than two seconds turns the inline controller switch off. The transition from turning the inline controller switch (receiver) on to off is done within the transmitter using a timer IC to switch the state of one of the Holtek encoder pins. The intended uses of this wireless inline controller system include indoor/outdoor low-voltage lighting (6VAC – 15VAC), sprinkler systems (28VAC), and automotive applications (12VDC). Other low-voltage applications such as alarm systems can also be controlled with this system. The inline controller switch (receiver) can be installed in any low-voltage application with an operating voltage (both AC and DC) within 5 to 35 volts. The receivers IC, as well as other components within the inline controller switch only operates from a constant 5-volt DC power supply (voltage variations are isolated from the electronics). The hand-held transmitter only operates using a single 3-volt battery. The transmitter antenna consists of a printed circuit board trace and can’t be removed or replaced. Brian Smyth Owner, Engineering Industries

Transmitter Schematic

Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Model: 1000R-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for POCKET REMOTE MODEL: 1000R-02 Prepared for ENGINEERING INDUSTRIES 26240 N. 65 TH DRIVE GLENDALE, AZ 85310 Prepared by:_____________________ MICHAEL CHRISTENSEN Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 3, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 10 16 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Model: 1000R-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 14 8. CONCLUSIONS 15 Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Model: 1000R-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Model: 1000R-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the “Test Procedures” section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Pocket Remote Model: 1000R-02 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Engineering Industries 26240 N. 65 th Drive Glendale, AZ 85310 Test Date: December 27, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz – 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz – 4500 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Highest Reading in Relation to Spec Limit: 76.20 dB μ V @ 433.95 MHz (*U c = 2.35 dB) Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Model: 1000R-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Pocket Remote Model: 1000R-02. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B21227A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Pocket Remote Mod…

Text truncated - open the document above for the full version.
