QSRPT-15Transmitter

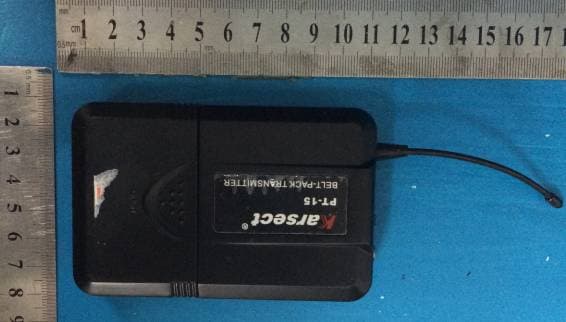

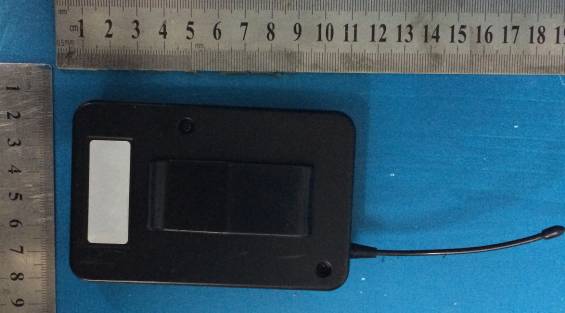

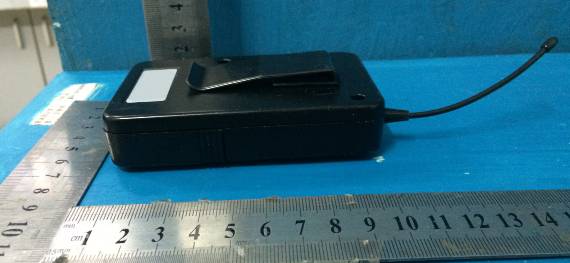

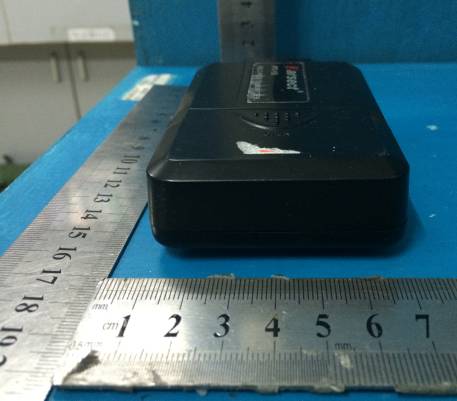

1. Power and Audio Mute Switch. 2. Antenna: Transmit the RF signal of transmitter. 3. Belt Clip: Attach the transmitter to the belt. 4. Audio Input Jack: it is suitable for lavalier system/headset system. 5. Low Battery Indicator: Red light glows when it is lack of power and should renew the battery. 6. State Setting Switch: Set the using state of lavalier system(L)/ headset system(H). 7. Gain Adjusting Volume: Adjust the transmitter audio input gain. 1452 3 76 100MM X 65MM X 30MM X 2 7 X 2 7 250MM X 51MM X 51MM 1. Grille: Protects the cartridge and help reducing the breath sounds and wind noise. 2. LCD Information Display: Show the transmitter frequency channel ect. 3.Down Function Button: Sets channel data. 4.Up Function Button: Sets channel data. 5.Power and Audio Mute Switch. 6.Battery Cover: Open it to install the battery. 1 4 5 2 3 6 FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subj ect to the following two conditions: (1) This device may not cause ha rmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party resp onsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the lim its for a Class B digital device, pursuant to part 15 of the FCC Rule s. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment g enerates uses and can radiate radio frequency energy and, if not inst alled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If th is equipment does cause harmful interference to radio or television r eception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from tha t to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Enping Karsect Electronics Co., Ltd No. F45-1, District F, Foreign and Private Capital Industrial Zone, Enping, Guangdong, China Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:QSRHT-35A Product Name: Transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 24 Day of 3 20 15 By: Signature Printed Title: Manager On behalf of : Telephone: 86-0750-7112155 Fangxiang He Enping Karsect Electronics Co., Ltd Schematics Block diagram Operation description Turn up procedure QSRPT-15

PT-15

FCC ID Label Sample FCC ID : QSRPT-15 This device complies with part 74 of the FCC Rules

LABEL LOCATION：PT-15

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [697.8 MHz, 2.8dBm（1.91 mW） output power] (1.91mW /5mm) ·[√0.6978 (GHz)]= 0.32 <3.0 for 1-g SAR Then SAR evaluation is not required

Guangdong Huesent Testing & Inspection Technology Co., Ltd. Total 27 pages Lab: Guangdong Huesent Testing & Inspection Technology Co., Ltd Add: No. 91, Dongguanzhuang Road, Guangzhou, Guangdong, China. Http://www.hst.org.cn E-mail:[email protected] Tel: +86-20-28263230 Fax: +86-20-28263237 T E S T R E P O R T Report No. : HST201412-4424-FCC Product description: Wireless Transmitter Model/Type : PT-15 FCC ID QSRPT-15 Applicant’s name: Enping Karsect Electronics Co., Ltd TRF No. / TEST REPORT FCC Part 74H: 2014 FCCID: QSRPT-15 Report Reference No. .............. : HST201412-4424-FCC Tested by (+ signature) ................ : Yanbin Xing Review by (+ signature) .............. : Sandy Yu Approved by (+ signature)............. Robin Peng Date of issue .............................. : Jan. 10, 2015 Total number of pages ............... : 27 Pages Testing Laboratory.................: Guangdong Huesent Testing & Inspection Technology Co., Ltd. (Accredited by CNAS, Accredited Number: L2885) Address ...................................... : No.91, Dongguanzhuang Road, Guangzhou City, Guangdong Province, China Applicant’s name ..................... : Enping Karsect Electronics Co., Ltd Address ...................................... : No. F45-1, District F, Foreign and Private Capital Industrial Zone, Enping, Guangdong, China Manufacturer’s name ............... : Enping Karsect Electronics Co., Ltd Address ...................................... : No. F45-1, District F, Foreign and Private Capital Industrial Zone, Enping, Guangdong, China Test specification..................: Entrusted testing Standard ..................................... : FCC Part 74H: 2014 Non-standard test method.........: N/A Test Report Form No. .............. : N/A Test Report Form(s) Originator .. : N/A Test item description ................ : Wireless Transmitter Trade Mark ................................. : Karsect Model/Type reference ................ : PT-15 Ratings ....................................... : 3.0Vdc 2*AA Batteries Page 2 of 27 Report No. : HST201412-4424-FCC TRF No. / TABLE OF CONTENT TEST REPORT ......................................................................................................................... 1 1 Test Summary .................................................................................................................................. 3 2 General Information.......................................................................................................................... 4 2.1 Client Information ............................................................................................................. 4 2.2 General Description of E.U.T. .......................................................................................... 4 2.3 Details of E.U.T. ............................................................................................................... 4 2.4 Description of Support Units ............................................................................................. 4 2.5 Standards Applicable for Testing ..................................................................................... 4 2.6 Test Location .................................................................................................................... 5 2.7 Deviation from Standards ................................................................................................. 5 2.8 Abnormalities from Standard Conditions .......................................................................... 5 3 Test Results ..................................................................................................................................... 6 3.1 E.U.T. Operation Condition .............................................................................................. 6 3.2 Test Procedure & Measurement Data .............................................................................. 7 3.2.1 Carrier Radiated Power & Radiated Spurious Emissions ......................................... 7 3.2.2 Occupied Bandwidth ............................................................................................... 10 3.2.3 Frequency Stability .................................................................................................. 13 3.2.4 Modulation Characteristics ...................................................................................... 15 3.2.5 Photographs ............................................................................................................ 18 3.2.6 EUT Constructional Details ..................................................................................... 20 3.2.7 Antenna Photo ........................................................................................................ 26 4 Equipments Used during Test ........................................................................................................ 27 Page 3 of 27 Report No. : HST201412-4424-FCC TRF No. / 1 TEST SUMMARY Test Test Requirement Standard Paragraph Result Carrier Radiated Power FCC Part 2.1046 74.861 e) 1) 54–72, 76–88 & 174–216 MHz bands, 50 mW 470–608 and 614–806 MHz bands, 250 mW PASS Modulation Deviation FCC Part 2.1047 74.861 e) 3) Within 75kHz PASS Frequency Stability FCC Part 2.1055 74.861 e) 4) <0.005% 50 ppm PASS Operating Bandwidth FCC Part 2.1049 c) 74.861 e) 5) Within 200kHz PASS Unwanted Radiation FCC Part 2.1049 c) 74.861 e) 6) within the mask PASS Radiated Spurious Emission FCC Part 2.1053 74.861 d) 3) < 43+10lgP(W) dB PASS Remark: The EUT has one channel, which is located in the range 614.200 MHz to 697.800MHz. Only test result of sample of in channels 614.200 MHz, 664.518 MHz and 697.800 MHz were recorded in this report. Page 4 of 27 Report No. : HST201412-4424-FCC TRF No. / 2 GENERAL INFORMATION 2.1 Client Information Applicant: Enping Karsect Electronics Co., Ltd Address of Applicant: No. F45-1, District F, Foreign and Private Capital Ind…

Text truncated - open the document above for the full version.

Page 18 of 27 Report No. : HST201412-4424-FCC TRF No. / 3.2.5 Photographs Radiated Emission Test Setup 30MHz - 1GHz Page 19 of 27 Report No. : HST201412-4424-FCC TRF No. / Above 1GHz
