QSZCOPTIMAX-MAXPERSONAL COMPUTER

BLOCK DIAGRAM CPU Support Pentium 4 Processor with 800/533 Mhz front side bus(FSB) Celelon D Processor with 533 Mhz front side bus(FSB) CPU Intel Pentium 4, 1.5 GHz RAM DDR 400/333 MHz Motherboard Socket 775 HDD Support ATA100 SATA Optical Drive 52x CDROM , 1.44 MB Standard Floppy disk Monitor CRT/LCD Support I/O Support Serail Port, Parallel Port,USB,LAN,Audio,PS/2 OS Support Microsoft windows 98/me/2000/xp , Linux

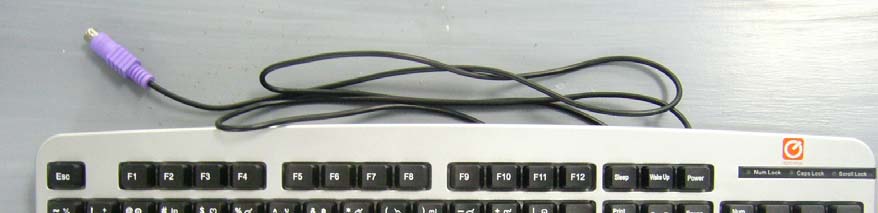

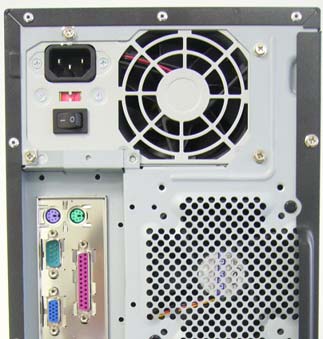

Page 1 of 3 EXTERNAL PHOTOGRAPHS a) Front b) Rear c) Right d) Left Figure 1- External Photographs (CPU case) Page 2 of 3 a) Front b) Rear c) Left d) Right Figure 2- External Photographs (Monitor front view) Page 3 of 3 Figure 3-Mouse Figure 4-Keyboard

ID LABEL LOCATION

Page 2 / 7 Figure 2-Internal Photographs (CPU case) Page 3 / 7 Figure 3-Power Supply Page 4 / 7 Figure A4-Motherboard (top) Figure 5-Motherboard (bottom) Page 5 / 7 Figure 6-Floppy Disk Drive Page 6 / 7 a) Top b) Bottom Figure 7-Hard Disk Drive Page 7 / 7 Figure 8-CD-ROM Drive

Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Test result reported in this test report shall refer only for the tested sample. This report shall not be reproduced, except in full, without the written approval from Intertek Testing Services (Thailand) Ltd., ETL SEMKO. EMC TEST REPORT Report No. : EE-06036959 Issue Date : 15 March 2006 EUT Number : EE-06-0163(1/1) Product Description : Personal Computer Trade Name : OPTIMAX Tested Model : MAX Manufacturer : Worldnet Integrator Co., Ltd. Address : 57 Moo1 Sookprayoon Rd., Donhuaroh, Muang, Chonburi 20000, Thailand. Test Conclusion : Comply Non-comply SUMMARY The equipment comply with the requirements according to the following standards/rules: FCC part 15 subpart B: Section 15.109 Prepared & Checked By: Approved By: Mr. Narong Traguldusitporn Ms. Pornpimon Ratanawichien Test Engineer, EMC Laboratory Manager, EMC Laboratory Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Page 2 of 30 Report No. EE-06036959 Issue Date 15 March 2006 Content Content 1. GENERAL INFORMATION 1.1 Description of Equipment Under Test 3 1.2 Description of Client 3 1.3 Description of Test 4 2. TEST SPECIFICATIONS 2.1 Standards 5 2.2 Mode of operation during the test / Test peripherals used 5 2.3. Test Summary 5 EMISSION TEST 3. CONDUCTED EMISSION MEASUREMENT 3.1 Test method 6 3.2 Test result 8 4. RADIATED EMISSION MEASUREMENT 4.1 Test method 10 4.2 Test result 13 APPENDIX I: Scanning Trace 14 APPENDIX II: FCC ID Label and location 21 APPENDIX III: EUT Photographs 22 Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Page 3 of 30 Report No. EE-06036959 Issue Date 15 March 2006 1. GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) EUT : Personal Computer Description of EUT: The products subjected to test are the personal computer for residential and commercial environmental (Class B product). OPTIMAX model name MAX has been granted in year 2003 in the FCC ID: QSZOPTIMAX-MAX. The components are as shown in the block diagram in Appendix III. The standard features of this EUT is as followed and the picture of internal construction can be found in Appendix III: Personal Computer (hereafter PC) shall supplied by using 2 separate mains terminal supply cord; CPU case and LCD monitor. Both parts are a system of EUT considerred in this test report. Trade Name OPTIMAX Model number : MAX Rating : 110V, 220-240V 50/60 Hz Main Lead : 1.8 m, unshielded, nondetachable Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Page 4 of 30 Report No. EE-06036959 Issue Date 15 March 2006 1.2 Description of Client Applicant : Worldnet Integrator Co., Ltd. Address : 57 Moo1 Sookprayoon Rd., Donhuaroh, Muang, Chonburi 20000, Thailand. Contact person : Mr. Soontorn Suthon Telephone : (66 2) 733 6655 Fax : (66 2) 733 6644 Manufacturer : Worldnet Integrator Co., Ltd. Address : 57 Moo1 Sookprayoon Rd., Donhuaroh, Muang, Chonburi 20000, Thailand. 1.3 Description of Test Sample received date : 13 March 2006 Test date : 14 March 2006 Test Facility : Electrical and Electronic Products Testing Center PTEC Building, King Mongkut's Institute of Technology Ladkrabang Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520. I Test Engineer : Ms. Pornpimon Ratanawichien Mr. Narong Traguldusitporn Reference Standard : FCC part 15 subpart B: Section 15.109 Internal clock frequencies/highest operating frequency: : 1.5 GHz Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Page 5 of 30 Report No. EE-06036959 Issue Date 15 March 2006 2. TEST SPECIFICATIONS 2.1 Standards FCC part 15 subpart B: Section 15.109; Test according to the test method in ANSI C63.4-2003. 2.2 Mode of operation during the test / Test peripherals used Within this test report, EUT was tested under all available operation mode (EUT operated by using software "Burnin test" to activate all available parts, graphic mode both 3 dimensions and H schrolling pattern. All available ports are terminated with 50 ohms devices. Lound speakers are connected as one of the EUT peripherals monitoring it's sound function.). Tested is carried out under A.C 110V, 60Hz. 2.3 Test Summary This report applies to tested sample only. This report shall not be reproduced in part without written approval of Intertek Testing Service (Thailand) Limited. TEST ITEM RESULT Conducted emission measurement Pass Radiated emission measurement Pass EUT Modification Nil Intertek Testing Services (Thailand) Limited. Univest Complex No.546, 4-5 th Floor, Ratchadapisek Road, Lardyao, Chatuchak, Bangkok 10900 Tel : (662) 938-1990 Fax : (662) 938-1921, 938-1923, 938-1925 Website : http://www.thailand.intertek-etlsemko.com Page 6 of 30 Report No. EE-06036959 Issue Date 15 March 2006 EMISSION TEST FCC part 15, subpart B (15.109) 3. Conducted emission measurement Test conclusion: Pass Fail Operating Condition EUT operated by using software "Burnin test" to activate all available parts, graphic mode both 3 dimensions and H schrolling pattern. All available ports are terminated with 50 ohms…

Text truncated - open the document above for the full version.

Page 1 of 2 TEST SET UP PHOTOGRAPHS Figure 1-Conducted emission test set up Figure 2-Radiated emission test set up Page 2 of 2 Figure 3-Radiated emission Test set up (side view) Figure 4-Radiated emission Test set up (rear view)
