QTG-HALOWHHALO Wireless Hub

WIRELESS HUB PLEASE READ BEFORE OPERATING THIS EQUIPMENT POWER YOUR LIFE | 2 HALO WIRELESS HUB Thank you for choosing the HALO WIRELESS HUB. Innovative and easy to use, the HALO WIRELESS HUB provides a powerful and universal charging source for both wireless and non-wireless devices. Please read the operating instructions carefully before using the HALO WIRELESS HUB. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING: When using this product, basic precautions should always be followed, including the following: • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when the product is used near children. • Do not put ngers or hands into the product. • Do not expose product to rain or snow. • Use of a power supply or charger not recommended or sold by product manufacturer may result in a risk of re or injury to persons. • Do not use the product in excess of its output rating. Overload outputs above rating may result in a risk of re or injury to persons. • Do not use the product that is damaged or modied. Damaged or modied product may exhibit unpredictable behavior resulting in re, explosion or risk of injury. • Do not disassemble the product. Take it to a qualied service person when service or repair is required. Incorrect reassembly may result in a risk of re or injury to persons. • Do not expose a product to re or excessive temperature. Exposure to re or temperature above 70°C/158°F may cause explosion. • Unplug the product when not in use. • Improper use of this product may result in product damage, excess heat, toxic fumes, re or explosion, for which damages you (“Purchaser”), and not HALO2CLOUD LLC. (HALO) (“Manufacturer”) are responsible. • This product should be operated only in open-air conditions. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket, purse or bedding. Failure to follow these instructions may damage the product by overheating. • Be cautious of drops, bumps, abrasions, or other impacts to this product. If there is any damage to the product such as dents, punctures, tears, deformities, or corrosion due to any cause, discontinue use. Contact Manufacturer or dispose of it in an appropriate manner. • Do not disassemble this product or attempt to re-purpose or modify it in any manner. • Do not attempt to replace any part of this device. • For questions or instructions for the various ways to charge this device, refer to the illustrations inthis operating instructions. • If this device is accessible to or may be used by a minor, purchasing adult agrees to be solely responsible for providing supervision, instruction, and warnings. Purchaser agrees to defend, indemnify, and hold Manufacturer harmless for any claims or damages arising from unintended use or misuse by a minor. • All products have gone through a thorough quality assurance inspection. If you nd that your device is excessively hot, is emitting odor, is deformed, abraded, cut, or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer. • This device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. TABLE OF CONTENTS Safety Precautions Included Items Operating Instructions Specications Warranty and Contact Information INCLUDED ITEMS - HALO WIRELESS HUB - AC Adapter - USB-A to Micro USB - USB-A to Lightning Cable - USB-A to USB-C Cable 1 | Wireless Charging 2 | Ring Light 3 | AC Power Port 4 | USB-A Output Port 1 5 | USB-C Port 6 | USB-A Output Port 2 7 | Non-slip Feet OPERATING INSTRUCTIONS POWERING YOUR HALO WIRELESS HUB The HALO WIRELESS HUB can be powered using the AC Adapter. Connect the supplied AC wall adapter to the charging base and to the wall outlet. Place the wireless device on the HALO WIRELESS HUB as shown in the illustration below. Make sure the center of the device is aligned over the center of the charging base. Charging will begin on contact. HALO WIRELESS HUB RING LIGHT • When the HALO WIRELESS HUB is powered on, the Ring Light ashes for 5 seconds, then turns o. • While charging, the Ring Light ashes for 15 seconds, then turns o. • When a foreign object is detected or if there is an error, the Ring Light will ash and the Output Ports will turn o. CHARGING YOUR PERSONAL ELECTRONIC DEVICE Use the appropriate charging cable that came with the HALO WIRELESS HUB to charge your electronic device. You can charge up to four devices simultaneously. Once your electronic device is connected, charging will begin automatically. NOTE: You may also use the USB cable that was supplied with your electronic device. SPECIFICATIONS USB-C Input: 15V/4A WPC output: 10W(Qi-BPP 5W,IOS7.5W,Samsung 10W) TYPE-C output: 5V/3A 9V/2A 12V/1.5A(PD18W) USB-A1 output: 5V/3A 9V/2A 12V/1.5A(QC18W) USB-A2 output: 5V/2.4A USB-A1+USB-A2 outout: 15W MAX Dimensions (L x W x H): 3.78 X 0.87 inches HALO WIRELESS HUB Weight: 0.2 lbs AC Adapter Weight: 0.4 lbs Operating Temperature: 32°F - 104°F (0°C - 40°C) Storage Temperature: 68°F - 158°F (20°C - 70°C) COMPLIANCE WITH FCC REGULATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a…

Text truncated - open the document above for the full version.

(ZAGG Inc.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QTG-HALOWH Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Dan Oakeson) Rev 11/20/07

(ZAGG Inc.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/9/8 SUBJECT: FCC Application for FCC ID: QTG-HALOWH To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( Dan Oakeson)

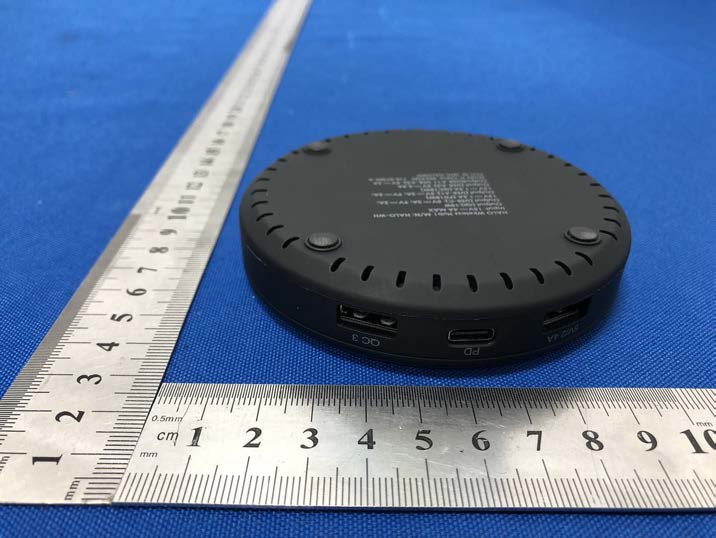

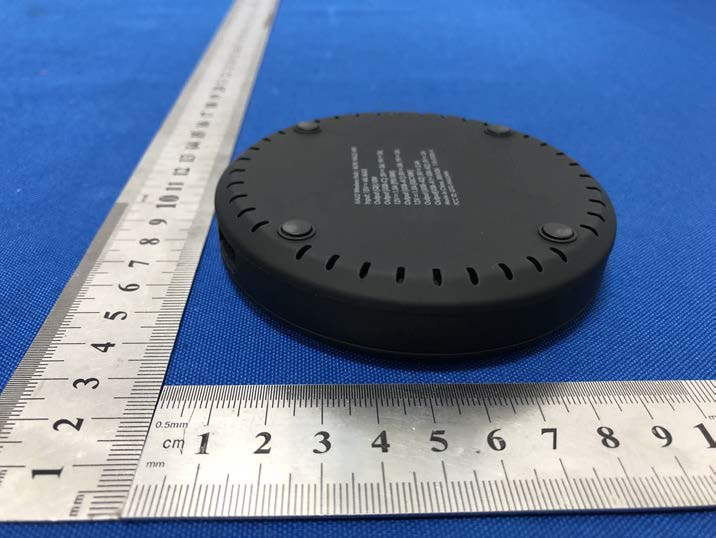

External Photos

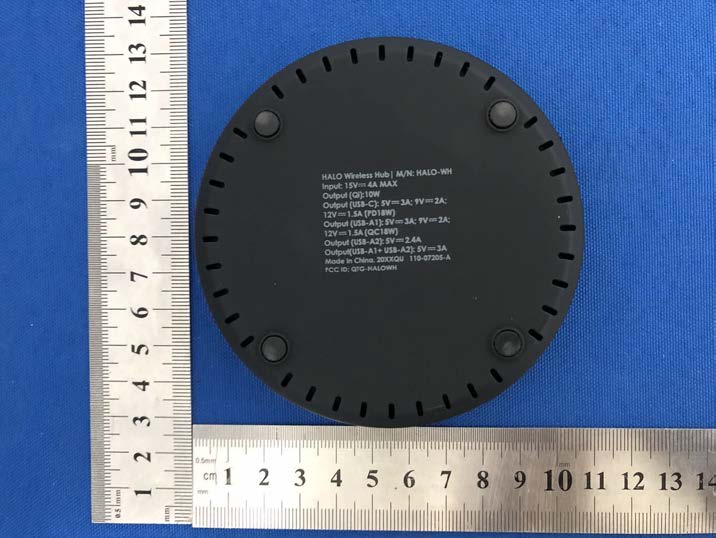

Label & label location

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E TEST REPORT FCC ID: QTG-HALOWH Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: HALO Wireless Hub Trademark: HALO Model Number: HALO-WH Prepared For: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale, Utah 84047, USA. Manufacturer: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale, Utah 84047, USA. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Aug, 24, 2020 Sample tested Date: Aug, 24, 2020 to Sep. 07, 2020 Issue Date: Sep. 07, 2020 Report No.: BCTC2008002565-1E Test Standards FCC Part15.209 ANSI C63.10-2013 Test Results PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 3 2. TEST SUMMARY ...................................................... 4 3. MEASUREMENT UNCERTAINTY........................................ 5 4. PRODUCT INFORMATION AND TEST SETUP ............................ 6 4.1 Product Information ..................................................... 6 4.2 Test Setup Configuration ................................................ 6 4.3 Support Equipment ..................................................... 7 4.5 Test Mode ............................................................. 7 4.6 Copy of marking plate ................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 9 5.1 Test Facility ............................................................ 9 5.2 Test Instrument Used ................................................... 9 6. CONDUCTED EMISSIONS ............................................. 11 6.1 Block Diagram Of Test Setup ........................................... 11 6.2 Limit ................................................................. 11 6.3 Test procedure ........................................................ 11 6.4 EUT operating Conditions .............................................. 11 6.5 Test Result ........................................................... 12 7. RADIATED EMISSIONS ............................................... 14 7.1 Block Diagram Of Test Setup ........................................... 14 7.2 Limit ................................................................. 15 7.3 Test procedure ........................................................ 15 7.4 Test Result ........................................................... 17 8. EUT PHOTOGRAPHS ................................................. 20 9. EUT TEST SETUP PHOTOGRAPHS .................................... 22 (Note: N/A means not applicable) Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 1. VERSION Report No. Issue Date Description Approved BCTC2008002565-1E Sep. 07, 2020 Original Valid Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 2. TEST SUMMARY The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 Antenna Requirement 15.203 PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 Conducted Emission (150kHz-30MHz) U=3.2dB 3 humidity uncertainty U=5.3% 4 Temperature uncertainty U=0.59°C Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 4. PRODUCT INFORMATION AND TEST SETUP 4.1 Product Information Model(s): HALO-WH Model Description: N/A Product Description: Wireless Charging System Operation Frequency: 115kHz-205kHz Antenna installation: Loop coil antenna Ratings: INPUT:DC 15V 4A MAX OUTPUT(QI): 10W OUTPUT(USB-C): DC 5V 3A; 9V 2A ;12V 1.5A(PD18W) OUTPUT(USB-A1): DC 5V 3A; 9V 2A ;12V 1.5A(QC18W) OUTPUT(USB-A2): DC 5V 2.4A; OUTPUT(USB-A1+USB-A2): DC 5V 3A; Adapter Model No.: PYS-150V400U001 Input: AC 100-240V 50/60Hz Max 1.6A Output: DC 15V 4A Hardware Version: PYS-WPC20039 V2 Software Version: cps8500+1001_pengyuansheng_V1.0.b 4.2 Test Setup Configuration See test photographs attached in EUT TEST SETUP PHOTOGRAPHS for the actual connections between Product and support equipment. Conducted Emission/Radiated Spurious Emission: E-2 Dummy Load E-1 EUT AC E-3 Resistance Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 4.3 Support Equipment No. Device Type Brand Model Series No. Data Cable Remark E-1 HALO Wireless Hub HALO HALO-WH N/A N/A EUT E-2 Dummy load N/A DL01 N/A N/A Auxiliary E-3 Resistance N/A N/A N/A N/A Auxiliary Notes: 1. All the e…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E RF EXPOSURE REPORT FCC ID: QTG-HALOWH Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: HALO Wireless Hub Trademark: HALO Model Number: HALO-WH Prepared For: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale, Utah 84047, USA. Manufacturer: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale, Utah 84047, USA. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Aug, 24, 2020 Sample tested Date: Aug, 24, 2020 to Sep. 07, 2020 Issue Date: Sep. 07, 2020 Report No.: BCTC2008002565-2E Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 3 2. PRODUCT INFORMATION ............................................. 4 2.1 Product Information ..................................................... 4 2.2 Support Equipment ..................................................... 4 2.3 Test Mode ............................................................. 4 2.4 Copy of marking plate ................................................... 5 3. TEST FACILITY AND TEST INSTRUMENT USED ......................... 6 3.1 Test Facility ............................................................ 6 3.2 Test Instrument Used ................................................... 6 4. METHOD OF MEASUREMENT .......................................... 7 4.1 Applicable Standard .................................................... 7 4.2 Block Diagram Of Test Setup ............................................ 7 4.3 Limit .................................................................. 8 4.4 Test procedure ......................................................... 8 4.5 Equipment Approval Considerations ...................................... 9 4.6 E and H field Strength .................................................. 10 5. EUT TEST SETUP PHOTOGRAPHS .................................... 11 (Note: N/A means not applicable) Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E 1. VERSION Report No. Issue Date Description Approved BCTC2008002565-2E Sep. 07, 2020 Original Valid Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E 2. PRODUCT INFORMATION 2.1 Product Information Model(s): HALO-WH Model Description: N/A Product Description: Wireless Charging System Operation Frequency: 115kHz-205kHz Antenna installation: Loop coil antenna Ratings: INPUT:DC 15V 4A MAX OUTPUT(QI): 10W OUTPUT(USB-C): DC 5V 3A; 9V 2A ;12V 1.5A(PD18W) OUTPUT(USB-A1): DC 5V 3A; 9V 2A ;12V 1.5A(QC18W) OUTPUT(USB-A2): DC 5V 2.4A; OUTPUT(USB-A1+USB-A2): DC 5V 3A; Adapter Model No.: PYS-150V400U001 Input: AC 100-240V 50/60Hz Max 1.6A Output: DC 15V 4A Hardware Version: PYS-WPC20039 V2 Software Version: cps8500+1001_pengyuansheng_V1.0.b 2.2 Support Equipment Device Type Brand Model Series No. Data Cable Remark Mobile phone iPhone iPhone 8PLus N/A N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode . Test Modes keeping TX+Charging mode Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E 2.4 Copy of marking plate Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E 3. TEST FACILITY AND TEST INSTRUMENT USED 3.1 Test Facility All measurement facilities used to collect the measurement data are located at BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other equivalent standards. FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 3.2 Test Instrument Used Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Exposure Level Tester Narda ELT-400 N-0231 Jul. 15, 2020 Jul. 14, 2021 Magnetic field probe 100cm2 Narda B-Field Probe 100cm2 M0675 Jul. 15, 2020 Jul. 14, 2021 843 Chamber ETS 843 84301 Aug. 27, 2018 Aug. 26, 2021 Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-2E 4. METHOD OF MEASUREMENT 4.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03: RF Exposure Wireless Charging Apps v02. 4.2 Block Diagram Of Test Setup Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the ce…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E 9. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 22 of 23 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008002565-1E ※※※※※ END OF REPORT ※※※※※ Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 23 of 23
