QTG-RC400Wireless Charging Pad

CHARGE PAD WIRELESS CHARGING PAD Quick Start Guide Warranty information available at www.zagg.com/warranty-policies ©2020 ZAGG Inc All Rights Reserved | NASDAQ: ZAGG | MADE IN CHINA Universal wireless charging compatible with Qi-enabled devices. Qi is a trademark of the Wireless Power Consortium. Other trademarks are property of ZAGG. *Charging results will vary by device. All charging claims are estimates based on internal testing and will vary based on individual usage. FCC Caution: FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body" 314-0466-A | 06/04/20 Introduction Welcome to the wonderful world of wireless charging! With the Wireless Charge Pad and its transfer speeds of up to 10W * , you’ll never need to plug your phone in again. Anti-slip ring LED indicatorPower input How to Use 1. Make sure your phone is Qi enabled and capable of wireless charging. 2. Connect the charge pad to a power source using the charge cable. The charge pad is compatible with 5V,2A adapters and QC2.0/QC3.0 fast charging adapters (9V,1.67A). The indicator light will illuminate for three seconds when connected to a power source. LED lights up for 3s Charge cable 3. Place your device on the charging pad. For the most effective charging, make sure it’s in the center of the pad. When the device is charged successfully, the LED indicator will light up for 16 seconds, then turn off. Having Problems? If your device doesn’t charge or the LED light won’t stop flashing, there may be a problem with your phone case. Cases that are metallic or over 6mm thick don’t work with the Wireless Charge Pad. For best charging, don’t attach anything metallic, including bank cards with metallic strips, to your phone. Third party cables and adapters can also cause charging problems. For Best Results 1. Keep the charger away from water or liquid. 2. Make sure the power is off before cleaning the charger. 3. Only use the charger indoors Wireless Charging Pad Instructions

(ZAGG Inc.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QTG-RC400 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Dan Oakeson) Rev 11/20/07

(ZAGG Inc.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: QTG-RC400 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( Dan Oakeson)

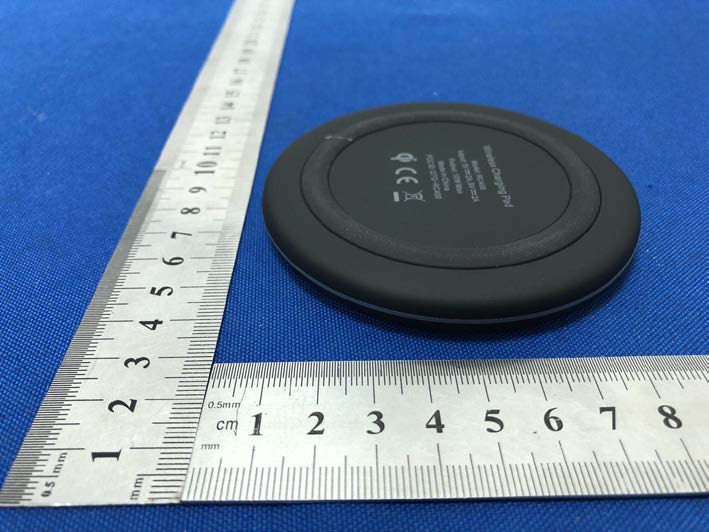

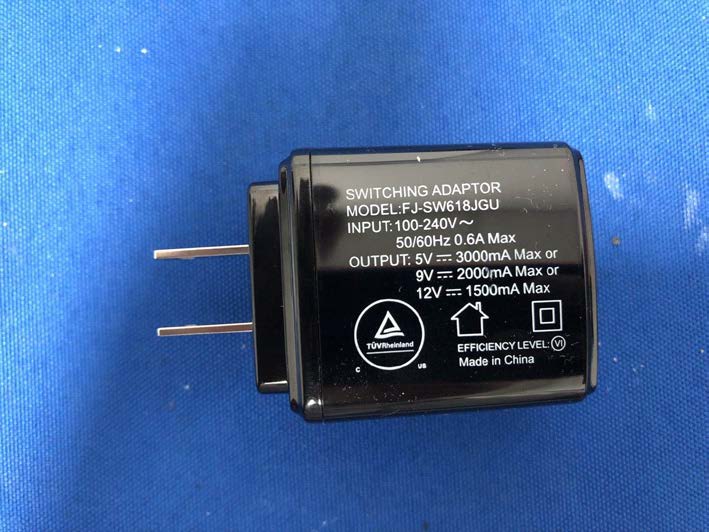

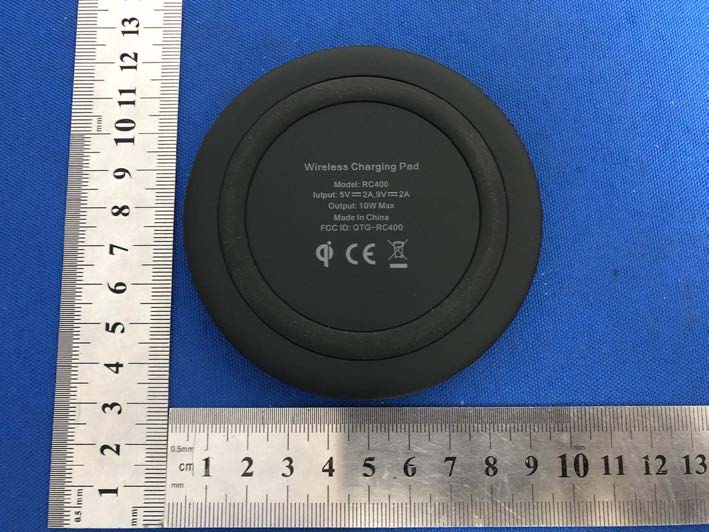

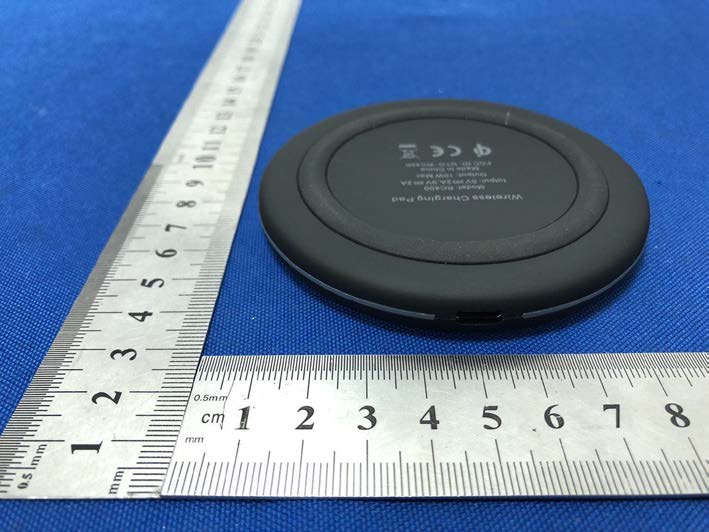

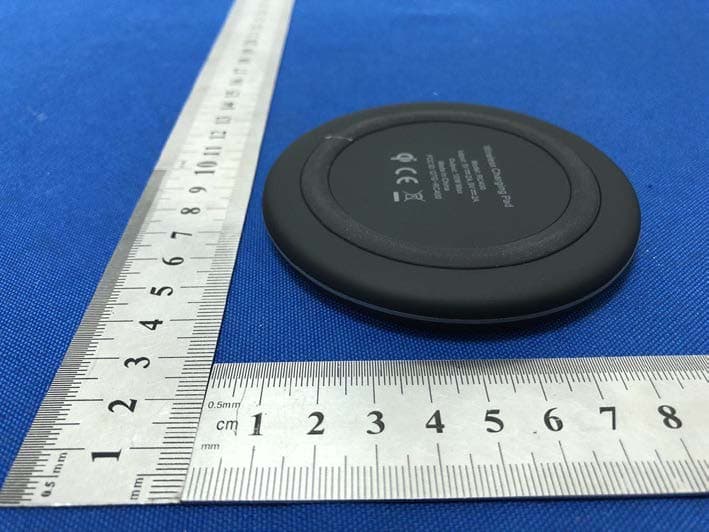

External Photos

Label & label location

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E TEST REPORT FCC ID: QTG-RC400 Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Charging Pad Trademark: IFROGZ Model Number: RC400 Prepared For: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale Utah United 84047 States Manufacturer: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale Utah United 84047 States Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Aug, 14, 2020 Sample tested Date: Aug, 14, 2020 to Aug. 28, 2020 Issue Date: Aug. 28, 2020 Report No.: BCTC2008001471-1E Test Standards FCC Part15.209 ANSI C63.10-2013 Test Results PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 3 2. TEST SUMMARY ...................................................... 4 3. MEASUREMENT UNCERTAINTY........................................ 5 4. PRODUCT INFORMATION AND TEST SETUP ............................ 6 4.1 Product Information ..................................................... 6 4.2 Test Setup Configuration ................................................ 6 4.3 Support Equipment ..................................................... 7 4.5 Test Mode ............................................................. 7 4.6 Copy of marking plate ................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ......................... 8 5.1 Test Facility ............................................................ 8 5.2 Test Instrument Used ................................................... 8 6. CONDUCTED EMISSIONS ............................................. 10 6.1 Block Diagram Of Test Setup ........................................... 10 6.2 Limit ................................................................. 10 6.3 Test procedure ........................................................ 10 6.4 EUT operating Conditions .............................................. 10 6.5 Test Result ........................................................... 11 7. RADIATED EMISSIONS ............................................... 13 7.1 Block Diagram Of Test Setup ........................................... 13 7.2 Limit ................................................................. 14 7.3 Test procedure ........................................................ 14 7.4 Test Result ........................................................... 16 8. EUT PHOTOGRAPHS ................................................. 19 9. EUT TEST SETUP PHOTOGRAPHS .................................... 21 (Note: N/A means not applicable) Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 1. VERSION Report No. Issue Date Description Approved BCTC2008001471-1E Aug. 28, 2020 Original Valid Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 2. TEST SUMMARY The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 Antenna Requirement 15.203 PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 Conducted Emission (150kHz-30MHz) U=3.2dB 3 humidity uncertainty U=5.3% 4 Temperature uncertainty U=0.59°C Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 4. PRODUCT INFORMATION AND TEST SETUP 4.1 Product Information Model(s): RC400 Model Description: N/A Product Description: Wireless Charging System Operation Frequency: 115kHz-205kHz Antenna installation: Loop coil antenna Ratings: Input: DC5V 2A, DC9V 2A OUTPUT: 10W Max Adapter Model No.: FJ-SW618JGU Input: AC100-240V 50/60Hz Max 0.6A Output: DC5V 3A/ DC9V 2A /DC12V 1.5A Hardware Version: V10 Software Version: 0x48F1 4.2 Test Setup Configuration See test photographs attached in EUT TEST SETUP PHOTOGRAPHS for the actual connections between Product and support equipment. Conducted Emission/Radiated Spurious Emission: E-2 Dummy Load E-1 EUT AC Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 4.3 Support Equipment No. Device Type Brand Model Series No. Data Cable Remark E-1 Wireless Charging Pad IFROG Z RC400 N/A N/A EUT E-2 Dummy load N/A DL01 N/A N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended u…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E RF EXPOSURE REPORT FCC ID: QTG-RC400 Compiled by: Reviewed by: Approved by: Willem Wang Eric Yang Zero Zhou/Manager The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Charging Pad Trademark: IFROGZ Model Number: RC400 Prepared For: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale Utah United 84047 States Manufacturer: ZAGG Inc. Address: 910 West Legacy Center Way, Midvale Utah United 84047 States Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Aug, 14, 2020 Sample tested Date: Aug, 14, 2020 to Aug. 28, 2020 Issue Date: Aug. 28, 2020 Report No.: BCTC2008001471-2E Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results PASS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 3 2. PRODUCT INFORMATION ............................................. 4 2.1 Product Information ..................................................... 4 2.2 Support Equipment ..................................................... 4 2.3 Test Mode ............................................................. 4 2.4 Copy of marking plate ................................................... 5 3. TEST FACILITY AND TEST INSTRUMENT USED ......................... 6 3.1 Test Facility ............................................................ 6 3.2 Test Instrument Used ................................................... 6 4. METHOD OF MEASUREMENT .......................................... 7 4.1 Applicable Standard .................................................... 7 4.2 Block Diagram Of Test Setup ............................................ 7 4.3 Limit .................................................................. 8 4.4 Test procedure ......................................................... 8 4.5 Equipment Approval Considerations ...................................... 9 4.6 E and H field Strength .................................................. 10 5. EUT TEST SETUP PHOTOGRAPHS .................................... 11 (Note: N/A means not applicable) Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E 1. VERSION Report No. Issue Date Description Approved BCTC2008001471-2E Aug. 28, 2020 Original Valid Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E 2. PRODUCT INFORMATION 2.1 Product Information Model(s): RC400 Model Description: N/A Product Description: Wireless Charging System Operation Frequency: 115kHz-205kHz Antenna installation: Loop coil antenna Ratings: Input: DC5V2A, DC9V 2A OUTPUT: 10W Max Adapter Model No.: FJ-SW618JGU Input: AC 100-240V 50/60Hz Max 0.6A Output: DC5V3A /DC9V 2A /DC12V 1.5A Hardware Version: V10 Software Version: 0x48F1 2.2 Support Equipment Device Type Brand Model Series No. Data Cable Remark Mobile phone SAMSUNG SM-G9600/DS N/A N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode . Test Modes keeping TX+Charging mode Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E 2.4 Copy of marking plate Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E 3. TEST FACILITY AND TEST INSTRUMENT USED 3.1 Test Facility All measurement facilities used to collect the measurement data are located at BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other equivalent standards. FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 3.2 Test Instrument Used Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Exposure Level Tester Narda ELT-400 N-0231 Jul. 15, 2020 Jul. 14, 2021 Magnetic field probe 100cm2 Narda B-Field Probe 100cm2 M0675 Jul. 15, 2020 Jul. 14, 2021 843 Chamber ETS 843 84301 Aug. 27, 2018 Aug. 26, 2021 Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 13 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-2E 4. METHOD OF MEASUREMENT 4.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03: RF Exposure Wireless Charging Apps v02. 4.2 Block Diagram Of Test Setup Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 7 of 13 Shenzhen BCTC Testin…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E 9. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 21 of 22 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008001471-1E ※※※※※ END OF REPORT ※※※※※ Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 22 of 22
