QTG-ZKMCOVWireless Keyboard

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq To reach a trained customer service representative, please use one of the following: ZAGG.com/support/contact.php | [email protected] 1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers For unparalleled scratch protection for your iPad, we recommend ZAGG’s invisibleSHIELD®. ©2005 - 2013 ZAGG Inc. All Rights Reserved. PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA iPad®, Apple®, and iTunes® are registered trademarks of Apple Inc. ZAGG®, invisibleSHIELD®, and ZAGGkeys™ Cover are trademarks or registered trademarks of ZAGG Inc. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1: This device may not cause harmful interference, and 2: This device must accept any interference received, including interference that may cause undesired operation COVER *WARRANTY REGISTRATION Your ZAGGkeys™ Cover comes with a one-year manufacturer’s warranty. In order to activate the warranty, you must register your Cover as well as keep your purchase receipt. If you purchased your ZAGGkeys Cover from ZAGG.com, ZAGG® has already registered it and has a copy of your proof of purchase. FOLD FRONT BACK INSERTING/REMOVING YOUR iPAD® TROUBLESHOOTING If your iPad® does not respond to your Cover there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG customer service and one of our trained professionals will be happy to assist you. 1. Restart your iPad by holding down the home and power button simultaneously until it restarts. Let go of the buttons when you see the Apple logo. 2. Turn your Cover o and back on. You should see the LED status light illuminate briefly, if not, charge your Cover. 3. After charging, turn your Cover on. If the LED status light does not illuminate, and your keyboard doesn’t operate correctly, please contact ZAGG’s customer support. 4. Forget and re-pair your Cover. On your iPad, select: Settings > General > Bluetooth > On. If you see “ZAGGkeys Cover” listed as an available device, touch the arrow to the right of it and choose to have your iPad forget the device. 5. Push the PAIR button on your Cover and watch for the LED status light to flash blue. 6. Your iPad should display “ZAGGkeys Cover” as an available device. Select it. 7. If your iPad gives you an error message, repeat the pairing process. 8. If you still can’t get your Cover to pair, it is possible your iPad needs to have its software updated. To update your iPad’s software, follow these steps: 1. Plug your iPad into your computer, and open iTunes®. 2. In iTunes, select your iPad. 3. Choose to check for software updates. 4. If an update is available, please install it. This will take a few minutes to download from Apple®. 5. After your update is complete, repeat the troubleshooting process*. * If you continually receive the same error message during pairing, or the above steps don’t work, please contact ZAGG’s customer support for assistance. To insert your iPad mini into the Cover, start with the Cover’s keyboard in portrait orientation with the hinge closed and on the left. Then, with your iPad in portrait mode and the volume control buttons facing out (the Home button is on the top), slide it into the hinge channel, making sure it is firmly in place. For best results, always insert your iPad with the hinge closed and align its edges with your Cover’s keyboard. When your iPad is secure in the Cover, you can open it, and cleverly placed magnets, will activate your iPad’s sleep/wake feature to help preserve battery life. Simply open your Cover to wake your iPad. To easily remove your iPad, start with the hinge closed. Open the hinge slightly (enough that you can grasp the corner of your iPad) and while securing the Cover, pull your iPad away from the hinge. To insert your iPad using the media mode, start with the Cover’s keyboard in portrait orientation with the hinge closed and on the left. Then, with your iPad also in portrait orientation (the Home button is on the bottom), slide your iPad into the hinge channel, making sure it is firmly in place*. You will feel the magnets engage, securing your device. *NOTE: When your iPad is in media mode, it is somewhat less secure in the channel as when in regular mode. Use care when transporting it in this mode. Volume Controls Home Button Volume Controls Home Button FOLD INSIDE RIGHT INSIDE LEFT POWERING ON AND OFF PAIRING YOUR ZAGGkeys™ COVER THE FUNCTION (fn) KEY To turn your Cover on, switch the POWER button to the ON position. A red LED light will illuminate briefly while the keyboard powers up. To turn your Cover o, simply switch the POWER button to the OFF position. Pairing your Cover with your iPad® is easy. It should only need to be paired once, using the following directions. If the connection between your iPad and Cover is ever lost, simply repeat these steps. 1. On your iPad select: SETTINGS > GENERAL > BLUETOOTH > ON. 2. Press the PAIR button on your Cover keyboard. A blue LED light will flash until your Cover and iPad are paired. 3. Your iPad will display “ZAGGkeys Cover” as an available device. Select this option to complete pairing. LED LIGHTPAIR BUTTON LED LIGHT ON POSITION OFF POSITION POWER BUTTON The fn key operates all key functions listed below. To activate these functions, hold the fn key down and press the desired key. For keys with two function symbols, the fn key operates the bottom symbol. Holding SHIFT and the fn key simultaneously operates the upper symbol. FN + CAPS – Activates the CAPS Lock feature. When CAPS Lock is on a blue indicator light will remain lit until it is turned o. To turn CAPS Lock o, simply hold the fn key and press CAPS again. FN + World Symbol – Toggles between international keyboards (wh…

Text truncated - open the document above for the full version.

ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 EXHIBIT 2 - EUT PHOTOGRAPHS EUT View 1 EUT View 2 ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 EUT View 3 EUT View 4 ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 EUT View 5 EUT View 6

ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 SESZKMFOL_FCCID_EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: QTG-ZKMCOV This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Product Name: Wireless Keyboard Model: Mini Cover FCC ID Label Location

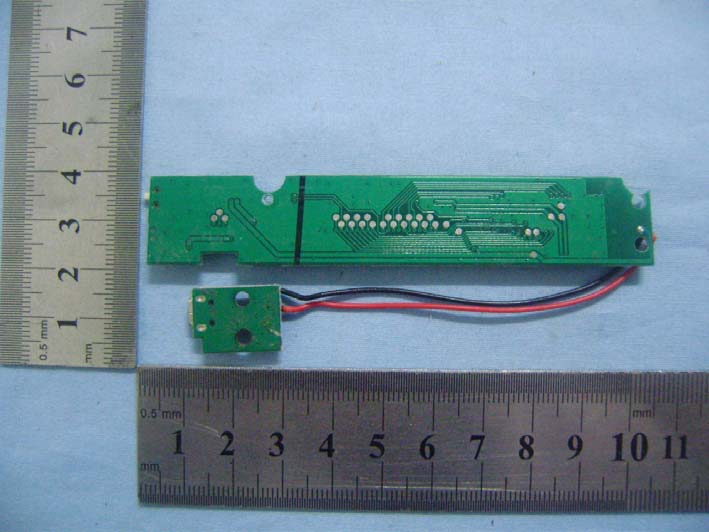

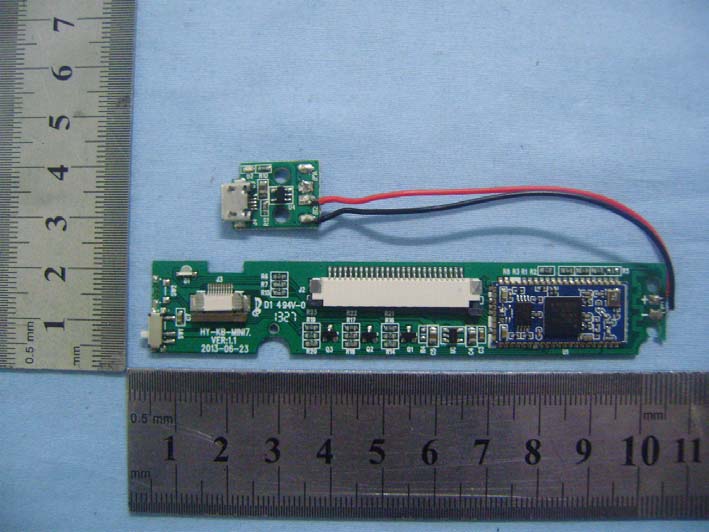

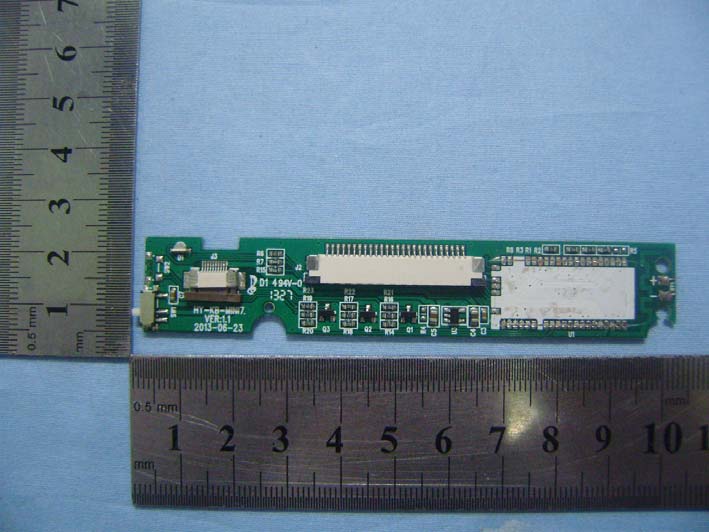

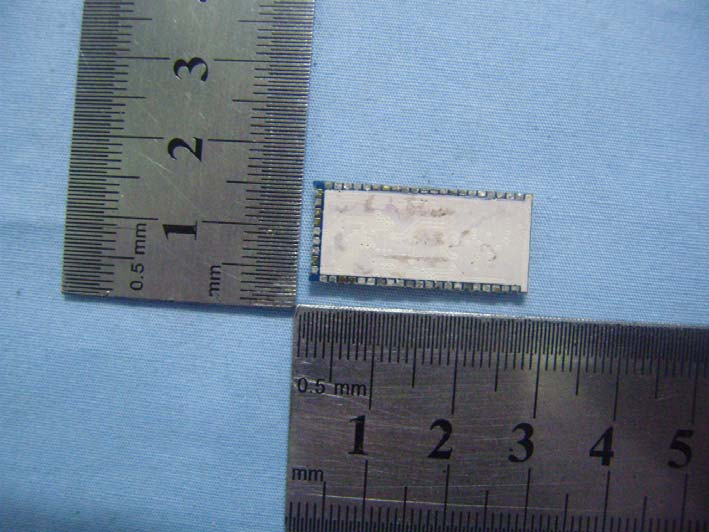

ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 Antenna View: BT Antenna

RF Exposure Requirements Product Description: Wireless Keyboard Model No.: Mini Cover FCC ID: QTG-ZKMCOV According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Fixed Device Maximum Conducted Output Power: -3.232dBm (0.4751 mW) Maximum Antenna Gain: 0 dBi Maximum EIRP Output Power: -3.232dBm (0.4751 mW) Minimum Distance: 5mm Limit: 10mW Source-based time-averaged EIRP output power is 0.4751mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I PAGE 1 OF 55 FCC PART 15.247 FCC Part 15C Measurement and Test Report For ZAGG Inc. 3855 South 500 West Salt Lake City, UT 84115 USA FCC ID: QTG-ZKMCOV FCC Rules: FCC Part 15.247 Product Description: Wireless Keyboard Tested Model: Mini Cover Report No.: STR14038331I Tested Date: 2014-03-11 to 2014-03-14 Issued Date: 2014-03-14 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I PAGE 2 OF 55 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 11 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 12 6.1 STANDARD APPLICABLE ....................................................................................................................................... 12 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 6.3 TEST PROCEDURE ................................................................................................................................................. 12 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. 20DB BANDWIDTH ............................................................................................................................................... 28 8.1 STANDARD APPLICABLE ....................................................................................................................................... 28 8.2 TEST EQUIPMENT LIST AND DETAILS .............................................................................................…

Text truncated - open the document above for the full version.

ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Charging Spurious Radiation Test Setup (9kHz to 30MHz) Transmitting ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 Spurious Radiation Test Setup (30MHz to 1GHz) Charging Transmitting ZAGG Inc. Model: Mini Cover REPORT NO.: STR14038331I FCC PART 15.247 Spurious Radiation Test Setup (Above 1GHz) Transmitting
