QTG-ZKPSPocket

Federal Communication Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The product complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment, and is safe for the intended operation as described in this manual.

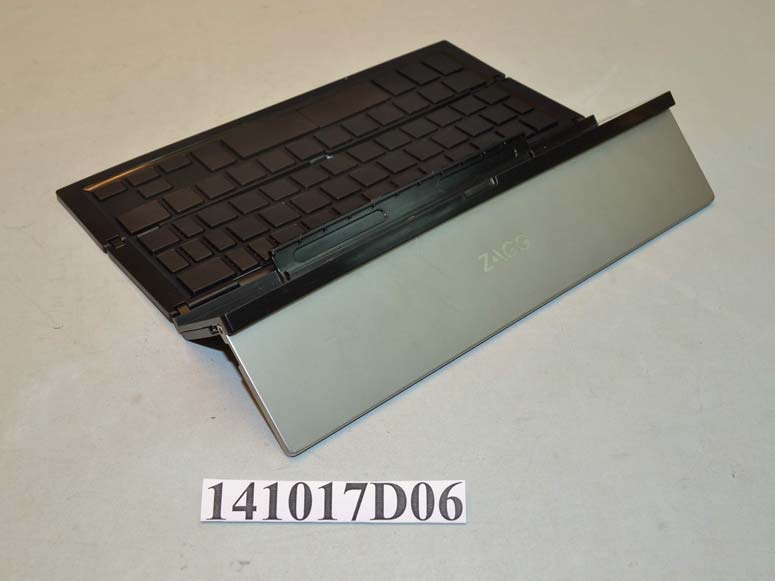

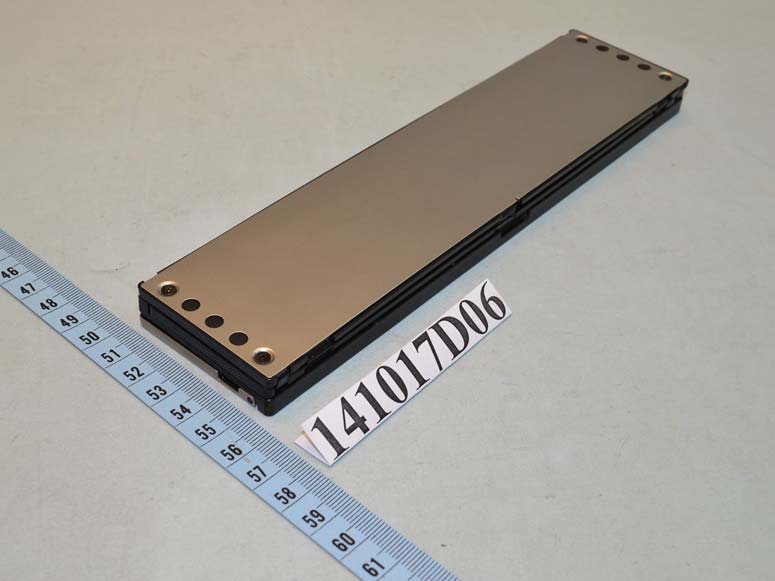

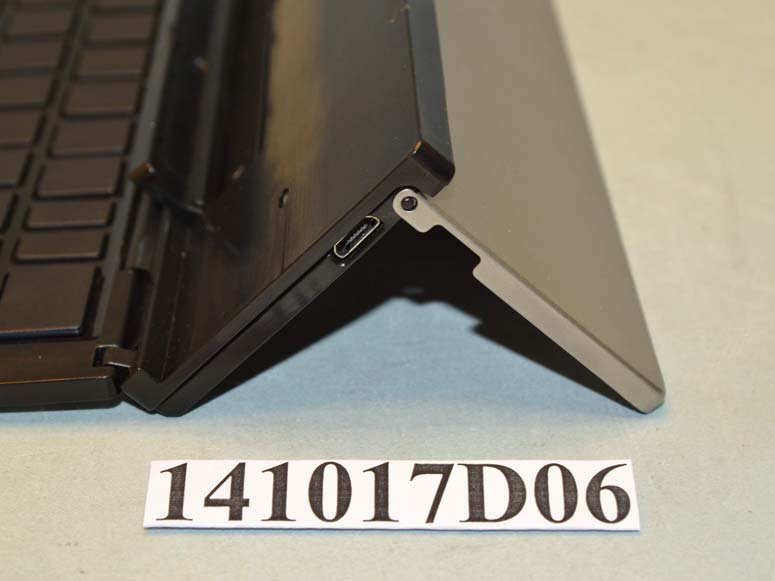

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: QTG- ZKPSP/N: XXXXXX-XXX J411PX RULE: FIXED Project#Factory P/NModel NumberP/N XX-XXXXZAGG Pocket APLPOC-BK0 Phablet Refer to the form 1 P/N Factory code(fixed) Packing version Version Year code(2014=4,2015=5,...) Week code(refer to the form 2 letter) Form 1: Form 2: # W1W2W3W4W5W6W7W8W9W10W11W12W13 Date5-Jan-1412-Jan-1419-Jan-1426-Jan-142-Feb-149-Feb-1416-Feb-1423-Feb-142-Mar-149-Mar-1411-Mar-1416-Mar-1423-Mar-14 Letterabcdefghijklm # W14W15W16W17W18W19W20W21W22W23W24W25W26 Date30-Mar-146-Apr-1413-Apr-1420-Apr-1427-Apr-144-May-1411-May-1418-May-1425-May-141-Jun-148-Jun-1415-Jun-1422-Jun-14 Letternopqrstuvwxyz # W27W28W29W30W31W32W33W34W35W36W37W38W39 Date29-Jun-146-Jul-1413-Jun-1420-Jun-1427-Jun-143-Aug-1410-Aug-1417-Aug-1424-Aug-1431-Aug-147-Sep-1414-Sep-1421-Sep-14 LetterABCDEFGHIJKLM # W40W41W42W43W44W45W46W47W48W49W50W51W52W1 Date28-Sep-145-Oct-1412-Oct-1419-Oct-1426-Oct-142-Nov-149-Nov-1416-Nov-1423-Nov-1430-Nov-147-Dec-1414-Dec-1421-Dec-1428-Dec-14 LetterNOPQRSTUVWXYZa Made in ChinaP/N : APLPOC-BK0 J411PX LOT PATENT PENDINGCONTAINS FCC ID : QTG-ZKPS

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: QTG-ZKPS Report No.: RF141017D06 Operational Description This device is a Pocket, the transmitter of the EUT is powered by 3.7Vdc (from battery) or 5.0Vdc (from host equipment). The antenna is printed antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA141017D06 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA141017D06 MODEL NO.: APLPOC-XXX (X may be 0-9, A-Z, hyphen or blank) FCC ID: QTG-ZKPS RE CEIVED: Oc t. 17, 2014 TESTED: Oct. 17 ~ 21, 2014 ISSUED: Oct. 23, 2014 APPLICANT: ZAGG Inc. ADDRESS: 3855 South 500 West Salt Lake City, UT 84115 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA141017D06 2 of 6 Report Format Version 5.0.0 Table of Contents RELEASE CONTROL RECORD .............................................................................................. 3 1. CERTIFICATION ........................................................................................................... 4 2. EVALUATION RESULT ................................................................................................. 5 3. SAR TEST EXCLUSION THRESHOLDS ..................................................................... 6 4. CONCLUSION .............................................................................................................. 6 Report No.: SA141017D06 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141017D06 Original release. Oct. 23, 2014 Report No.: SA141017D06 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Pocket MODEL NO.: APLPOC-XXX (X may be 0-9, A-Z, hyphen or blank) BRAND NAME: ZAGG APPLICANT: ZAGG Inc. TESTED: Oct. 17 ~ 21, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) KDB 447498 D03 IEEE C95.1 The above equipment (Model: APLPOC-BK0) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Oct. 23, 2014 ( Annie Chang / Supervisor ) APPROVED BY : , DATE:Oct. 23, 2014 ( Rex Lai / Assistant Manager ) Report No.: SA141017D06 5 of 6 Report Format Version 5.0.0 2. EVALUATION RESULT Following FCC KDB 447498 D01 “General SAR test exclusion guidance” The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in G Hz.  Power and distance are rounded to the nearest mW and mm before calculation.  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm. b) The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm. c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Report No.: SA141017D06 6 of 6 Report Format Version 5.0.0 3. SAR TEST EXCLUSION THRESHOLDS Maximum measured transmitter power: Frequency (GHz) Max. Power (mW) Min. test separation distance (mm) SAR test exclusion calculation value (NOTE 2) 1-g SAR test exclusion thresholds Result 2.402 ~ 2.480 0.7 5 0.217 3 Pass NOTE: 1. The antenna type is Printed antenna with -2.67dBi gain. 2. Calculate SAR test exclusion thresholds from condition “1” formulas. 4. CONCLUSION Since Source-base time average power is below SAR test exclusion power thresholds, the SAR evaluation is no…
