QTG-ZKWBluetooth Keyboard

Zagg Slim Cover Slim Cover Instructions Warranty Registration Your ZAGG Slim Cover™ comes with a one‐year manufacturer’s warranty. In order to activate the warranty, you must register your Slim Cover as well as keep your purchase receipt. If you purchased your ZAGG Slim Cover from ZAGG.com, ZAGG has already registered it and has a copy of your proof of purchase. NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq Introduction Congratulations on purchasing the Zagg Slim Cover – the premier tablet keyboard for the Microsoft Surface™ Pro 3 and 4. Your new Zagg Slim Cover operates seamlessly with your Surface Pro 3 and 4 to give you more functionality, an easier typing experience, and added protection. Read these instructions completely and keep them in a safe place for future reference; and now, get ready to experience mobile typing that’s as versatile as you are. Powering On and Off Turning your Slim Cover Keyboard on is easy. Just press and fn + Delete keys. A green LED will light, indicating your keyboard is on. To turn your Slim Cover Keyboard off, press the fn + Delete keys for two seconds. A red LED will flash indicating your keyboard is off. Pairing Your Slim Cover Keyboard Your Slim Cover keyboard pairs to your Surface via Bluetooth® 3.0. That means you can type on your keyboard without it being connected physically to your Surface. As an added feature, your Slim Cover keyboard can pair with two Microsoft devices at once for ultimate convenience. You should only need to pair your keyboard once, Microsoft Surface Pro 3 or 4 using the following directions. If the connection between your Surface and Slim Cover is ever lost, repeat these steps. 1. Access the Bluetooth settings on your Surface. 2. Press the (Bluetooth)1 or (Bluetooth)2 key depending on which one you want associated with your Surface. Recall, the Slim Cover can pair with two Microsoft devices at the same time. A blue LED will begin flashing indicating your Slim Cover is in pairing mode. 3. Your Surface will display “ZAGG Slim Cover” as an available device. Choose it and then click Pair. Charging Your Slim Cover keyboard features a battery that delivers up to three months of typing per charge*; and because the battery operates independent of your Surface, you can type on the Slim Cover even when it’s not physically connected to your Surface. Here’s how to charge your Slim Cover Keyboard: 1. Plug the micro USB end of the included charging cable into the Slim Cover’s charging port – located on the right side. 2. Plug the USB end of the included charging cable into any USB charging outlet. 3. The LED will light red and stay lit until your Slim Cover is fully charged. 4. When the red LED goes off your Slim Cover is fully charged. Unplug the charging cable and enjoy up to three months of the most spacious, natural typing available for your Surface. *Based on normal use of two hours per day. Checking Battery Life Your Slim Cover can provide up to three months of regular typing per charge. Checking how much battery life it has left is easy – here’s how: 1. Press + fn + CTRL (also the battery key). The LED will light one of three ways. a. Three green flashes = full battery. b. Three yellow flashes = approximately half battery. c. Three red flashes = Low battery. When your Slim Cover reaches critical battery level the LED will flash red once every five minutes. To help preserve battery life, your Slim Cover Keyboard will enter sleep mode if left on but not used for several minutes. To wake it press any key. Also, the Slim Cover’s battery has no memory and may be charged whenever you wish. Special Function Keys Your Slim Cover offers all the special function keys you’re used to for Windows 8 that help you get more done faster. Here is a list of some important keyboard shortcuts: (Bluetooth symbol)1 – Pairs your Slim Cover with your preferred device. If you have paired with a second device (see below) press (Bluetooth symbol)2 to instantly switch to that device. (Bluetooth symbol)2 – Pairs your Slim Cover to a second device. If you have paired your Slim Cover with a device using (Bluetooth symbol)1, press that key to instantly switch to the device associated with that key. (Lock symbol) ‐ Locks your Surface. You will need to enter your password again when you unlock it. (Apps symbol) – Displays the apps you currently have open on your Surface. Note: This key won’t do anything unless you have at least one app open. (Swipe right) – Opens your Windows charms. (Envelope symbol) – Opens your default email service. Track Back – Tracks backward on your open music playlist. Note: This key won’t do anything unless you have a music playlist open. Play/Pause – Plays and pauses your current playlist. Track Forward – Tracks forward on your selected playlist. Note: This key won’t do anything unless you have a music playlist open. Mute: Mutes your Surface’s audio. Volume Down – Decreases your Surface’s volume output. Volume Up – Increases your Surface’s volume output. Delete – Deletes copy from left to right. + fn + Delete – Turns your Slim Cover on and off. + fn + Space ‐ Toggles between international keyboards (when activated in your Surface’s settings). Note: This key won’t do anything unless you have international keyboards activated in your settings. + fn + Right Ctrl (Show the key with the light on it) – Toggles the backlights on and off. + fn + Left Ctrl (Show the key with the battery symbol on it) – Triggers the LED to display your Slim Cover’s remaining battery life. START – Opens your Surface’s Start menu. Touchpad Functions Your Slim Cover keyboard includes a convenient touchpad so you can easily navigate even when you don’t have a mouse connected. The touchpad functions just like a traditional trackpad for Windows 8. Here are some basic controls: Navigate – Use your finger or a stylus on the touchpad to navigate just like you would with a mouse connected. Left Click – Press the bottom left of the touchpad quickly to perform …

Text truncated - open the document above for the full version.

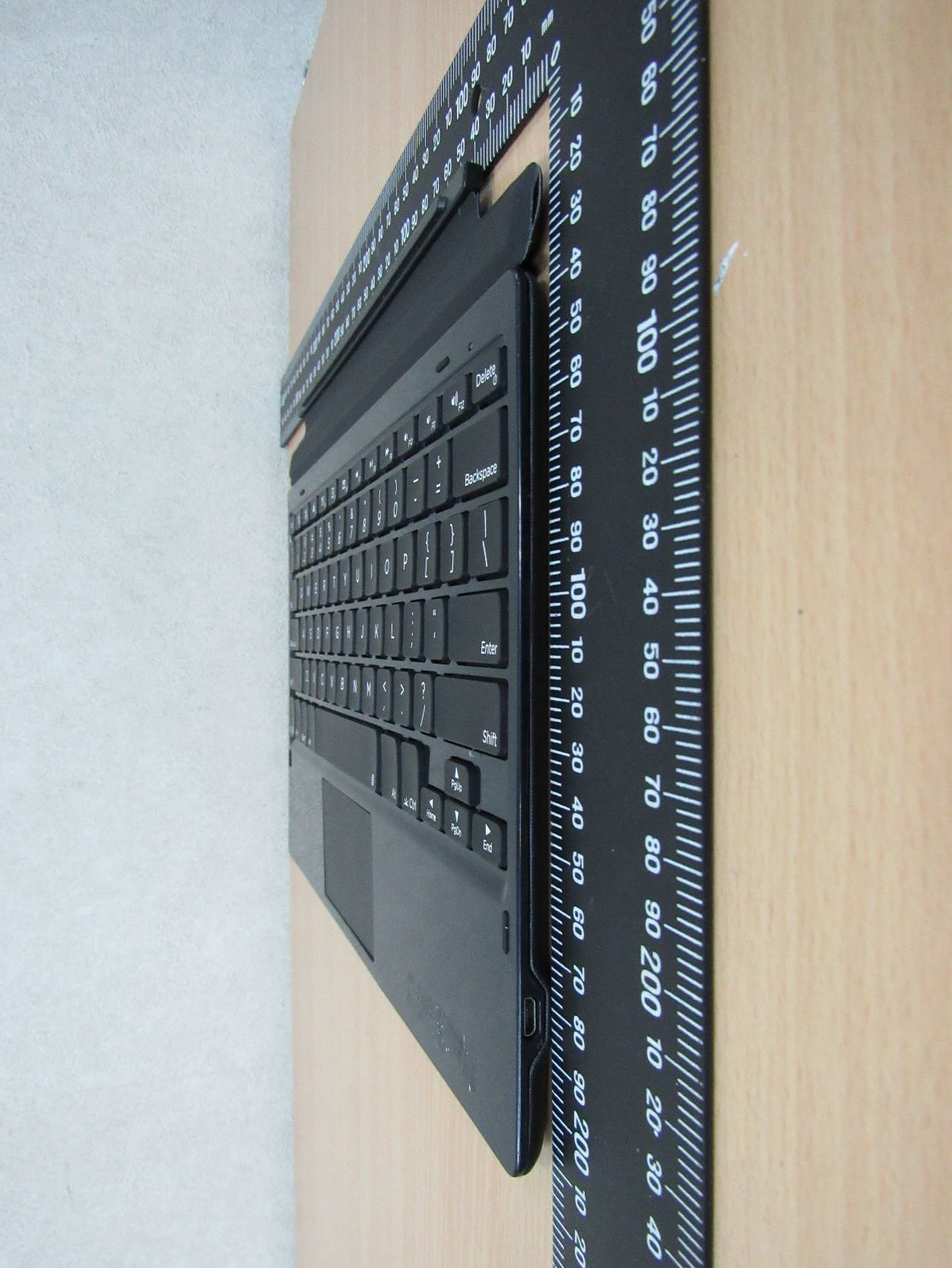

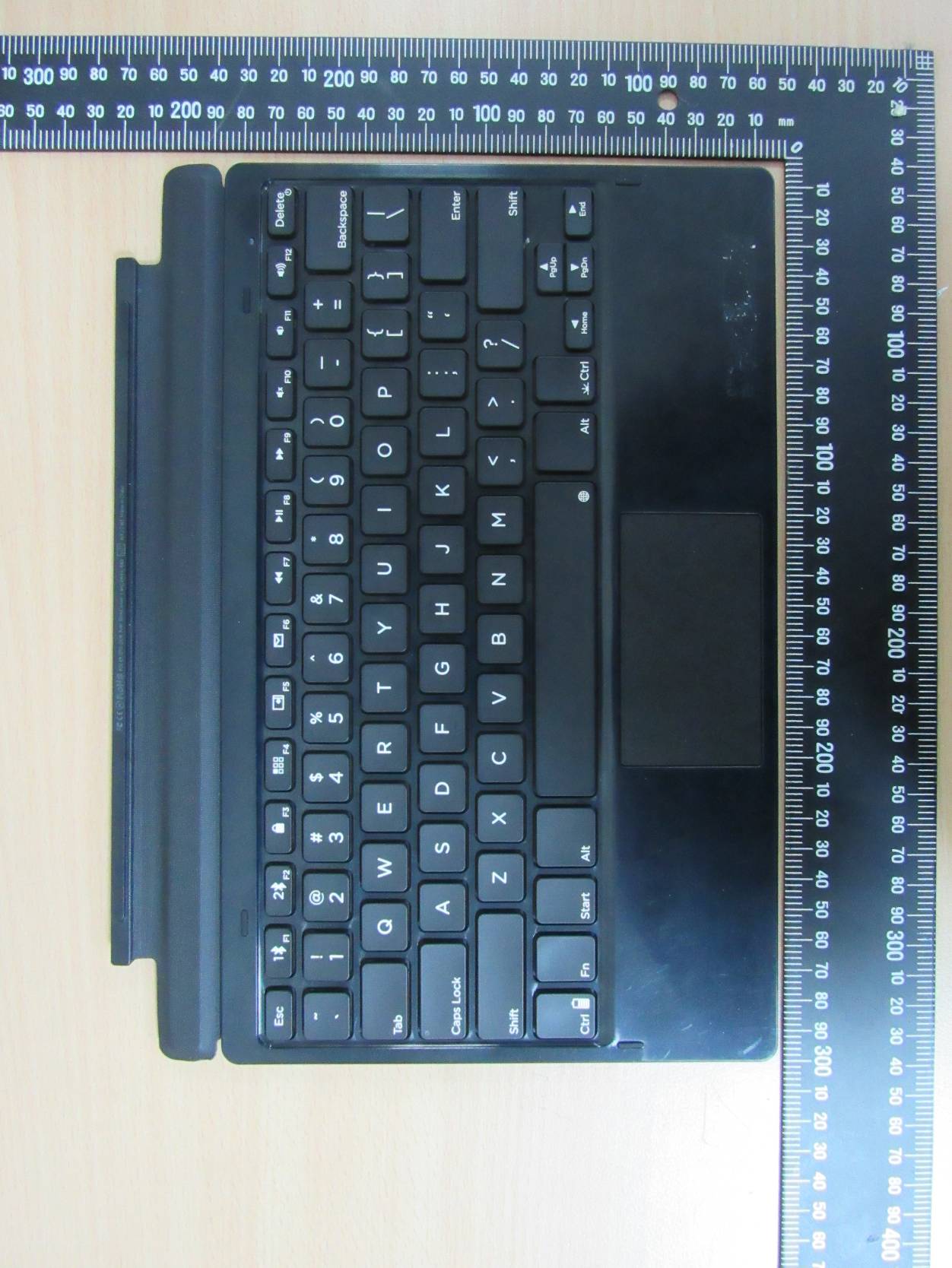

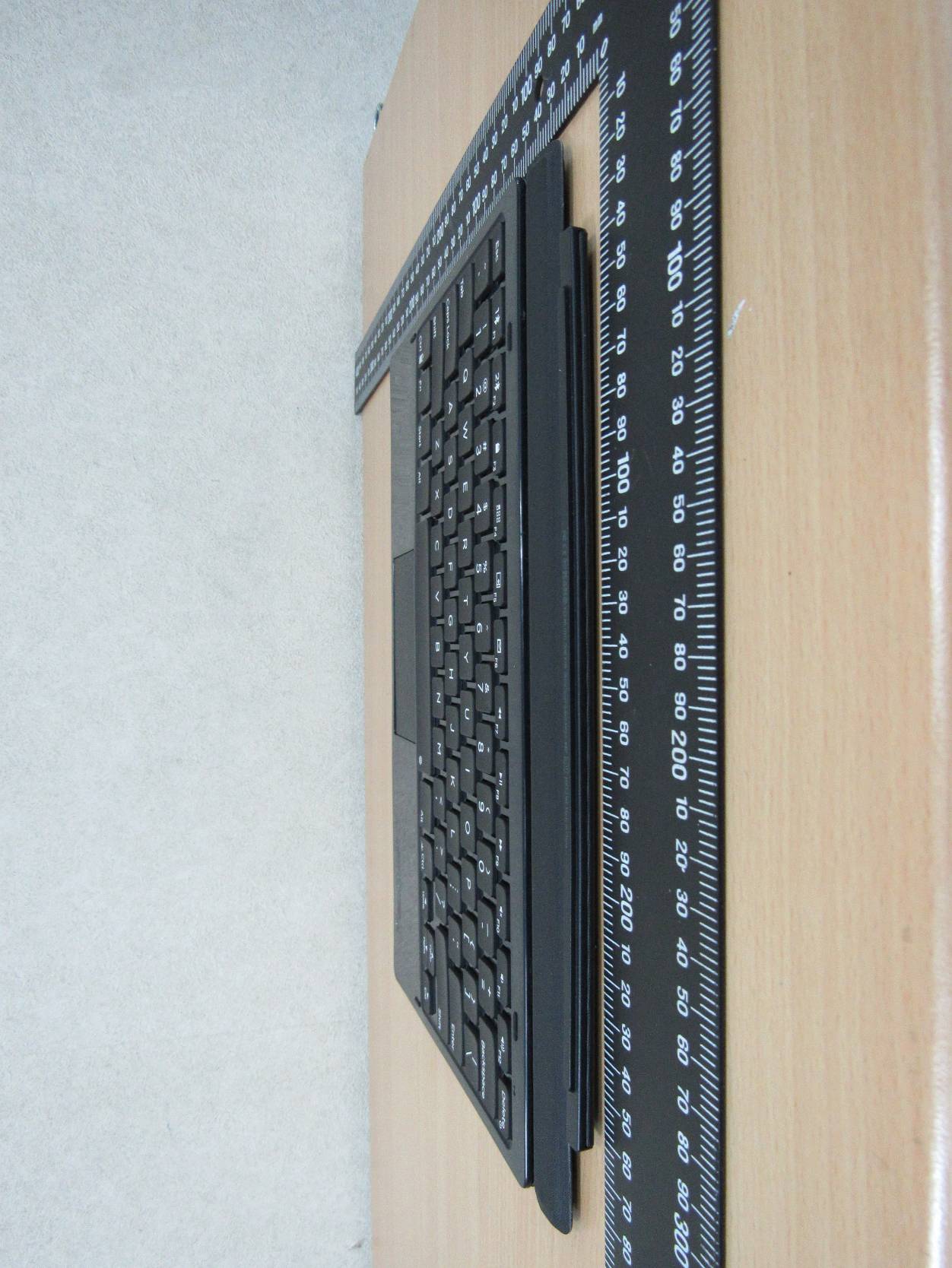

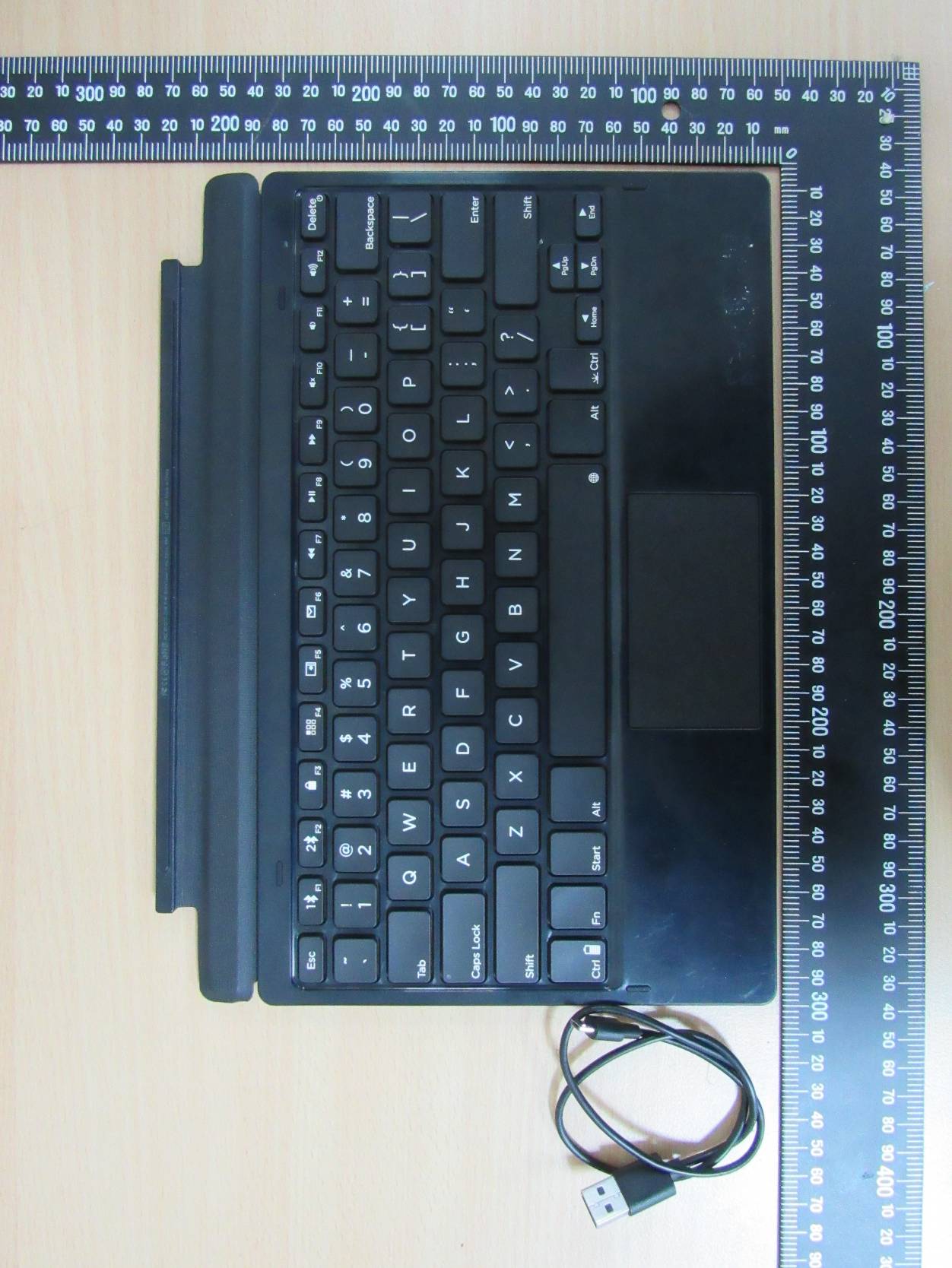

Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 31 External Photos Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 31

FCC ID: QTG- ZKWP/N: SlimCover-I-MC3WKK-XXX * 522MT RULE: FIXED Project#Factory P/NModel NumberSKU XX-XXXXZAGG Slim Cover MC3WKK-BB0 Refer to the form 1 P/N Factory code(fixed) Packing version Version Year code(2015=4,2016, 7,...) Week code(refer to the form 2 letter) Form 1: Form 2: Week W1W2W3W4W5W6W7W8W9W10W11W12W13 Letterabcdefghijklm Week W14W15W16W17W18W19W20W21W22W23W24W25W26 Letternopqrstuvwxyz Week W27W28W29W30W31W32W33W34W35W36W37W38W39 LetterABCDEFGHIJKLM Week W40W41W42W43W44W45W46W47W48W49W50W51W52W1 LetterNOPQRSTUVWXYZa XX-XXXX XX-XXXX Made in China P/N : SlimCover-I-MC3WKK-*** *522MT LOT FCC ID : QTG-ZKW Miller 2 ZAGG Slim Cover MC3WKK-RD0 Miller 2 ZAGG Slim Cover MC3WKK-PU0 Miller 2 Product / Code Name: Windows Surface Pro 3/4 Keyboard Revision History Table Part (ASM#)File Name: Slim Cover Certification 9-28-2015 The designs represented in this document are protected under U.S. and International trademark and copyright law, and are the sole property of ZAGG, Inc. Any reproduction in whole or in part without written permission is prohibited. Rev 1Slim Cover Certification Layout DescriptionDateCreator 9-28-2015Dan Oakeson

Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 31 Internal Photos Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 31 Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 31

Registration number: W6M21510-15329-C-1 FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 40 3.2 RF Exposure Compliance Requirements FCC Rule: 15.247(b)(3) Test exclusion = max. conducted output power + adjusted for tune-up tolerance Test exclusion = -4.56 dBm RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02 According to 447498 D01 General RF Exposure Guidance v05r02: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna: 0.3499 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: ZAGG Inc. Address: 3855 South 500 West Salt Lake City, UT 84115 USA Tested and Prepared by Worldwide Testing Services (Taiw an) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21510-15329-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Bluetoo th Keyboard Model No.: ZAGG Slim Cover FCC ID: QTG-ZKW Registration number: W6M21510-15329-C-1 FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 40 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes .................................................................................................. 2 1.2 Testing laboratory .................................................................................................. 3 1.2.1 Location .................................................................................................. 3 1.2.2 Details of accreditation status .............................................................................................. 3 1.3 Details of approval holder .................................................................................................. 3 1.4 Application details .................................................................................................. 4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards .................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results .................................................................................................. 6 2.2 Test environment .................................................................................................. 6 2.3 Test Equipment List .................................................................................................. 7 2.4 General Test Procedure .................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 11 3.1 Peak Output Power (transmitter) ....................................................................................... 12 3.2 RF Exposure Compliance Requirements ........................................................................... 15 3.3 Out of Band Radiated Emissions ....................................................................................... 15 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 17 3.5 Spurious emissions (tx) ................................................................................................ 18 3.6 Carrier Frequency Separation ............................................................................................ 19 3.7 Number of Hopping Frequencies....................................................................................... 22 3.7.1 Pseudorandom Frequency Hopping Sequence................................................................... 24 3.7.2 Coordination of hopping sequences to other transmitters ................................................. 24 3.7.3 System Receiver Hopping Capability ................................................................................ 24 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 25 3.9 20dB Bandwidth ................................................................................................ 31 3.9.1 System Receiver Input Bandwidth .................................................................................... 33 3.10 Band-edge Compliance of RF Emissions .......................................................................... 34 3.11 Radiated Emissions from Receiver Section of Transceiver............................................... 37 3.12 Power Line Conducted Emission....................................................................................... 38 Appendix..........................................................................................................48 Registration number: W6 M21510-15329-C-1 FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 40 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: October 30, 2015 Spencer Yang DateWTS-Lab. NameSignature Technical responsibility for area of testing: October 30, 2015 Kevin Wang DateWTS NameSignature Registration …

Text truncated - open the document above for the full version.

Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 31 Set Up Photo of Radiated Emission Charge Below 1GHz Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 31 Above 1GHz Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 31 Battery Below 1GHz Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 31 Above 1GHz Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 31 RF Registration number: W6M21510-15329-FCC FCC ID: QTG-ZKW Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 31 Set Up Photo of Conducted Emission
