QTMOR1720SLCD Monitor

Appendix E. Block Diagram E05.0511.FCC.260N / Page E1 of E1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

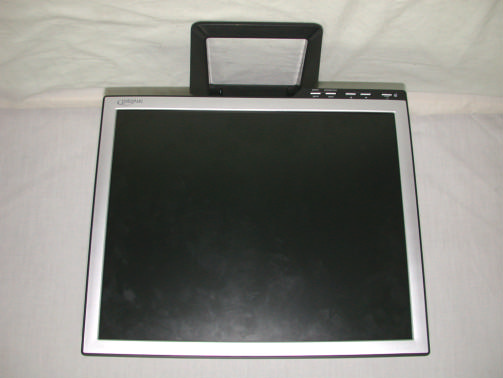

Appendix C. External Photographs E05.0511.FCC.260N / Page C1 of C1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location E05.0511.FCC.260N / Page A1 of A2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel: 82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Product label sample with FCC label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID label and compliance statement are marked in the product label. YURI Electronics Co., Ltd. LCD Monitor FCC ID : QTMOR1720S Model No. : OR1720S POWER : Input - AC100-240 V; 50/60Hz; 1.5 A Output – DC 12 V; 4.0 A Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: YURI Electronics Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location E05.0511.FCC.260N / Page A2 of A2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel: 82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs E05.0511.FCC.260N / Page 1 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Inside Appendix D. Internal Photographs E05.0511.FCC.260N / Page 2 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of Main board Appendix D. Internal Photographs E05.0511.FCC.260N / Page 3 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side view of Main board Appendix D. Internal Photographs E05.0511.FCC.260N / Page 4 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of Inverter board Solder side view of Inverter board Appendix D. Internal Photographs E05.0511.FCC.260N / Page 5 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of Adapter Solder side view of Adapter Appendix D. Internal Photographs E05.0511.FCC.260N / Page 6 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Adapter Label View of LCD Panel Label Appendix D. Internal Photographs E05.0511.FCC.260N / Page 7 of 7 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of LCD Panel Solder side view of LCD Panel

FCC TEST REPORT E05.0511.FCC.260N / Page 5 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2. PRODUCT INFORMATION 2.1 General Remark The Equipment Under Test (EUT) is the YURI Electronics Co., Ltd., LCD Monitor, OR1720S has a minor changes to the basic model. Model Difference: Basic model name: OR1720S Multi listing model names: OR1720, OR1721, OR1721S, LCD170RT, HL1700W, HL-1700F, 17RCL and 17RPC Technical Deviation: Model names OR1720, OR1721, OR1721S, LCD170RT, HL1700W, HL-1700F, 17RCL and 17RPC are same with basic model except for model name, brand name, with/without signal input port and front design. The model names OR1720S and OR1720 are denoting that keypad is situated on right of front. The model names OR1721S and OR1721 are denoting that keypad is situated on center of front. The model names LCD170RT, HL1700W, HL-1700F, 17RCL and 17RPC are same with basic model for all electric and electronic components. Only difference is model names. 2.2 Equipment Description The Equipment Under Test (EUT) is the YURI Electronics Co., Ltd.; LCD Monitor; OR1720S 2.3 General Specification Chassis Type : Plastic and metal List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-Tal: 24.576, 20.25, 24.00 MHz Display size : 337.92mm×270.34mm Screen coating : Anti-glare & Hard-coating Pixel pitch : 0.264×0.264mm Brightness : 300cd/ Contrast scaling : 500/1 Viewing angle : 75/75/75/60 (Ieft/right/up/down) Response time : Tf=10msec , Tr=3msec Response time : Analog RGB 0.7Vp-p SPAKER : 2W × 2W H-Frequency : 30~81kHz V-Frequency : 55~75Hz Resolution : 1280×1024 @ 75Hz Panel color : 16.7M Colors Power : 35W (Normal mode) Consumption : 5W (Power-saving mode) Product size : 438×149×450 (W×D×H)

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD Monitor, Model OR1720S has been tested in accordance with the measurement procedures specified in ANSI C63.4-2001 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : LCD Monitor MODEL/TYPE NO : OR1720S FCC ID : QTMOR1720S APPLICANT : YURI Electronics Co., Ltd. 122-6, Youngcheon-ri, Dongtan-myeon, Hawaseong-shi, Kyunggi-do, Korea Attn. : Jong-Bok, Oh / R & D Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Topsync TEST REPORT No. : E05.0511.FCC.260N DATES OF TEST : April 25 – May 11, 2005 DATES OF ISSUE : May 11, 2005 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT E05.0511.FCC.260N / Page 2 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual FCC TEST REPORT E05.0511.FCC.260N / Page 3 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD Monitor l Model Number : OR1720S l FCC ID : QTMOR1720S l S/N : N/A l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-2001 l FCC Classification : Class B personal computers and peripherals l Dates of Tests : April 25 – May 11, 2005 l Place of Tests : ETL Inc. EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E05.0511.FCC.260N Applicant Name : YURI Electronics Co., Ltd. Address : 122-6, Youngcheon-ri, Dongtan-myeon, Hawaseong-shi, Kyunggi-do, Korea Attention : Jong-Bok, Oh / R & D Manager FCC TEST REPORT E05.0511.FCC.260N / Page 4 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 1. INTRODUCTION The measurement for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The open area test site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American national standard for method of measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the YURI Electronics Co., Ltd. Model: OR1720S FCC TEST REPORT E05.0511.FCC.260N / Page 5 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2. PRODUCT INFORMATION 2.1 General Remark The Equipment Under Test (EUT) is the YURI Electronics Co., Ltd., LCD Monitor, OR1720S has a minor changes to the basic model. Model Difference: Basic model name: OR1720S Multi listing model names: OR1720, OR1721, OR1721S, LCD170RT, HL1700W, HL-1700F, 17RCL and 17RPC Technical Deviation: Model names OR1720, OR1721, OR1721S, LCD170RT, HL1700W, HL-1700F, 17RCL and 17RPC are same with basic model except for model name, brand name, with/without signal…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs E05.0511.FCC.260N / Page B1 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs E05.0511.FCC.260N / Page B2 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Radiated Emission Test Setup
