QV6-H7Game Tablet

User Guide Gaming Tablets My Play Android 4.0 Thanks for choosing this Game tablet. Please read carefully and following the instruction before handling and installing your device. Keep these instruction for further reference. Important notice: -- Don’t shake, or it may lead to damage to the product -- Only use components and accessories recommended by the manufacturer -- The illustrations of the product may vary from actual product -- To prevent fire or electric shock, do not put the appliance near objects filled with liquids --The included power adapter is specific to the product. Using a different adapter may cause damage or accidents. --Never open the product to clean, otherwise the warranty will be canceled --Clean the outside of the product using a soft, dry cloth. Never use an abrasive pad, scouring powder or solvent such as alcohol or gasoline. --At full volume,for an extended period of time can damage your hearing --Please backup your data to your computer regularly, in case important personal data being deleted by mistake. When this device is used as a portable storage, please follow the correct file management instruction in this manual . FCC warning: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for A Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in A residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause har mful interference to radio communications. Hower, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. IC Caution: Contact Us ：www.dea-factory.com The products comply with the RSS-210 Aneex 8 RF Exposure Compliance about the distance of 20cm. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Introduction: The game tablet offers all the innovation of Android operation system for games, browsing and applications. Lightweight, tactile and ultra-connected,this device is the answer to all your mobility needs. On a 7 inch touch screen evolving under Android 4.0, access internet using Wi-Fi and customized your games and applications through Android market. This device is a game station for all your Android 3D games for mobility and on TV. This device is a transportable audio/video center that can play movies and music in HD. Main features: 1.Video format: support 1080P(1920*1080) full HD decoder 2.Game format: support PC grade H3D (HD real 3D), internet multiplayer games, Support Adobe flash version 10.3 and support online games. 3.HD camera: DC, DV function, support internet video calling and chatting. 4.Built-in full HDMI 1080P output. 5.HD color TFT 7 inch display 1024*600 with crystal bright colors 6.Full 5-touch capacitive screen built-in for perfectly support of various games and application touch screen + button +360 degree joy stick +sensor overall contain all kinds of games and applications. 7.Support WIFI wireless internet, quickly open the webpage, support online games, video chatting, online TV and online video. Adopt top ARM-Cortex A8 kernel and now most advanced supposed type degree flow line. The speed of 1.2GHz dominant frequency is 15-10 times that of ARM9/11 8.Low power consumption 9.Powerful Mali400 GPU 3D graphics card built in with 2.0 GPU, supports a large scale of 3D games. RAM Memory is 1GB. 10.Support: USB-OTG, USB keyboard, support USB mouse and is plug and play. 11.Built-in android 4.0 Operating System, support internet marvelous quantity android utility software, dictionary E-book read PPTV electronics dictionary European common market stocks software etc, user can download mass internet applications. Basic feature list 1)Video: full formats support, 1080 P1920*1080 pixel decode and RM/RMVB, 2)Support PPS, online TV and films, 3)Support flash player 10,X 4) Voice: full formats decode, multi-task play, enjoy music, read book and play games at the same time, multichannel output. 4)Camera 5)Photo function 6)DV function 7)Picture browsing 8)E-book (Adobe rea…

Text truncated - open the document above for the full version.

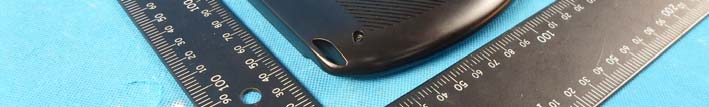

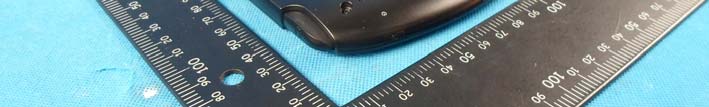

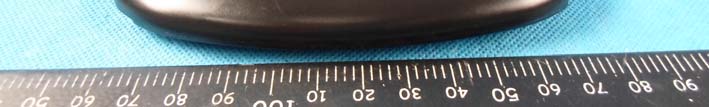

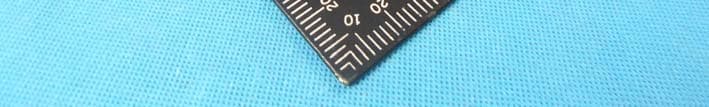

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

8*1 FCC ID : QV6-H7

Photo 11 Photo 12 WiFi Module Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 WiFi Module Photo 19 WiFi Module Photo 16 WiFi Antenna

Page 1 of 34 Report No.: NTEK-2012DC0921017E FCC EMC Test Report FCC ID: QV6-H7 For Electromagnetic Interference Of Product： Game Tablet Trade Name： N/A Model Number： H7 Prepared for Shenzhen Newsmy Technology Co., Ltd. 1st Floor, Buiding2, Longbi Industrial Park, Bantian, Longgang District, Shenzhen, China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website: www.ntek.org.cn Page 2 of 34 Report No.: NTEK-2012DC0921017E TEST RESULT CERTIFICATION Applicant’s name................. : Shenzhen Newsmy Technology Co., Ltd. Address ................................. : 1st Floor, Buiding2, Longbi Industrial Park, Bantian, Longgang District, Shenzhen, China. Manufacturer's Name.......... : Shenzhen Newsmy Technology Co., Ltd. Address ................................. : 1st Floor, Buiding2, Longbi Industrial Park, Bantian, Longgang District, Shenzhen, China. Product description Product name ........................... : Game Tablet Model and/or type reference : H7 Standards............................. : FCC Part15B: 2010 ANSI C63.4: 2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 18 Oct. 2012 ~21 Sep. 2012 Date of Issue...........................................: 19 Oct. 2012 Test Result...............................................: Pass Testing Engineer : (Jason Chen) Technical Manager : (Jim He) Authorized Signatory : (Bovey Yang) Page 3 of 34 Report No.: NTEK-2012DC0921017E Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 DESCRIPTION OF TEST SETUP 8 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.5 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 EUT OPERATING CONDITIONS 16 3.2.5 TEST RESULTS 17 3.2.6 TEST RESULTS(Above 1GHz) 23 4 . EUT TEST PHOTO 25 ATTACHMENT PHOTOGRAPHS OF EUT 28 Page 4 of 34 Report No.: NTEK-2012DC0921017E 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark Conducted Emission Class B PASS FCC Part15B:2010 ANSI C63.4: 2009 Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Page 5 of 34 Report No.: NTEK-2012DC0921017E 1.1 TEST FACILITY Shenzhen NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration Number:238937; IC Registration Number:9270A-1 CNAS Registration Number:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKC01 ANSI150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKA01 ANSI30MHz ~ 1000MHz 4.7 1GHz ~6GHz 5.0 Page 6 of 34 Report No.: NTEK-2012DC0921017E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Game Tablet Model Name H7 Serial No N/A Model Difference N/A Product Description The EUT is a Game Tablet. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification please refer to the User's Manual. Operating frequency: 24MHz Connecting I/O port: USB, HDMI Earphone Power Source Model: SEF0500200E1BY, AC Power Input: 100-240V~, 50/60Hz, 0.5A Output: 5.0V 2000mA Power Rating DC 5V Battery DC 3.7V Page 7 of 34 Report No.: NTEK-2012DC0921017E 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 Charge + TF Card Playing music Mode Mode 2 Charge + Downloading Mode Mode 3 Charge + HDMI Out Mode For Conducted Test Final Test Mode Description Mode 1 Charging and discharging For Radiated Test Final Test Mode Description Mode 1 Charge + TF Card Playing music Mode Mode 2 Charge + Downloading Mode Mode 3 Charge + HDMI Out Mode Page 8 of 34 Report No.: NTEK-2012DC0921017E 2.3 DESCRIPTION OF TEST SETUP Mode 1: CE: RE: Mode :1 Mode 2 Mode 3 E-2 EUT E-1 Adapter E-3 Earphone C-1 AC Line C-2 E-3 Earphone E-2 EUT E-1 Adapter C-2 C-1 AC Line E-4 PC E-3 Earphone E-1 Adapter E-2 EUT AC Line C-2 C-1 C-3 E-5 TV E-3 Earphone E-1 Adapter E-2 EUT AC Line C-1 C-2 C-4 Page 9 of 34 Report No.: NTEK-2012DC0921017E 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The EUT has been tested as an independent unit together with other necessary accessories or support uni…

Text truncated - open the document above for the full version.

Page 85 of 86 Report No.: NTEK-2012DC0921017F 8. EUT TEST PHOTO Radiated Measurement Photos Page 86 of 86 Report No.: NTEK-2012DC0921017F Conducted Measurement Photos
