QVG173M1RXCOMMUNICATIONS RECEIVER

JANUS OPERATORS MANUAL Specialist Demolitions and Explosive Method of Entry Device MAS Zengrange (NZ) Ltd 30 - 32 Downer Street, Lower Hutt Wellington NEW ZEALAND WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Document Reference M15-00140 Issue 3 Product Manager Reviewer Tony Humphries Product Manager - RI Roger Ballantine GENERAL MANAGER Release Date: 07 Nov 2012 MAS ZENGRANGE (NZ) LTD REFERENCE M15-00140 ISSUE 3 UNCONTROLLED WHEN PRINTED Commercial-in-Confidence WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Page 2 of 92 <Page Deliberately Blank> MAS ZENGRANGE (NZ) LTD REFERENCE M15-00140 ISSUE 3 UNCONTROLLED WHEN PRINTED Commercial-in-Confidence WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Page 3 of 92 COPYRIGHT © MAS ZENGRANGE (NZ) LTD The copyright and intellectual property rights in this document are vested in MAS Zengrange (NZ) Ltd, and the document is issued in confidence for the purpose only for which it is supplied. All rights reserved. It must not be reproduced in whole or in part, or used for tendering or manufacturing purposes except under an agreement/contract with the consent in writing of MAS Zengrange (NZ) Ltd, and then only on the condition that this notice is included in any such reproduction. MAS ZENGRANGE (NZ) LTD REFERENCE M15-00140 ISSUE 3 UNCONTROLLED WHEN PRINTED Commercial-in-Confidence WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Page 4 of 92 Please direct any queries/comments reference this document to: Product Manager (RI) MAS Zengrange (NZ) Ltd 30 – 32 Downer Street Lower Hutt 5010 Wellington NEW ZEALAND Tel: +64 4 570 2688 Fax: +64 4 570 2677 Email: [email protected] Amendment Record Amendment Date Description 1 5/11/2012 Initial Release. Derived from M15-00104 iss 5. 2 6/11/2012 Updated Annex A and B Error code tables. 3 7/11/2012 Added FCC Warnings under Warnings and Cautions section. Added FCC certification in section 2. MAS ZENGRANGE (NZ) LTD REFERENCE M15-00140 ISSUE 3 UNCONTROLLED WHEN PRINTED Commercial-in-Confidence WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Page 5 of 92 JANUS JANUSJANUS JANUS OPERATORS MANUAL CONTENTS CONTENTSCONTENTS CONTENTS SCOPE OF THE MANUAL............................................................................... 9 WARNINGS AND CAUTIONS ......................................................................... 12 ABBREVIATIONS AND ACRONYMS ............................................................. 19 CHAPTER 1 - INTRODUCTION ....................................................................... 21 SECTION 1 ................................................................................................ 21 GENERAL DETAILS .................................................................................. 21 SECTION 2 ................................................................................................ 23 GENERAL SPECIFICATIONS AND TECHNICAL DATA .......................... 23 SECTION 3 ................................................................................................ 25 DESIGN SAFETY FEATURES .................................................................. 25 CHAPTER 2 – DESCRIPTION ......................................................................... 27 SECTION 4 ................................................................................................ 27 JANUS SYSTEM DESCRIPTION ............................................................. 27 SECTION 5 ................................................................................................ 29 PACKING ................................................................................................... 29 SECTION 6 ................................................................................................ 30 TRANSMITTER DESCRIPTION AND GENERAL DETAILS .................... 30 TRANSMITTER ON/OFF SWITCH ........................................................... 31 TRANSMITTER BUTTONS ....................................................................... 31 TRANSMITTER LCD ................................................................................. 32 MAS ZENGRANGE (NZ) LTD REFERENCE M15-00140 ISSUE 3 UNCONTROLLED WHEN PRINTED Commercial-in-Confidence WO Pat App PCT/NZ2009/00276 NZ Patent #579690 Copyright © MAS Zengrange (NZ) Ltd Page 6 of 92 TRANSMITTER FUNCTIONAL MODES ................................................... 33 SECTION 7 ................................................................................................ 35 RECEIVER DESCRIPTION AND GENERAL DETAILS ............................ 35 RECEIVER ON/OFF SWITCH ................................................................... 36 RECEIVER ARM BUTTON ........................................................................ 36 RECEIVER LCD AND LED ........................................................................ 38 RECEIVER FUNCTIONAL MODES .......................................................... 39 SHOCK TUBE TERMINAL ........................................................................ 40 CHAPTER 3 – PRE-FIRING DRILLS ............................................................... 41 SECTION 8 ................................................................................................ 41 REPLACE BATTERIES ............................................................................. 41 SECTION 9 ................................................................................................ 42 TRANSMITTER POWER-ON AND INITIALISATION................................ 42 SECTION 10 .............................................................................................. 43 TRANSMITTER CONFIGURATION .......................................................... 43 SECTION 11 ...........................................................................…

Text truncated - open the document above for the full version.

International Sales Office. Unit A3, Merlin Centre, Acrewood Way, St Albans, Hertfordshire, AL4 0JY, UK Tel : + 44 1727 859288 Fax : + 44 1727 835683 Web: www.maszengrange.com 6 October 2012 Federal Communication Commission To whom it may concern, JANUS Receiver FCC ID: QVG173M1RX I hereby authorise Andrew Cutler, General Manager of EMC Technologies NZ Ltd, to act on behalf of MAS Zengrange (NZ) Ltd in obtaining FCC Part 15 Certification. Yours sincerely Director-General Manager Tel: +64 (0) 4 5702688 Mob: +64 (0) 21 335 116 Email: [email protected] Web: www.maszengrange.co.nz MAS Zengrange (NZ) Ltd Executive House 30–32 Downer Street PO Box 30 448 Lower Hutt 6009 Wellington, New Zealand Tel: +64 4 570 2688 Fax: + 64 4 570 2677 Web: www.masnz.co.nz A Member of the Hall & Watts Defence Group

International Sales Office. Unit A3, Merlin Centre, Acrewood Way, St Albans, Hertfordshire, AL4 0JY, UK Tel : + 44 1727 859288 Fax : + 44 1727 835683 Web: www.maszengrange.com 8 October 2012 Federal Communication Commission To whom it may concern, JANUS Receiver FCC ID: QVG173M1RX CONFIDENTIALITY REQUEST Reference rule section 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Schematic diagram, Parts lists, Block Diagram, Operational Description. This information contains trade secret information which is not routinely made available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. It should be treated as confidential for the duration of the Grant of Equipment Authorisation. Yours sincerely Director-General Manager Tel: +64 (0) 4 5702688 Mob: +64 (0) 21 335 116 Email: [email protected] Web: www.maszengrange.co.nz MAS Zengrange (NZ) Ltd Executive House 30–32 Downer Street PO Box 30 448 Lower Hutt 6009 Wellington, New Zealand Tel: +64 4 570 2688 Fax: + 64 4 570 2677 Web: www.masnz.co.nz A Member of the Hall & Watts Defence Group

____________________________________________________________________________________________________________________________________________________________________________ Page 8 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. 9. PHOTOGRAPHS External views ____________________________________________________________________________________________________________________________________________________________________________ Page 9 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full.

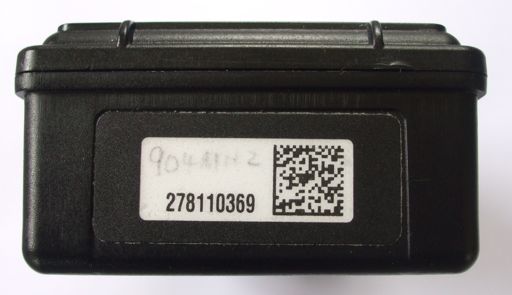

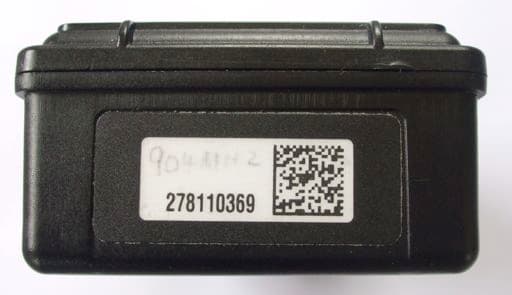

The visible window of the label is only 31 mm x 2 mm in size. The 2D barcode is 9.5 x 9.5 mm of that size. The font of the text would need to be extremely small in order to fit the warning on the label so therefore it has been included in the user manual on page 18.

____________________________________________________________________________________________________________________________________________________________________________ Page 10 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. Internal views ____________________________________________________________________________________________________________________________________________________________________________ Page 11 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 12 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 13 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 14 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland 1145 Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT JANUS Short Range Receiver tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart A and B – Unintentional Radiators for MAS Zengrange Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler – General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 3 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 4 6. RESULTS 5 7. TEST EQUIPMENT USED 7 8. ACCREDITATIONS 7 9. PHOTOGRAPHS 8 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The JANUS Short Range Transmitter comply with FCC Part 15 Subparts A and B as a Class B Unintentional Radiator when the methods as described in ANSI C63.4 - 2003 are applied. 2. RESULTS SUMMARY The results of testing, carried out on 30 th May 2012, are summarised below. Clause Parameter Result 15.101 Equipment authorisation requirement. Either Certification or Declaration of Conformity required for this device as it would be classed as receiver operating below 960 MHz. 15.103 Exempted devices. Device is not exempt as it is a receiver that contains a digital device. 15.107 Conducted Emissions 0.15 - 30 MHz Not applicable. Device is powered using an internal battery that cannot be connected directly or indirectly to the AC mains. 15.109 Radiated Emissions 30 - 2000 MHz Complies. No emissions detected 15.111 Antenna Terminal Disturbance 30 – 950 MHz Not applicable. Device has an internal antenna and no antenna terminals. 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name MAS Zengrange NZ Ltd Address PO Box 30-448 City Lower Hutt 5010 Country New Zealand Contact Mr Adam Holdaway 5. DESCRIPTION OF TEST SAMPLE Brand Name JANUS Model Number - Product Short Range Receiver Manufacturer MAS Zengrange NZ Ltd Country of Origin New Zealand Serial Number 278110369 FCC ID QVG173M1RX FCC Band: 902 – 928 MHz Band of operation: 904.425 – 909.675 MHz using 16 channels with a spacing of 350 kHz Test Frequencies: 904.425 MHz and 909.325 MHz Antenna Type: Integral antenna Power Supply: Internal battery Ports: Portable device that has no external ports The receiver tested is part of a radio controlled initiation system designed to initiate a shock tube located within the device. The shock tube within the receiver in turn detonates an explosive device. The system is intended for use by specialist demolition experts and by law enforcement agencies for explosive methods of entry. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 17 Test Report No 120720.2 27 September 2012 This report may not be reproduced except in full. 6. RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subparts A and B as a receiver. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 2003 were used. Section 15.109: Radiated emission limits Radiated emissions testing was carried out over the frequency range of 30 to 2000 MHz as this device is a receiver with measurements being required between 30 MHz (lowest radiated emission limit frequency) and the 2 nd harmonic of the receiver local oscillator. The device also contains a digital device which operates with frequencies of 10 MHz and 19.2 MHz which would give an upper frequency of measurement of 1000 MHz. Testing was carried out at the laboratory’s open area test site - located at 670 Kawakawa-Orere Road, Orere Point, Auckland, New Zealand. This site conforms to the requirements of CISPR 16 and ANSI C63.4 - 2003. Before testing was carried out, a receiver Self Test and Internal Calibration was undertaken along with a check of all connecting cables and programmed antenna factors. The device was placed on the test tabletop, which was a total of 0.8 m above the test site ground plane. Measurements of the radiated field were made with the antenna located at a 3 metre horizontal distance from the boundary of the devices under test. Testing is carried out by manually scanning between 30 and 2000 MHz in 100 kHz steps while aurally and visually monitoring for emissions. When an emission is located, it is positively identified and its maximum level is found by r…
