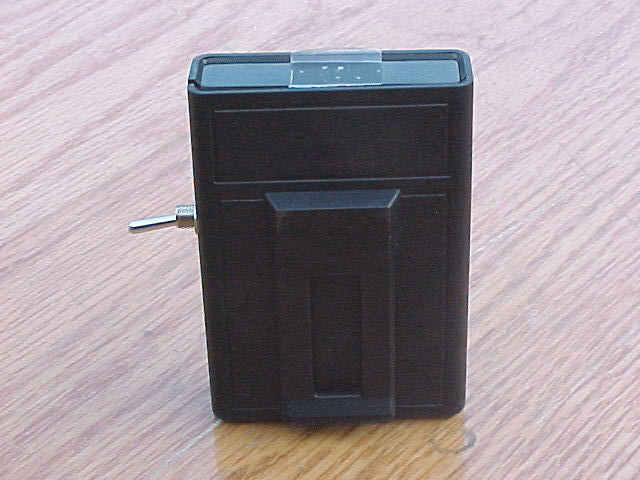

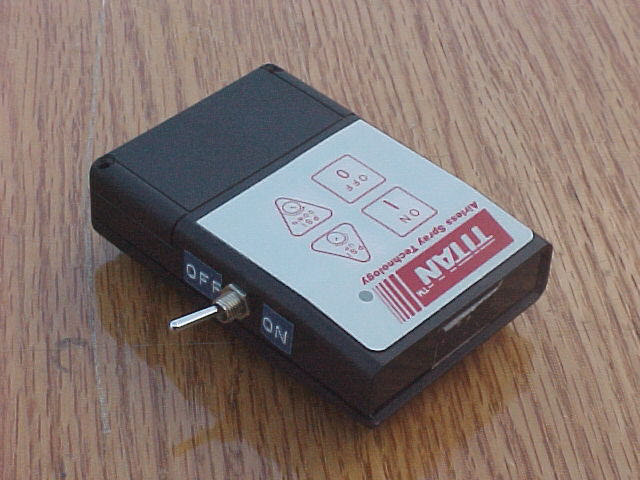

QVU-LSCNIREMiREMOTE Transmitter

55 44 33 22 11 D D C C B B A A RF TransmitterModule (418MHz) KeyPad Microcontroller(Clock: 4MHz) 9V Battery 800-673 A RF remote control Transmitter block diagramTITAN TOOL INC. B 11 Thursday, February 06, 2003 Title Size Document Number: Rev Date: Sheet of 1

55 44 33 22 11 D D C C B B A A 9 VDC To KeyPad Note: All resistors and non-polarity capacitors are SMT_0805 unless otherwise indicated. OnUp Down Off COM 800-673 A1 RF remote control TransmitterTITAN TOOL INC. B 11 Thursday, February 06, 2003 Title Size Document Number: Rev Date: Sheet of Batt +Batt - R3 100 U2 LINX TXM-418-LC SMT 1234 5678 GNDDATA INGNDLADJ/GND RF OUT GND +Vcc GND C3100 nF D5DL4148SM/D_0805_12 D4 DL4148SM/D_0805_12 D3DL4148SM/D_0805_12 D2DL4148SM/D_0805_12 D1DL4148SM/D_0805_12 R147k U3LINX ANT-418-SPSMT 123456 ANT FeedGNDGNDGNDGNDGND Y1 4MHz TO225AA 1 2 3 - - - C2 33uF TANT CYL/D.175/LS.100 SW1 Address SW DIP12 1 2 3 4 5 6 12 11 10 9 8 7 R2 1.2k D6 LED (Red)RAD/.100X.050/LS.100 H1HEADER 5 12345 C1 100 nF U1PIC16C711DIP18 123 4 678910111213 514 15 16 1718 RA2/AN2 RA3/AN3/VREF RA4/TOCKI MCLR/Vpp RB0/INT RB1RB2RB3RB4RB5RB6RB7 VssVDD OSC2/CLKOUT OSC1/CLKIN RA0/AN0RA1/AN1 R447k R547k

Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for iREMOTE TRANSMITTER MODEL: 800-670 Prepared for TITAN TOOL, INC. 107 BAUER DRIVE OAKLAND, NEW JERSEY 07436 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 27, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 10 15 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment (Lab X) 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: iREMOTE Transmitter Model: 800-670 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Titan Tool, Inc. 107 Bauer Drive Oakland, New Jersey 07436 Test Date: February 7, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4180 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the iREMOTE Transmitter Model: 800-670. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30207X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report iRemote Model: 800-670 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Titan Tool, Inc. Troy A. Anderson Engineering Manager Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on February 6, 2003. 2.5 Disposition of the Test Sample The sample has not been returned to Titan Tool, Inc. as of February 27, 2003. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Numbe…
