QWS8231RC Car

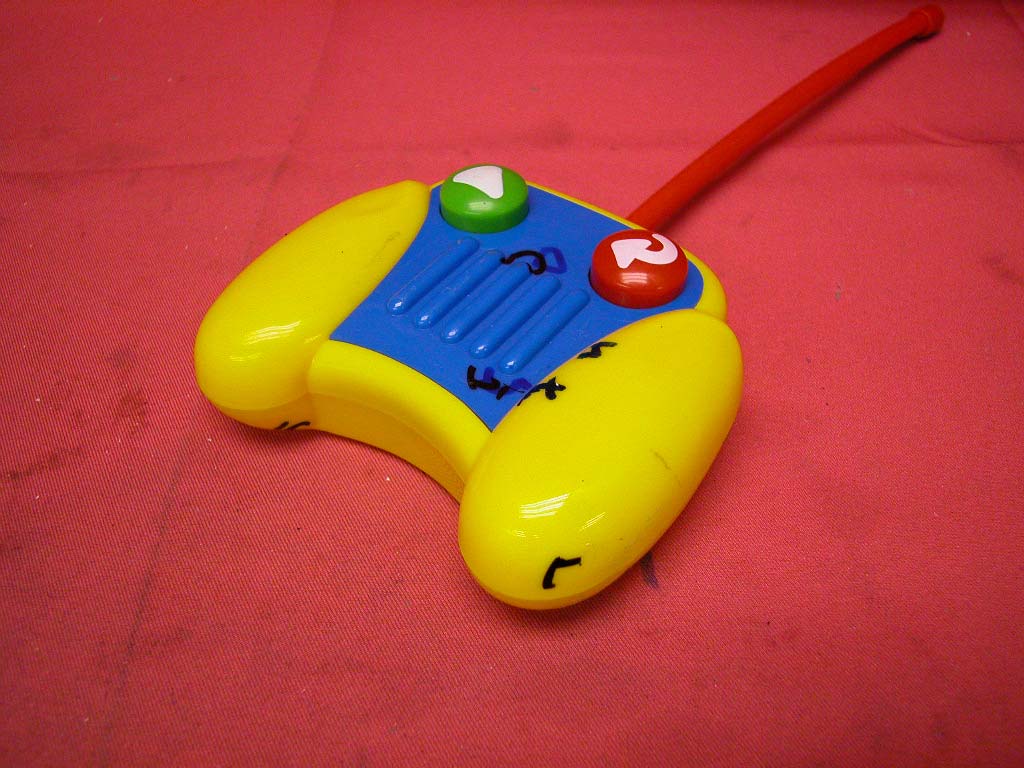

FCC ID: QWS8231 Ophoto1 Ophoto2 FCC ID: QWS8231 Ophoto3 Ophoto4

FCC ID: QWS8231 Iphoto1 Iphoto2 FCC ID: QWS8231 Iphoto3 Iphoto4

FCC ID: QWS8231 Technical Description : The brief circuit description is listed as follows : - Q1, X1 and associated circuit act as 27.151 MHz Oscillator. - U1 acts as Encoder. - Q2 and associated circuit act as Modulator and RF Amplifier. - C7, C9, L3, C10 and associated circuit act as RF Filter. - SW2 and SW3 act as Control Keys. Antenna Used : An integral antenna(non-extendable) has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : QWS8231 BAO Limited Application For Certification (FCC ID: QWS8231) Transmitter Sample Description : Mom Detit 4x4 (R/C Jeep) Model : 8231 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0613184 AC/at July 27, 2006 INTERTEK TESTING SERVICES FCC ID: QWS8231 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QWS8231 ii MEASUREMENT/TECHNICAL REPORT BAO Limited - MODEL: 8231 FCC ID: QWS8231 July 27, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: QWS8231 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: QWS8231 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: QWS8231 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: QWS8231 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Car operating at 27.151 MHz which is controlled by a crystal. The EUT is powered by 2 AA batteries. The EUT has two buttons. The left button is used t…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
