QXRMX531MX 531 AIS Transponder

Technical Manual UAIS DEBEG 3400 Electronics Unit (Transponder) Item No.: ED 3047 G 142Revision: 01 (2002-12)Order No.: 300005520 t_ut_eti.fm / 02.12.02 This document is our property for which we reserve all rights, including those relating to patents or registered designs. It must not be reproduced or used otherwise or made available to any third party without our prior permission in writing. Alterations due to technical progress are reserved. STN ATLAS Marine Electronics GmbH D - 22763 Hamburg Service Customer Support Center Phone:+ 49 (0) 18 03 00 85 53 Fax:+ 49 (0) 18 03 00 85 54 E-mail:[email protected] UAIS DEBEG 3400, Electronics Unit ED 3047 G 142 / 01 (2002-12) Technical Manual List of Contents t_ut_eIV.fm / 02.12.02 3 List of Contents List of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.1Software Releases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.2General Recommendations for Installation, Maintenance and Repair Work . . . . . . . . . . . 9 1.3Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.1Compatibility with Other Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.2UAIS with DCU DEBEG 3401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.3UAIS in RADARPILOT ATLAS 1000 Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.4UAIS in CHARTRADAR, CHARTPILOT or MULTIPILOT Systems (NACOS xx-4) . . . . . . . 14 2.5UAIS in CHARTPILOT Stand-alone Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.6UAIS in NACOS xx-3 Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.7UAIS in Radar 9xxx Systems with RADARPILOT ATLAS 1000 . . . . . . . . . . . . . . . . . . . . . 17 2.8DEBEG 3400 Electronics Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.1General Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.1.1Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.1.1.1Maximum Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.1.1.2Cable Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.1.2Electronics Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.1.3Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.2Specific Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3.2.1Recommendations Concerning AIS Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3.2.2Recommendations Concerning the Installation of the Electronics Unit . . . . . . . . . . . . . . . . . . . 23 3.2.3Recommendations Concerning the Installation of the VHF Antenna . . . . . . . . . . . . . . . . . . . . 23 3.2.4Recommendations Concerning the Installation of the GPS Antenna . . . . . . . . . . . . . . . . . . . . 23 3.2.5Recommendations Concerning Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 3.2.6Emergency Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 4Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 4.1Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 4.2Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 4.3Description of the Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 4.3.1DEBEG AIS 3400 Electronics Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 4.3.1.1Supported Sensor Input Sentences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.3.1.2Supported Sentences for the AIS Primary Display Port and the Pilot Port . . . . . . . . . . . . . . . 31 4.3.1.3Supported Sentences for the Long Range Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 4.3.1.4IEC 61162 -1/-2 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4.3.2VHF Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Attestation Statements FCC ID: QXRMX531 The MX531 is the distributors model name for the STN Atlas Marine Electronics GmbH Model UAIS DEBEG 3400 , AIS transponder that has been certified to meet the IMO Requirements. Certification included. FCC ID: QXRMX531 NAME AND ADDRESS’S APPLICANT: LEICA MX-MARINE (DISTRIBUTOR) MODEL: MX 531 23868 SUITE 200 TORRANCE, CA. 90505 MANUAFACTUER : STN ATLAS MARINE ELECTRONICS GmbH MODEL : UAIS DEBEG 3400 BEHRINGSTRASSE 120 22763 GERMANY

Bundesrepublik Deutschland Federal Republic of Germany Bundesamt für Seeschifffahrt und Hydrographie Federal Maritime and Hydrographic Agency This certificate is issued under the authority of the „Ministerium für Verkehr, Bau- und Wohnungswesen“. EC TYPE EXAMINATION (MODULE B) CERTIFICATE This is to certify that: Bundesamt für Seeschifffahrt und Hydrographie, specified as a “notified body” in „Schiffssicherheitsanpassungsgesetz“ of 9. September 1998 (BGBl. I, p. 2860) last modified 25. September 2002 (BGBl. I, p. 3762), did undertake the relevant type approval procedures for the equipment identified below which was found to be in compliance with the Navigation requirements of Marine Equipment Directive (MED) 96/98/EC as modified by Directive 2002/75/EC . Applicant SAM STN Atlas Marine Electronics GmbH Address Behringstrasse 120 22763 Hamburg, Germany Manufacturer SAM STN Atlas Marine Electronics GmbH Address as above Annex A.1 Item (No & item designation) 4.32 Automatic Identification System (AIS) Product Name UAIS DEBEG 3400 Specified Standard(s) IMO MSC.74(69) Annex 3IEC 61993-2 (2002) ITU-R M.1371-1 (Class A)IEC 61162-1 (2000), -2 (1998) IALA Technical Clarifications of Rec. ITU-R M.1371-1 (Edition 1.3) IEC 60945 (1996) ITU-R M.825-3IEC 61108-1 (1996) ITU-R M.1084-3 This certificate remains valid unless cancelled, expired or revoked. Date of issue:10.2.2003Issued by: Bundesamt für Seeschifffahrt und Hydrographie Bernhard-Nocht-Str. 78, Expiry date : --20359 Hamburg, Germany notified body 0735 Certificate No.: 734.2/0059-1/2003 This certificate consists of 3 pages.by order ________________________ Preuss EC TYPE EXAMINATION CERTIFICATE No. 734.2/0059-1/2003Page 2 of 3 Notice on legal remedies available: Objection to this document may be filed within one month after notification. The objection must be filed in writing to, or put on record at, Federal Maritime and Hydrographic Agency, Bernhard-Nocht-Str. 78, 20359 Hamburg, Germany Components necessary for operation: UAIS DEBEG 3400 Electronics Unit NG 3030 software release tested: 1.0x DCU DEBEG 3401 Display and Control Unit AZ 3067 software release tested: 1.0x VHF Antenna or or CXL 2-1 COMROD AV-7 VHF CX-4 or equivalent GPS Antenna 1330 FP or equivalent The Keyboard and Display (Display and Control Unit DCU DEBEG 3401) as required part of the AIS system may be used together with or alternatively be replaced by an ATLAS navigational display system. The UAIS DEBEG 3400 shall then be connected to and operated together with one of the following ATLAS systems: RADARPILOT ATLAS 1xxxsoftware release tested: 2.6x CHARTRADAR ATLAS 1xxxsoftware release tested: 2.6x CHARTPILOT ATLAS 93x0software release tested: 5.1x MULTIPILOT ATLAS 910xsoftware release tested: 5.1x The UAIS DEBEG 3400 may also be used together with the MX Marine navigation display MX420 AIS (software release tested: 2.0x). The internal GPS sensor of the DEBEG 3400 is used as a backup sensor for position reporting. Documentation: Technical Manual:Electronics Unit UAIS DEBEG 3400ED 3047G142 Rev.: – (2002-12) Technical Manual:DEBEG 3401 Display and Control UnitED 3047G242 Rev.: – (2002-12) Operating Instruction: DEBEG 3401 Display and Control UnitED 3047G122 Rev.: – (2002-12) Operating Instruction: RADARPILOT, CHARTRADAR; MULTIPILOT ATLAS 1000 ED 3038G032 Rev.: 02 (2002-09) Operating Instruction: CHARTPILOT ATLAS 93x0, CONNINGPILOT ATLAS 93x0 ED 3032G662 Rev.:05 (2002-09) ED3032G661Rev.:05 (2002-09) Operating Instruction: MULTIPILOT ATLAS 910x, CONNINGPILOT ATLAS 9300 ED 3031G812 Rev.:05 (2002-09) ED3031G811Rev.:05 (2002-09) Trade names: The equipment is also available under the following trade names: AIS electronics unit Keyboard and Display unit SAILOR UAIS 1900SAILOR KDU 1905 SKANTI UAIS 2100SKANTI KDU 2100 Leica MX-531note 1) 1) for the Leica MX-531 the MX420 AIS (software release tested: 2.0x) is used as Keyboard and Display unit EC TYPE EXAMINATION CERTIFICATE No. 734.2/0059-1/2003Page 3 of 3 Notice on legal remedies available: Objection to this document may be filed within one month after notification. The objection must be filed in writing to, or put on record at, Federal Maritime and Hydrographic Agency, Bernhard-Nocht-Str. 78, 20359 Hamburg, Germany Conditions and limitations: --- Places of production : (if different from client or where there are several ) --- Notes: The manufacturer shall inform Bundesamt für Seeschifffahrt und Hydrographie, as the notified body, of any modifications to the type-tested product(s) that may affect compliance with the requirements or conditions laid down for use of the product(s). In case the specified regulations or standards are amended during the validity of this certificate, the product(s) must be re-certified before being placed on board vessels to which such amended regulations or standards apply. The Mark of Conformity (wheelmark) may only be affixed to the type approved equipment, and a Manufacturer ́s Declaration of Conformity may only be issued, if the product quality system fully complies with the Marine Equipment Directive and is certified by a notified body against ANNEX B module D, E, or F of the Directive. Example for the Application of the "Mark of Conformity": xxxx number of the Notified Body responsible for quality surveillance module yy Last two digits of the year in which the mark is affixed. xxxx yy

4.3.1 AIS Transponder Block Diagram 4.3 Description of the Components MX531 Fig. 4-3 Block diagram of the Transponder Unit The Block diagram of the Transponder Unit shows the internal structure of the AIS Electronics Unit with the following parts: VHF Radio ¾ VHF Receiver AIS Channel A ¾ VHF Receiver AIS Channel B ¾ VHF Receiver DSC Channel 70 ¾ VHF Transmitter GPS ¾ 12-channel GPS chip Motherboard and Peripheral Components VHF antenna VHF Antenna Module AIS - A Receiver AIS - B Receiver Transmitter DSC Receiver MX531 TRANSPONDER AIS DSC BIIT Clock GPS Power Supply Mainboard GPS antenna Interface & Displays Sensor Input Channels Rs422, IEC 61162-1/2 (4800/38400 Baud) Primary Display Portt, RS422 IEC 61162-2 (38400 Baud) Pilot Port, RS422 IEC 61162-2 (38400 Baud) Ethernet Module 24 VDC Internal GPS Sensor, RS422 IEC 61162-1 (4800 Baud) Antennas

Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emi1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emi2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emi3.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emi4.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emihff1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emihff2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emiv1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emiv2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273M3_3.JPG

Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273ems1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273ems2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273ems4.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273ems5.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emsc1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273emsc2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273esd1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273esd2.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273esd3.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273burst1.JPG Ersteller: Raimund Blask Prüfberichtsnummer: E20273 Edition 4 Erstelldatum: 19. September 2002 Auftragsnummer: 20273 20273surge1.JPG

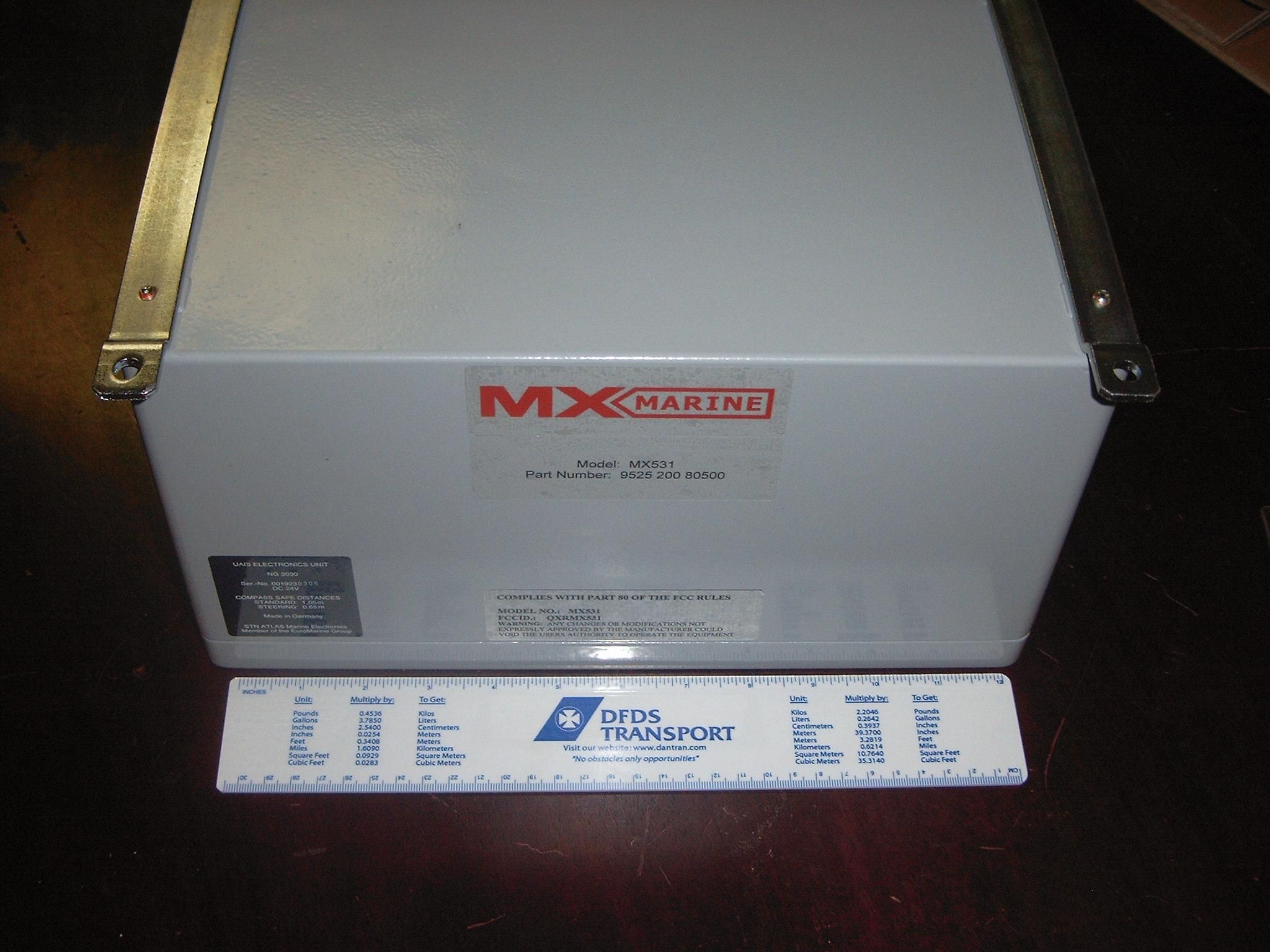

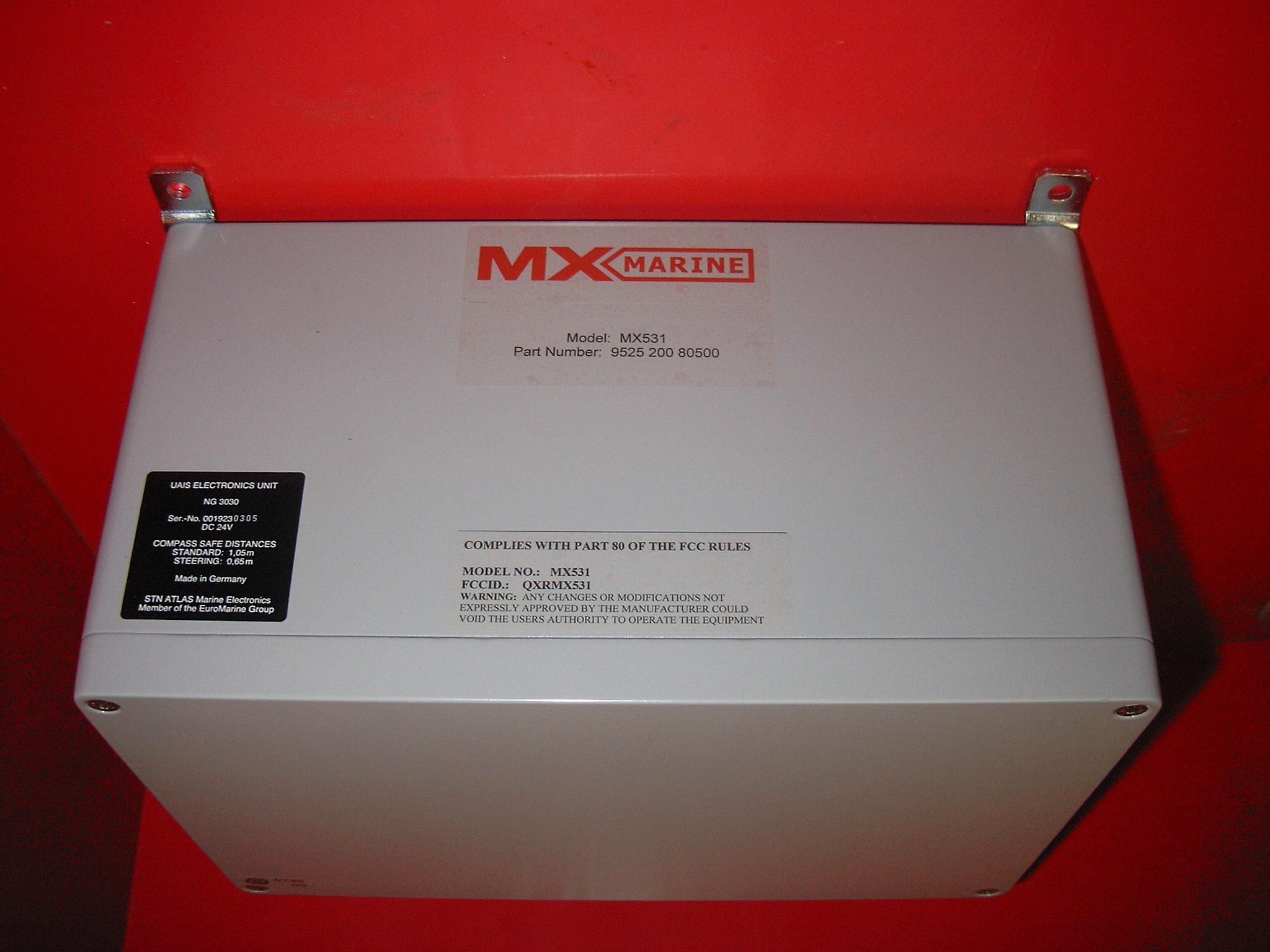

FCCID: QXRMX531 FCC Label Drawing 4 “ 2” 3/8/2003 LEICA MX-MARINE COMPLIES WITH PART 80 OF THE FCC RULES MODEL NO.: MX 531 FCCID.: QXRMX531 WARNING ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USERS ATHORITY TO OPERATE THE E QUIPMENT

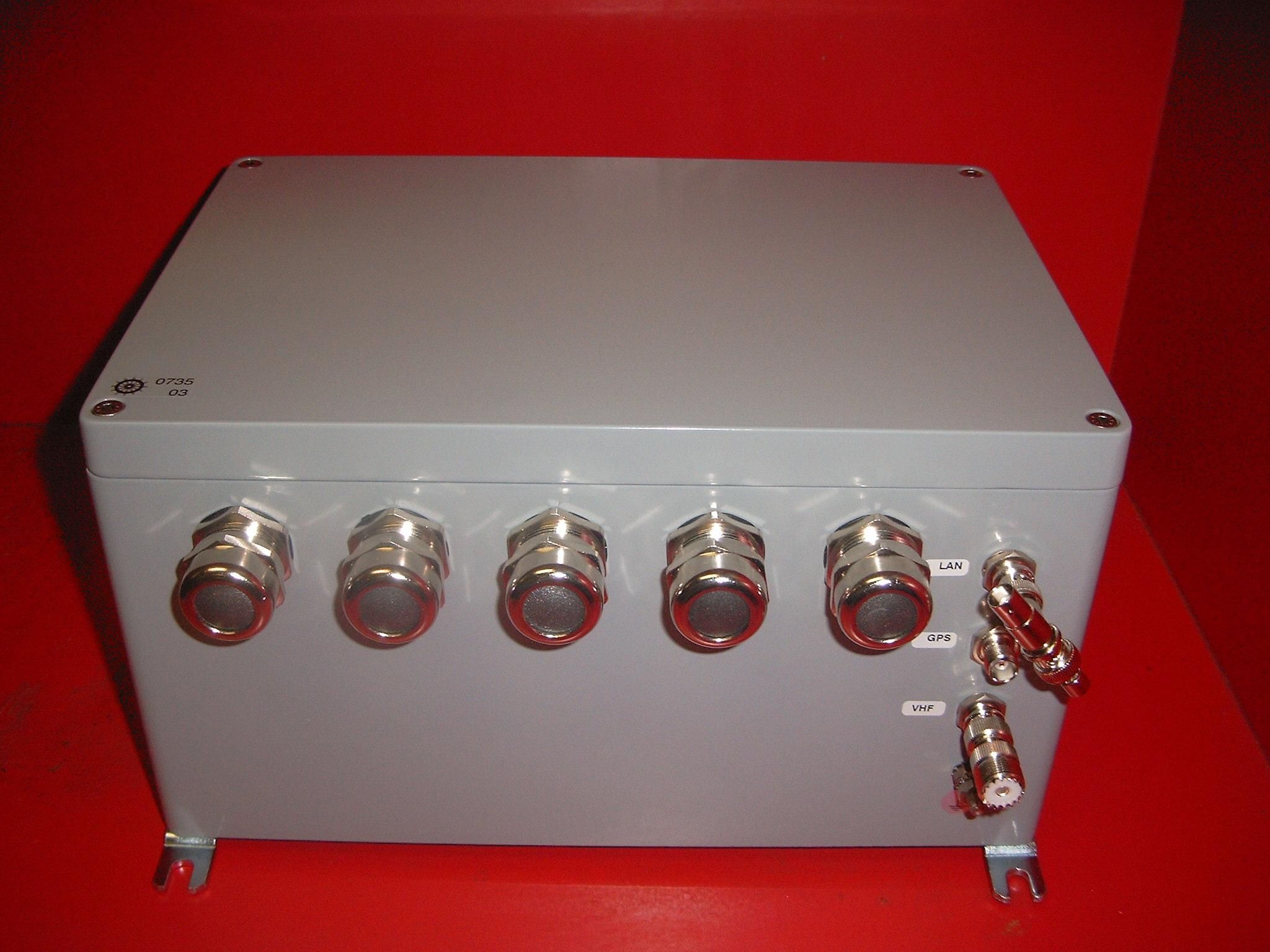

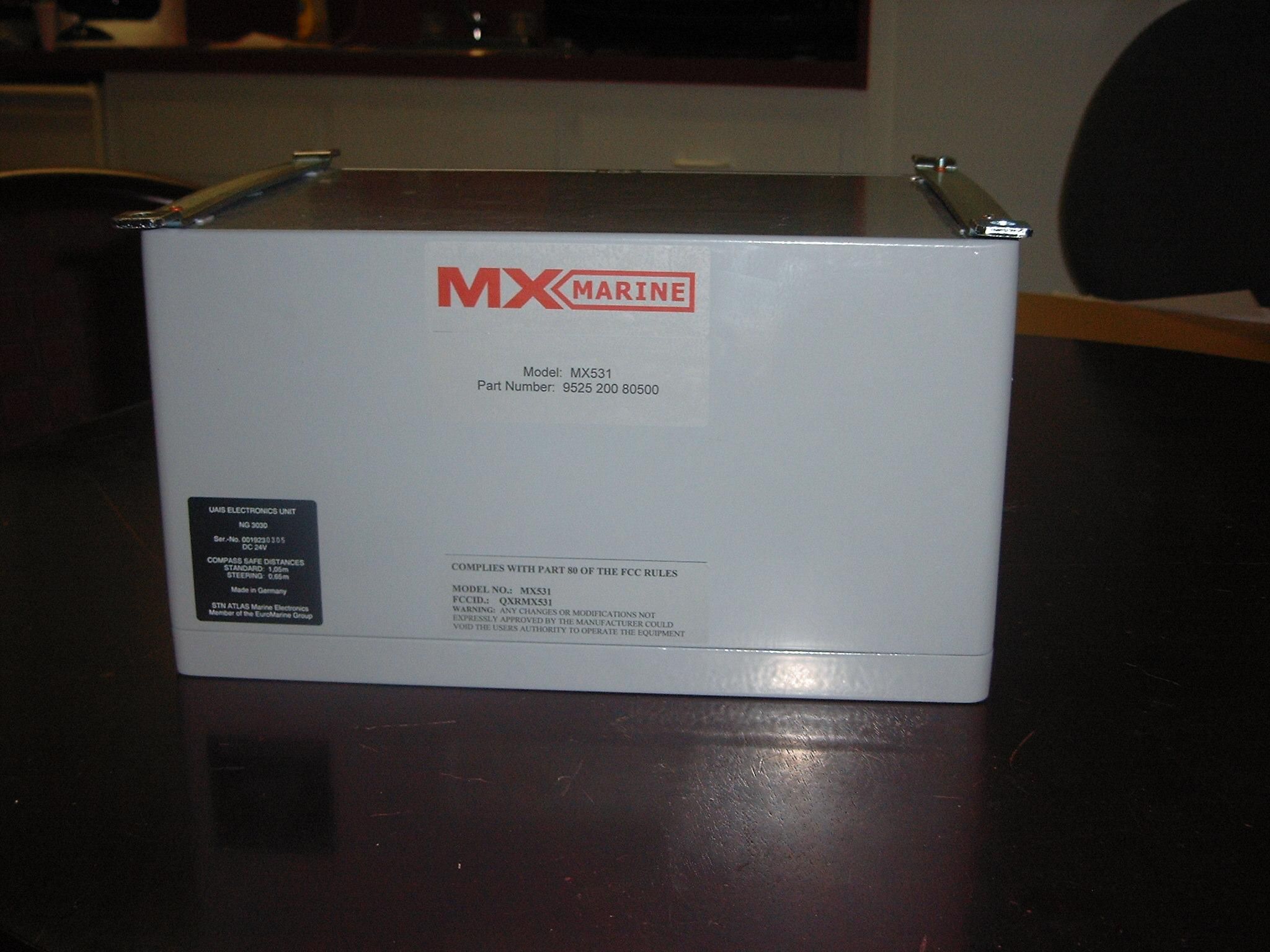

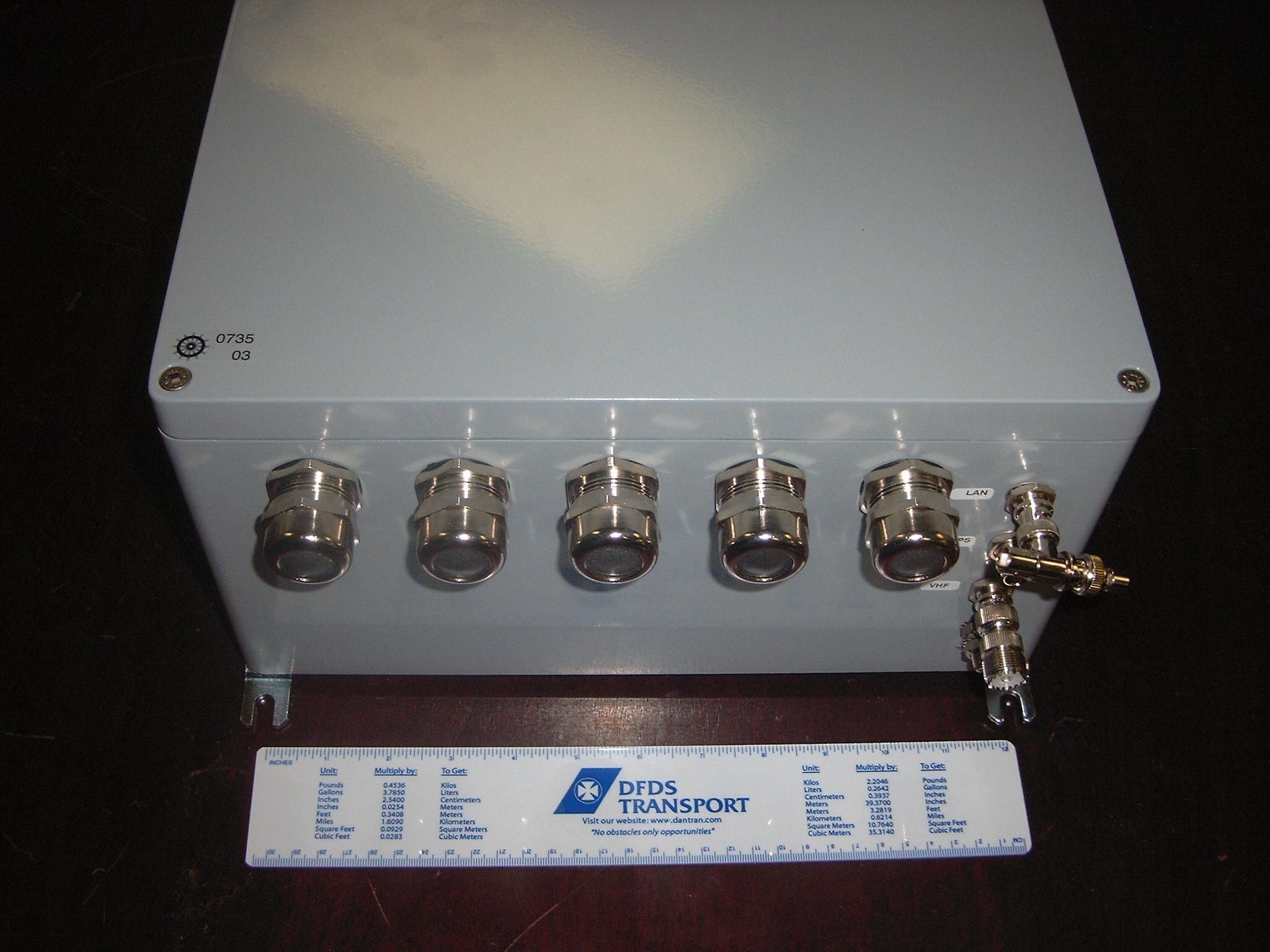

FCCID: QXRMX531 MX 531 (ATLAS) TRANSPONDER HOUSING DIMENSIONS LABLE LOCATION CABLE ENTRY SIDE 9 ” TOP MX 531 SIDE 6.75 “ EQUIPMENT LABLES 13 “ 3/8/2003 LEICA MX-MARINE

FCC ID: QXRMX531 OPERATIONAL DESCRIPTION OVERVIEW Each AIS system consists of one VHF transmitter, two VHF TDMA receivers, one VHF DSC receiver, and a standard marine electronic communications link (IEC 61162/NMEA 0183) to shipboard display and sensor systems. Position and timing information is normally derived from an integral or external global navigation satellite system (e.g. GPS) receiver, including a medium frequency differential GNSS receiver for precise position in coastal and inland waters. Other information broadcast by the AIS, if available, is electronically obtained from shipboard equipment through standard marine data connections. The AIS transponder normally works in an autonomous and continuous mode, regardless of whether it is operating in the open seas or coastal or inland areas. Transmissions use 9.6 kb GMSK FM modulation over 25 or 12.5 kHz channels using HDLC packet protocols. Although only one radio channel is necessary, each station transmits and receives over two radio channels to avoid interference problems, and to allow channels to be shifted without communications loss from other ships. The system provides for automatic contention resolution between itself and other stations, and communications integrity is maintained even in overload situations. ** The MX531/DEBEG 3400 is a UIAS Transponder, which receives data from other vessels by means of a VHF radio and sends these data to the display systems such as a MKD LCD control and display unit as well as to radar/navigation systems. In the opposite direction the UAIS receives data from the various radar and navigation systems and the ships sensors and transmits these data by means of the VHF radio. Access to these data and access to the VHF radio for a pilot use is prepared by means of an additional port access called the pilot port. The UAIS has a long range port to connect a long distance communication system, for instance a satellite communications system. In this way, the UAIS can be called to send the ships data. These data are sent back via the long range port to the questioner. For addition system information. Please refer to the USCG web page www.navcen.uscg.gov. 3/8/2003

EAGLE Layout Editor Version 2.61 Copyright (c) 1988,92 CadSoft Partlist ATD20F.PAR exported from ATD20F.SCH at 24.03.2003 10:31:18 Part Value Device Package Library Sheet C$586 68p C0805 0805 SMD 4 C$587 68p C0805 0805 SMD 4 C$588 68p C0805 0805 SMD 4 C1004 22n C0805 0805 SMD 1 C1005 22n C0805 0805 SMD 1 C1006 22n C0805 0805 SMD 1 C1007 22n C0805 0805 SMD 1 C1008 22n C0805 0805 SMD 1 C1010 22n C0805 0805 SMD 2 C1014 22n C0805 0805 SMD 2 C1026 22n C0805 0805 SMD 2 C1027 4u7 E3216 3216 SMD 2 C1028 4u7 E3216 3216 SMD 2 C1029 4u7 E3216 3216 SMD 2 C1030 4u7 E3216 3216 SMD 2 C1031 4u7 E3216 3216 SMD 2 C1255 220n C1206 1206 SMD 4 C1259 220n C1206 1206 SMD 4 C1265 47n C1206 1206 SMD 4 C1359 220n C1206 1206 SMD 4 D1002 BAT46 DIO03 D-7,5 DISCRETE 1 D1156 3V9 ZDIO03 D-7,5 DISCRETE 1 D1157 BAT46 DIO03 D-7,5 DISCRETE 1 E$575 1u E3216 3216 SMD 1 E$577 SIG SIG 1X01 CONNEC_ 2 E$578 SIG SIG 1X01 CONNEC_ 2 E$579 SIG SIG 1X01 CONNEC_ 2 E$580 SIG SIG 1X01 CONNEC_ 2 E$581 SIG SIG 1X01 CONNEC_ 2 E$582 SIG SIG 1X01 CONNEC_ 2 E$583 SIG SIG 1X01 CONNEC_ 2 E$584 SIG SIG 1X01 CONNEC_ 2 E$589 SIG SIG 1X01 CONNEC_ 1 E$590 SIG SIG 1X01 CONNEC_ 1 IC1002 74HC138 74138_SO SO-16 74499 1 IC1004 74HC541 74541_SO SO-20L 745XX 2 IC1005 MAX232 MAX232_SO SO-16L MAXIM 2 IC1014 TMS320C31 TMS320C31 PQFP132 TI1 1 IC1019 74HC574 74574_SO SO-20L 745XX 2 IC1020 27C256 27C256 DIL-28 27XX 2 IC1021 74HC138 74138_SO SO-16 74499 2 IC1193 74HC574 74574_SO SO-20L 745XX 3 IC1194 MAX156_SO MAX156_SO SO-28L MAXIM 4 J1001 CON03X1 CON03X1 1X03 CONNEC 1 J1003 CON04X1 CON04X1 1X04 CONNEC_ 1 J1004 CON03X1 CON03X1 1X03 CONNEC_ 2 J1007 Reset CON02X1 1X02 CONNEC_ 1 L$576 680nH L1206 1206 SMD 1 OSC2 48MHz OSZ OSC SPECIAL 1 R$631 3M3 R1206 1206 SMD 4 R$632 3M3 R1206 1206 SMD 4 R$633 3M3 R1206 1206 SMD 4 R1001 22k R1206 1206 SMD 1 R1002 22k R1206 1206 SMD 1 R1005 10k R1206 1206 SMD 1 R1006 4k7 R1206 1206 SMD 1 R1007 4k7 R1206 1206 SMD 1 R1008 10k R1206 1206 SMD 1 R1009 22k R1206 1206 SMD 1 R1010 22k R1206 1206 SMD 1 R1011 22k R1206 1206 SMD 1 R1187 2k2 R1206 1206 SMD 1 R1188 10k R1206 1206 SMD 1 R1189 1k R1206 1206 SMD 1 R1191 10k R1206 1206 SMD 2 R1192 120k R1206 1206 SMD 3 R1193 62k R1206 1206 SMD 3 R1194 33k R1206 1206 SMD 3 R1195 16k R1206 1206 SMD 3 R1196 8k2 R1206 1206 SMD 3 R1197 3k9 R1206 1206 SMD 3 R1198 2k R1206 1206 SMD 3 R1199 1k R1206 1206 SMD 3 R1238 330R R1206 1206 SMD 2 R1245 330R R1206 1206 SMD 2 R1248 22k R1206 1206 SMD 2 R1249 10k R1206 1206 SMD 2 R1250 1k R1206 1206 SMD 2 R1251 1k R1206 1206 SMD 2 R1252 1M5 R1206 1206 SMD 4 R1253 1M5 R1206 1206 SMD 4 R1254 1M5 R1206 1206 SMD 4 R1258 2k2 R1206 1206 SMD 1 SIG28 SIG SIG 1X01 CONNEC_ 2 SIG31 SIG SIG 1X01 CONNEC_ 2 SIG32 SIG SIG 1X01 CONNEC_ 2 SIG33 SIG SIG 1X01 CONNEC_ 2 SIG34 SIG SIG 1X01 CONNEC_ 2 SIG35 SIG SIG 1X01 CONNEC_ 4 SIG36 SIG SIG 1X01 CONNEC_ 4 SIG37 SIG SIG 1X01 CONNEC_ 4 SIG38 SIG SIG 1X01 CONNEC_ 3 SIG39 SIG SIG 1X01 CONNEC_ 1 SIG40 SIG SIG 1X01 CONNEC_ 1 SIG41 SIG SIG 1X01 CONNEC_ 1 SIG42 SIG SIG 1X01 CONNEC_ 2 SIG43 SIG SIG 1X01 CONNEC_ 2 T1138 BC807 BC807 SOT-23 TRANS 1

EAGLE Layout Editor Version 2.61 Copyright (c) 1988,92 CadSoft Partlist ATO21F.PAR exported from ATO21F.SCH at 24.03.2003 10:31:40 Part Value Device Package Library Sheet C$451 1n C0805 0805 SMD 1 C$452 100p C0805 0805 SMD 1 C$453 27p C0805 0805 SMD 1 C$459 10n C0805 0805 SMD 1 C$460 10n C0805 0805 SMD 1 C$461 10n C0805 0805 SMD 1 C$462 10n C0805 0805 SMD 1 C$468 10n C0805 0805 SMD 1 C$471 10n C0805 0805 SMD 1 C$472 1n C0805 0805 SMD 1 C$474 220n CAP01 C-2,5 DISCRETE 1 C$475 10n C0805 0805 SMD 1 C$476 22p C0805 0805 SMD 1 C$477 150p C0805 0805 SMD 1 C$479 22u E6032 6032 SMD 1 C$483 10n C0805 0805 SMD 1 C$489 10n C0805 0805 SMD 1 C$490 10n C0805 0805 SMD 1 C$609 10p C-TRIM C-TRIM SMD 1 C1186 150p C0805 0805 SMD 1 C1187 1p5 C0805 0805 SMD 1 C1188 150p C0805 0805 SMD 1 C1189 1n C0805 0805 SMD 1 D$457 BBY40 BBY40 SOT-23 LINEAR 1 D$469 ZPD4V7 ZDIO03 D-7,5 DISCRETE 1 D$494 6V8 ZDIO03 D-7,5 DISCRETE 1 E$485 SIG SIG 1X01 CONNEC_ 1 E$486 SIG SIG 1X01 CONNEC_ 1 E$487 SIG SIG 1X01 CONNEC_ 1 E$488 SIG SIG 1X01 CONNEC_ 1 E$493 SIG SIG 1X01 CONNEC_ 1 E$495 SIG SIG 1X01 CONNEC_ 1 E$496 SIG SIG 1X01 CONNEC_ 1 E$497 SIG SIG 1X01 CONNEC_ 1 E$498 SIG SIG 1X01 CONNEC_ 1 IC8 MAR-6 MAR-6SM BBB_SM HF3 1 IC9 MAR-6 MAR-6SM BBB_SM HF3 1 IC10 MAR-6 MAR-6SM BBB_SM HF3 1 IC$467 TSA6057_SO TSA6057_SO SO16L VALVO 1 L$454 68nH L1206 1206 SMD 1 L$455 680nH L1206 1206 SMD 1 L$456 680nH L1206 1206 SMD 1 L$480 1u2 L1206 1206 SMD 1 L$492 680nH L1206 1206 SMD 1 R$458 6k8 R1206 1206 SMD 1 R$463 4k7 R1206 1206 SMD 1 R$464 4k7 R1206 1206 SMD 1 R$465 4k7 R1206 1206 SMD 1 R$466 4k7 R1206 1206 SMD 1 R$470 120R R1206 1206 SMD 1 R$473 68k R1206 1206 SMD 1 R$478 680R R1206 1206 SMD 1 R$481 68R R1206 1206 SMD 1 R$482 150R R1206 1206 SMD 1 R$484 68R R1206 1206 SMD 1 R$491 180R R1206 1206 SMD 1 R1210 180R R1206 1206 SMD 1 R1211 470R R1206 1206 SMD 1 R1212 68R R1206 1206 SMD 1 R1213 470R R1206 1206 SMD 1 R1214 3k3 R1206 1206 SMD 1 T1 BC807 BC807 SOT-23 TRANS 1

EAGLE Layout Editor Version 2.61 Copyright (c) 1988,92 CadSoft Partlist ATO22F.PAR exported from ATO22F.SCH at 24.03.2003 10:32:00 Part Value Device Package Library Sheet C$499 1n C0805 0805 SMD 1 C$500 100p C0805 0805 SMD 1 C$501 27p C0805 0805 SMD 1 C$516 10n C0805 0805 SMD 1 C$519 10n C0805 0805 SMD 1 C$520 1n C0805 0805 SMD 1 C$522 220n CAP01 C-2,5 DISCRETE 1 C$523 10n C0805 0805 SMD 1 C$525 150p C0805 0805 SMD 1 C$527 22u E6032 6032 SMD 1 C$531 10n C0805 0805 SMD 1 C$539 10n C0805 0805 SMD 1 C$540 10n C0805 0805 SMD 1 C$543 150p C0805 0805 SMD 1 C$547 150p C0805 0805 SMD 1 C$557 1n C0805 0805 SMD 1 C$610 10p C-TRIM C-TRIM SMD 1 D$505 BBY40 BBY40 SOT-23 LINEAR 1 D$517 ZPD4V7 ZDIO03 D-7,5 DISCRETE 1 D$551 6V8 ZDIO03 D-7,5 DISCRETE 1 E$485 SIG SIG 1X01 CONNEC_ 1 E$507 10n C0805 0805 SMD 1 E$508 10n C0805 0805 SMD 1 E$509 10n C0805 0805 SMD 1 E$510 10n C0805 0805 SMD 1 E$534 SIG SIG 1X01 CONNEC_ 1 E$535 SIG SIG 1X01 CONNEC_ 1 E$536 SIG SIG 1X01 CONNEC_ 1 E$549 SIG SIG 1X01 CONNEC_ 1 E$553 SIG SIG 1X01 CONNEC_ 1 E$554 SIG SIG 1X01 CONNEC_ 1 E$555 SIG SIG 1X01 CONNEC_ 1 E$559 SIG SIG 1X01 CONNEC_ 1 IC$515 TSA6057_SO TSA6057_SO SO16L VALVO 1 IC$537 MAR-6 MAR-6SM BBB_SM HF3 1 IC$538 MAR-6 MAR-6SM BBB_SM HF3 1 IC$556 MAR-6 MAR-6SM BBB_SM HF3 1 L$502 68nH L1206 1206 SMD 1 L$503 680nH L1206 1206 SMD 1 L$504 680nH L1206 1206 SMD 1 L$528 1u2 L1206 1206 SMD 1 L$546 680nH L1206 1206 SMD 1 R$506 6k8 R1206 1206 SMD 1 R$511 4k7 R1206 1206 SMD 1 R$512 4k7 R1206 1206 SMD 1 R$513 4k7 R1206 1206 SMD 1 R$514 4k7 R1206 1206 SMD 1 R$518 120R R1206 1206 SMD 1 R$521 68k R1206 1206 SMD 1 R$524 22p C0805 0805 SMD 1 R$526 680R R1206 1206 SMD 1 R$529 68R R1206 1206 SMD 1 R$530 150R R1206 1206 SMD 1 R$532 68R R1206 1206 SMD 1 R$541 180R R1206 1206 SMD 1 R$542 180R R1206 1206 SMD 1 R$544 470R R1206 1206 SMD 1 R$545 1p5 C0805 0805 SMD 1 R$548 68R R1206 1206 SMD 1 R$552 470R R1206 1206 SMD 1 R$558 3k3 R1206 1206 SMD 1 T$550 BC807 BC807 SOT-23 TRANS 1

EAGLE Layout Editor Version 2.61 Copyright (c) 1988,92 CadSoft Partlist ATP20F.PAR exported from ATP20F.SCH at 24.03.2003 10:32:34 Part Value Device Package Library Sheet C$434 10n C0805 0805 SMD 1 C$435 22u E6032 6032 SMD 1 C$438 100u/35V ELC02 ES-5 DISCRETE 1 C$439 220n E3216 3216 SMD 1 C$441 100u/35V ELC02 ES-5 DISCRETE 1 C$450 22u E6032 6032 SMD 1 C1181 10n C0805 0805 SMD 1 D$639 1N4148 DIO03 D-7,5 DISCRETE 1 E$436 22u E6032 6032 SMD 1 E$437 LM2940 5V 78XXT TO-220A LINEAR 1 E$442 SIG SIG 1X01 CONNEC_ 1 E$443 SIG SIG 1X01 CONNEC_ 1 E$444 SIG SIG 1X01 CONNEC_ 1 E$445 SIG SIG 1X01 CONNEC_ 1 E$446 SIG SIG 1X01 CONNEC_ 1 E$447 SIG SIG 1X01 CONNEC_ 1 R5 200R R1206 1206 SMD 1 R6 22k R1206 1206 SMD 1 R7 10k R1206 1206 SMD 1 R$440 3k3 R1206 1206 SMD 1 R$448 470k R1206 1206 SMD 1 R$449 390k R1206 1206 SMD 1 R$640 100k R1206 1206 SMD 1 R1204 470R R1206 1206 SMD 1 R1205 2k4 R1206 1206 SMD 1 T2 BUZ271 BUZ271 TO-220A TRANS 1 T4 BC847 BC847 SOT-23 TRANS 1 T5 BC847 BC847 SOT-23 TRANS 1 U2 LM2940 8V 78XXT TO-220A LINEAR 1

EAGLE Layout Editor Version 2.61 Copyright (c) 1988,92 CadSoft Partlist ATR21F.PAR exported from ATR21F.SCH at 24.03.2003 10:33:22 Part Value Device Package Library Sheet C34 10n C0805 0805 SMD 2 C55 10n C0805 0805 SMD 2 C$18 1n C0805 0805 SMD 1 C$19 1n C0805 0805 SMD 1 C$20 10p C-TRIM C-TRIM SMD 1 C$21 10p C-TRIM C-TRIM SMD 1 C$24 10p C0805 0805 SMD 1 C$25 10p C0805 0805 SMD 1 C$30 2p2 C0805 0805 SMD 1 C$31 2p2 C0805 0805 SMD 1 C$34 10n C0805 0805 SMD 1 C$36 1n C0805 0805 SMD 1 C$37 1n C0805 0805 SMD 1 C$38 10p C-TRIM C-TRIM SMD 1 C$39 10p C-TRIM C-TRIM SMD 1 C$42 10p C0805 0805 SMD 1 C$43 10p C0805 0805 SMD 1 C$48 2p2 C0805 0805 SMD 1 C$49 2p2 C0805 0805 SMD 1 C$52 10n C0805 0805 SMD 1 C$54 1n C0805 0805 SMD 1 C$55 1n C0805 0805 SMD 1 C$56 10p C-TRIM C-TRIM SMD 1 C$57 10p C-TRIM C-TRIM SMD 1 C$60 10p C0805 0805 SMD 1 C$61 10p C0805 0805 SMD 1 C$66 2p2 C0805 0805 SMD 1 C$67 2p2 C0805 0805 SMD 1 C$71 220p C0805 0805 SMD 2 C$75 1p5 C0805 0805 SMD 2 C$82 330p C0805 0805 SMD 3 C186 220n CAP01 C-2,5 DISCRETE 2 C189 10n C0805 0805 SMD 2 C$611 C-TRIM C-TRIM C-TRIM SMD 2 C$614 330p C0805 0805 SMD 3 C$617 220n C0805 0805 SMD 3 C1058 22p C0805 0805 SMD 2 C1059 150p C0805 0805 SMD 2 C1060 1n C0805 0805 SMD 2 C1061 100p C0805 0805 SMD 2 C1063 18p C0805 0805 SMD 2 C1065 15n C0805 0805 SMD 2 C1066 15n C0805 0805 SMD 2 C1067 15n C0805 0805 SMD 2 C1068 15n C0805 0805 SMD 2 C1069 150p C0805 0805 SMD 2 C1070 10n C0805 0805 SMD 2 C1071 1n C0805 0805 SMD 2 C1072 1n C0805 0805 SMD 3 C1073 220p C0805 0805 SMD 3 C1074 100n C0805 0805 SMD 3 C1075 1n C0805 0805 SMD 3 C1097 100n C0805 0805 SMD 3 C1099 150p C0805 0805 SMD 3 C1182 22u E6032 6032 SMD 2 C1183 10n C0805 0805 SMD 2 C1185 47p C0805 0805 SMD 2 C1218 47p C0805 0805 SMD 2 C1220 10n C0805 0805 SMD 2 C1221 150p C0805 0805 SMD 3 C1222 180p C0805 0805 SMD 3 C1224 68p C0805 0805 SMD 3 C1226 150p C0805 0805 SMD 3 C1263 10n C0805 0805 SMD 3 C1265 40p C-TRIM C-TRIM SMD 3 C1266 40p C-TRIM C-TRIM SMD 3 C1267 470p C0805 0805 SMD 3 C1268 470p C0805 0805 SMD 3 C1269 40p C-TRIM C-TRIM SMD 2 C1270 1n C0805 0805 SMD 1 C1271 1n C0805 0805 SMD 1 CZ01 10n C1206 1206 SMD 3 CZ11 1n C0805 0805 SMD 3 CZ21 3p3 C0805 0805 SMD 2 D18 BBY40 BBY40 SOT-23 LINEAR 2 D19 ZPD4V7 ZDIO03 D-7,5 DISCRETE 2 D50 BAR28 DIO03 D-7,5 DISCRETE 3 D$26 BBY31 BBY40 SOT-23 LINEAR 1 D$27 BBY31 BBY40 SOT-23 LINEAR 1 D$44 BBY31 BBY40 SOT-23 LINEAR 1 D$45 BBY31 BBY40 SOT-23 LINEAR 1 D$62 BBY31 BBY40 SOT-23 LINEAR 1 D$63 BBY31 BBY40 SOT-23 LINEAR 1 D$80 4V7 ZDIO03 D-7,5 DISCRETE 3 D$83 BAR28 DIO03 D-7,5 DISCRETE 3 E$68 SIG SIG 1X01 CONNEC_ 1 E$76 SIG SIG 1X01 CONNEC_ 2 E$77 SIG SIG 1X01 CONNEC_ 2 E$78 SIG SIG 1X01 CONNEC_ 2 E$79 5MHz QU QS DEMO 2 F1 10_7MHz CON03X1 1X03 CONNEC_ 2 F2 10_7MHz CON03X1 1X03 CONNEC_ 2 IC33 MAR-6 MAR-6SM BBB_SM HF3 2 IC34 MAR-6 MAR-6SM BBB_SM HF3 2 IC$32 MAR-6 MAR-6SM BBB_SM HF3 1 IC$50 MAR-6 MAR-6SM BBB_SM HF3 1 IC$70 TSA6057_SO TSA6057_SO SO16L VALVO 2 IC$74 MAR-6 MAR-6SM BBB_SM HF3 2 L20 68nH L1206 1206 SMD 2 L21 680nH L1206 1206 SMD 2 L22 680nH L1206 1206 SMD 2 L23 1u2 L1206 1206 SMD 3 L56 1u2 L1206 1206 SMD 2 L$22 100nH L1206 1206 SMD 1 L$23 100nH L1206 1206 SMD 1 L$33 100nH L1206 1206 SMD 1 L$40 100nH L1206 1206 SMD 1 L$41 100nH L1206 1206 SMD 1 L$51 100nH L1206 1206 SMD 1 L$58 100nH L1206 1206 SMD 1 L$59 100nH L1206 1206 SMD 1 L$72 1u2 L1206 1206 SMD 2 L$73 1u2 L1206 1206 SMD 2 L1098 10u L1206 1206 SMD 3 L1112 1u2 L1206 1206 SMD 2 L1216 1u2 L1206 1206 SMD 2 L1217 1u2 L1206 1206 SMD 2 L1218 680nH L1206 1206 SMD 2 L1223 1u2 L1206 1206 SMD 3 L1224 820uH L04 R-10 DISCRETE 3 L1225 100uH L04 R-10 DISCRETE 3 L1226 100uH L04 R-10 DISCRETE 3 MX2 JMS-2 JMS-2 TT100 HF3 3 MX$69 JMS-2 JMS-2 TT100 HF3 2 OSC1 10,24MHz OSZ OSC SPECIAL 3 R15 270R R1206 1206 SMD 2 R$28 220k R1206 1206 SMD 1 R$29 220k R1206 1206 SMD 1 R$35 180R R1206 1206 SMD 1 R$46 220k R1206 1206 SMD 1 R$47 220k R1206 1206 SMD 1 R$53 180R R1206 1206 SMD 1 R$64 220k R1206 1206 SMD 1 R$65 220k R1206 1206 SMD 1 R$81 33k R1206 1206 SMD 3 R1077 180R R1206 1206 SMD 2 R1079 6k8 R1206 1206 SMD 2 R1080 4k7 R1206 1206 SMD 2 R1081 4k7 R1206 1206 SMD …

Text truncated - open the document above for the full version.
