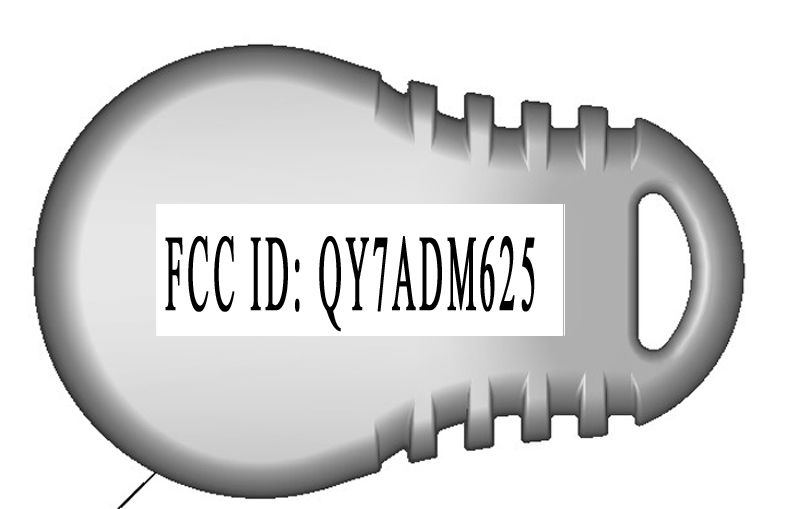

Correspondence Summary Questions and Answers March 31, 2003 SUBJECT: WILLIAM B. MCKINLEY - FCC ID: QY7ADM625 TCB Q-1: Radiated test data: The measurement resolution bandwidth for frequency above 1GHz is 1MHz. Please explain your previous reply stating that a RBW of 120kHz was used. Alternatively, please provide additional test data with a RBW of 1MHz and VBW of 1MHz, for frequency above 1GHz. Applicant A-1: My previous reply to your question related to RBW used during our testing was in error. We did use a RBW of (120) kHz while making measurements below (1) GHz but the RBW & VBW used above (1) GHz were (1) MHz as stated in 15.35(a) & (b) respectively. I apologize for any confusion. TCB Q-3: Test setup and configuration: Please, provide a summary of the method of measurement. Was the measuring antenna maximized in height 1-4m? Was the turntable rotated 360 degrees, etc? A-3: During the collection of the radiated emissions data, the test sample was placed on a non-conductive table and rotated (360) degrees to find all significant emissions. The sample was then evaluated in (3) orthogonal planes and the measuring antenna was varied in height between (1-4) meters to further maximize the amplitude of each frequency measured. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 [email protected]

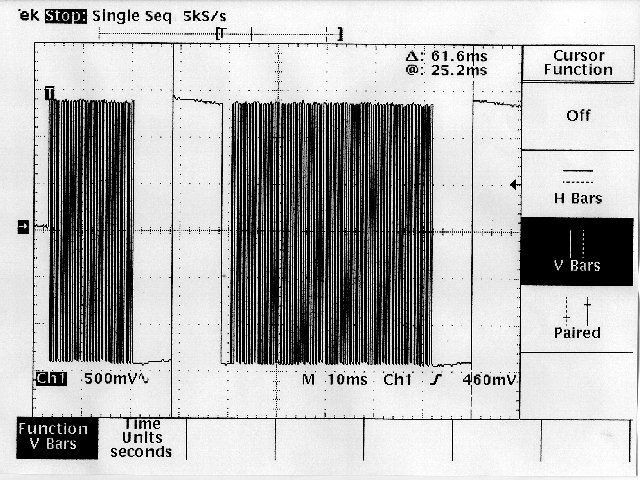

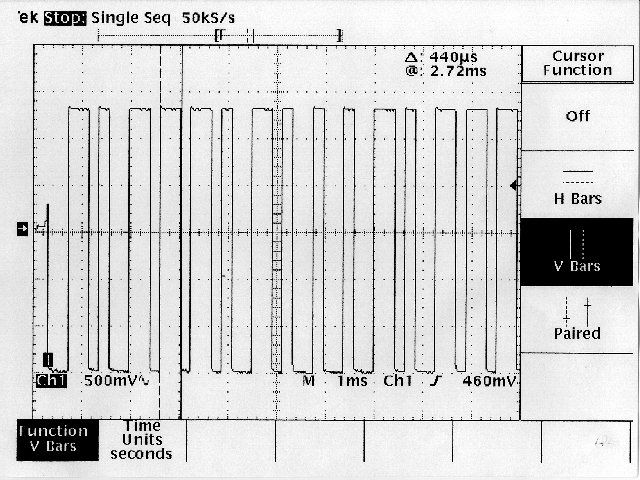

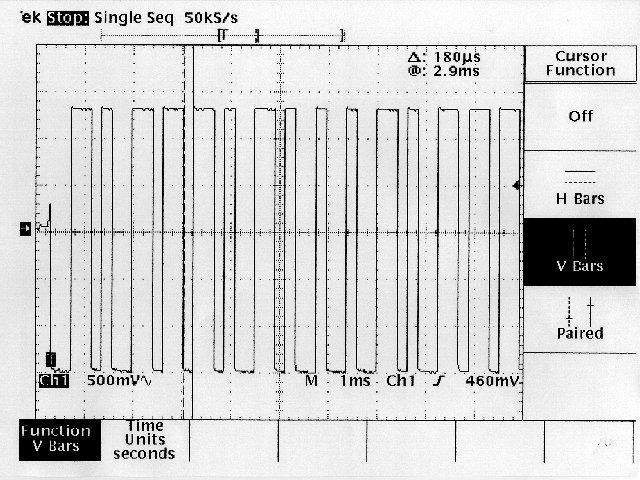

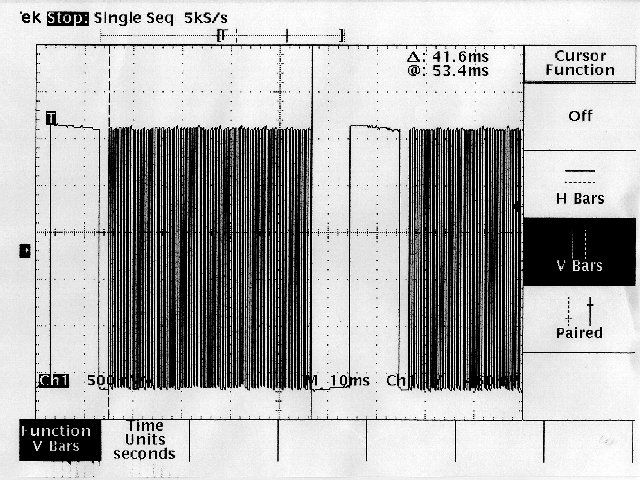

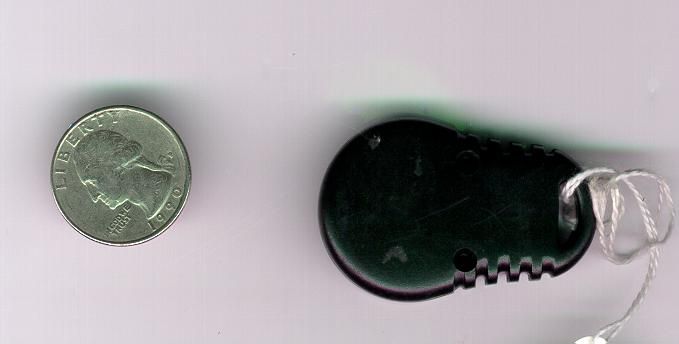

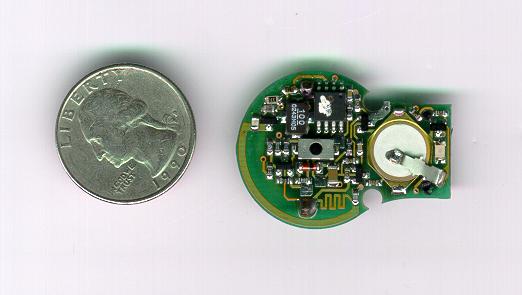

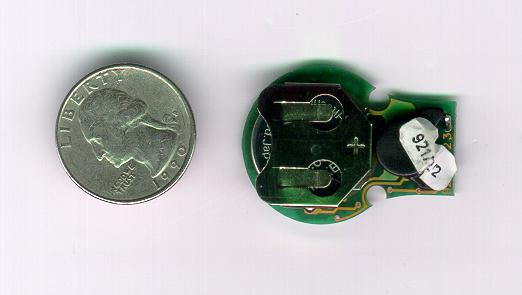

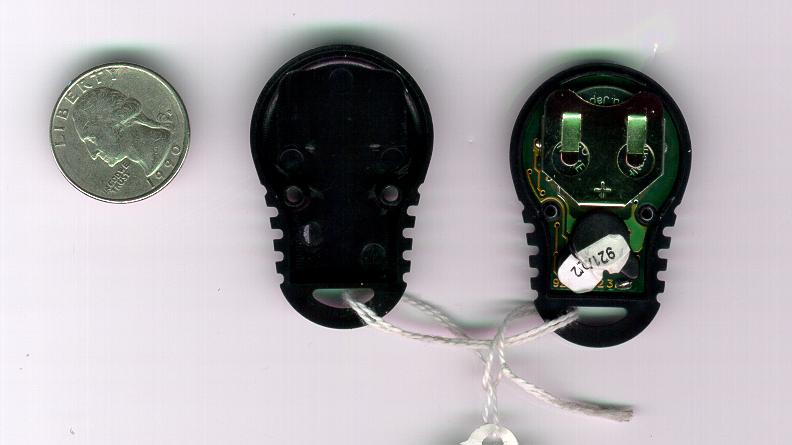

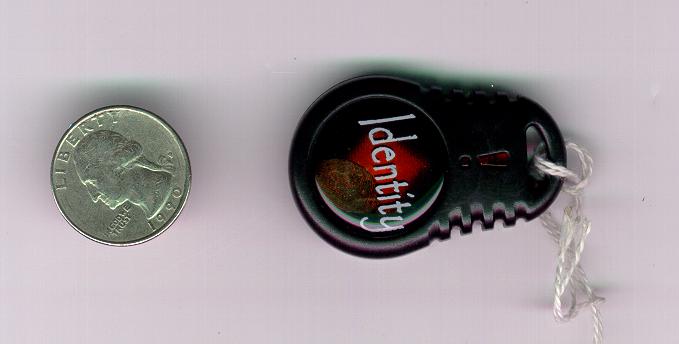

Operational Description of the Identity Transmitter BZ1 is a ceramic piezo element against which a 4mm steel ball runs. The voltage generated is amplified by TR1, and the logic is switched to the processor pin 7 via TR3. TR2 has 2 functions in that it is a pulse stretcher, and also has the 10 second inhibit function. Upon receipt of a pulse from TR3, Pin 6 of the processor pulse hi momentarily to charge C1 via D1. C1 holds TR2 on until discharged via R4. Upon receipt of a pulse on Pin 8, Pin 3 of the processor modulates the RF oscillator via R13. The oscillator frequency is SAW stabilised at 433.92 MHz by SAW1. TR4 is a battery voltage detection circuit, which is monitored on pin 5 of the processor, and low battery voltage is indicated on the LED. The transmitter can also be enabled by depressing switch 1. "The device is a small keychain size intentional radiator. It meets the technical requirements of 15.231(e). The open issue is the automatic operation feature of the device. The transmission is initiated by physical movement of the device as in a walking motion. While the person carrying the device is in motion, the device transmits for (40) ms and then is silent for (11) seconds. If after this (11) seconds of silence, motion is again detected, the device repeats the sequence."
