Retrofitting guide TruBend Serie 3000, 5000 und 7000 Angle measuring system OCB (option) 2012-11-05 Material number: 1714400 2 1714400_ANGLE_MEAS URING_SYSTEM_OCB 1714400_ANGLE_MEAS URING_SYSTEM_OCB Table of contents 3 Table of contents 1. Description ........................................................................4 OCB radio measured value transfer device ...................5 2. Installing the OCB transfer device ..................................5 LED status displays on the OCB radio measured value transfer device .....................................6 OCB USB stick ..............................................................6 Registering the OCB transfer device at the OCB USB stick .......................................................................7 DELEM machine control TruBend Series 3000 ............7 Activating the option ......................................................8 Installing an option ...................................................... 10 TASC6000 machine control TruBend Series 5000 and 7000 ............................................................ 11 Correction input mask for OCB .................................... 12 Direct total angle correction input ................................ 15 Global corrections ....................................................... 16 Complied rules and standards ..................................... 17 4 Description 1714400_ANGLE_MEAS URING_SYSTEM_OCB 1. Description OCB stands for Operator Controlled Bending. The complete OCB angle measuring system consists of the DP- 601 digital goniometer (ID no. 1701972) with the data output via an interface as well as from the OCB radio measured value transfer device, which is installed at the goniometer. There is also the OCB USB stick, which is plugged into the machine control. A paired radio measured value transfer system consisting of transfer device and stick has the ID no. 1701972. The hardware as well as the software of the OCB system can work together with both the DELEM control system as well as with the TASC6000 machine control. Two USB cables are included as further accessories. All the parts of the OCB system are packed in a stable ABS case with inserts made of punched foam parts with the ID no. 1716453. OCB system Fig. 49843 1714400_ANGLE_MEAS URING_SYSTEM_OCB Installing the OCB transfer device 5 Both the OCB transfer device as well as the OCB USB stick function as transmitter and receiver. The communication is done by 2.4 GHz via the ISM band and can cover at line-of- sight distances of about 20 meters. OCB radio measured value transfer device By pressing the button, the angles shown on the goniometer will be transferred to the control. The TRUMPF machine control TASC6000 also specifies which of the three position LEDs at the radio measured value transfer device should light up. The middle LED is a dual-color LED (red/green). If both parts of the dual LED are activated, the result is yellow. The left and right LEDs are yellow. These three LEDs show the positions where the angles should be measured in order to get the corrective values. 2. Installing the OCB transfer device 1. Pull off the rubber cover on the DIGIMATIC interface. 2. Unscrew the middle knob with the manufacturer's inscription. 3. Put on the transfer device and insert the plug contacts into the DIGIMATIC interface. 4. Screw in the middle knob. The knob now rests on the mounting tab. Fig. 49844 6 Installing the OCB transfer device 1714400_ANGLE_MEAS URING_SYSTEM_OCB By using a 5-pole mini-B USB plug cable (even if the transfer device is installed at the goniometer), the rechargeable battery of the transfer device can be charged by any standard 5-volt mobile phone charger or by any computer with a USB socket. No data is exchanged by this USB connection; it is only used to recharge the LiPo rechargeable battery. The transfer device remains fully operative while it is being recharged. LED status displays on the OCB radio measured value transfer device Rechargeable battery statusRechargeable battery LED The rechargeable battery and the OCB radio measured value transfer device are both ready for use flashes slowly, green The rechargeable battery is almost empty flashes slowly, red The rechargeable battery is empty The device switches itself off again immediately flashes 1 second, red The source voltage is plugged in and the rechargeable battery is completely charged lights up, green The rechargeable battery can not be charged since the temperature is too high or the battery is defective flashes quickly, red The charging voltage is too low lights up, red Radio transfer statusRadio links LED If the transfer was successful. flashes 1 second, green If the transfer has failed after 5 attempts. flashes 1 second, red If data is present from the goniometer and the transfer is in progress. flashes, yellow If the goniometer is not switched on and, as a result, no transfer is in progress. after a short time flashes 1 second, red OCB USB stick The USB stick (USB-A plug) receives the angle values, administers the statuses of the position LEDs and the registered OCB radio measured value transfer device and prepares communication for the USB interface. The communication is done via a virtual COM, which is created by the FTDI-USB driver, with a baud rate of 57k6. USB traffic is shown by flashing of the yellow LED. Tab. 1 Tab. 2 1714400_ANGLE_MEAS URING_SYSTEM_OCB Installing the OCB transfer device 7 The OCB USB stick can, in principle, be plugged into any USB plug socket of the machine control. However, USB plug sockets outside the switch cabinet should be selected since a closed switch cabinet significantly impedes radio signals. The cap protects the plug from contamination. It is taken off before plugging in and can then be put on again at the rear for storage purposes during use. Registering the OCB transfer device at the OCB USB stick Before delivery, all OCB systems are already paired. Every OCB transfer device is al…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia MD 21048 May 26, 2012 TRUMPF Maschinen Austria GmbH + Co. KG Industriepark 24 4061 Pasching Austria FCC Registration Number (FRN): 0021739461 Pursuant to Paragraphs §0.457 and 0.459 of die Commission‘s Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act; the Company TRUMPF Maschinen Austria GmbH + Co. KG requests confidentiality for die following products: FCC ID Number Product Title/Model QYB-1701972-A OCB USB Stick OCB-Stick QYB-1701972-B OCB Wireless angle transfer device OCB-Sensor For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: “schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment “block diagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description“ The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at die address shown above. Sincerely,

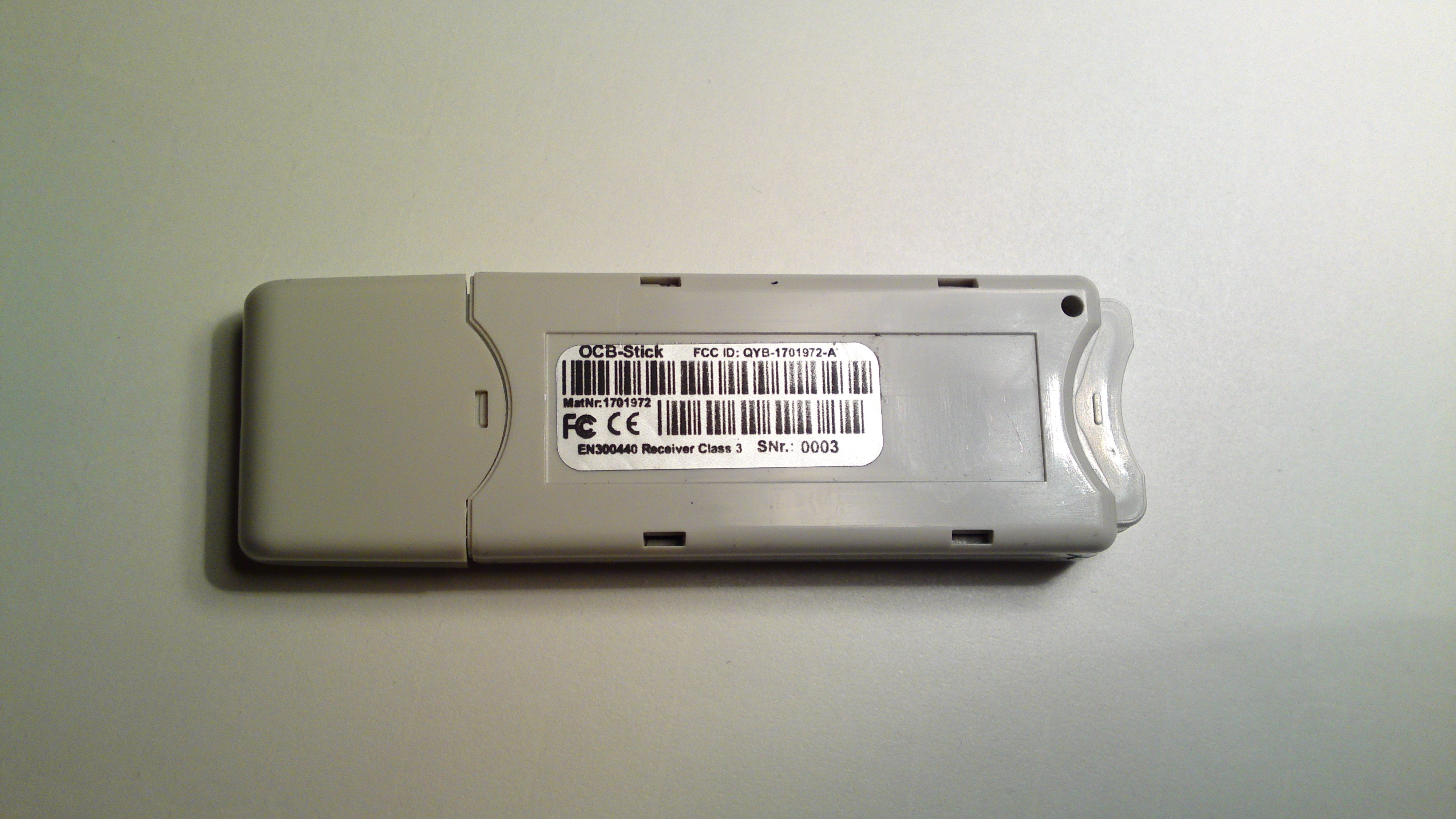

Coverletter: TRUMPF Maschinen Austria GmbH + Co. KG wants to get FCC-Certification for the following product: wireless angle measuring equipment USB dongle. The unit will get the following FCC-ID: QYB-1701972-A List of documents: Exhibit Thema File Exhibit 01 Label and placement OCB_Stick_CE_FCC_StickerOnDevice.JPG Exhibit 02 Not needed -------------------- Exhibit 03 External Photos Extern_12-129.pdf * Exhibit 04 Block Diagrams Function diagram_QYB-1701972-A.pdf * Exhibit 05 Schematic Diagrams Schematic_OCB-Stick.pdf Exhibit 06 Testreport 12-129.pdf Exhibit 07 Test Set-up Photos Setup_12-129.pdf Exhibit 08 User Manual 1714400_Angle_measuring_system_OCB.pdf Exhibit 09 Internal Photos Intern_12-129.pdf Exhibit 10 Informations -------------------- Exhibit 11 RF exposure -------------------- * Exhibit 12 Operational Description operational_QYB-1701972-x.pdf Exhibit 13 Cover letter Request for confidentiality This file FCC_Confidentiality_Trumpf.pdf For the Exhibits marked with ‘*’ TRUMPF Maschinen Austria GmbH + Co. KG requested Confidentiality according to 47 CFR 0.457 and 0.459 of the FCC rules because these are sensitive parts owned by this company and include much of Know-How or sensitive data, it will not be provided to the public. The labelling on some photos may be not the actual status. The correct labelling you can see on the label and placement photos in Exhibit 1.
