QZT0082MOTMotion Sensor Unit

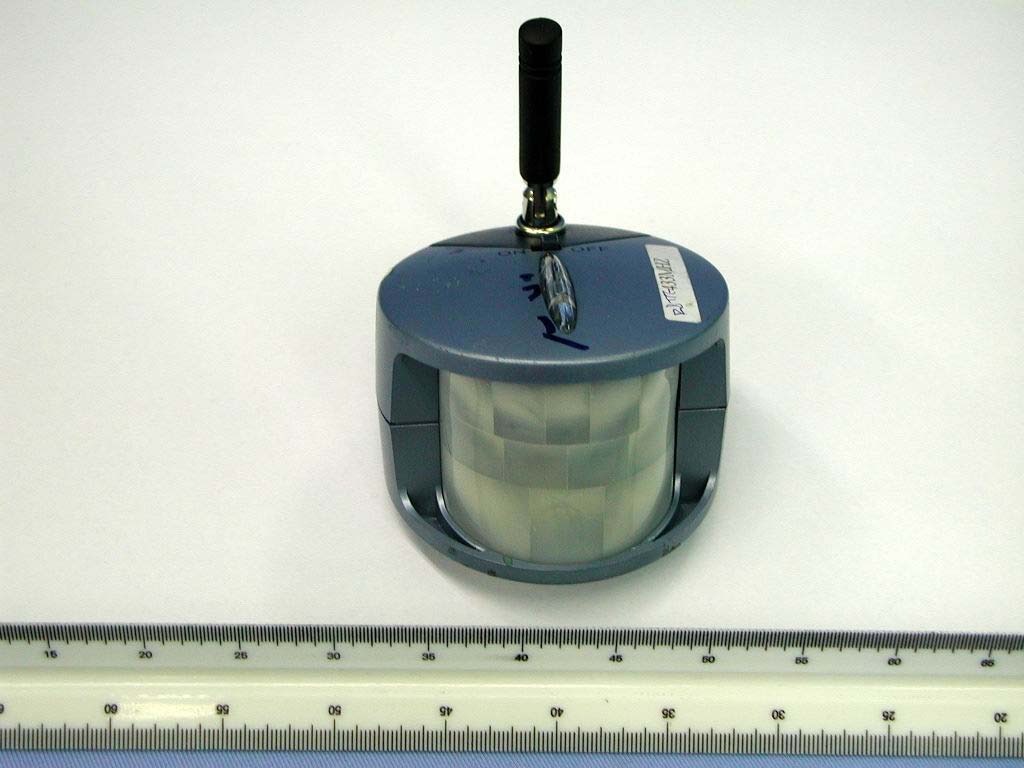

Test Setup FCCID : QZT0082MOT External Photo - 1 External Photo - 2

Test Setup FCCID : QZT0082MOT Internal Photo - 1 Internal Photo - 2 Test Setup FCCID : QZT0082MOT Internal Photo- 3 Internal Photo – 4 Test Setup FCCID : QZT0082MOT Internal Photo – 5 Internal Photo – 6 Test Setup FCCID : QZT0082MOT Internal Photo – 7 Internal Photo – 8

TECHNICAL DESCRIPTION RPDS–888 PIR CATEGORY NUMBER NAME DESCRIPTION TRANSISTOR MPSH10 LOW POWER RF TRANSISTOR RF TRANSMIT ( Q100 ) SAW 434MHZ RESONATOR 433.92MHZ RESONATOR ( SAW100 ) SENSOR RE-200B SENSOR PIR SENSOR ( PIR1 ) INTEGRATED CIRCIUT 27L4C SIGNAL AMPLIFIER PIR SIGNAL AMPLIFIER ( IC1 ) TRANSISTOR MMBT3904 LOW POWER TRANSISTOR PIR TIME DELAY CIRCUIT ( Q4 ) TRANSISTOR MMBT3906 MMBT3904 LOW POWER TRANSISTOR TIMING SWITCHING CIRCUIT FOR IC3 ( Q2, Q3 ) INTEGRATED CIRCIUT PT2607 ENCODE IC ENCODE TO MODULATING RF ( IC3 ) HT-7150A REGULATOR IC POWER REGULATOR TRANSISTOR MMBT3904 LOW POWER TRANSISTOR TIMING SWITCHING CIRCUIT FOR IC4 ( Q1, Q5 ) TRANSISTOR MMBT3904 LOW POWER TRANSISTOR VIBRATION SENSOR DRIVER ( Q6 ) INTEGRATED CIRCIUT TT6298-1 DICE IC LED DRIVER ( IC4 )
