QZZJKRLSHELCompact Fluorescent Lamp

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT Proposed FCC Label Format FCC ID: QZZJKRLSHEL Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Proposed FCC Label Location EL8us-11 EL8us-15 FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference.

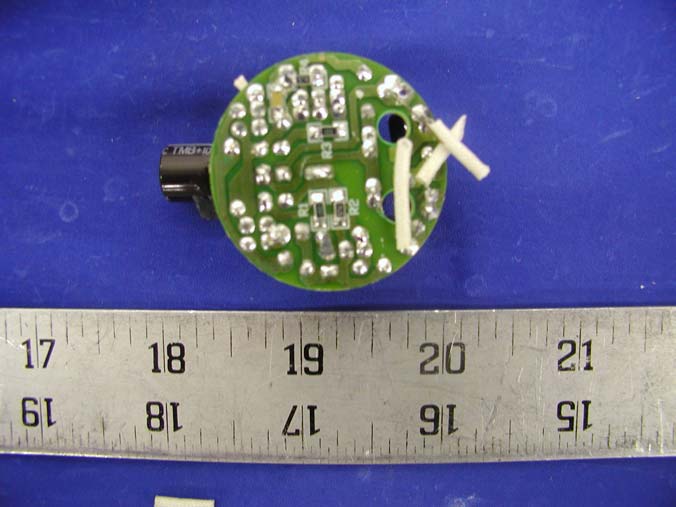

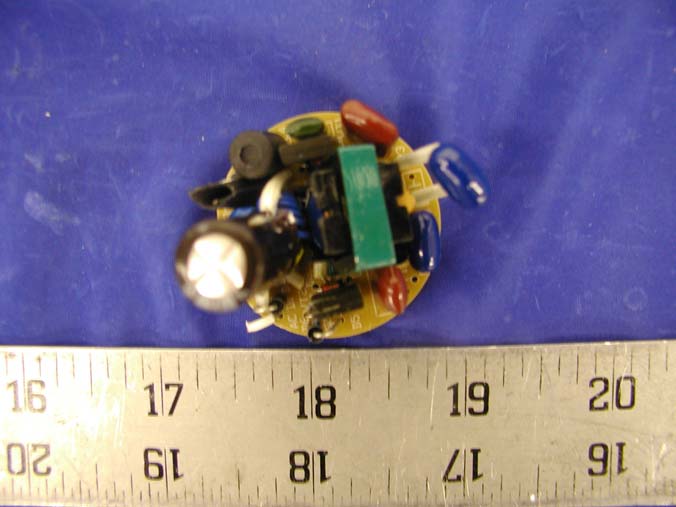

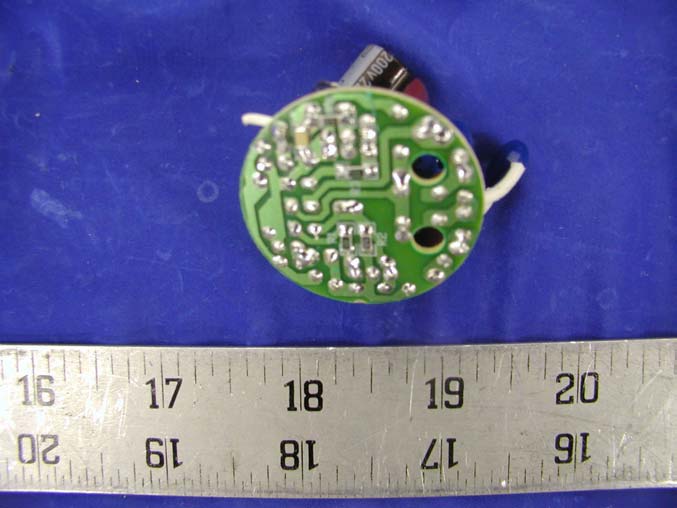

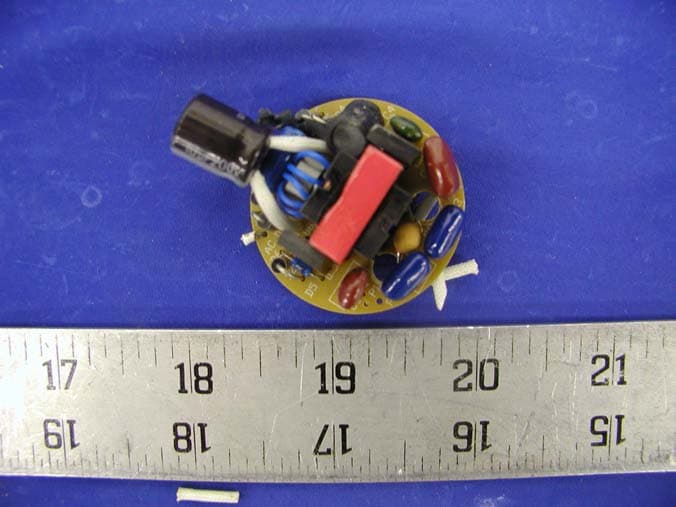

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – EL8us-11 Component View EUT – EL8us-11 Solder View EUT – EL8us-15 Component View EUT – EL8us-15 Solder View

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government FCC ID PER PART 18 MEASUREMENT AND TEST REPORT FOR Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd. Min Shen Industrial Zone, Xin Qiao Town Song Jiang District, Shanghai, China 201612 FCC ID: QZZJKRLSHEL 2003-06-24 This Report Concerns: Original Report Equipment Type: Compact Fluorescent Lamps Lighting Devices Test Engineer: Jerry Wang / Report Number: S0306174 Test Date: 2003-03-21 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd. FCC ID: QZZJKRLSHEL Report # R0306174Rpt.doc Page 2 of 13 FCC Part 18 Test Report TABLE OF CONTENTS Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd...........................................................................1 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT) GENERAL DESCRIPTION......................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION.......................................................................................................................................................5 2.2 EUT EXERCISE PROGRAM.....................................................................................................................................5 2.3 SCHEMATICS/BLOCK DIAGRAM.............................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.5 CONFIGURATION OF TEST SYSTEM.........................................................................................................................6 2.6 TEST SETUP BLOCK DIAGRAM...............................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 EUT SETUP............................................................................................................................................................7 3.3 EMI RECEIVER SETUP...........................................................................................................................................7 3.4 TEST PROCEDURE..................................................................................................................................................7 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................8 4 – FIELD STRENGTH MEASUREMENTS ...........................................................................................................13 Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd. FCC ID: QZZJKRLSHEL Report # R0306174Rpt.doc Page 3 of 13 FCC Part 18 Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd., Model: EL8us-11; EL8us-15 or the "EUT" as referred to in this report is a Compact Fluorescent Lamps Lighting Devices. The EUT (EL8us- 11) measures 5.00”L x 2.00”W x 2.00”H, the EUT (EL8us-15) measures 4.75”L x 2.00”W x 2.00”H. Note: The test data gathered are from typical production samples provided by the manufacturer. 1.2 Objective This Following test report is prepared on behalf of Shanghai Jin Kang Rong Lighting Electrical Equipment Co., Ltd. in accordance with Part 2, Subpart J, and Part 18, Subparts A and B of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted in accordance with MP-5, FCC Methods of Measurements of Radio Noise Emissi…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission Front View – EL8us-11 Conducted Emission Front View – EL8us-15
