M-TT 290 Series_e.doc / 03.2004 / page 1 (16) www.asim-technologies.com Installation Manual Tri-Tech TT 290 Series Combination Detectors for Traffic Data Acquisition Standard Models • TT 292 MW, US & PIR (2 Classes) • TT 295 MW, US & PIR (5+1 Classes) • TT 298 MW, US & PIR (8+1 Classes) Highlights • Vehicle Count • Speed Assessment • Classification by Vehicle Type • Detection of Stopped Vehicles • Can Detect Alternating Traffic • Detection of Wrong-Way Drivers • Easy Mounting and Maintenance • Vehicle Length Information with TT 295 / TT 298 M-TT 290 Series_e.doc / 03.2004 / page 2 (16) www.asim-technologies.com World Headquarters ASIM Technologies Ltd Ziegelhof-Strasse 30 CH-8730 Uznach Switzerland Tel: +41-55-285 99 99 Fax: +41-55-285 99 00 e-mail: [email protected] Sales Office North America ASIM Technologies, Inc. 53 River Street y Suite 304 y PO Box 12 Billerica, MA 01821 y U.S.A. U.S.A Tel: +1-978-667-5207 Toll-Free: +1-866-664-ASIM Fax: +1-978-667-8247 e-mail: [email protected] www.asim-technologies.com M-TT 290 Series_e.doc / 03.2004 / page 3 (16) www.asim-technologies.com Table of Contents Page Standard Models .....................................................................................................................................................1 Highlights ................................................................................................................................................................1 1 Introduction......................................................................................................................... 4 1.1 Triple-Technology (Tri-Tech) Detection......................................................................................................4 1.1.1 Microwave Doppler Radar (MW) ................................................................................................................4 1.1.2 Ultrasonic (US) ..............................................................................................................................................4 1.1.3 Passive Infrared (PIR)....................................................................................................................................4 1.2 Operation Principle of the Detectors of TT 290 Series ..............................................................................4 2 General Information ........................................................................................................... 5 2.1 Detection Areas............................................................................................................................................5 2.2 Counting / Volume.......................................................................................................................................5 2.3 Speed ............................................................................................................................................................5 2.4 Vehicle Classification ...................................................................................................................................6 2.5 Self-Check and Status Output .....................................................................................................................6 3 Planning the Main Application .......................................................................................... 7 3.1 Mounting Tips for Optimal Traffic Data Quality .......................................................................................7 3.1.1 Mounting of Detector Left or Right of the Centre of the Lane ...............................................................8 4 RS 485 Communication ....................................................................................................... 9 4.1 Interface Module and Software..................................................................................................................9 4.1.1 Product Description .....................................................................................................................................9 5 Wiring Instructions for Detectors .................................................................................... 10 5.1 Single Detector Application (Master) .......................................................................................................10 5.2 Operation of Multiple Detectors at the Same Databus ..........................................................................11 5.2.1 Master/Slave Wiring Using Two-Connector Devices................................................................................11 5.3 Bus-Terminating Resistors .........................................................................................................................11 5.4 Electrical Connections of the Detectors of the TT 290 Series .................................................................12 5.4.1 Recommendations for Cabling .................................................................................................................12 6 Special Functions...............................................................................................................13 6.1 Power Save Mode ......................................................................................................................................13 6.2 Wrong Way Driver Mode (Wrong-Way Vehicle Detection)....................................................................13 6.3 Vehicle Profile Information .......................................................................................................................13 7 Special Traffic Situations .................................................................................................. 13 7.1 Alternating Traffic .....................................................................................................................................13 7.2 Queue / Traffic Jam.........…

Text truncated - open the document above for the full version.

Annex No.7 Page 1 of 2 Block Diagram : Oscillator frequencies generated or used in the device: 420 kHz / 4.000 MHz / 24.135 GHz

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ASIM Technologies Ltd., Ziegelhof-Strasse 30, CH-8730 Uznach / Switzerland would like the following documents regarding this submission for FCC ID: R2DTT29X to be kept confidential. Triple Technology Combination Detector TT 290 Series 1. Page 2 to 16 Annex no. 8 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

Power of attorney We, ASIM Technologies Ltd., direct and authorize the company m. dudde hochfrequenz-technik Rottland 5A 51429 Bergisch Gladbach to carry out for our product : TT290 Series the certification in the following country United States of America Place Date: 25.03.2004

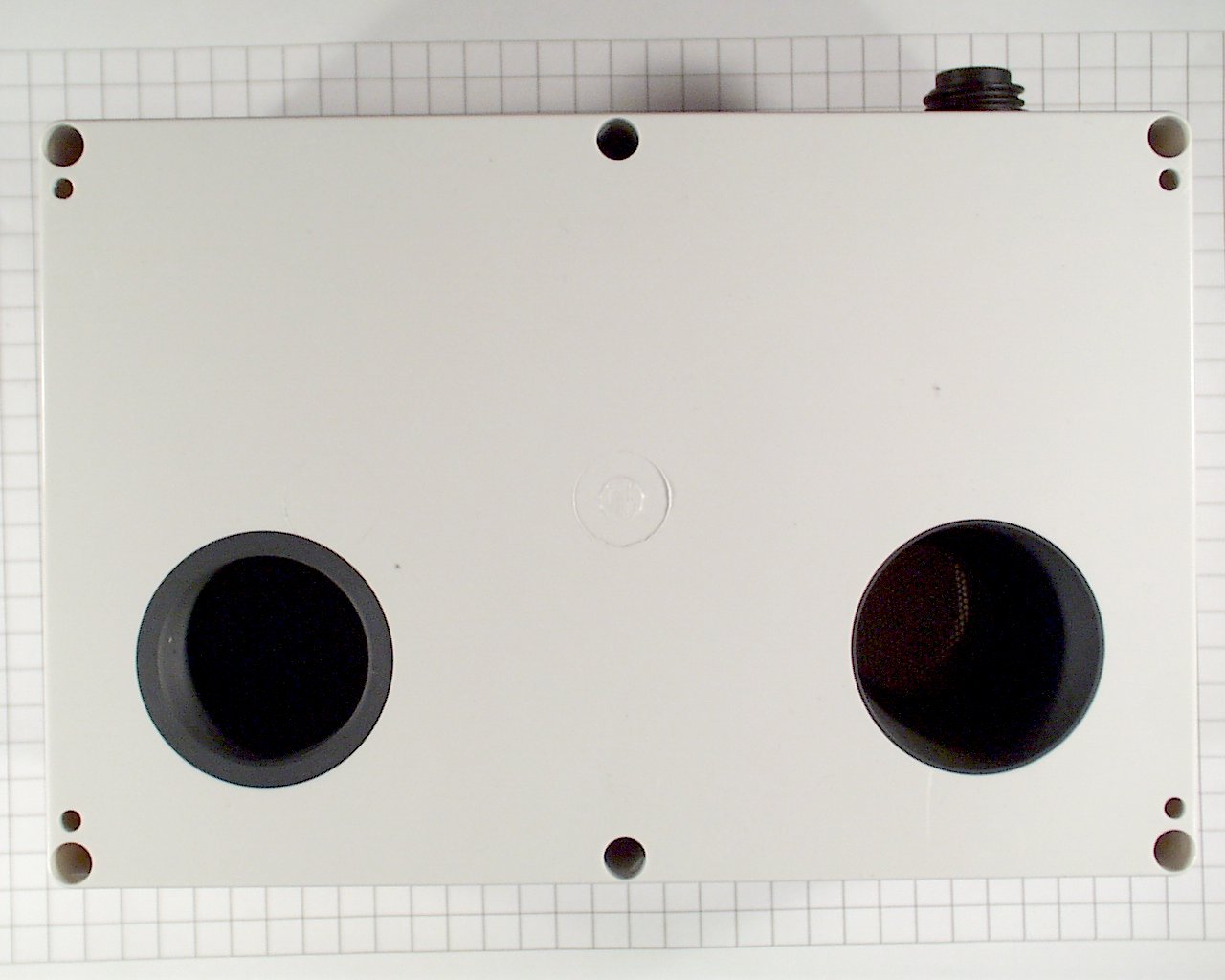

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE SKETCH OF FCC ID LABLE LOCATION FCC ID :R2DTT29X-453 ASIM Technologies Ltd Annex No.4 Page 2 of 2 FCC ID :R2DTT29X-453 ASIM Technologies Ltd

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.5 Technical Description TT 290 Series Traffic Data Acquisition & Classification Triple Technology Combination Detectors Tri - Tech MW, US & PIR Detection Tri - Tech detectors use three different physical detection principles and are used for traffic data acquisition applications requiring enhanced accuracy and high reli- ability. The built-in digital signal processor (DSP) combines the signals from all sensor chan- nels resulting in accurate information of all vehicles moving into or through the detection area. Applications Detection of vehicles with user-selectable functions determined by the installation site and specific purpose for • Vehicle classification • Counting of all kinds of vehicles • Speed of passing vehicles • Presence and queue detection • Occupancy and time gap detection in a variety of traffic data acquisition and traffic control applications including de- tection in lanes with alternating traffic. The detectors are mounted above the lane and aiming along the direction of travel. They replace inductive loops in many ap- plications without expensive road works or disruption of traffic flow during instal- lation. Technical Features Triple technology combining Doppler Ra- dar, Ultrasonic and Passive Infrared with intelligent logic enables the detector to collect the relevant traffic data including static presence information in case of sta- tionary vehicles. Adaptive circuitry compensates for tem- perature and other changing environ- mental effects. Data transfer between a data collection unit and one or more detector runs via an RS 485 data bus. The internal data buffer stores the information of all vehicles de- tected since the last data transfer. Standard mounting hardware is available for quick, stable and easy installation. Highlights • Classification by Vehicle Type • Accurate Speed and Count • Detection of Stationary Vehicles • Can Detect Alternating Traffic • Detection of Wrong-Way Drivers Standard Models • TT 292 MW, US & PIR (2 Classes) • TT 295 MW, US & PIR (5+1 Classes) • TT 298 MW, US & PIR (8+1 Classes) TT 290-E/ 03.2004-1 (2) Mechanical Dimensions Field of View L & R Q Specifications Mechanical Dimensions see diagram Case material polycarbonate, light grey Mounting points M8, stainless steel V2A Weight app. 1’700 g Microwave Doppler radar K - Band 24.05 ... 24.25 GHz Ultrasonic Frequency 50 kHz Pulse frequency 10 ... 30 Hz Infrared Sensors dynamic Spectral response 8 – 14 μm Electrical Supply voltage 10.5 ... 15 V DC Power consumption typ. 200 mA @ 12 V DC typ. 50 mA on standby Outputs Data transfer RS 485 Bus. 9600, 8, e, 1 Turn-on time typ. 20 s from power on Accuracy Counting typ. ± 3% Speed typ. ± 3% (> 100 km/h) typ. ± 3 km/h (≤ 100 km/h) Classification vehicle types according TLS (see installation manual) The specifications refer to free traffic flow situa- tions, detector mounted overhead, operated in frontfire mode. Environmental Operating temp. – 40°C to + 70°C Humidity 95% RH max. Sealing IP 64 splash proof Accessory IF 485 & Software Interface module and software for the connection of several detectors on a PC used for installation, configuration and collection of statistical data. Mounting Accessories Mounting hardware and cable connectors are not part of the delivery. Information regarding the available accessories depending on the mounting and operation mode according to the separate list. Ordering- Information T T 2 9 X – X X 3 – Y Y Detector Type _____ 2 Classes 2 5+1 Classes 5 8+1 Classes 8 Supply Voltage __________ 10.5 ... 15.0 V DC 4 Outputs ______________________ RS 485 Bus 5 Colour __________________________ Grey 3 Mounting ____________________________ Longitudinal standard L Perpendicular Q Longitudinal reverse R Protocol _________________________________ Standard 0 Data is based on samples and believed to be representative. Design and specification changes reserved without prior notice. For more specific information on the products, their installation and application please refer to the installation manual or con- sult the manufacturer. ASIM Technologies Ltd / Ziegelhof- Strasse 30 / CH- 8730 Uznach / Switzerland Tel. +41- 55- 285 99 99 / Fax +41- 55- 285 99 00 / www.asim-technologies.com TT 290-E/ 03.2004-2 (2) Accessories TT 290 Series Page 1 of 3 18.03.2004 / mg Accessories Series TT 290.doc Accessories for Standard Mounting ZA V 290-L1 For detector models TT 29X – XXX – L and TT 29X – XXX – R ZA V 290-L2 Accessory bracket for instal- lation on gantry (4 x screws M8 x12 with safety nut are included) Accessories for Mounting Perpendicular to Traffic Direction ZA V 290-Q1 For detector model TT 29X – XXX – Q Accessories TT 290 Series Page 2 of 3 18.03.2004 / mg Accessories Series TT 290.doc Accessories for Sidefire Mounting ZA V 290-L3 Electrical Accessories for Standard Mounting 402054 Receptacle, right angle 402058 Plug, right angle Electrical Accessories for Sidefire Mounting 402039 Receptacle 402035 Plug Accessories TT 290 Series Page 3 of 3 18.03.2004 / mg Accessories Series TT 290.doc Miscellaneous Accessories for all Mountings 402059 Dust Cap, Box Mounting Receptacle Supplied with detector 402055 Dust Cap, Box Mounting Plug ASIM Technologies Ltd / Ziegelhof - Strasse 30 / CH - 8730 Uznach / Switzerland Tel. +41 - 55 - 285 99 99 / Fax +41 - 55 - 285 99 00 / www.asim-technologies.com ASIM TT 26X & 29X Protocol_Standard_V1.10_ E.doc 03.2004 Page 1 (7) Telegram Specification for TT 262 / 265 / 268 and TT 292 / 295 / 298 Contents 1 Minimum requirements for bus communication ..................................................... 1 1.1 General rules for the use of IEC TC57/5 .................................................................................1 1.2 Telegram types ........................................................................................................................2 1.3 Realisation of primitives .....................................................................................................…
