R2V-MWW1Tracker Can

Pursuant to 47CFR Chapter 1, Section 0.459, post-grant confidentiality is requested for the following items, ensuring that this material continue to be withheld from public inspection following the grant: Exhibits – PCB Layouts, Schematics, Block Diagrams, Operational/Technical Description, Internal photos, Parts List.

Response to FCC Correspondence 12327 Revised confidentiality request has been uploaded. Internal photos are now non- confidential. Best Regards, Yunus Faziloglu Reviewing Engineer Curtis-Straus TCB

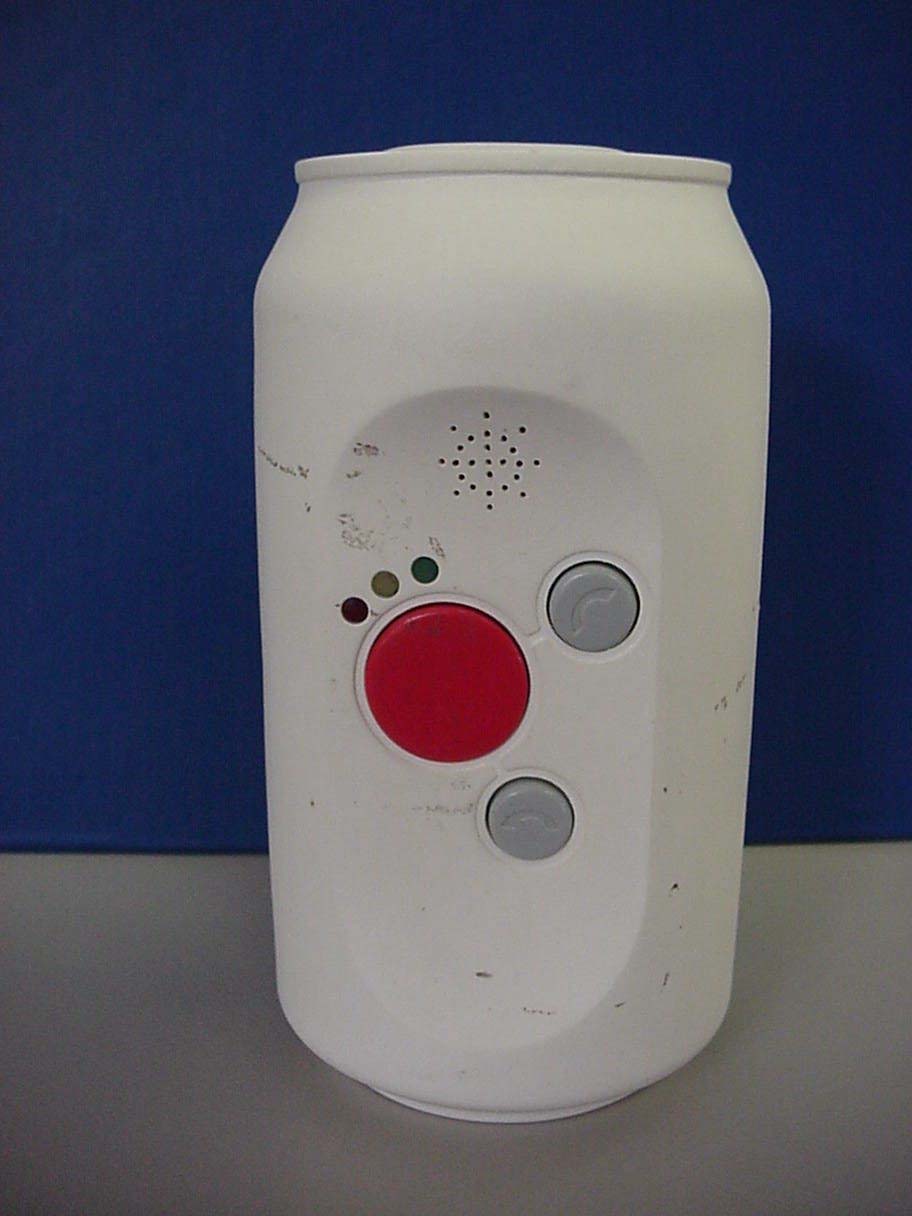

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX B1 – Test Sample External Photograph FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX G – FCC Labelling

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX B3 – Test Sample internal Photograph FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Antenna Location FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

Page 1 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au SAR TEST REPORT - FCC FCC ID: R2V-MWW1 Report Number: M040313_2 Test Sample: Single Band GSM Phone Model Number: TGP79AB Tested For: Momentum Date of Issue: 28 th April 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 2 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au CONTENTS 1.0 General Information ............................................................................................................... 3 2.0 Description of Device ............................................................................................................ 4 2.1 DESCRIPTION OF TEST SAMPLE.............................................................................................. 4 2.2 TEST SAMPLE ACCESSORIES.................................................................................................. 4 2.2.1 Battery Types ...................................................................................................................................... 4 2.3 TEST SIGNAL, FREQUENCY AND OUTPUT POWER..................................................................... 4 2.4 CONDUCTED POWER MEASUREMENTS.................................................................................... 5 2.5 B ATTERY S TATUS .................................................................................................................. 5 2.6 DETAILS OF TEST LABORATORY.............................................................................................. 6 2.6.1 Location .............................................................................................................................................. 6 2.6.2 Accreditations..................................................................................................................................... 6 2.6.3 Environmental Factors....................................................................................................................... 6 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM.............................................................. 7 3.1 PROBE POSITIONING SYSTEM................................................................................................. 7 3.2 E-FIELD PROBE TYPE AND PERFORMANCE.............................................................................. 7 3.3 DATA ACQUISITION ELECTRONICS........................................................................................... 7 3.4 C ALIBRATION AND V ALIDATION P ROCEDURES AND D ATA ........................................................... 7 3.4.1 Validation Results 1800 MHz) ........................................................................................................... 7 3.4.2 Deviation from reference validation values....................................................................................... 8 3.4.3 Liquid Depth 15cm ............................................................................................................................. 8 3.5 PHANTOM PROPERTIES (SIZE, SHAPE, SHELL THICKNESS, TISSUE MATERIAL PROPERTIES) ....... 9 3.5.1 Temperature and Humidity .............................................................................................................. 10 3.6 SIMULATED TISSUE COMPOSITION USED FOR SAR TEST........................................................10 3.7 DEVICE HOLDER FOR DASY4 ...............................................................................................10 4.0 SAR Measurement Procedure Using DASY4 ......................................................................11 5.0 MEASUREMENT UNCERTAINTY .........................................................................................12 6.0 Equipment List and Calibration Details...............................................................................14 7.0 SAR Test Method ..................................................................................................................15 7.1 DESCRIPTION OF THE TEST POSITIONS (HEAD SECTIONS) .......................................................15 7.2 LIST OF ALL TEST CASES (ANTENNA IN/OUT, TEST FREQUENCIES, USER MODES ETC)..............15 7.3 FCC RF E XPOSURE L IMITS FOR O CCUPATIONAL / C ONTROLLED E XPOSURE .............................15 7.4 FCC RF EXPOSURE LIMITS FOR UN-CONTROLLED/NON–OCCUPATIONAL.................................15 8.0 SAR Evaluation Results .......................................................................................................16 8.1 SAR M EASUREMENT R ESULTS FOR 1900 MH Z ......................................................................16 9.0 Compliance statement ..........................................................................................................16 APPENDIX A1 Test Sample Photographs .......................................................................................17 AP…

Text truncated - open the document above for the full version.

EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 20 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 13: 1900 MHz SAR Plots Page Plot Number Position Channel Number 20 Plot 1 Touch – Right 512 21 Plot 2 Touch – Right 661 22 Plot 3 Touch – Right 810 23 Plot 4 Touch – Left 661 24 Plot 5 Tilted - Right 661 25 Plot 6 Tilted - Left 661 26 - 28 Z-Axis Scans for Plots 1 to 6 Table 14: SAR Validation Plots Page Plot Number Date Frequency 29 Plot 7 Validation 17- March - 2004 1800MHz 30 Z-Axis Scans for Plot 7 EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 21 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au Test Date: 17 March 2004 File Name: Touch Right 1900 MHz GSM (DAE442 Probe1377) 17-03-04.da4 DUT: Tiller Tracker Can Phone; Type: TGP79AB; Serial: 001033000030552 * Communication System: PCS; Frequency: 1850.2 MHz; Duty Cycle: 1:8.3 * Medium parameters used: σ = 1.42464; mho/m, ε r = 38.9076; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.1, 5.1, 5.1) - Phantom: SAM 12; Serial: 1060; Phantom section: Right Section Channel 512 Test 2/Area Scan (131x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.3 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 0.403 mW/g Channel 512 Test 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.387 mW/g Peak SAR (extrapolated) = 0.518 W/kg SAR(1 g) = 0.362 mW/g; SAR(10 g) = 0.228 mW/g 0 dB = 0.387mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.9 Degrees Celsius Liquid Temperature 21.1 Degrees Celsius Humidity 52 % EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 22 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au Test Date: 17 March 2004 File Name: Touch Right 1900 MHz GSM (DAE442 Probe1377) 17-03-04.da4 DUT: Tiller Tracker Can Phone; Type: TGP79AB; Serial: 001033000030552 * Communication System: PCS; Frequency: 1880 MHz; Duty Cycle: 1:8.3 * Medium parameters used: σ = 1.43935; mho/m, ε r = 38.776; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.1, 5.1, 5.1) - Phantom: SAM 12; Serial: 1060; Phantom section: Right Section Channel 661 Test/Area Scan (131x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.2 V/m; Power Drift = 0.1 dB Maximum value of SAR (interpolated) = 0.383 mW/g Channel 661 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.364 mW/g Peak SAR (extrapolated) = 0.480 W/kg SAR(1 g) = 0.342 mW/g; SAR(10 g) = 0.217 mW/g 0 dB = 0.364mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.9 Degrees Celsius Liquid Temperature 21.1 Degrees Celsius Humidity 52 % EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 23 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au Test Date: 17 March 2004 File Name: Touch Right 1900 MHz GSM (DAE442 Probe1377) 17-03-04.da4 DUT: Tiller Tracker Can Phone; Type: TGP79AB; Serial: 001033000030552 * Communication System: PCS; Frequency: 1909.8 MHz; Duty Cycle: 1:8.3 * Medium parameters used: σ = 1.45209; mho/m, ε r = 38.6591; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.1, 5.1, 5.1) - Phantom: SAM 12; Serial: 1060; Phantom section: Right Section Channel 810 Test/Area Scan (131x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.9 V/m; Power Drift = 0.0 dB Maximum value of SAR (interpolated) = 0.349 mW/g Channel 810 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.335 mW/g Peak SAR (extrapolated) = 0.450 W/kg SAR(1 g) = 0.312 mW/g; SAR(10 g) = 0.194 mW/g 0 dB = 0.335mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 21.9 Degrees Celsius Liquid Temperature 21.1 Degrees Celsius Humidity 52 % EMC Technologies Report No. M040313_2 FCC ID: R2V-MWW1 Page 24 of 32 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. The certificate on page 3 may be reproduced in full. www. emctech.com.au Test Date: 17 March 2004 File Name: Touch Left 1900 MHz GSM (DAE442 Probe1377) 17-03-04.da4 DUT: Tiller Tracker Can Phone; Type: TGP79AB; Serial: 001033000030552 * Communication System: PCS; Frequency: 1880 MHz; Duty Cycle: 1:8.3 * Medium parameters used: σ = 1.43935; mho/m, ε r = 38.776; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.1, 5.1, 5.1) - Phantom: SAM 12; Serial: 1060; Phantom section: Left Section Channel 661 Test/Area Scan (131x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.7 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 0.350 mW/g Channel 661 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.342 mW/g Peak SAR (extrapolated) = 0.464 W/kg SAR(1 g)…

Text truncated - open the document above for the full version.

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 09/07/03 09/07/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 11/07/03 11/07/04 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 DIGITAL RADIO TESTER Rohde & Schwarz, Model CTS65 Sn: 1094.0006.65 - - - Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 04 N/A N/A N/A Feb 05 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX H – Bandedge Plots FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bandedge - Low FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bandedge – High

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX I – Bandwidth Plots FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bandwidth – Low Channel FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bandwidth – Middle Channel FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bandwidth – High Channel

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX K – Conducted Spurious Emissions Plots FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Frequency Band: 9 kHz – 1 GHz FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Frequency Band: 1 – 7 GHz FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Frequency Band: 7 - 20 GHz

Page 1 of 15 EMI TEST REPORT for CERTIFICATION to FCC PART 24 Subpart E – Broadband PCS FCC ID: R2V-MWW1 Test Sample: Tracker Can Model: TGP79AB Tested for: Momentum Worldwide Pty Ltd Report Number: M040312_Cert_Tracker_Can Issue Date: 20 th April 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can Page 2 of 15 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 24 Subpart E – Broadband PCS EMC Technologies Report No. M040312_Cert_Tracker_Can Issue Date: 20 th April 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION RESULTS 1.0 POWER OUTPUT MEASUREMENTS 2.0 OUT of BAND EMISSIONS MEASUREMENTS 3.0 CHANNEL BANDWIDTH 4.0 FREQUENCY STABILITY 5.0 RADIO FREQUENCY EXPOSURE 6.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: REPORT PHOTOGRAPHS APPENDIX C: BLOCK DIAGRAM APPENDIX D: SCHEMATICS APPENDIX E: PCB LAYOUTS APPENDIX F: TECHNICAL DESCRIPTION APPENDIX G: FCC LABELLING DETAILS APPENDIX H: BANDEDGE PLOTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: USER MANUAL APPENDIX K: CONDUCTED SPURIOUS EMISSIONS PLOTS APPENDIX L: PARTS LIST FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can Page 3 of 15 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 24 Subpart E – Broadband PCS Report Number: M040312_Cert_Tracker_Can Test Sample: Tracker Can Model: Serial: TGP79AB 001033000030552 Tested for: Momentum Worldwide Pty Ltd FCC ID: R2V-MWW1 Equipment Type: Intentional Radiator Tested for: Momentum Worldwide Pty Ltd Address: 140 William Street Woolloomooloo, NSW 2011 Australia Phone: +61 2 8333 0000 Fax: +61 2 8333 0001 Contact: Gregory Legg- Bagg Test Standards: FCC Part 24 – PERSONAL COMMUNICATIONS SERVICES Subpart E – Broadband PCS ANSI/TIA/EIA-603 ANSI C63.4 – 1992 OET Bulletin No. 63 Test Dates: 19 th to 29 th March 2004 Test Officer: Chieu Huynh B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can Page 4 of 15 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 24 Subpart E – Broadband PCS 1.0 INTRODUCTION EMI testing was performed on the Tracker Can, Model: TGP79AB. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 24: Personal Communications Services (particularly subpart E) Section 24.232: Power Limits Section 24.235: Frequency Stability Section 24.238: Emission Limits The test sample complied with the requirements of 47 CFR, Part 24 Subpart E – Broadband PCS. 1.1 Summary of Results FCC Part 24, Subpart E Clauses Test Performed Result 24.232 Power Limits Complies 24.235 Frequency Stability Complies 24.238 Emission Limits Complies The measurement procedure used was in accordance with ANSI/TIA/EIA-603, ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation conformed to the requirements of ANSI C63.2-1987. 1.2 Modifications by EMC Technologies No modifications were required. FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can Page 5 of 15 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. 2.0 GENERAL INFORMATION (Information supplied by the Client) 2.1 Product Details Test Sample: Tracker Can Model: Serial: TGP79AB 001033000030552 FCC ID: R2V-MWW1 Manufacturer: Momentum Worldwide Pty Ltd 2.2 Operational Description and Specifications Refer to Appendix F – Technical Description. 2.3 Test Configuration Radiated Measurements: The Tracker Can was configured to communicate continuously to the Rohde & Schwarz Digital Radio Tester and was transmitted continuously during all tests. Conducted Measurements: The Tracker Can was configured to communicate continuously to the Rohde & Schwarz Digital Radio Tester. A splitter was used between the Tracker Can, the Rohde & Schwarz Digital Radio Tester and the Spectrum analyse…

Text truncated - open the document above for the full version.

FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040312_Cert_Tracker_Can APPENDIX B2 – Test Setup Photograph FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Setup Photograph Radiated Measurements Test Setup FCC ID: R2V-MWW1 Report No. M040312_Cert_Tracker_Can EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Setup Photograph Conducted Measurements Test Setup
