R37-DWSBTM1SW-SBTM1 BLUETOOTH MODULE

DW-SBTM1 Bluetooth Module User Manual / Functional Description DW-SBTM1_UM_00.doc Stand-alone Bluetooth Module User Manual Page 2 Table of Contents: REGULATORY COMPLIANCE REQUIREMENTS: ..............................................................3 US FCC REQUIREMENTS: ..................................................................................................................3 INDUSTRY CANADA COMPLIANCE REQUIREMENTS: ..........................................................................4 DESIGN REQUIREMENTS: ........................................................................................................4 GENERAL DESCRIPTION: .........................................................................................................5 MODULE UART INTERFACE:...................................................................................................5 SPECIFICATIONS: .......................................................................................................................6 GENERAL SPECIFICATIONS: ...............................................................................................................6 ENVIRONMENTAL SPECIFICATIONS: ...................................................................................................6 ELECTRICAL SPECIFICATIONS: ...........................................................................................................6 USAGE REQUIREMENTS AND RECOMMENDATIONS:.....................................................7 MECHANICAL SPECIFICATIONS: ..........................................................................................8 CONTACT INFORMATION:.......................................................................................................9 REVISION HISTORY: ..................................................................................................................9 DW-SBTM1_UM_00.doc Stand-alone Bluetooth Module User Manual Page 3 Regulatory Compliance Requirements: US FCC requirements: Following text must be copied exactly in the user’s manual of the device that uses this Bluetooth Module. Information for Class B Unintentional Radiators (FCC 15.21 & 15.105: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The User may find the following booklet helpful: How to identify and resolve Radio-TV Interference Problems. This booklet may be available from the U.S. Government Printing Office, Washington, D.C. 20402. FCC 15.21 & 15.105 warning: Warning : Changes or modifications not expressly approved by DATAWIND could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. DW-SBTM1_UM_00.doc Stand-alone Bluetooth Module User Manual Page 4 Industry Canada Compliance Requirements: This Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Following text must be copied exactly into the product’s user manual. Design Requirements: DATAWIND’s Bluetooth Module generates and radiates Radio-Frequency energy. The usage of the module into a final product has to meet following conditions: (1) OEM/Users cannot alter or modify the module in any way. (2) Antenna cannot be removed and or replaced by other transmitting means. Changes or modifications not expressly approved by DATAWIND could void the user’s authority to operate the equipment. FCC ID: R37-DWSBTM1 IC: ###-DWSBTM1 (TBD) Bluetooth QPL: ###-DWSBTM1 (TBD) For any queries please use following phone number: 1-877-878-DATA (1-877-878-3282) or email at: [email protected] . DW-SBTM1_UM_00.doc Stand-alone Bluetooth Module User Manual Page 5 General Description: NOTE: All references to internal parts are to be crosschecked against BOM as they represent confidential information. DW-SBTM1 is a standalone Bluetooth module running HCI level Bluetooth stack. It enables data connectivity over distances as much as 10m (30ft). The HCI interface is standard to ###FLASH or ###ROM parts (check BOM). DW-SBTM1F = uses ###Flash part (check BOM) DW-SBTM1R = uses ###ROM part (check BOM) The integrated circuit includes both the RF processor as well as the baseband (BB) processor. All the related Bluetooth protocols that deal with RF modulation, channel hoping sequence and timing, are dealt within the chip. It also has an internal regulator for the core and RF circuitry, and internal VCO and PLL filter. The module consists of the ###ROM/###FLASH chip (check BOM), a 10ppm crystal, antenna balloon and filter, and permanently attached…

Text truncated - open the document above for the full version.

May 05, 2004 Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Subject: FCC Certification Authorization Application under Part 15, Subpart C, Sec. 15.247 - Spread Spectrum (Bluetooth) Transmitter operating in the frequency band 2402-2480 MHz. Product: Bluetooth Module Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Dear Sir/Madam As appointed agent for Datawind Net Access Corp., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to Timco Electronic filing site for detailed information. • Modular Transmitter Approval Request:- This application is subject to the FCC certification for a modular transceiver, please refer to Modular Approval letter confirming compliance for this Bluetooth transmitter with FCC Public Notice DA 00-1407. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

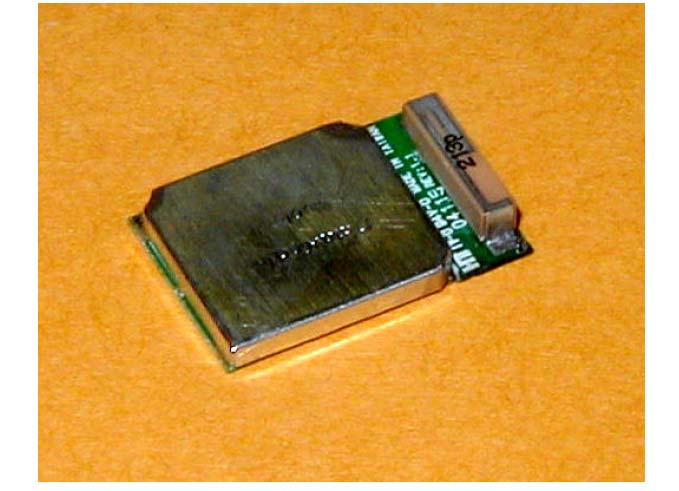

Annex 2 – External Photographs of EUT Photo #1 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 2 – External Photographs of EUT Photo #2 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1

DATAWIND NET ACCESS CORP. 555 RENE LEVESQUE W., Suite 1130, MONTREAL (QC) H2Z 1B1 Phone: 1-514-871-0984 Fax: 1-514-871-3864 May 06, 2004 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Module FCC Label Applicant: DATAWIND NET ACCESS CORP. Product: Bluetooth Module Model: DW-SBTM1 FCC ID: R37-DWSBTM1 FCC Label for the module shall be either silk-screened on the bottom layer during PCB manufacturing (method A ) or made and applied on the module RF shield (method B). Method A : Method B : FCC ID: R37-DWSBTM1 IC: 5081A-DWSBTM1 FONT: ARIAL NARROW, size 3 points BT: ###-DWSBTM1 Real Size FCC ID: R37-DWSBTM1 IC: 5081A-DWSBTM1 BT: ###-DWSBTM1 Real Size Silkscreen on the bottom layer of the module: Text Height = 1.25mm Text Spacing = 75% Line Thickness = 0.2mm

Annex 3 – Internal Photographs of EUT Photo #1 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 3 – Internal Photographs of EUT Photo #2 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 3 – Internal Photographs of EUT Photo #3 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1

RF EXPOSURE INFORMATION Applicant: DATAWIND NET ACCESS CORP. Product: Bluetooth Module Model: DW-SBTM1 FCC ID: R37-DWSBTM1 RF Exposure Startement: DATAWIND Bluetooth module DW-SBTM1 complies with FCC radiation exposure requirement specified in the FCC Rules 15.247(b)(5). This DATAWIND DW-SBTM1 Module has 1.85mW (2.67dbm) of conducted peak output power and 2.08 mW (3.17dbm) of EIRP (Peak Antenna Gain is 0.5dbi). Also the highest measured field strength of fundamental emission was 92.2 dBuV/m. Since the peak conducted & radiated EIRP power is very low and well below 5mW, this type of equipment less likely to go over SAR value limit of 1.6W/Kg for General Public use which is regulated by “OET Bulletin 65, Supplement C”.

ENGINEERING TEST REPORT Bluetooth Module Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Applicant: Datawind Net Access Corp. 555 Rene Levesque West, Suite 1130 Montreal, Quebec Canada, H2Z 1B1 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, SEC. 15.247 Spread Spectrum (Bluetooth) Transmitter operating in the frequency band 2402-2480 MHz UltraTech's File No.: DOC005_FCC15.247 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: May 05, 2004 Report Prepared by: Dharmajit Solanki, RFI Engineer Tested by: Mr. Hung Trinh, RFI Technician Issued Date: May 05, 2004 Test Dates: May 05, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC DOCKET NO.: 99-231:2002,Pt. 15, SUB. C, Sec. 15.247 –SPREAD SPECTRUM (BLUETOOTH) TRANSMITTER Page 2 Bluetooth Module, Model: DW-SBTM1 FCC ID: R37-DWSBTM1 ULTRATECH GROUP OF LABS File #: DOS005_FCC15.247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 05, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST .............................................................................................................. 4 EXHIBIT 2. INTRODUCTION ................................................................................................................................ 5 2.1. SCOPE ............................................................................................................................................................... 5 2.2. RELATED SUBMITAL(S)/GRANT(S)........................................................................................................................ 5 2.3. NORMATIVE REFERENCES .......................................................................................................................... 5 EXHIBIT 3. PERFORMANCE ASSESSMENT ..................................................................................................... 6 3.1. CLIENT INFORMATION .................................................................................................................................... 6 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................ 6 3.3. EUT’S TECHNICAL SPECIFICATIONS ........................................................................................................ 7 3.4. LIST OF EUT’S PORTS......................................................................................................................................... 8 3.5. ANCILLARY EQUIPMENT...................................................................................................................................... 9 3.6. GENERAL TEST SETUP.................................................................................................................................. 9 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .................... 10 4.1. CLIMATE TEST CONDITIONS...............................................................................................................................10 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ........................................................................ 10 EXHIBIT 5. SUMMARY OF TEST RESULTS .................................................................................................... 11 5.1. LOCATION OF TESTS................................................................................................................................... 11 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS................................................................ 11 5.3. BLUETOOTH APPROVAL REQUIREMENTS............................................................................................................ 12 5.4. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES......................................................... 14 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ................... 15 6.1. TEST PROCEDURES............................................................................................................................................ 15 6.2. MEASUREMENT UNCERTAINTIES........................................................................................................................ 15 6.3. MEASUREMENT EQUIPMENT USED:..................................................................................................................... 15 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUACTURER:.............................. 15 6.5. UNLICENSED MODULAR TRANSMITETR APPROVAL REQUIREMENTS @ FCC PUBLIC NOTICE DA 00-1407 (JUNE 26, 2000) ...................................................................................................................................................................... 16 6.6. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS............................... 19 6.7. AC POWERLINE CONDUCTED EMISSIONS @ FCC PART 15, SUBPART B, PARA.15.107(A) & 15.20720 6.7.1. Limits ........................................................................................................................................................ 20 6.7.2. Method of Measurements ..................…

Text truncated - open the document above for the full version.

Annex 1 – Test Setup Phot ographs of EUT Photo #1 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #2 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #3 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #4 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #5 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #6 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1 Annex 1 – Test Setup Phot ographs of EUT Photo #7 DATAWIND Bluetooth Module, Model No.: DW-SBTM1 FCC ID: R37-DWSBTM1
