R3BTOYABI-TRUCKToyabi Monster Truck
HK (Shenzhen) Industries Development Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jun 21, 2006
- Application Purpose
- Original Equipment
- Date of Application
- Jun 21, 2006
- Equipment Note
- Toyabi Monster Truck
- Frequency Range
- 27.14500000 - 27.14500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
External Photos

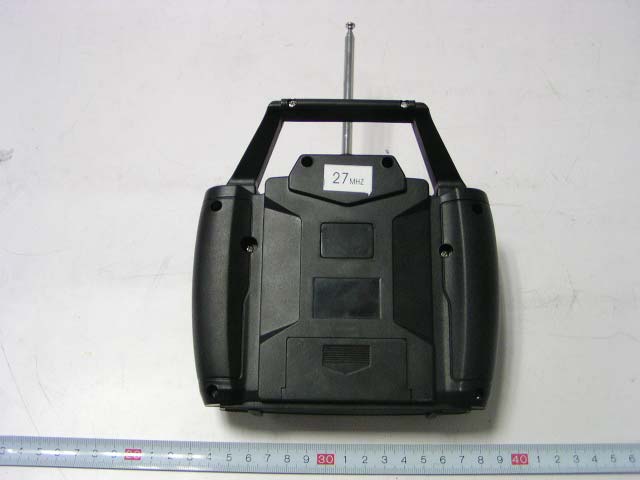

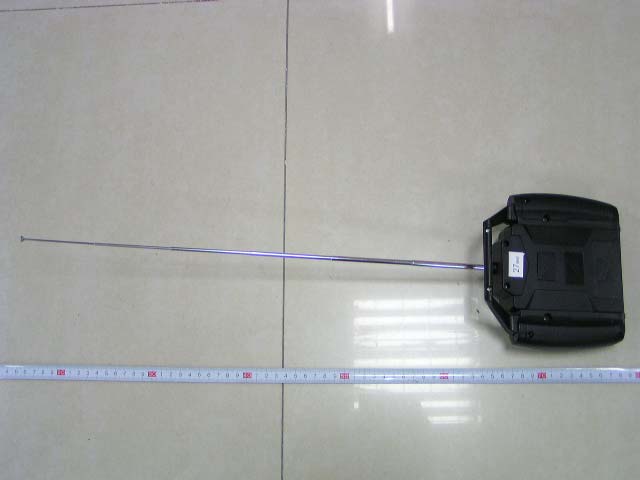

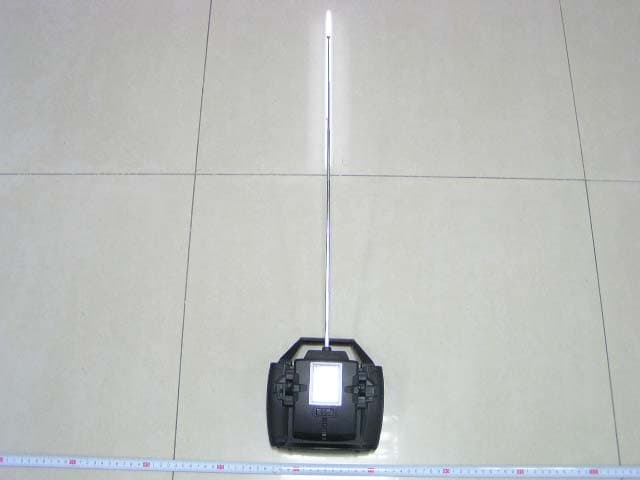

External Photos EUT-Front View (1) EUT-Rear View (1) EUT-Front View (2) EUT-Rear View (2)
ID Label/Location Info
ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.
ID Label/Location Info
ID Label Label FCC ID: R3BTOYABI-TRUCK
Internal Photos
Internal Photos EUT-Uncovered View EUT-Inside View (1) EUT-Inside View (2) EUT-PCB Top View EUT- Inside View (2) EUT- Inside View (3) EUT- Mainboard Front View EUT- Mainboard Rear View
Operational Description
The description of XD-4038T (27M) circuit XD-4038T remote control emitter adopted DC9V (6F22) battery, when the power supply switcher (SW1) is on, the emission carrier wave frequency oscillating circuit consisted of LED, Q1 (C945), X1 (crystal oscillating 27.145MHZ) are working, when the any key on the function remote control coding generating circuit is connected to ground, the 8 th pin of U1 (TX-2) output consecutive data pulse coded signal and arrived high frequency triode Q1 (2N3904) by R1 (15K). High frequency triode Q1 (2N3904) modulates carrier wave oscillating frequency and data pulse coded signal from C6 (47P) into high frequency carrier wave of RF AMPLIFTLER, then radiate by emitting antenna in the form of space electromagnetic wave.
Schematics
1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 12-May-2006 Sheet of File: C:\Program Files\Design Explorer 99 SE\Examples\4038R-1(27M)8.DDB Drawn By: R2680 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U1 RX-2 C1 10P C3 47P Q1 C1812/Y ANT L1 3.3uH C4 332J C2 22P T1 R1 150K CD1 4.7uF C5393 R3 4.3K R4 2.2K C6 104 R7 2.2M R6 2.2K R8 2.2K R9 220K R5 2.2M C7 501 C9 222 C8 104 VDD F B R L IF IF C10 103 CD2 1000uF DW1 3.3V VDD R10 470 R15 1K R14 1K R13 1K R12 1K Q5 8050 Q48050 Q38050 Q28050 D1 1N4001 D2 1N4001 D3 1N4001 D4 1N4001 F BR L 5 3421 JD4 7A12V 5 3421 JD3 7A12V 5 3421 JD2 7A12V 5 3421 JD1 7A12V R18 150 R16 150 D6 6A10 D5 6A10 D7 6A10 D8 6A10 LMRM BM FM VCC VCC GND R11 470 VCC C11 104 CD3 220uF C12 104 D12 1N4148 D11 1N4148 D9 1N4148 D10 1N4148 CD5 22UF CD6 22UF CD322UF CD7 22UF XD-4038R(27M) D3 1N4001 D4 D1 1N4001 D2 FM RMBM LM R3 680 R1 680 R2 680 DW1 3.3V DW23.3VDW3 3.9V LED6 LED7 LED4 LED5 LED1 LED2 LED3
Test Report
Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For HK（Shenzhen）Industries Development CO., Ltd Flat 615.3/F., Bagua Industries Zone, Bagua 2nd Road Shenzhen 518029， China FCC ID: R3BTOYABI-TRUCK June 12, 2006 This Report Concerns: Original Report Equipment Type: TOYABI MONSTER TRUCK (Transmitter, Toy Remote Control) Test Engineer: William chan Report No.: RSZ06051101 Test Date: May 16, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 HK（Shenzhen）Industries Development CO., Ltd. FCC ID: R3BTOYABI-TRUCK Report # RSZ06051101 Page 2 of 14 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................13 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST DATA................................................................................................................................................................13 HK（Shenzhen）Industries Development CO., Ltd. FCC ID: R3BTOYABI-TRUCK Report # RSZ060…
Text truncated - open the document above for the full version.
Test Setup Photos
Test Setup Photos Radiated Emission - Front View Radiated Emission - Rear View
Contact Information
Applicant
Gu Wu(General Manager)
Test Firm
Bay Area Compliance Laboratory Corp. (Shenzhen)John Chan
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 27.145 MHz - 27.145 MHz | - |
