R3ISHHR05-U1RF Repeater System

Thank you for choosing the SHHR05-U1 RF Repeater System For your safety, we shall recommend to read these instructions carefully before using, operating and adjusting this product. This operating instruction applies only to the SHHR05-U1 RF Repeater System. Operating Instructions RF Repeater System Product No.: SHHR05-U1 SEOHWA TELECOM CO., LTD. . For PCS 1900 MHz System 2 The SHHR05-U1 RF Repeater System is a bi-directional amplifier designed specially for in- building RF Coverage extension ( about 100 and more) for cellular services. If you have a coverage problem in your home, office, small shop and restaurant, the SHHR05- U1 RF Repeater System will be a proper solution for your needs. 1. Basic Description of Each Part For PCS 1900 MHz System 3 2. Function of Each part 1) DONOR ANT. Port for connecting Donor antenna ( Patch Antenna ) 2) SERVICE ANT. Port for connecting Service antenna ( Dipole Antenna ) 3) GAIN CONTROL SWITCH Switch for controlling the system gain to optimize the service environment of Repeater. For using this function, refer to the instructions of LED Alarm and Gain Control Switch as following pages. 4) ALARM LED There are two LED indicators on the unit. One is for displaying the Power Input Status, the other is for operating status. a. Power LED The power indicator, marked “ Power “ acts as power alarm. It monitors the function of the power supply. Blue LED ON : Normal Status LED Status Red LED ON : Power supply failure b. Automatic Shutdown Function If there are some abnormal output powers on the uplink or downlink path, the repeater will be shutdown automatically to avoid any problem. Blue LED ON : Normal Status LED Status Red LED ON : Failure Status If the red indicator lights up, it is designed that the related circuit operates to have the repeater shutdown to protect repeater itself. Despite several corrections, the indicator is still kept red on, it should be secured the isolation more between the donor antenna and service antenna. For PCS 1900 MHz System 4 * Shutdown Algorithm The embedded detector of repeater is designed to detect whether the RF output power of the repeater exceeds a prescribe limit on the downlink or uplink. If it catches some overpowers during 10 seconds and more, the repeater itself shutdown automatically. Meanwhile, the repeater operates as the above algorithm during shutdown. * Shutdown Level Specifications Remarks Downlink +15 ± 2 dBm / Total Red LED ON Uplink +15 ± 2 dBm / 1FA Red LED ON 5) DC POWER SUPPLY Port for connecting exterior power adapter that supplies DC7V power to the repeater.. 6) HOLE for PICTURE FRAME Hole for hanging the picture provided ( Optional ). Detection for 10 second S/D for 10 seconds Input Detection for 1 second S/D for 10 seconds Detection for 1 second Detection for 1 second S/D for 30 m inutes S/D completely For PCS 1900 MHz System 5 3. Instructions for using each device 1) Antenna set Antenna set is comprised of Donor & Service Antenna. To install Antenna set, follow the instructions as bellows. Donor Antenna ( Patch Antenna ) Assistant Device for installing donor Ant. * If necessary, you can use the fixing bracket differently provided. Donor Antenna cable Service Antenna ( Dipole Antenna ) For PCS 1900 MHz System 6 ( Warning ) When connecting the Donor / Service antenna to the Repeater Body, Do not use too strong power. It is threaten to be connector defected. 2) Gain control switch For system optimizing, you can adjust the system gain through gain control switch according to the LED status and service quality of subscriber’s terminal. In this case, start from step 4 to step1. 3) ALARM LED Can be checked the operating status through LED Lamp in front of Repeater body. If there is any failure status, follow the instruction of the above 2) Gain Control Switch over and over. If RED LED on, the repeater is stopped automatically to avoid any damage. For rebooting the repeater, must be supplied power again. Being still kept failure status despite of , remove the power supply from the repeater. 4) Power Supply Exterior adapter having AC 110 V input supplies DC 7 V power to the repeater to run active circuits. Blue LED On is normal status. ( Warning ) Gain being set up to 43dB in the factory. Please adjust it as field condition For PCS 1900 MHz System 7 5) Installation on the wall The bracket provided can be used to install repeater on the wall as a below figure. 4. Trouble Shooting If the repeater is not normal status as followings, please remove power supply off to avoid additional damage and contact service center for repairs. Overheating status Red LED on ( For 35 seconds and more ) Power LED failure ( Caution ) Installation Hole on the wall Repeater Mounting Holder For PCS 1900 MHz System 8 5. Technical Specification Parameters Forward path Reverse path Frequency Range 1930~1990 MHz 1850 ~ 1910 MHz Channel Bandwidth 60 MHz Output Level (Max) +7 dBm / 11FA +10 dBm / 1FA Input Level (Max) -120 ~ -43 dBm -120 ~ -40 dBm Gain 50 dB 2 dB Tx/Rx Isolation 65 dB Noise Figure 7 dB ( Max Gain ) V. S . W . R 1.7 : 1 Propagation Delay 1 us Impedance 50 ohm Control No Control interface Mechanical Specification Dimension 68 (W) x 100 (H) x 37 (D) mm Weight 0.46 kg ( installing bracket included ) Power supply 7V DC / 110V AC Electric power Consumption 5.7 W Operating Temperature / Relative Humidity -20 / 5% ~ +50 / 95% Storage Temperature -30 ~ +80 Cooling Convection Connector SMA female For PCS 1900 MHz System 9 6. Package Contains 7. Contact Information For more details, please contact us. Thank you ! Seohwa Telecom Co., Ltd Tel : ++ 82 2 2109 3887 Fax : ++ 82 2 838 5313 E-mail : [email protected] Seoul, Korea. No. Item Descriptions Q/ty Remarks 1 Repeater Speed Home Repeater 1 Patch antenna for outdoor 1 Donor Antenna Dipole antenna for indoor 1 Service Antenna Assistant device 1 2 Antenna Screws 4 3 Power supply AC_DC Adapter 1 Assistants 1 Screws 2 4 Fixing device Assistant fixing device 1 Picture 1 Optional 5 Fram…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 5. Test Setup Photos

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 3. External Photographs of EUT

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 1. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Seohwa Telecom Co., Ltd. RF Repeater System Model : SHHR05-U1 FCC ID : R31SHHR05-U1 FCC Label

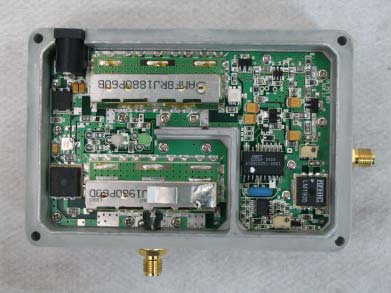

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 4. Internal Photographs of EUT Up Link Down Link BWS TECH Inc. 2 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Up Link Down Link

1.1 Introduction 1.2 The SHHR05-U1 Speed Home Repeater is a bi-directional amplifier designed specially for in-building RF Coverage extension ( about 100 and more) for cellular services. If you have a coverage problem in your home, office, small shop and restaurant, the SHHR05-U1 Speed Home Repeater will be a proper solution for your needs. Parameters Forward path Reverse path Frequency Range 1930~1990 MHz 1850 ~ 1910 MHz Channel Bandwidth 60 MHz Output Level (Max) +7 dBm / 11FA +10 dBm / 11FA Input Level (Max) -120 ~ -43 dBm -120 ~ -40 dBm Gain 50 dB 2 dB Tx/Rx Isolation 65 dB Noise Figure 7 dB ( Max Gain ) V. S . W . R 1.7 : 1 Propagation Delay 1 us Impedance 50 ohm Control No Control interface 68 (W) x 100 (H) x 37 (D) mm 7V DC / 110V AC 5.7 W -20 / 5% ~ +50 / 95% -30 ~ +80

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 8. Part List BWS TECH Inc. 2 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Φ Φ Φ BWS TECH Inc. 3 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1)

BWS TECH Inc. 1 of 1 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 10. RF Exposure statement RF Exposure requirement per FCC Rules and Regulation CFR 47 Part 1.1307 Per the FCC Rules and Regulations as described in the OET Bulletin 65, this equipment is categorically excluded from routine evaluation because this equipment’s donor antenna is used at fixed installations with antenna mounted on outdoor, permanent structurers. "The service antenna is built in front of the repeater. It is a dipole antenna. The donor antenna is connected via cable. It is a patch antenna." This transmitter is intended for use at fixed station sites only, and is not to be marketed for mobile use. Under the Section 1.1307 of the FCC Rules, this transmitter is not subject to the Commission’s environmental rules pertaining to the Routine Evaluation for RF exposure prior to equipment authorization.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 1960M 8 8 1880M1880M 1960M ANT ANT Tx OUTTx S/D Control F-Det4dB8dB Rx-OUT B+(7V) Donor Service HR05U1-B-001(Ver 1.0) SHHR05-U1 (FWD-REV ) A2 11Friday, July 16, 2004 Title SizeDocument NumberRev Date:Sheet of U4 LM1905U2 ECG055 IC1 KIA358 3 2 1 L54 22nH C80 10/16V RV51 100B 1 3 2 R17 N.C C16 100p R1 1K8 R8 22K(0603) C57 100p C29 104p(0603) L1 22nH C70 104p(0603) R7 22K(0603) C62 100p R67 10(0603) R20 2R7 R2 10K(0603) U53 ECG055 R4 1M(0603) R61 47 C20 104p(0603) RV52 10KB C83 10/16V IC2 AT89C2051 1 2 3 4 5 6 7 8 9 10 20 18 17 16 15 13 14 12 19 11 RST P3_0 P3_1 XTAL2 XTAL1 P3_2 P3_3 P3_4 P3_5 GND VCC P1_6 P1_5 P1_4 P1_3 P1_1 P1_2 P1_0 P1_7 P3_7 C13 100p D1HSMS2850 C21 104p(0603) F51 Duplexer(Tx) C31 10/16V C17 102p C1 100p(0603) RV1 10KB JACK1 DC-JACK 1 2 3 R21 4K7(0603) C22 10/16V U51 CL1801 C67 100p RV2 100B 1 3 2 L52 22nH R55 2R7 ISO51 ISOLATOR(1960M) inout GND R11 330(0603) C54100p C51 104p(0603) R22 100(0603) R52 300 R6 1K(0603) R16 560 C64 10/16V C52 104p C79 10/16V R24 100(0603) R54 300 C4 104p(0603) R14 N.C C27 10/16V F1 Duplexer(Rx) C75 104p(0603) C53 10/16V R68 2K2(0603) ISO1 ISOLATOR(1880M) inout GND R5318 R547K(0603) R28 300 R15 47K(0603) R18 3K3 C19 100p ISO2 ISOLATOR(1880M) inout GND C68 100p R3 1K(0603) R26 300 C8 100p R56 100(0603) C32 104p(0603) C71 100p X1 4MHz 1 2 5 6 7 R2718 R65 N.C Q52 DTC143TUA C35 N.C R58 100(0603) C18 104p LED1 Green 2 1 R66 N.C Q51 A1001 IC4 HMC291 123 456 C3 N.C D2 KDS160 C28 104p C24 100p L53 22nH C81 N.C R70 10K Q2 DTC143TUA U3 ECG055 L2 22nH R57 10K(0603) C23 N.C Q1 A1001 R63 560 L3 22nH C5 N.C SW51 dip s/w 4dB8dB 21 U54 LM1905 R59 10K(0603) R62 47K C78 104p(0603) C25 100p U52 ECG055 C73 100p C9 1/16V C14 100p C77 104p(0603) Q3 DTC143TUA R69 1K8 C7 100p L4 22nH C74 100p R23 2R7 R19 100 D51 HSMS2850 R60 4K7 IC3 7805(1.5A) 23 INOUT L5 22nH R71 1K(0603) C26 102p R7347K(0603) IC51 HMC291 123 456 LED2 Green/Red 2 1 L51 22nH C11 1/16V C34 104p(0603) F52 1960M 12 D3 KDS160 C10 104p C56 100p C12 1/16V C33 104p(0603) C61 10/16V C30 N.C IC52 KIA358 3 2 1 C59 100p F2 1880M 12 R9 10(0603) R25 2K7 R10 104p(0603) C60 104p C63 104p R75 3K9(0603) C69 102P C58 102p C76 N.C R64 6K8(0603) R12 10K(0603) C72 104p(0603) 2 1 R51 2R7 IC53 7805(1.5A) 23 INOUT C65 104p(0603) R13 4K7(0603) 5 6 7 R72 1M(0603) ISO52 ISOLATOR(1960M) inout GND C82 100p C2 104p(0603) C15 100p R74 1K(0603) U1 CL1801

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Licensed Non-Broadcasting Transceiver RF MEASUREMENT REPORT VERIFICATION OF COMPLIANCE PRODUCT : RF Repeater System MODEL/TYPE NO : SHHR05-U1 FCC ID : R31SHHR05-U1 TRADE NAME : Seohwa Telecom Co., Ltd. APPLICANT : Seohwa Telecom Co., Ltd. FCC RULE PART(S) : FCC Part 24 & Part 2 FCC PROCEDURE : Certification FCC CLASSIFICATION : PCS Licensed Transmitter(PCB) EMISSION DESIGNATOR : F9W(CDMA), DXW(NADC), GXW(GSM) FREQUENCY RANGE : 1850 MHz ~ 1910 MHz (Up Link), 1930 MHz ~ 1990 MHz (Down Link) RF OUTPUT POWER : 10 mW (Up Link), 5 mW (Down Link) DATES OF TEST : March 7, 2005 DATES OF ISSUE : February 21, 2005 TEST REPORT No. : BWS-05-RF-002 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This RF Repeater Model SHHR05-U1 has been tested in accordance with the measurement procedures specified CFR 47 Part 2.947 and ANSI C63.4-2000 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TaeHyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc . 2 of 50 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-05-RF-002 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) TABLE OF CONTENTS Pages 1. General Information 3 2. DESCRIPTION OF ATTACHMENTS 4 3. INTRODUCTION 5 4. PRODUCT INFORMATION 6 5. DESCRIPTION OF TESTS 8 6. TEST RESULTS 16 7. TEST Data 17 8. TEST EQUIPMENT LIST 56 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Layout Appendix 8. Part List Appendix 9. User Manual Appendix 10. RF Exposure statement BWS TECH Inc . 3 of 56 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-05-RF-002 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR0 5-U1 (Model: SHHR05-U1) RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. General Information Applicant Information Other Information z EUT Type : RF Repeater System z Model Name : SHHR05-U1 z FCC Identifier : R31SHHR05-U1 z Brand Name : Seohwa Telecom Co., Ltd. z S/N : ProtoType z Freq. Range : 1850 MHz ~ 1910 MHz (Up Link) 1930 MHz ~ 1990 MHz (Down Link) z Max. Power Output : 10 mW (Up Link) 5 mW (Down Link) z Emission Designator : F9W(CDMA), DXW(NADC), GXW(GSM) z FCC Classfication : PCS Licensed Transmitter(PCB) z Rule Part(s) : FCC Part 24 & Part 2 z Test Procedure : Certification z Dates of Tests : March 7, 2005 z Place of Tests : BWS TECH Inc. 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea EMC Testing Laboratory (FCC Registration Number : 553281) TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-05-RF-002 Company Name : Seohwa Telecom Co., Ltd. Company Address : 678, Gasan-dong, Gumcheon-gu, Seoul,Korea Phone/Fax : Phone : 82-2-838-5511 Fax : 82-2-838-5313 BWS TECH Inc . 4 of 56 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-05-RF-002 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR0 5-U1 (Model: SHHR05-U1) 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Layout -. The layouts are shown. Appendix 8. Part List -. The part lists are shown. Appendix 9. User Manual -. The alignment procedure are shown. Appendix 10. RF Exposure statement -. The user operating manual is shown. BWS TECH Inc . 5 of 56 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 24 Certification Report No: BWS-05-RF-002 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR0 5-U1 (Model: SHHR05-U1) 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281). All measurements contained in this application were conducted in accordance with FCC Rules and regulations CFR 47and American National Standard Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 4 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Appendix 2. Test Setup Photos Radiated Emission Fundamental & Harmonics Test Setup BWS TECH Inc. 2 of 4 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) BWS TECH Inc. 3 of 4 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) BWS TECH Inc. 4 of 4 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-002 FCC ID : R31SHHR05-U1 Date of Test : March 7, 2005 Seohwa Telecom Co., Ltd. RF Repeater System FCC ID: R31SHHR05-U1 (Model: SHHR05-U1) Conducted EmissionsTest Setup
