R46TV2704S27" TV MONITOR

LT2720/LT2740 1 TABLE OF CONTENTS INSTALLATION .......................................................................................... 1 FOR YOUR SAFETY ........................................................................ 2 IMPORTANT SAFETY INSTRUCTUONS.................................. .. 3-4 PREPARATION ......................................................................... ... 5-6 OPERATING INSTRUCTIONS ................................................................... 7 USE OF THE REMOTE CONTROL .................................................. 7 USING THE MENUS......................................................................... 8 MAIN MENU...................................................................................... 8 CONNECT PERIPHERAL EQUIPMENT .................................................... 16 FRONT PANEL CONTROL KNOBS ................................................. 16 PREPARATION ................................................................................ 16 VIDEO RECORDER ......................................................................... 17 CAMERA, CAMCORDER, VIDEO GAME SET ................................. 18 DVD PLAYER ................................................................................... 18 DIGITAL SET TOP BOX ................................................................... 19 HEADPHONE ................................................................................... 19 TIPS .................................................................................................. 20 PRODUCT SPECIFICATION...................................................................... 22 BEFORE CALLING SERVICE .................................................................... 24 GLOSSARY ...................................................................................... 25 SYMBOL SYMBOL DEFINITION SA 1965 DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol,within an equilateral triangle,is intended to alert the user to the presence of uninsulated “dangerous voltage”within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons. SA 1966 INSTRUCTIONS: The exclamation point within on equilateral triangle to alert the User to the presence of important operating and maintenance (servicing)instruction In the literature accompanying the appliance. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, Such as vases, Shall be placed on the apparatus. English 2 WARNING: FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. W To prevent fire or shock hazard, do not expose the TV to rain or moisture. Dangerously high voltages are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only. SRS, SRS and are registered trademarks of SRS Labs, Inc. This product is designed using SRS technology with permission from SRS Labs, Inc. 3 Read before operating equipment 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. The TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 14. Unplug this apparatus during l…

Text truncated - open the document above for the full version.

2 7 ” TV Monitor Block Diagram N OTE: .AV2 and S-VIDCO USE the same Audio Input Speaker (2Wx 2) Adapter 120W 12V/5V Audio Line Out(RCA) AC 110 V MSP 34x5G Sound Decoder HCT 4052Selector SPV301A Scaler OSD MCU 17 inch Panel Inverter GTL5640L17 SDRAM 24LC16 EEPROM AT29LV040A-15JC Flash ROM IR Key PAD LVDS TH63LVD M83R VIDEO 1VIDEO 2YCr Cb S - VIDEO VPC 3230 Decoder FQ1236 Philips N JM2244 Selector ANT AD 9883 ADI YUV480p Audio 1 TV audio Audio 2 PC M62438F8 SRS TDA7266D Audio AMP Head phone PT2308EAR AMP YCr Cb

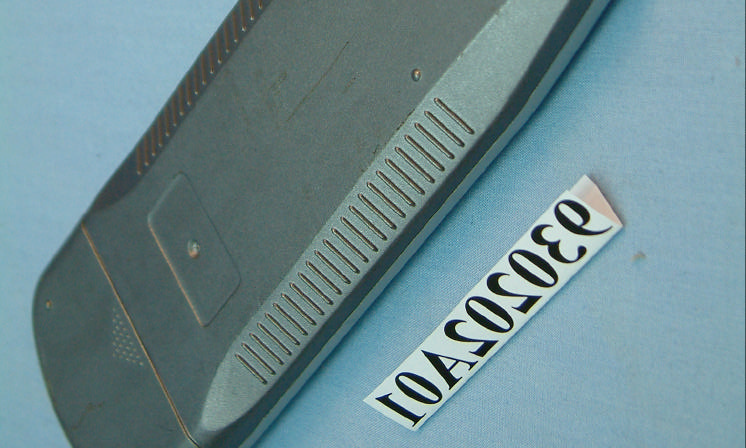

(Photo 1) FCC ID: R46TV2704S (Photo 2) FCC ID: R46TV2704S (Photo 33) FCC ID: R46TV2704S (Photo 34) FCC ID: R46TV2704S (Photo 38) FCC ID: R46TV2704S 10 10

(Fig. 1) FCC ID: R46TV2704S FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FIRST USED ON: PART NO: REVISION VERSION A DRAWN BY: CHECKED BY: APPROVED BY: FINISH: MATERIAL: PART NAME: COLOR: UNIT: WALL THICKNESS: PART NO: SCALE: DATE: VERSION: AOC INTERNATIONAL TEL:886-2-8226-1668 FAX: 886-2-8226-1666 SIZE:170X50 PET 0.1mm R=1 40L155-309 27" TV Monitor 40L155-309 LT2720 100-240VAC, 50/60Hz , 2.0A SRS, SRS and symbol are trademarks of SRS Labs, Inc. R Norcent 550 Cliffside Dr. San Dimas,CA 91773 MADE IN CHINA FCC ID: R46TV2704S Audio/Video Apparatus

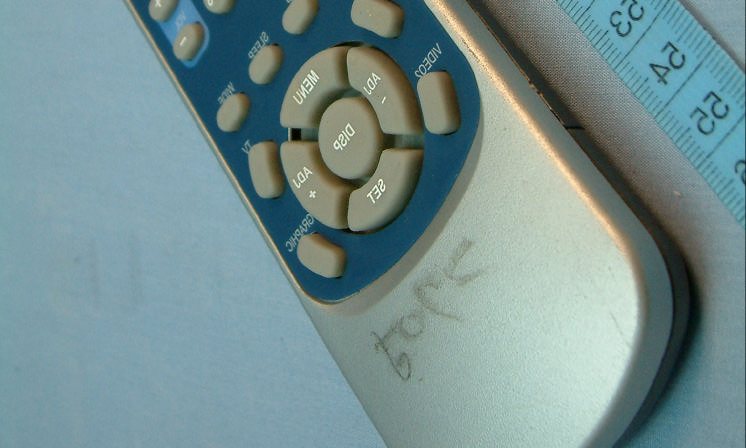

(Photo 35) FCC ID: R46TV2704S (Photo 36) FCC ID: R46TV2704S (Photo 37) FCC ID: R46TV2704S (Photo 3) FCC ID: R46TV2704S (Photo 4) FCC ID: R46TV2704S (Photo 5) FCC ID: R46TV2704S (Photo 6) FCC ID: R46TV2704S 1 1 (Photo 7) FCC ID: R46TV2704S 1 2 3 (Photo 8) FCC ID: R46TV2704S 1 1 1 1 3 5 (Photo 9) FCC ID: R46TV2704S (Photo 10) FCC ID: R46TV2704S 2 4 4 (Photo 11) FCC ID: R46TV2704S (Photo 12) FCC ID: R46TV2704S 6 (Photo 13) FCC ID: R46TV2704S (Photo 14) FCC ID: R46TV2704S 7 7 7

(Photo 15) FCC ID: R46TV2704S 7 7 7 (Photo 16) FCC ID: R46TV2704S (Photo 17) FCC ID: R46TV2704S 8 (Photo 18) FCC ID: R46TV2704S (Photo 19) FCC ID: R46TV2704S (Photo 20) FCC ID: R46TV2704S (Photo 21) FCC ID: R46TV2704S (Photo 22) FCC ID: R46TV2704S (Photo 23) FCC ID: R46TV2704S

(Photo 24) FCC ID: R46TV2704S (Photo 25) FCC ID: R46TV2704S 9 (Photo 26) FCC ID: R46TV2704S (Photo 27) FCC ID: R46TV2704S (Photo 28) FCC ID: R46TV2704S (Photo 29) FCC ID: R46TV2704S (Photo 30) FCC ID: R46TV2704S (Photo 31) FCC ID: R46TV2704S (Photo 32) FCC ID: R46TV2704S

FCC ID: R46TV2704S Report No.: F930202A01A-ID1Issued: Aug. 2, 2004 Reference No.: 930720A07 FCC TEST REPORT REPORT NO.: F930202A01A-ID MODEL NO.: LT2720 RECEIVED: Feb. 2, 2004 TESTED: Feb. 4, 2004 APPLICANT:Top Victory Electronics (Taiwan) Co., Ltd. ADDRESS: 18F, No. 738, Chung Cheng Road, Chung Ho, Taipei Hsien, Taiwan 235 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: R46TV2704S Report No.: F930202A01A-ID2Issued: Aug. 2, 2004 Reference No.: 930720A07 Table of Contents 1CERTIFICATION............................................................................................. 3 2SUMMARY OF TEST RESULTS .................................................................... 4 3GENERAL INFORMATION ............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3DESCRIPTION OF SUPPORT UNITS ............................................................7 4EMISSION TEST ............................................................................................ 8 4.1CONDUCTED EMISSION MEASUREMENT...................................................8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................8 4.1.2 TEST INSTRUMENTS.....................................................................................8 4.1.3 TEST PROCEDURE........................................................................................9 4.1.4 DEVIATION FROM TEST STANDARD............................................................9 4.1.5 TEST SETUP...................................................................................................9 4.1.6 EUT OPERATING CONDITIONS ..................................................................10 4.1.7 TEST RESULTS ............................................................................................ 11 4.2RADIATED EMISSION MEASUREMENT......................................................13 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................13 4.2.2 TEST INSTRUMENTS...................................................................................14 4.2.3 TEST PROCEDURE......................................................................................15 4.2.4 DEVIATION FROM TEST STANDARD..........................................................15 4.2.5 TEST SETUP.................................................................................................16 4.2.6 EUT OPERATING CONDITIONS ..................................................................16 4.2.7 TEST RESULTS ............................................................................................17 5PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 19 6APPENDIX - INFORMATION ON THE TESTING LABORATORIES ............ 21 FCC ID: R46TV2704S Report No.: F930202A01A-ID3Issued: Aug. 2, 2004 Reference No.: 930720A07 1 CERTIFICATION PRODUCT:27” TV MONITOR BRAND NAME:NORCENT MODEL NO.:LT2720 TEST ITEM:R&D SAMPLE APPLICANT:TOP VICTORY ELECTRONICS (TAIWAN) CO., LTD. STANDARDS:FCC Part 15, Subpart B, Class B ANSI C63.4-1992 ICES-003: 1997, Class B We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Feb. 4, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:Aug. 2, 2004 ( Jessica Cheng ) APPROVED BY:, DATE:Aug. 2, 2004 ( Mike Su, Manager ) FCC ID: R46TV2704S Report No.: F930202A01A-ID4Issued: Aug. 2, 2004 Reference No.: 930720A07 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: StandardTest TypeResultRemarks Conducted Test PASS Meets Class B Limit Minimum passing margin is -15.38 dB at 1.457 MHz FCC Part 15, Subpart B, Class B ICES-003: 1997, Class B Radiated Test PASS Meets Class B Limit Minimum passing margin is -5.58 dB at 114.70 MHz NOTE: 1. The information of measurement uncertainty is available upon the customer’s request . FCC ID: R46TV2704S Report No.: F930202A01A-ID5Issued: Aug. 2, 2004 Reference No.: 930720A07 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT27” TV MONITOR MODEL NO.LT2720 POWER SUPPLY Switching Non-shielded cable 3-pin (1.8m) DATA CABLE D-Sub shielded cable (1.8m + two cores) 2x AV Non-shielded input cable (1.8m) AV Non-shielded output cable (1.8m) Component + Audio input Non-Shielded cable (1.8m) Audio Output on-Shielded cable (1.8m) S-Video Input Non-Shielded cable (1.8m) NOTE: The EUT is a 27” TV MONITOR with built-in TV tuner and speaker. This report covers EUT monitor function only. The EUT has the following connectors: VGA input, 2x AV input, S-video input, Component + audio input, AV output, audio autput and TV tuner. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. FCC ID: R46TV2704S Report No.: F930202A01A-ID6Issued: Aug. 2, 2004 Reference No.: 930720A07 3.2 DESCRIPTION OF TEST MODES The was pre-tested under following modes: SIGNAL INPUTRESOLUTION 1280 x 1024 ( 85Hz / 91KHz ) 1024 x 768 ( 85Hz / 69KHz )D-SUB 640 x 480 ( 6…

Text truncated - open the document above for the full version.

FCC ID: R46TV2704S Report No.: F930202A01A-ID19Issued: Aug. 2, 2004 Reference No.: 930720A07 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: R46TV2704S Report No.: F930202A01A-ID20Issued: Aug. 2, 2004 Reference No.: 930720A07 RADIATED EMISSION TEST
